Vollrath PO4-20814L-R Conveyor Ovens
Description

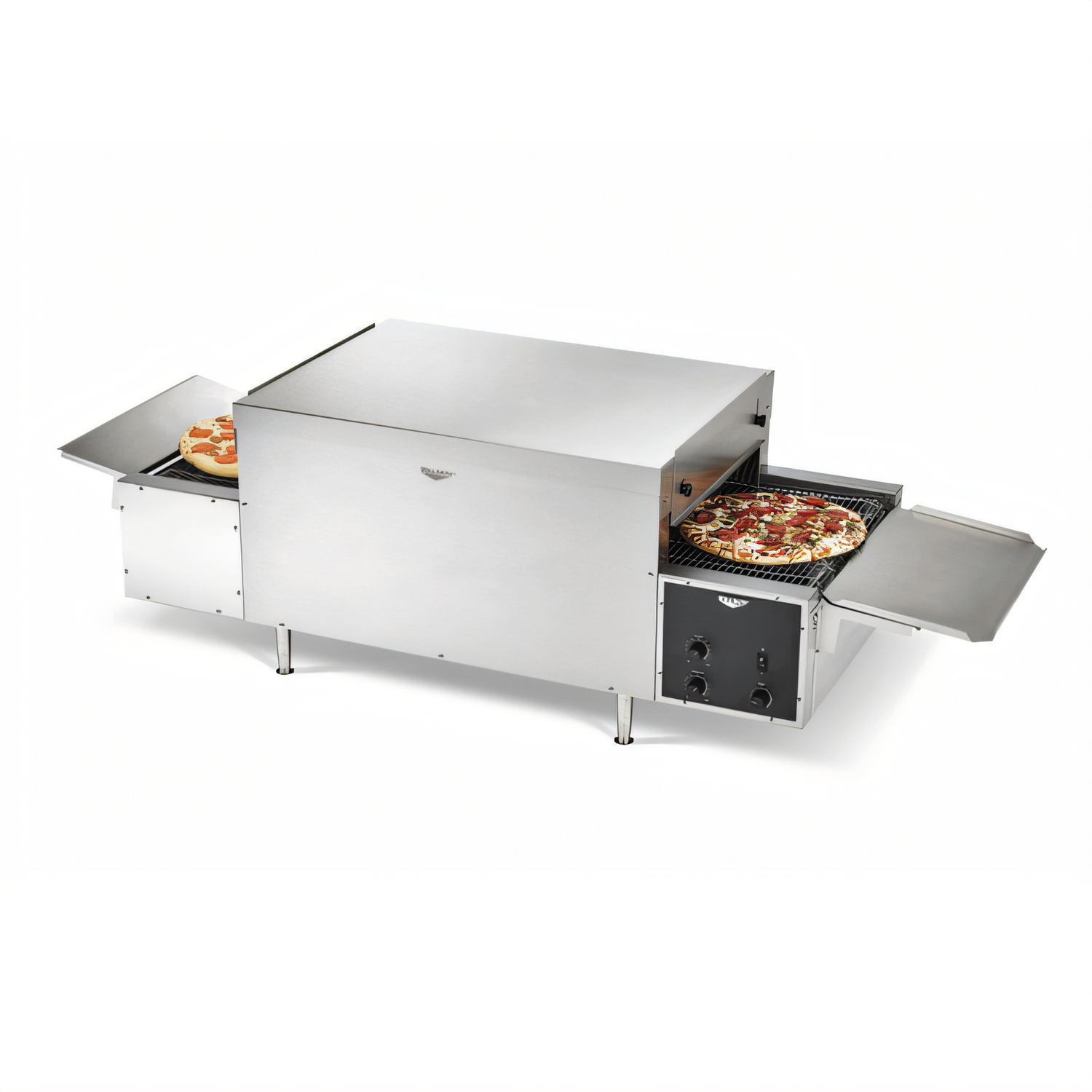

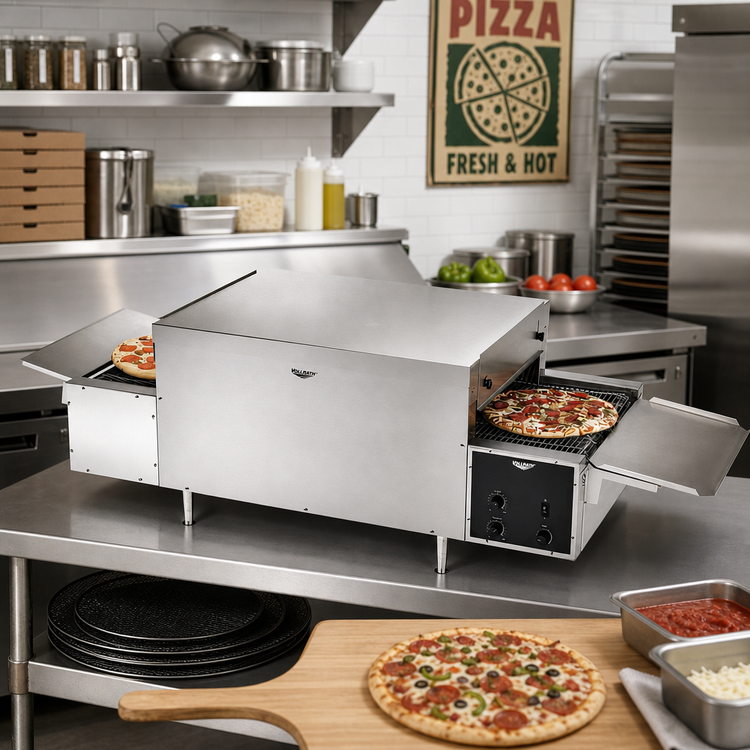

Vollrath 68-inch Countertop Conveyor Pizza Oven – 14" Belt, 208 V
Model PO4-20814 (select Left-to-Right or Right-to-Left feed)Bake consistent, delicious pizzas, flatbreads, and garlic breads without the footprint of a full-size deck oven. Vollrath’s 14-inch Conveyor Pizza Oven pairs fast-reacting quartz heaters with independent top & bottom thermostats and a variable-speed belt, giving you precision control in a compact, ventless design that’s UL, NSF & cULus listed and proudly made in the USA.
Why You’ll Love It
- 14" (35.6 cm) wide stainless steel conveyor—perfect for medium-volume pizza programs

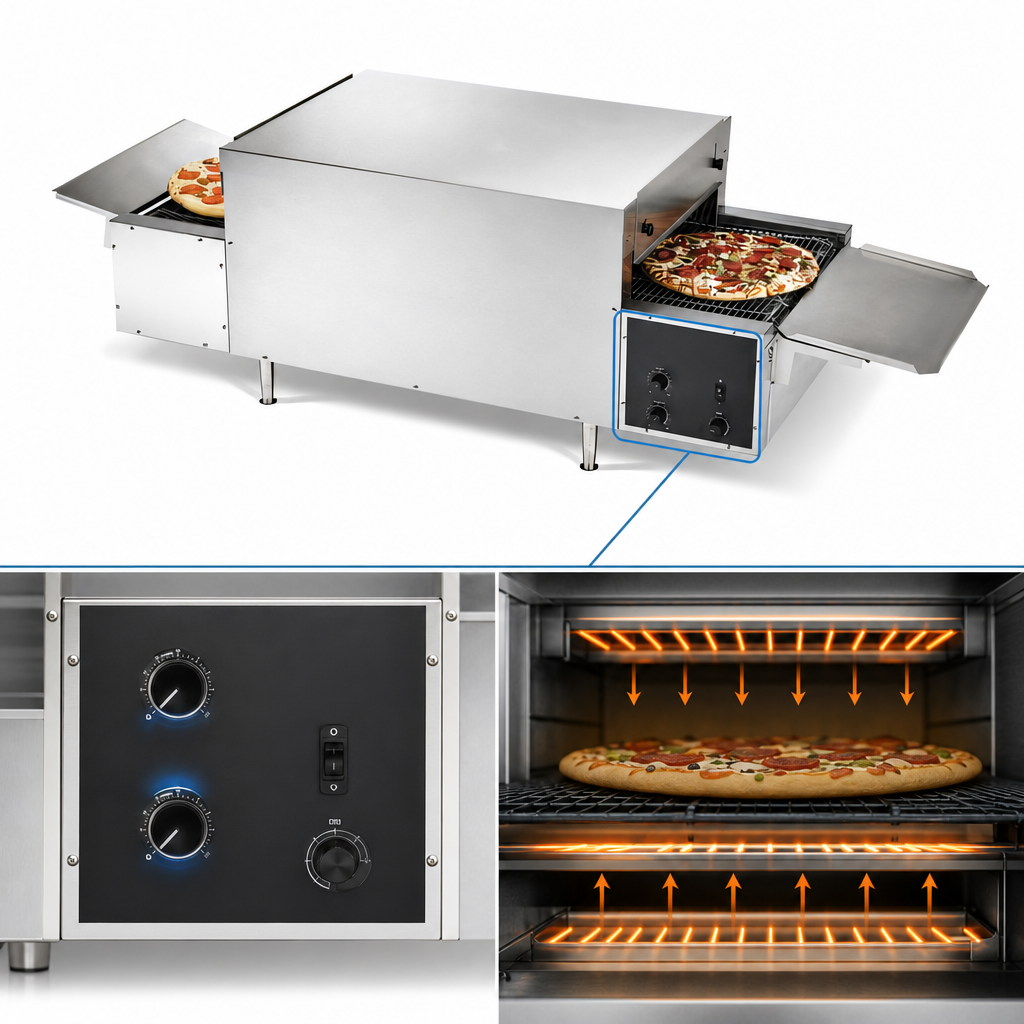

- Independent thermostatic controls for top & bottom heat let you dial in ideal crust & cheese melt

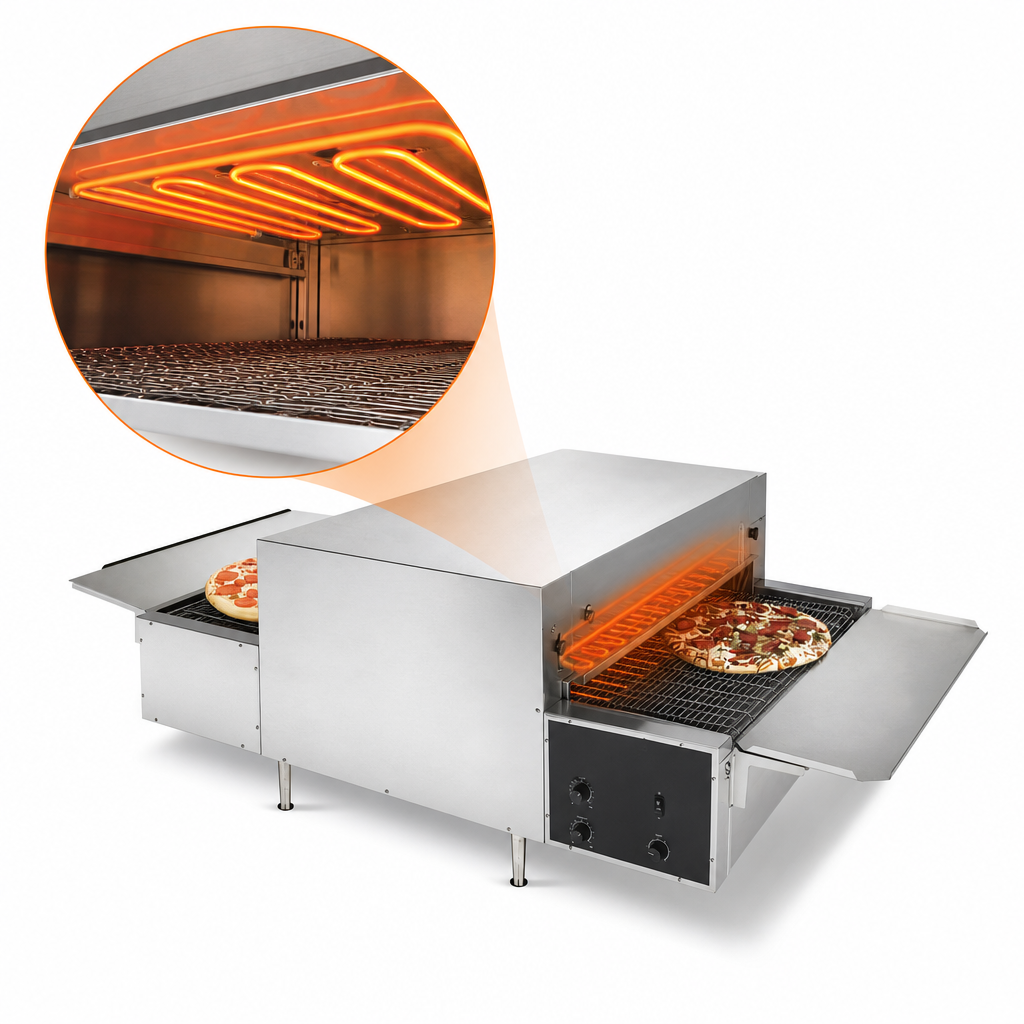

- Energy-efficient quartz heating elements reach temperature quickly and recover fast between orders
- Variable speed drive (maintenance-free stainless chain) for bake times from quick to slow-roasted
- Adjustable product opening from 1½"-4" (3.8-10.2 cm) handles everything from thin crust to thick flatbreads
- Ventless operation tested to NFPA 96 via EPA 202 – check with your local AHJ for final approval
- Includes removable loading & receiving trays; units can be stacked with optional spacer (351036) to double capacity
- 6 ft (1.8 m) cord with NEMA 6-50P plug for simple countertop installation
- Durable all-stainless construction, insulated wiring, and high-temperature terminal blocks for long service life
Technical Specs
| Overall Dimensions (W × D × H) | 68.0" × 18.87" × 21.0" (172.7 × 47.9 × 53.3 cm) |
|---|---|
| Conveyor Width | 14" (35.6 cm) |
| Product Opening | Adjustable 1½"-4" (3.8-10.2 cm) |
| Heating Elements | Quartz tubes – top & bottom |
| Controls | Independent top / bottom thermostats & variable speed |
| Electrical | 208 V / 60 Hz / 5,600 W / 27 A |
| Plug Type | NEMA 6-50P (attached cord) |
| Certifications | UL, NSF, cULus – Ventless verified |
| Construction | Stainless steel, adjustable legs |
| Shipping Weight | Approx. 130 lb (59 kg) |
| Country of Origin | USA |
| Warranty | 2-Year Parts / 1-Year Labor • Heater tubes: 1-Year |
Designed for operations that produce medium volumes of fresh, par-baked, or frozen pizza & flatbreads. Do not use for deep-dish pizza, raw meats, or household applications.
Need more throughput? Stack a second oven with spacer kit #351036 (sold separately) and double your production without additional floor space.
