Vollrath HDCCV-48 Hot Food Displays
Description

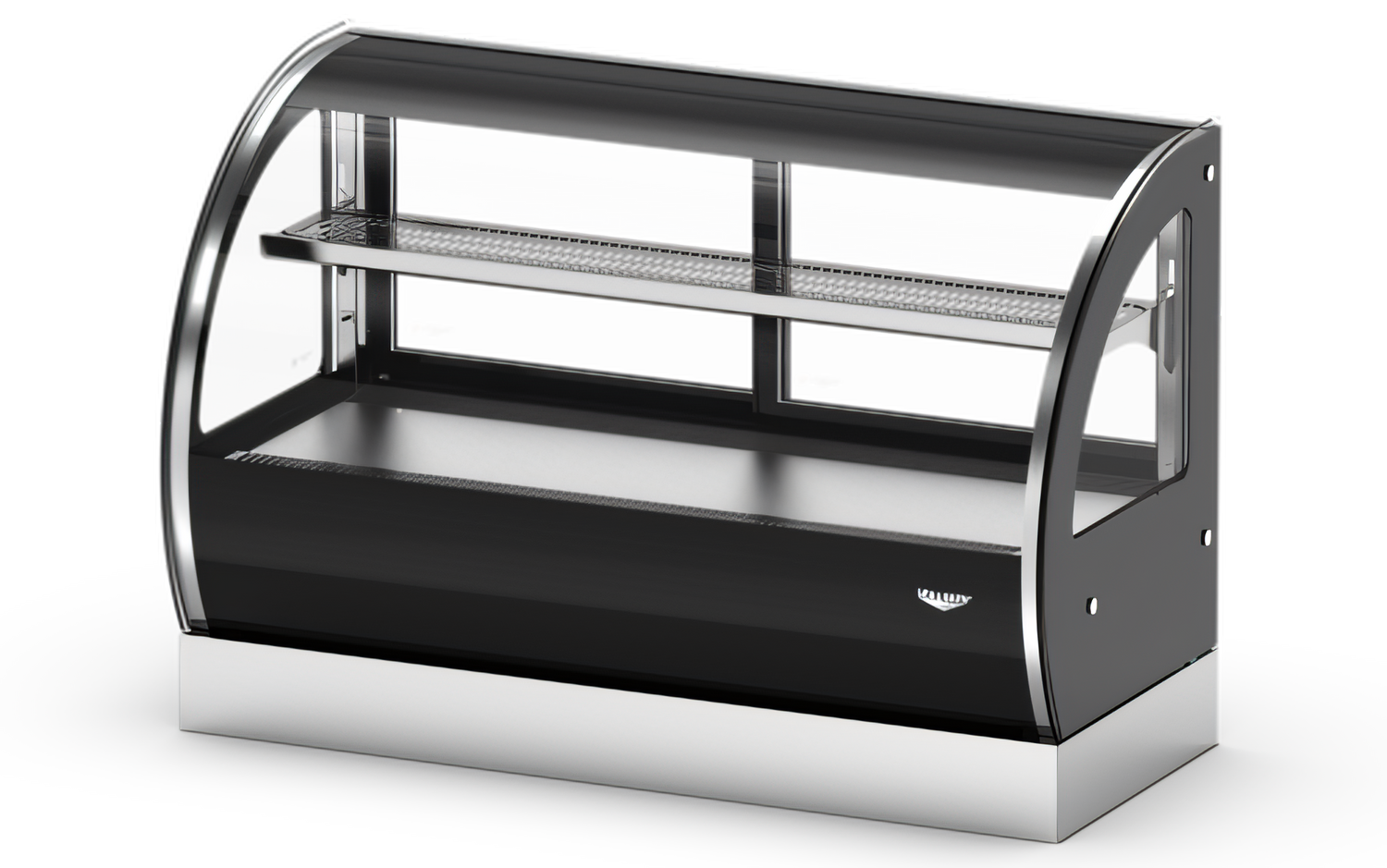

Vollrath Curved Countertop Heated Display Case – 48" (Model HDC9248)
47.9" W × 21.5" D × 32" H | 104–165 °F temperature range | 120 V plug-and-playShowcase deli favorites, grab-and-go entrées, and freshly baked goods in their best light. The Vollrath HDC9248 keeps product at safe serving temperatures while its curved, double-pane glass and bright LED lighting draw customers in. Designed for full-service counters, this 48-inch heated display case combines precision temperature control with operator-friendly access for effortless merchandising and cleaning.
Why you’ll love it
- Illuminated interior – long-life LEDs at the canopy and under the adjustable shelf keep every item perfectly lit.
- Even, consistent heat – internal fans circulate hot air so food stays uniformly warm from end to end.
- Wide 104 °F – 165 °F (40 °C – 74 °C) range lets you hold everything from pastries to proteins safely.
- Digital thermostat with easy-read display provides precise, worry-free control.

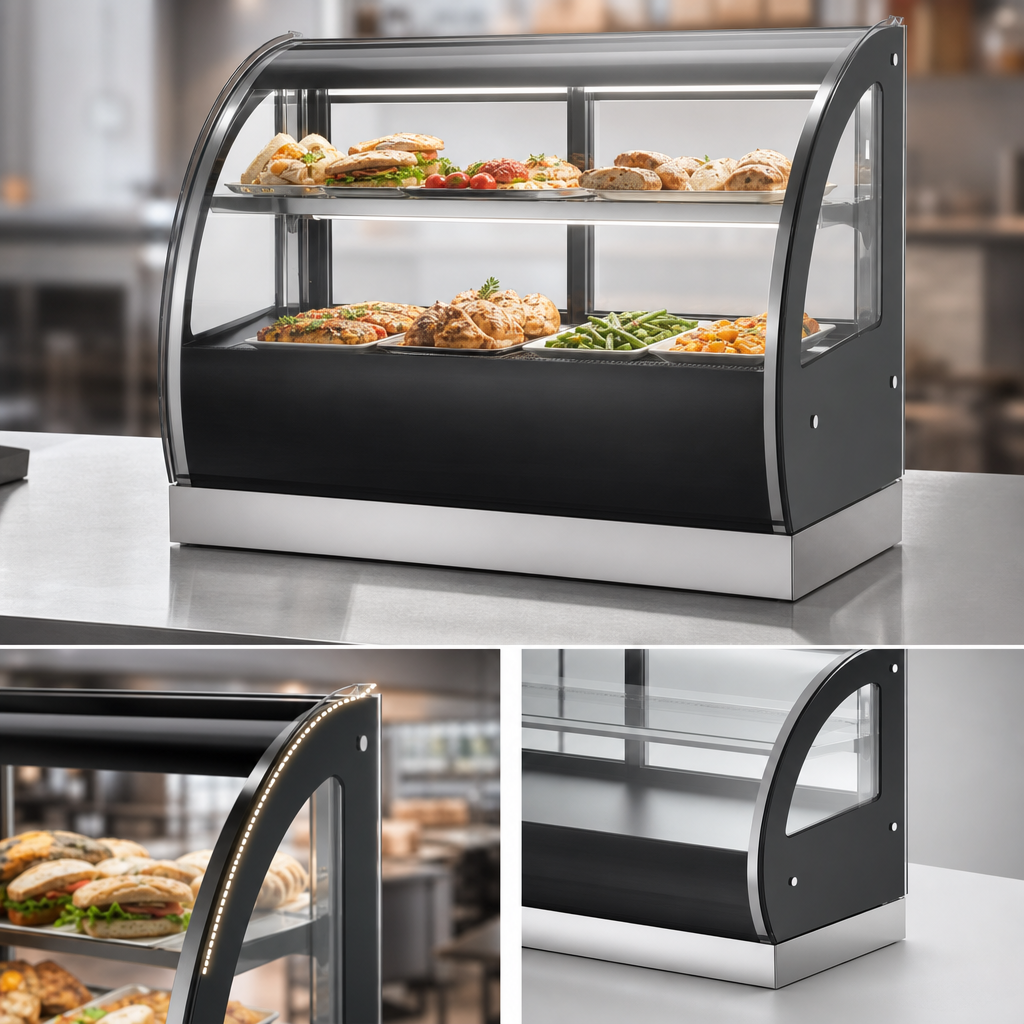

- Durable, energy-saving glass – argon-filled, low-E, double-pane curved front maximizes visibility while minimizing heat loss.
- 3-position floating shelf (one included) adapts instantly to tall or short products.

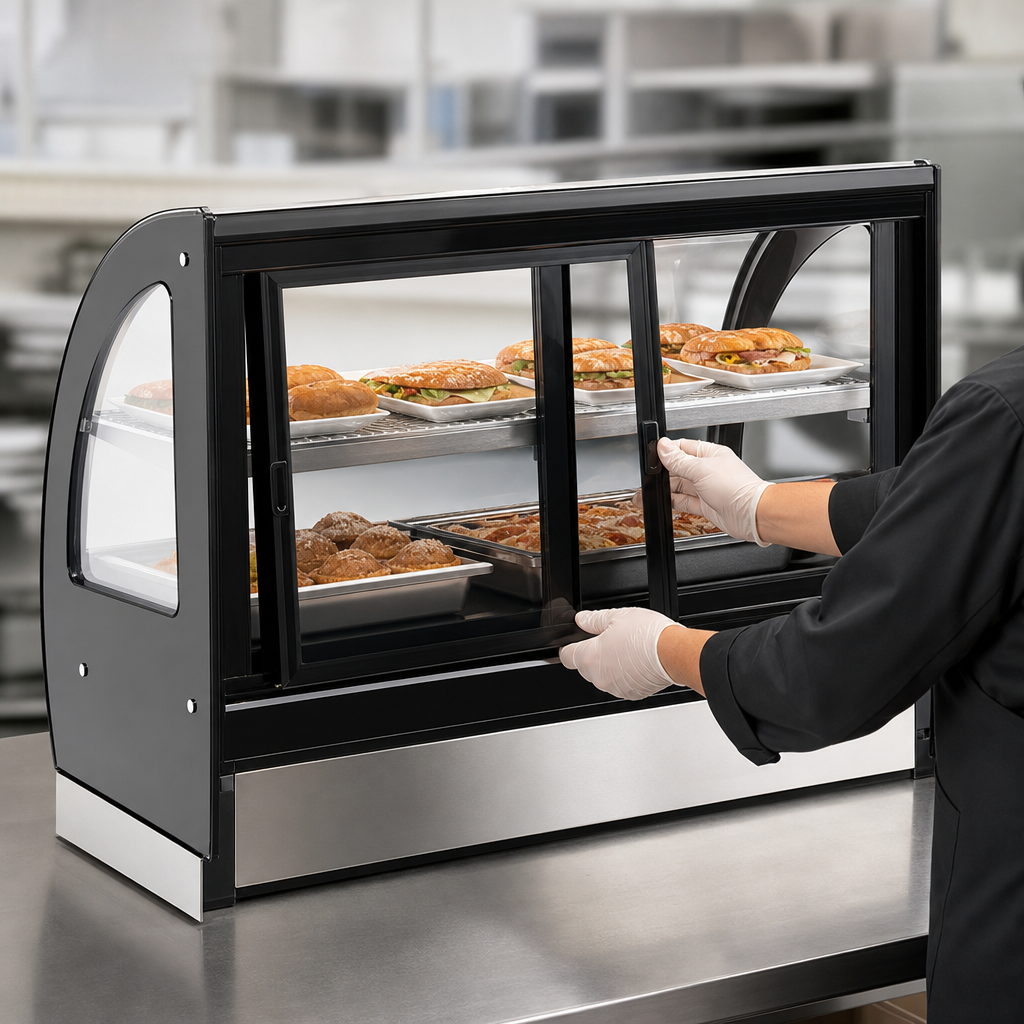

- Rear sliding glass doors lift off for fast loading, merchandising changes, and thorough cleaning.
- 6 ft (1.8 m) factory-installed cord with NEMA 5-15P plug – set it, plug it, sell.
- Zero-clearance countertop design; optional 4" adjustable legs available.
- cULus & UL EPH Classified to NSF/ANSI 4 for commercial foodservice peace of mind.
Technical specifications
| Model | HDC9248 |
|---|---|
| Display style | Countertop, full service, curved glass |
| Exterior dimensions (W × D × H) | 47.9" × 21.5" × 32" (122 × 55 × 81 cm) |
| Number of shelves | 1 floating shelf (3-position) plus heated deck |
| Temperature range | 104 °F – 165 °F (40 °C – 74 °C) |
| Thermostat | Digitally controlled, air-circulating |
| Lighting | Top & shelf-mounted LED strips |
| Doors | (2) rear sliding, removable tempered glass |
| Electrical | 120 V / 50-60 Hz / 1-phase, 5.8 A, 700 W |
| Plug | NEMA 5-15P (6 ft cord included) |
| Construction | Argon-filled, double-pane low-E glass; powder-coated steel base |
| Shipping weight | ≈ 352.7 lb (160 kg) crated |
| Agency listings | cULus, UL EPH Classified (NSF/ANSI 4) |
| Warranty | Standard Vollrath commercial warranty — see vollrathfoodservice.com for details |
This product ships by truck freight. Optional 4" adjustable legs and other accessories are sold separately. For full warranty terms, visit vollrathfoodservice.com.
