Description

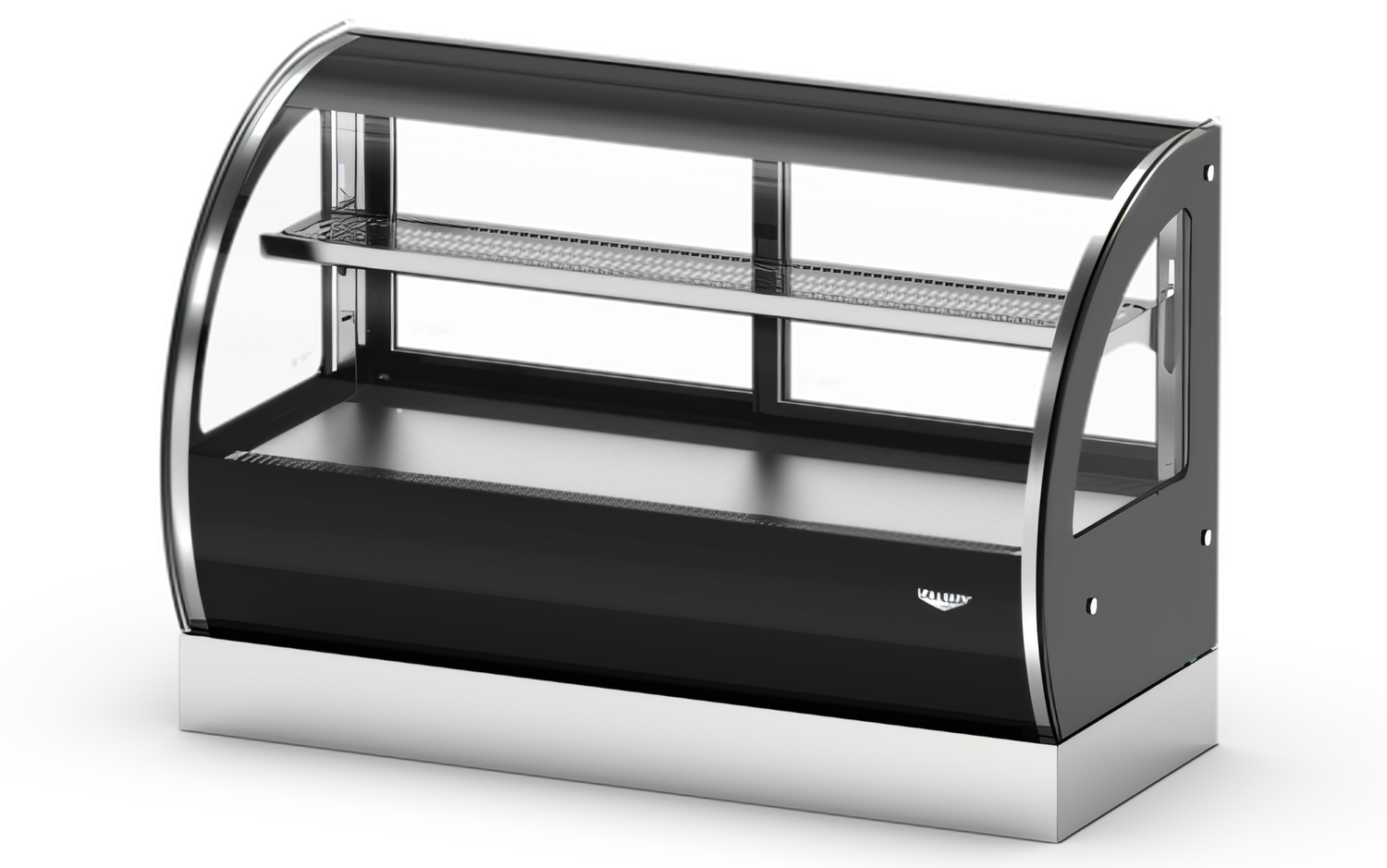

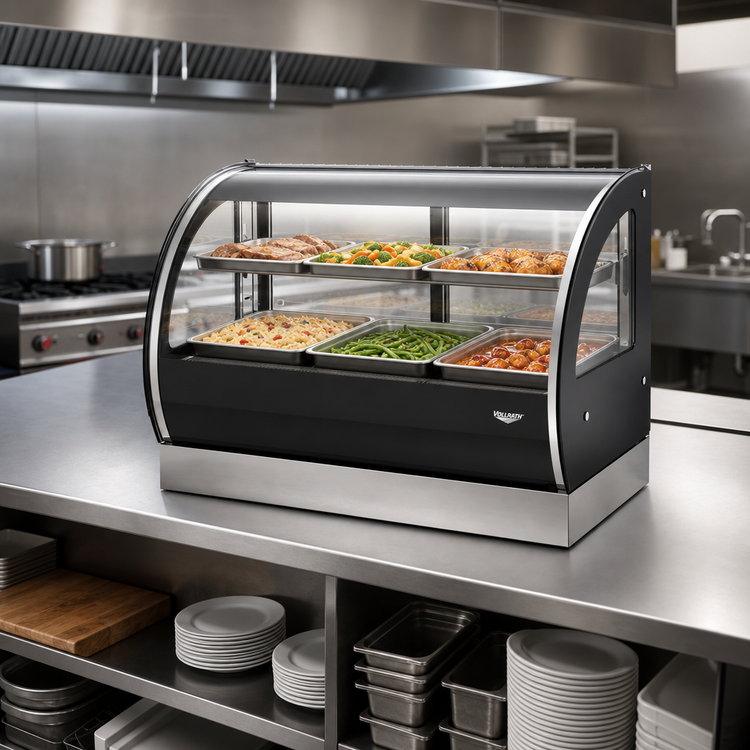

Vollrath HDC9236 Curved Heated Display Case — 36"

Effortless merchandising for hot, ready-to-serve foods

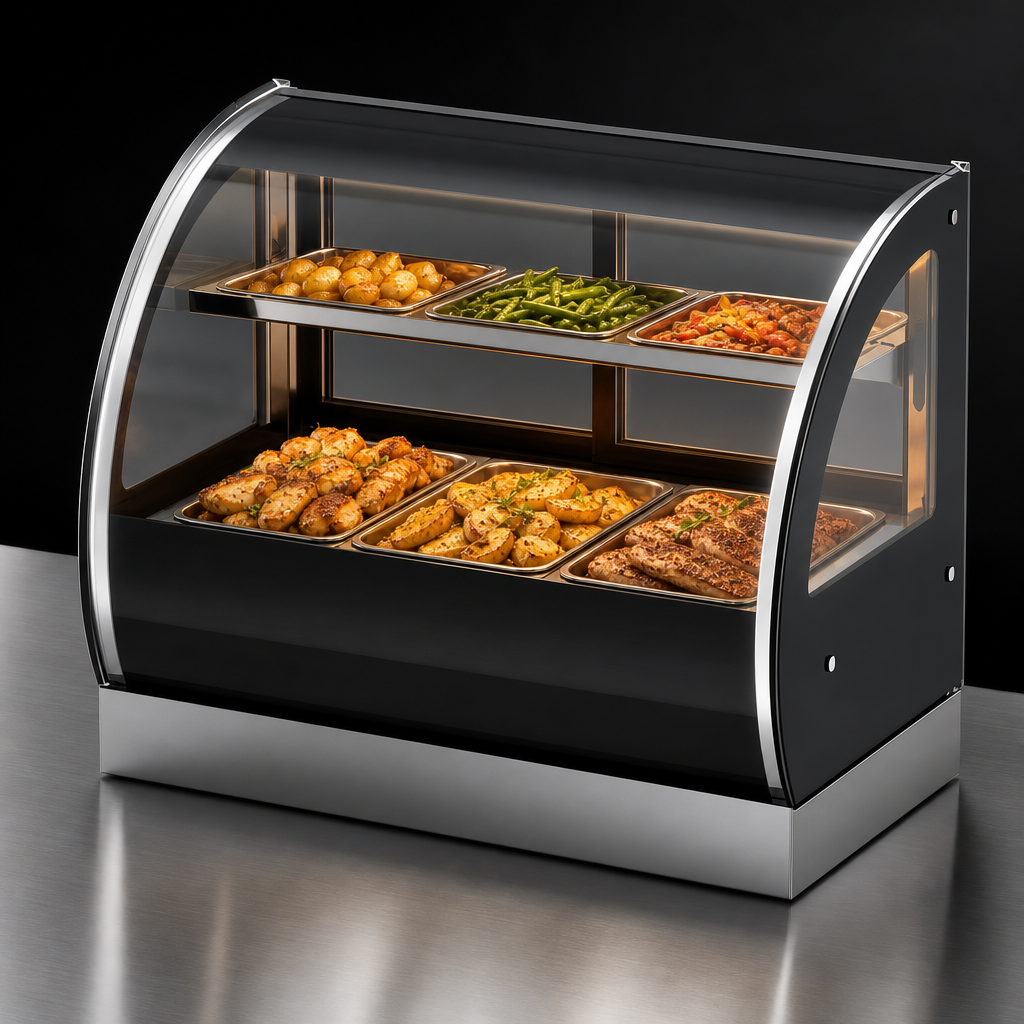

Keep soups, sandwiches, pizzas and other TCS items at safe, appetizing temperatures while showing them off through a sleek curved glass front. The Vollrath HDC9236 brings the performance of a full-size deli case to any countertop.

Key features

  • Bright, cool-running LED lighting at the top and shelf for maximum product visibility.
  • Forced-air circulation and a digitally controlled thermostat maintain an even 104 – 165 °F (40 – 74 °C).
  • Argon-filled, double-pane low-E glass adds strength and energy efficiency.
  • One floating shelf adjusts to three positions for flexible display layouts.

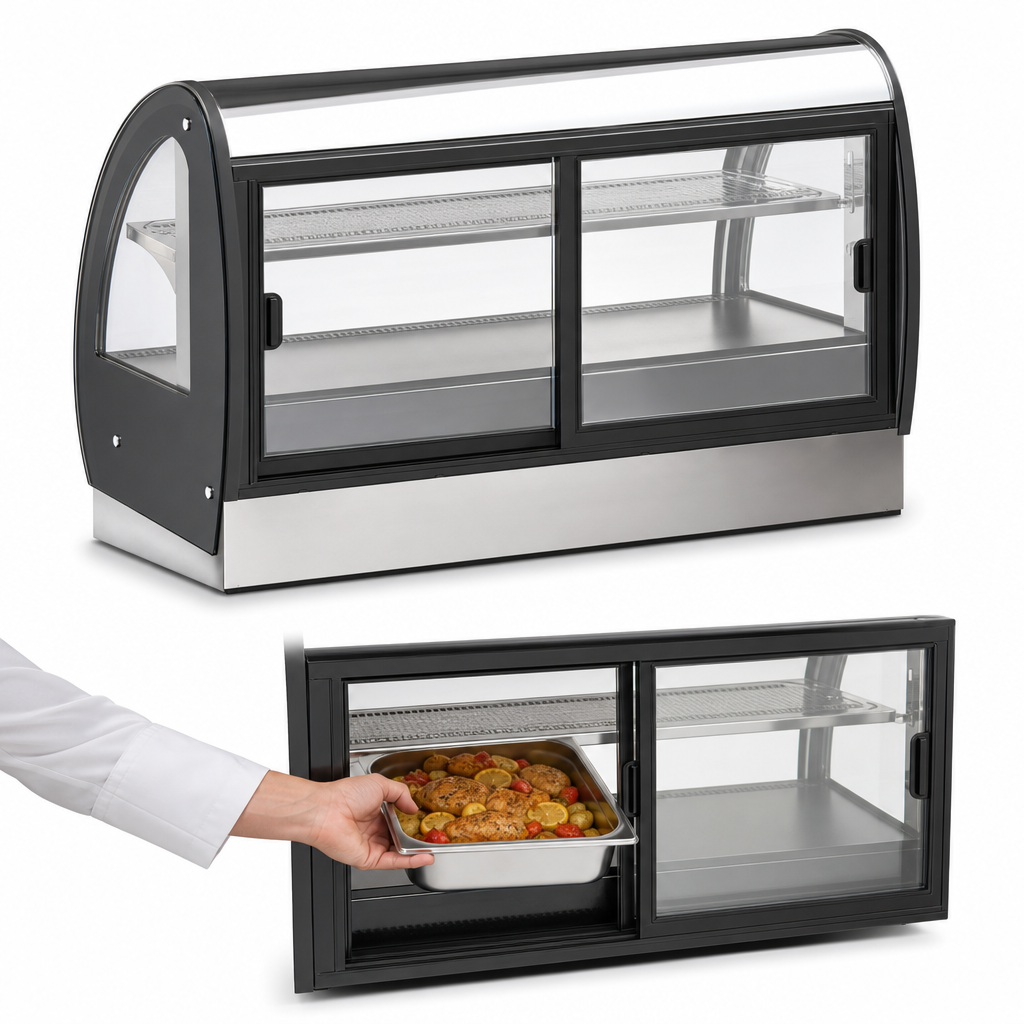

  • Two rear sliding doors lift completely out for quick refills and easy cleaning.
  • Can be operated in ambient (unheated) mode for pastries or packaged snacks.
  • Zero side clearance needed — perfect for packed countertops.
  • Standard 6 ft cord with NEMA 5-15P plug; no hard-wiring required.
  • Certified cULus & UL EPH Classified to NSF/ANSI 4.

Specifications

Model HDC9236
Style Countertop, full-service, curved glass
Overall dimensions 35.9" W × 21.5" D × 32" H (91 × 55 × 81 cm)
Shelf configuration 1 adjustable floating shelf + base deck (3 height positions)
Temperature range 104 – 165 °F (40 – 74 °C)
Electrical 120 V / 50-60 Hz / 1-ph, 5.8 A, 700 W
Plug type NEMA 5-15P (6 ft / 1.8 m cord)
Shipping weight ≈ 283 lb (128.6 kg) — ships by truck
Certifications cULus, UL EPH Classified (NSF/ANSI 4)

Need additional height? Optional 4" adjustable legs are available.

Perfect for

  • Delis, cafés and bakeries
  • Convenience stores & grab-and-go kiosks
  • Hotel breakfast bars and lobby markets
  • Catering and concession stands
Important: Maintain clear airflow around the bottom vents and keep the top of the unit unobstructed to ensure optimal performance.

For complete warranty terms, please visit vollrathfoodservice.com.

Features & Specs

Manufacturer

Vollrath

Certifications

cULus, UL EPH Classified

Height

32.0in

Width

35.9in

Depth

21.5in

Shipping Weight

283.51lbs

Specifications

Heated Display Case, countertop, full service, 35.9"W x 21.5"D x 32"H, curved glass front, (2) rear sliding glass doors, (1) shelf, illuminated interior, 104° - 165°F temperature range, 120v/50-60/1-ph, 5.8 amps, cord with NEMA 5-15P, cULus, UL EPH Classified (model #HDC9236) (Refer to vollrathfoodservice.com for full warranty policy)
