Vollrath GGMDM-36 Gas Griddles
Description
Vollrath GGMDM-36 | 36" Medium-Duty Manual Gas Griddle
Countertop • 84,000 BTU • Natural Gas / LP ConvertibleBuilt for busy restaurants, pubs, cafés and steak houses, the Vollrath GGMDM-36 delivers the professional power you need in a space-saving countertop footprint. Three individually controlled 12" heating zones and a heavy ¾" thick polished steel plate give you the consistency, recovery and versatility required for everything from breakfast staples to dinner entrées.
Key Features & Benefits

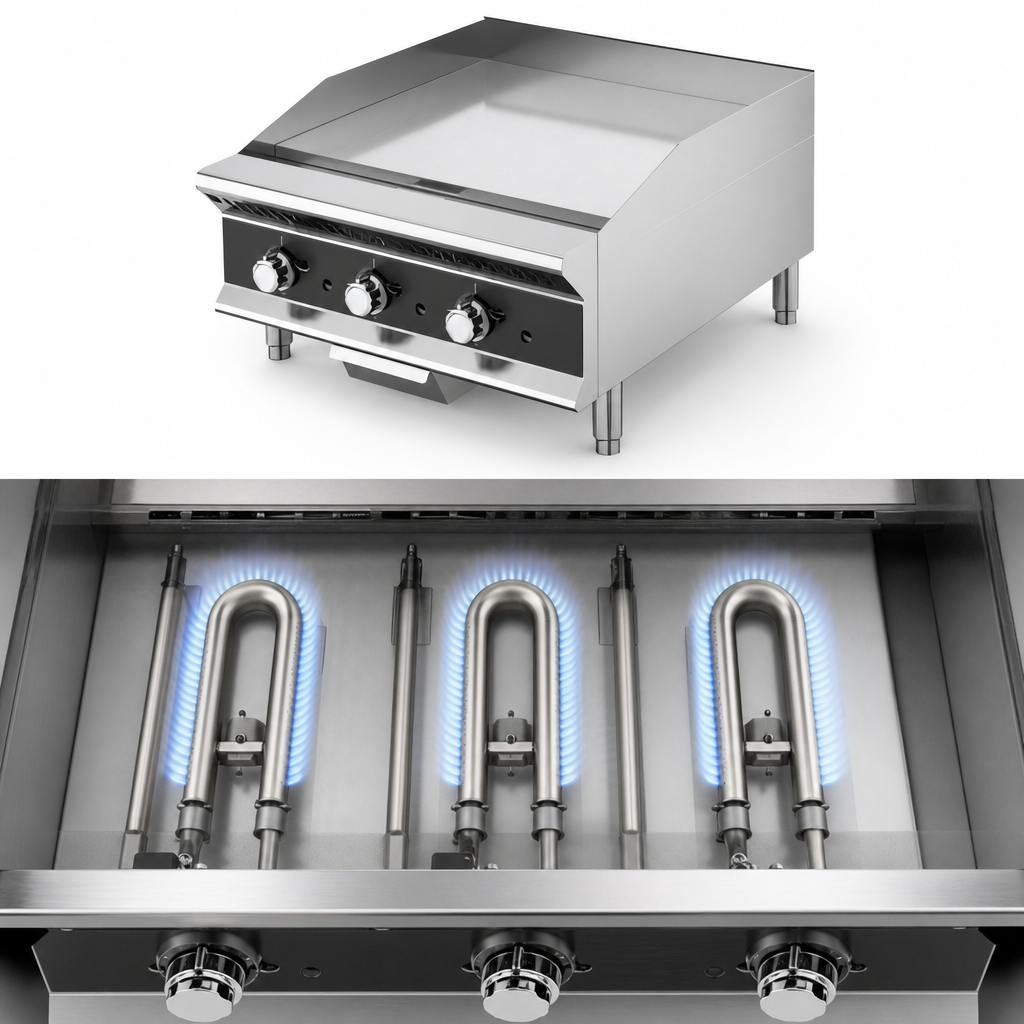

- Three 28,000 BTU custom stainless-steel U-shaped burners (total 84,000 BTU).
- Individually controlled 12" zones let you sear, sauté and hold at different temps simultaneously.
- Natural-gas-ready with included LP conversion kit for fast field change-over.
- Polished ¾" (1.9 cm) thick steel plate provides even heat distribution and excellent heat retention.
- Zero-clearance sides save valuable line space; 6" rear spacing meets ventilation needs.
- Divided stainless-steel drip pan reduces sloshing on removal for a cleaner workspace.
- Bull-nose front edge and metal knobs (guaranteed for life) protect hands from heat.
- Heavy-duty gas valves and welded plate seams maximize durability and simplify clean-up.
- 4"–5½" adjustable legs make leveling on any work surface easy.
- Certified to ETL, ETL Sanitation & cETL for NSF/ANSI Std 4 compliance.
At-a-Glance Specs
| Model | GGMDM-36 |
|---|---|
| Overall Dimensions (W × D × H) | 36.0" × 29.38" × 16.0" (91.4 × 74.6 × 40.6 cm) |
| Cooking Surface | 35.7" × 20.5" (90.7 × 52 cm) |
| Plate Thickness | ¾" polished steel |
| Heat Zones / Burners | 3 zones / 3 U-shaped burners (28,000 BTU each) |
| Total BTU | 84,000 BTU/hr |
| Gas Connection | ¾" NPT (right-side rear) |
| Fuel Type | Natural Gas (LP kit included) |
| Construction | Stainless-steel front, sides & backsplash; aluminized steel chassis |
| Certifications | ETL, ETL Sanitation, cETL |
| Warranty | 1-Year Limited; metal control knobs – Lifetime |
Installation Notes
- Unit must be placed adjacent to non-combustible surfaces only.
- Maintain 6" clearance at the rear for ventilation; zero side clearance to non-combustibles.
- Legs must remain installed (4" minimum) to ensure proper airflow beneath the griddle.
- Have a qualified technician connect gas and verify pressure before first use.
Need a different width or thermostat controls? Browse the complete Vollrath Medium-Duty griddle line in our store.
