Vollrath GGMDM-24 Gas Griddles
$1,190.05
Unit price
/
Unavailable
Description

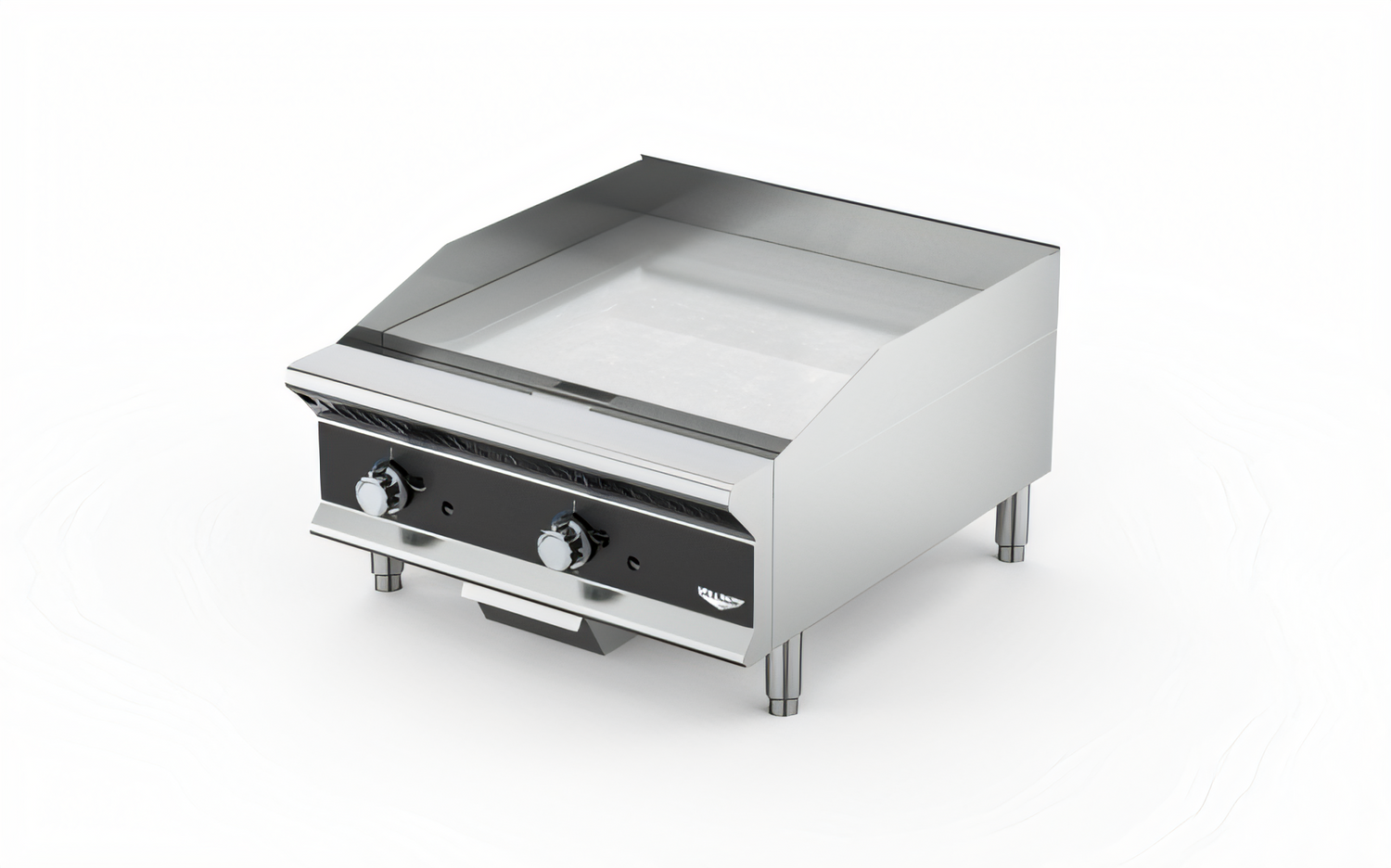

Vollrath 24" Medium-Duty Flat-Top Gas Griddle
Model GGMDM-24 • Countertop • Manual ControlBuilt for busy restaurants, pubs, and cafés that need reliable performance in a compact footprint, the Vollrath GGMDM-24 delivers the powerful, even heat you’d expect from a full-size range—without sacrificing valuable line space.
Key Benefits

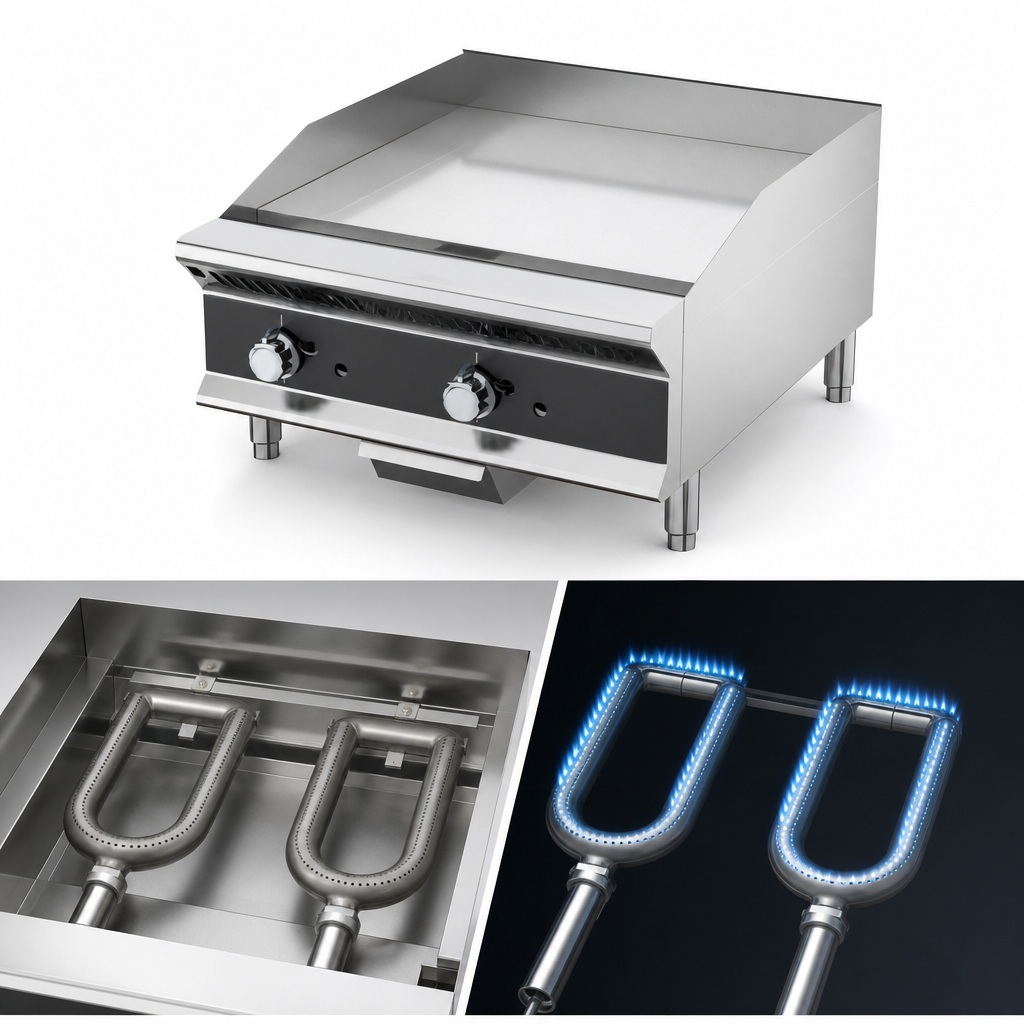

- 56,000 BTU output from two 28,000 BTU custom stainless-steel U-shaped burners.
- Individually controlled 12" heating zones give you precise temperature control across the entire 24" width.
- Natural-gas-ready; liquid-propane conversion kit included for flexible installation.
- 3/4" (1.9 cm) polished steel griddle plate provides superior heat retention and rapid recovery.
- Divided stainless-steel drip pan minimizes messy sloshing during removal.
- Bull-nose front edge shields the operator from hot surfaces.

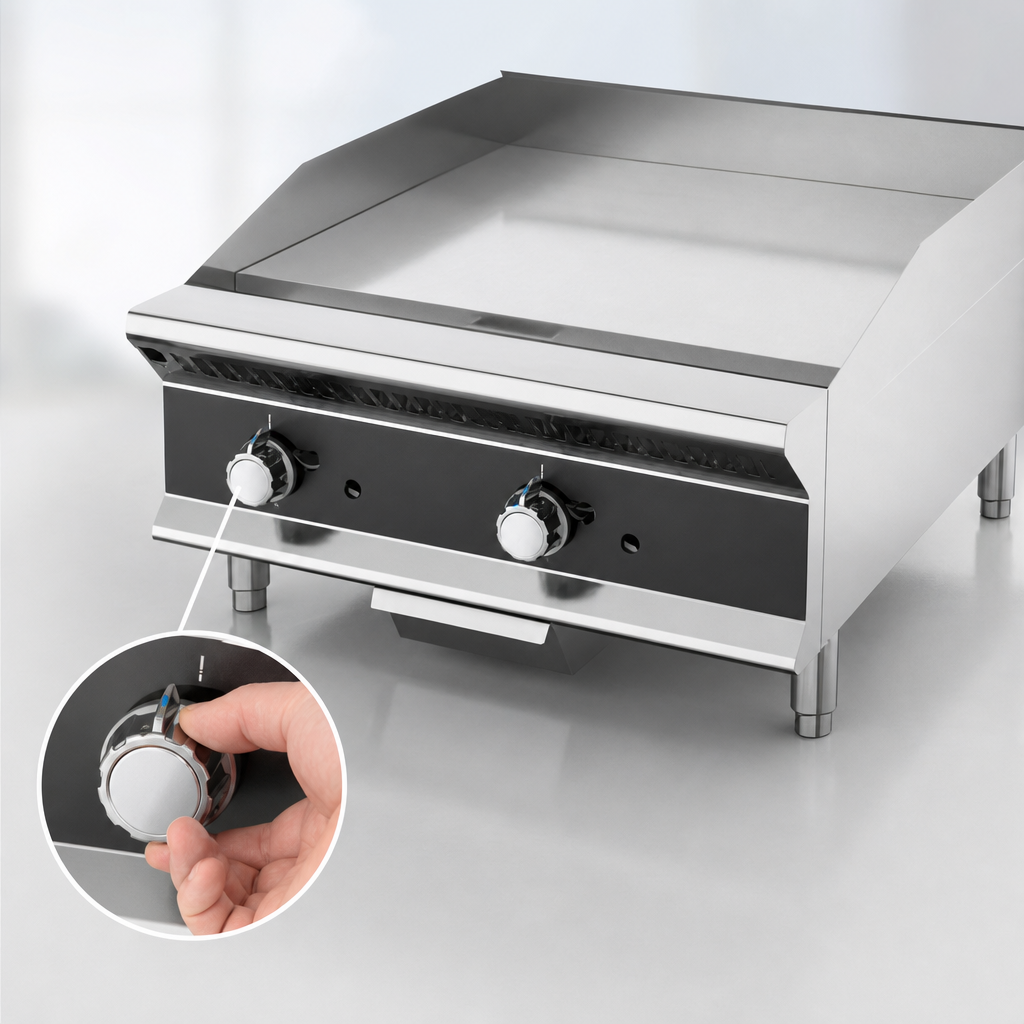

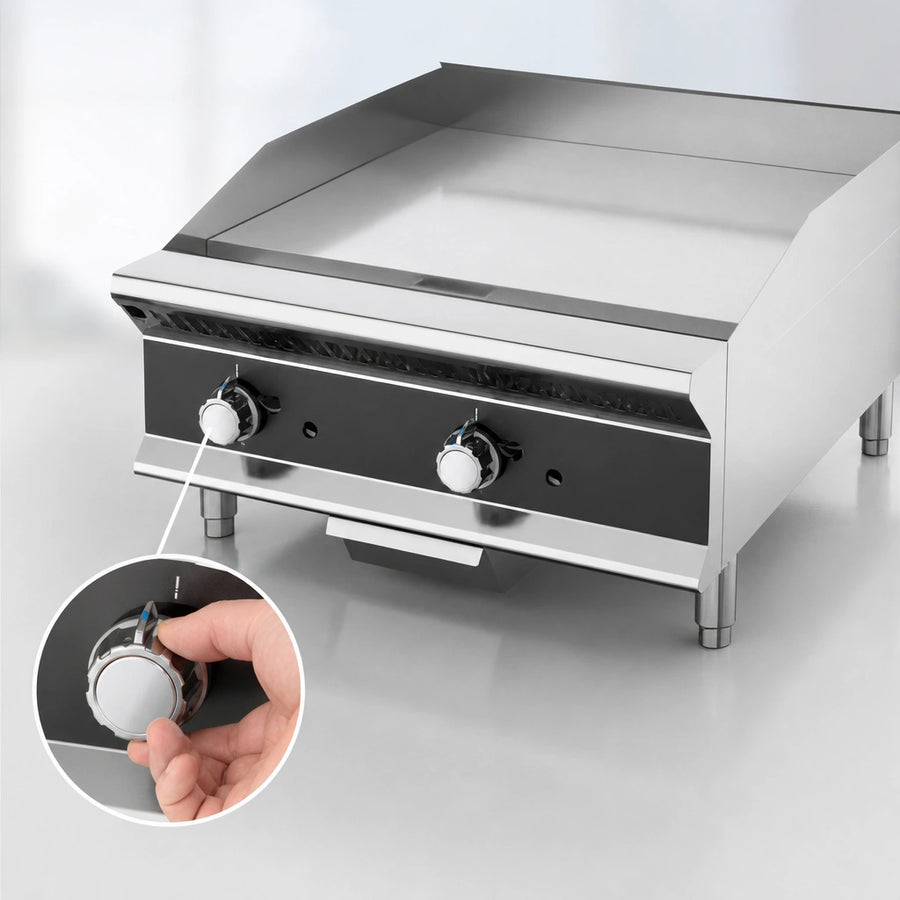

- Heavy-duty metal control knobs are guaranteed for life.
- Zero side-clearance requirement next to non-combustible surfaces saves counter space.
- Field-adjustable 4" legs allow quick leveling and proper airflow beneath the unit.
- Standard ¾" NPT rear gas connection speeds installation.
Certifications & Warranty
- ETL Listed • ETL Sanitation • cETLus
- 1-Year limited parts & labor warranty
- Lifetime warranty on metal knobs
Technical Specifications
| Model | GGMDM-24 |
|---|---|
| Energy Type | Natural Gas (LP kit included) |
| Total BTU | 56,000 BTU/hr (2 × 28,000 BTU burners) |
| Control Type | Manual, independent flame adjustment |
| Griddle Plate | ¾" polished steel |
| Cooking Surface (W × D) | 23.7" × 20.5" (60.2 × 52 cm) |
| Overall Dimensions (W × D × H) | 24.0" × 29.38" × 16.0" |
| Construction | Stainless-steel front & sides, aluminized-steel body |
| Grease Management | Divided stainless-steel drip pan, welded seams |
| Gas Inlet | ¾" NPT (rear, adds 2" depth) |
| Clearance | 0" sides (non-combustible), 6" rear, 4" leg height for airflow |
| Net Weight | ≈ 95 lb (43 kg) |
Installation Notice: This appliance must be installed and adjusted by a qualified technician in accordance
with local codes. Adequate ventilation and required clearances are essential for safe operation.
Need additional specs or CAD drawings? Visit Vollrath’s resource center or contact our team — we’ll be happy to help.
Features & Specs
Features & Specs
Manufacturer
Vollrath
Certifications
cETLus, ETL
Height
16.0in
Width
24.0in
Depth
29.37in
Shipping Weight
202.82lbs
Griddle Plate Finish
smooth steel
Cooking Surface Width (side - side)
19" - 24"
Exterior Finish
all stainless steel exterior
Controls
manual controls
Plate Thickness
1"
Specifications
Medium-Duty Gas Griddles, countertop, 24.0"W x 29.38"D x 16.0"H, control knob, Stainless Steel Aluminized, ETL, ETL Sanitation, CETL, 1 Year Standard Warranty
