Vollrath  |  SKU: GGMDM-18

Vollrath GGMDM-18 Gas Griddles

$1,092.50
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Operating manual Warranty sheet
Related Searches
Gas Griddles Griddles & Flat Tops

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

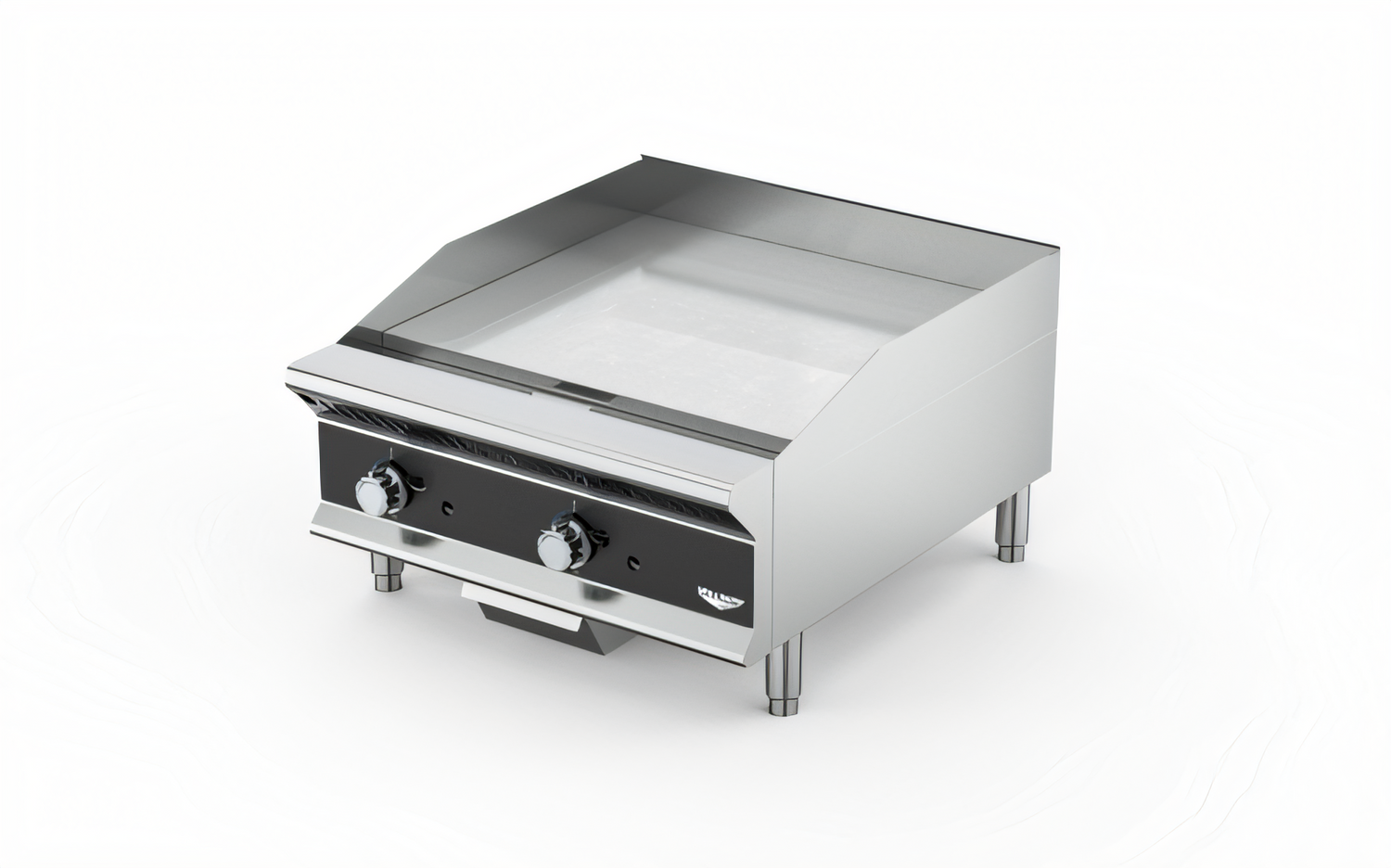

Vollrath GGMDM-18 Medium-Duty 18" Manual Gas Griddle

Countertop flat-top – single zone • 28,000 BTU • ¾" steel plate

Engineered for busy restaurants, pubs and cafés that need big performance in a compact footprint, the Vollrath GGMDM-18 delivers fast recovery, even heat and the rugged reliability chefs expect from the industry’s medium-duty leader.

Key Features

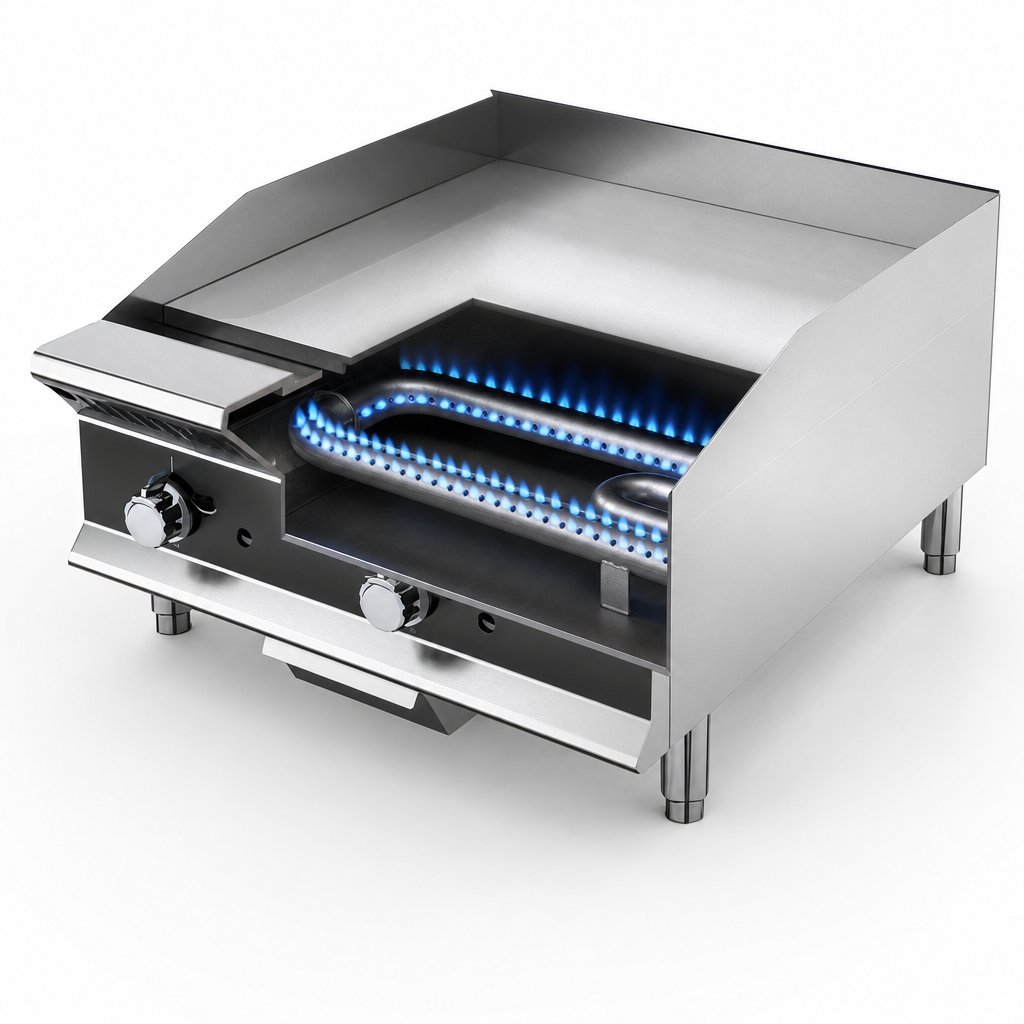

  • 28,000 BTU custom stainless-steel U-shaped burner distributes heat uniformly across the entire plate.
  • ¾" (1.9 cm) polished steel griddle plate maximizes heat retention and resists warping.
  • 17.7" × 20.5" cooking surface gives you room for burgers, breakfast items, quesadillas and more.

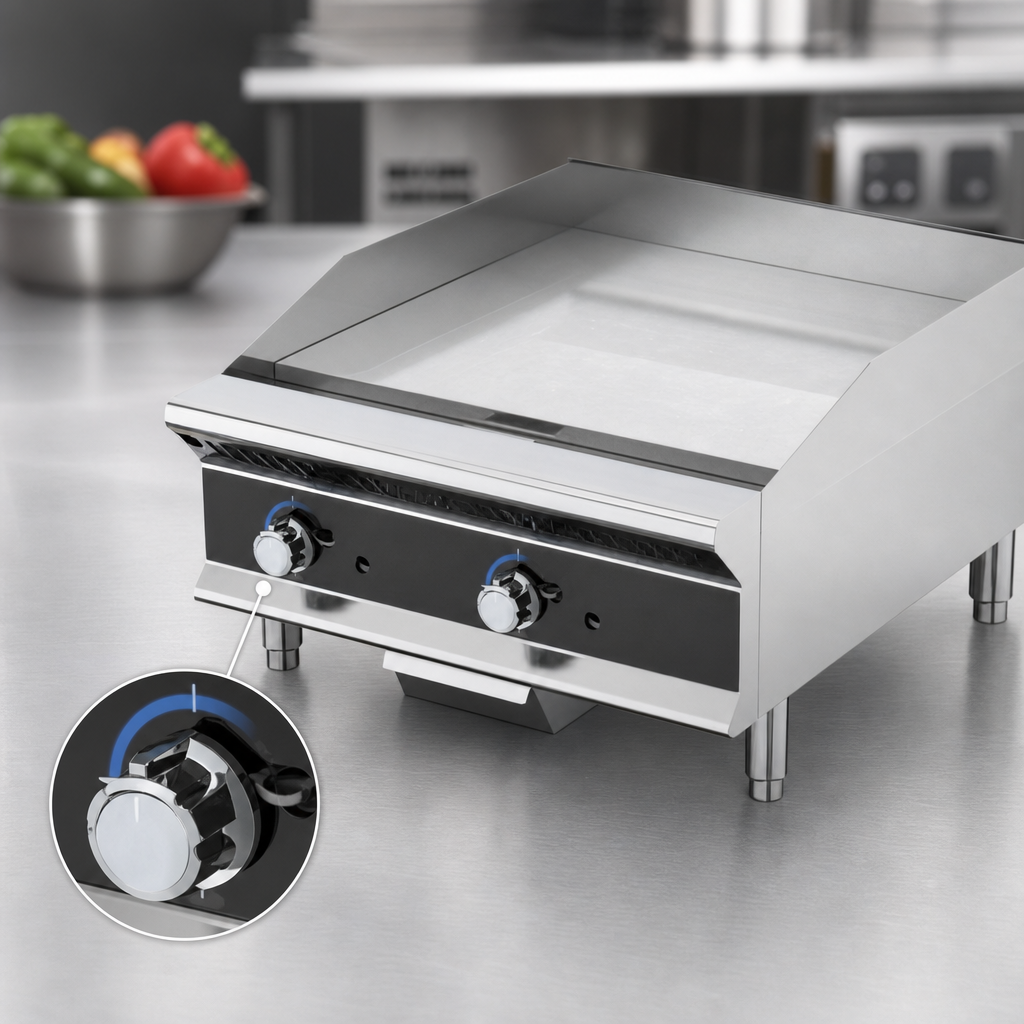

  • Manual flame control knob lets you dial in the perfect sear; metal knob is guaranteed for life.
  • Natural-gas-ready out of the box; LP conversion kit included for field changeover.
  • Bull-nose front edge stays cool to the touch, protecting staff from accidental burns.
  • Divided stainless-steel drip pan reduces sloshing and pulls out from the front for quick clean-up.
  • Heavy-duty stainless & aluminized-steel construction with welded seams eliminates grease traps.
  • 4" adjustable legs simplify leveling and maintain vital airflow under the unit.
Specifications
Model GGMDM-18
Control type Manual, infinite-adjustment gas valve
Heating zones 1 (12" wide)
Total BTU output 28,000 BTU/hr
Burner configuration 1 stainless-steel U-shaped burner
Plate thickness ¾" polished steel
Cooking surface (W × D) 17.7" × 20.5" (45 × 52 cm)
Overall dimensions (W × D × H) 18.0" × 29.38" × 16.0" (45.7 × 74.6 × 40.6 cm)
Gas connection ¾" NPT (right side); ships NG with LP kit
Body material Stainless steel front & sides; aluminized-steel chassis
Grease management Front-access divided stainless drip pan
Certifications ETL • ETL Sanitation (NSF/ANSI STD 4) • cETLus
Warranty 1-year parts & labor; lifetime metal knob warranty
Perfect For
  • Steak houses and bar-and-grill concepts
  • Breakfast diners, coffee shops & food trucks
  • Concessions and catering stations where space is at a premium
Installation Note: Unit must be placed against non-combustible surfaces with a minimum 6" rear clearance and operated on the supplied 4" legs to maintain proper ventilation. Professional gas hookup is required.

Commercial use only. Refer to the Vollrath operator’s manual for complete installation, operation and maintenance instructions.

Features & Specs

Manufacturer

Vollrath

Certifications

cETLus, ETL

Height

16.0in

Width

18.0in

Depth

29.37in

Shipping Weight

154.32lbs

Griddle Plate Finish

smooth steel

Exterior Finish

all stainless steel exterior

Controls

manual controls

Cooking Surface Width (side - side)

13" - 18"

Plate Thickness

1"

Specifications

Medium-Duty Gas Griddles, countertop, 18.0"W x 29.38"D x 16.0"H, control knob, Stainless Steel Aluminized, ETL, ETL Sanitation, CETL, 1 Year Standard Warranty
