Vollrath GGHDM-72 Gas Griddles
Description
Vollrath GGHDM-72 Heavy-Duty Gas Countertop Griddle – 72"
6 independently-controlled zones · 180,000 BTU total · Natural gas with LP conversion kitWhen you need serious grilling horsepower in a single footprint, the Vollrath GGHDM-72 delivers. A full 6 feet of polished steel cooking surface, high-output U-shaped burners, and rock-solid stainless construction make it a favorite for steak houses, diners, pubs, and any high-volume kitchen that can’t afford uneven heat or downtime.
Highlights & Benefits
- Six 30,000 BTU stainless steel U-shaped burners – 180,000 BTU total.

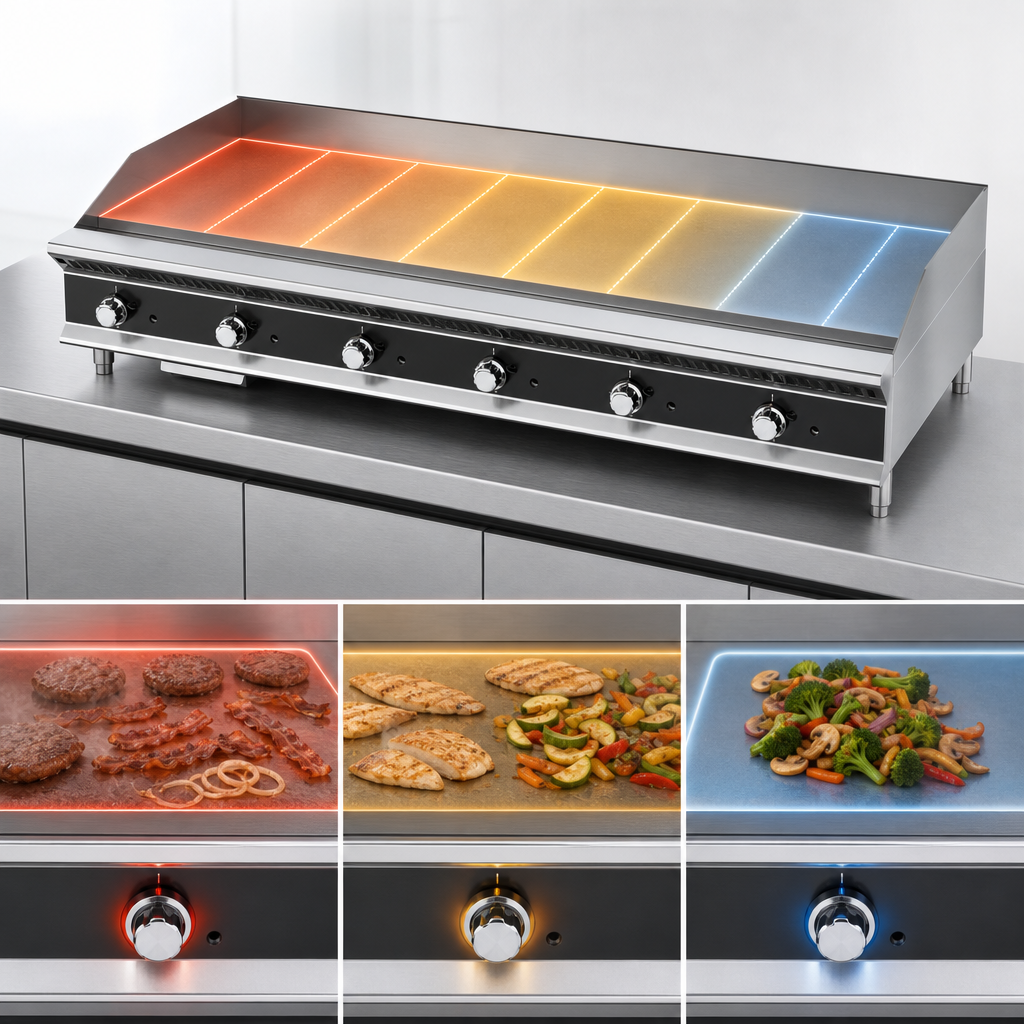

- 12"-wide, individually-controlled heating zones let you sear, sauté, or hold on the same plate.
- 1" thick, polished steel plate maximizes heat retention and recovery.
- Heavy-duty 2 mm back & side splashes keep food where it belongs.
- Welded plate seams eliminate grease and dirt traps for faster clean-up.
- Divided stainless steel drip pans (2 on 72" model) prevent messy sloshing during removal.

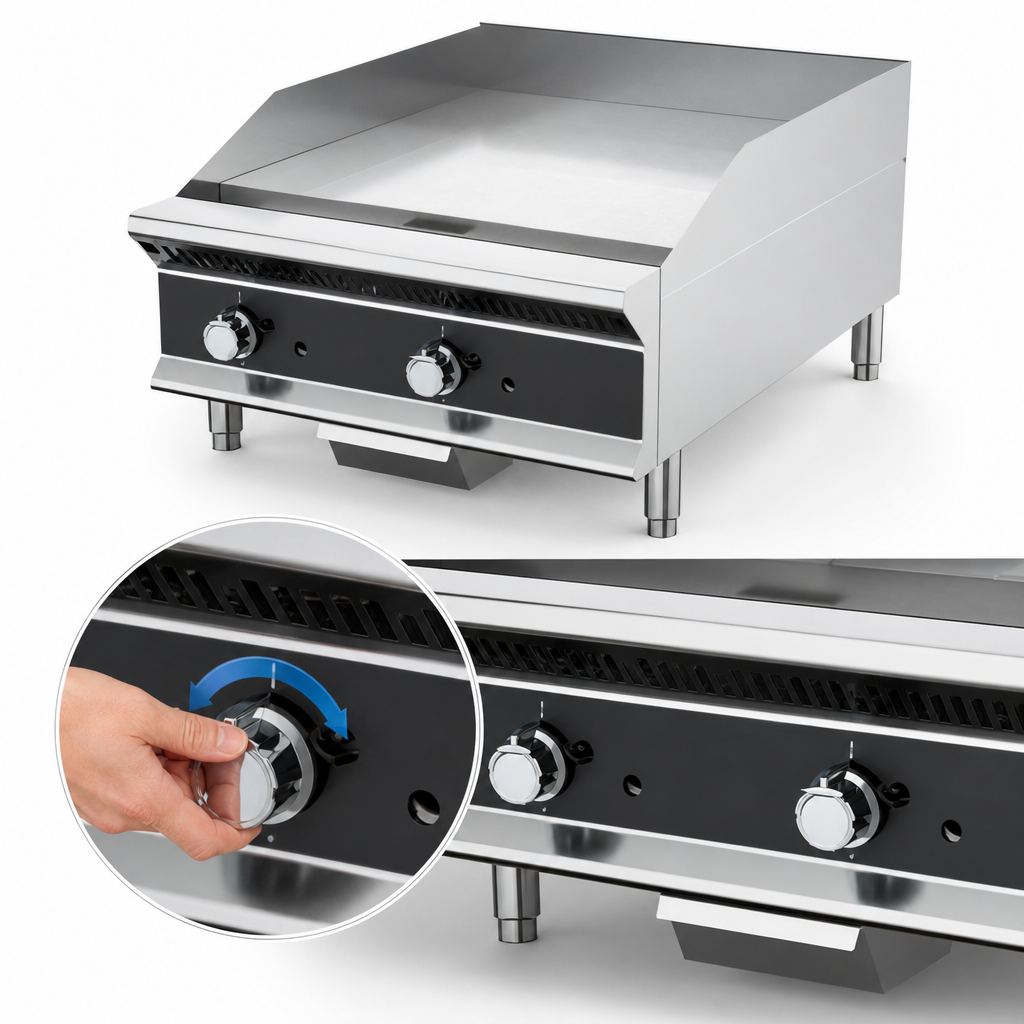

- Metal control knobs guaranteed for life & smooth bull-nose front protect hands from heat.
- Ships natural-gas-ready; LP conversion kit included.
- 4" adjustable legs allow quick leveling and ensure required airflow.
- Zero side clearance from non-combustibles – perfect for tight cooklines.
Technical Specifications
| Model | GGHDM-72 (Manual control) |
|---|---|
| Overall Dimensions (W × D × H) | 72.0" × 32.38" × 16.63" (182.9 cm × 82.2 cm × 42.3 cm) |
| Cooking Surface | 71.8" × 24.6" (182.4 cm × 62.5 cm) |
| Burners / Zones | 6 | 12" each |
| BTU per Burner | 30,000 BTU |
| Total Input | 180,000 BTU/hr |
| Plate Thickness | 1" (2.5 cm) polished steel |
| Gas Inlet | ¾" NPT (rear, 4⅝" above leg base) |
| Construction | Stainless steel body, back & side walls |
| Controls | Manual infinite valves with metal knobs |
| Certifications | ETL, ETL Sanitation, cETL |
| Warranty | 1-Year parts & labor (knobs: lifetime) |
Installation & Clearance
- Must be installed against non-combustible surfaces. Maintain 6" rear clearance.
- 4" legs supplied – required for proper ventilation.
- Qualified technician installation recommended for gas hookup and LP conversion.
Certifications
- ETL Listed for safety
- ETL Sanitation
- cETL (Canada)
Backed by Vollrath
Enjoy peace of mind with Vollrath’s 1-year standard warranty on parts & labor. Plus, the rugged metal control knobs are guaranteed for life.
For complete installation, operating, and warranty information, download the current cut sheet at vollrathfoodservice.com.
