Vollrath GGHDM-48 Gas Griddles
Description
Vollrath Heavy-Duty 48" Gas Countertop Griddle
47.7" W × 32.38" D × 16.63" H · 120,000 BTU · ETL, ETL Sanitation & cETL ListedBuilt to survive the busiest rush and still deliver perfectly even heat, Vollrath’s 48-inch Heavy-Duty Gas Griddle combines a massive 1-inch polished steel plate with four powerful U-shaped burners. From thick-cut rib-eyes to all-day breakfast menus, this flat-top turns countertop space into profit.
Why You’ll Love It

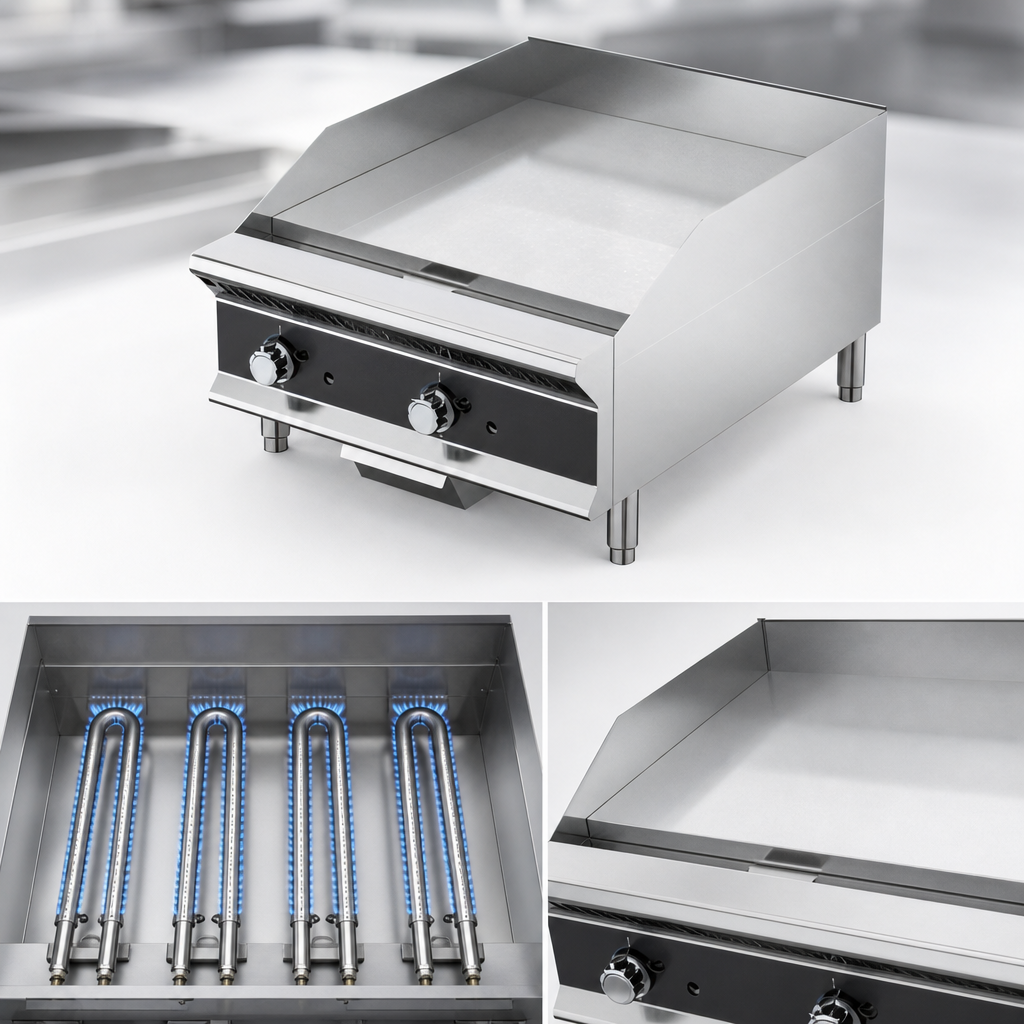

- 4 × 30,000 BTU custom stainless-steel U-shaped burners for rapid recovery and edge-to-edge consistency.
- 12" individually controlled heat zones let you sear, sauté and hold on the same surface.
- 1" thick polished steel plate maximizes heat retention and resists warping under continuous use.
- Natural-gas ready; full LP conversion kit included.
- Metal control knobs are guaranteed for life and feature reliable heavy-duty gas valves.
- Welded plate seams and a divided stainless-steel drip pan eliminate grease traps and messy sloshing.
- 2 mm stainless backsplash & side walls keep food on the griddle and off your walls.
- Bull-nose front edge adds operator safety and comfort.
- Zero side-clearance design saves valuable line space; 4" adjustable legs simplify leveling and ensure airflow.
- Standard ¾" NPT rear gas connection for fast, flexible installation.
Technical Specs
| Overall dimensions (W × D × H) | 47.7" × 32.38" × 16.63" (121.1 × 82.2 × 42.2 cm) |
|---|---|
| Cooking surface | 47.4" × 24.6" (120.4 × 62.5 cm) |
| Plate thickness | 1" (2.5 cm) polished steel |
| Heat zones / burners | 4 individually controlled zones – 30,000 BTU each |
| Total output | 120,000 BTU / hr |
| Gas connection | ¾" NPT (rear) |
| Gas type | Natural gas (LP conversion kit included) |
| Construction | Stainless-steel body, 2 mm backsplash & sides, metal knobs |
| Certifications | ETL, ETL Sanitation, cETL |
| Warranty | 1-year limited parts & labor (metal knobs – lifetime) |
Installation & Clearance
- Install adjacent to non-combustible surfaces only.
- Maintain a minimum 6" (15 cm) clearance at the rear for ventilation.
- Unit requires 4" legs (included) to ensure proper airflow beneath the chassis.
Need help choosing the right size or arranging installation? Reach out via chat or call our equipment team—we’re Vollrath experts and happy to help.
