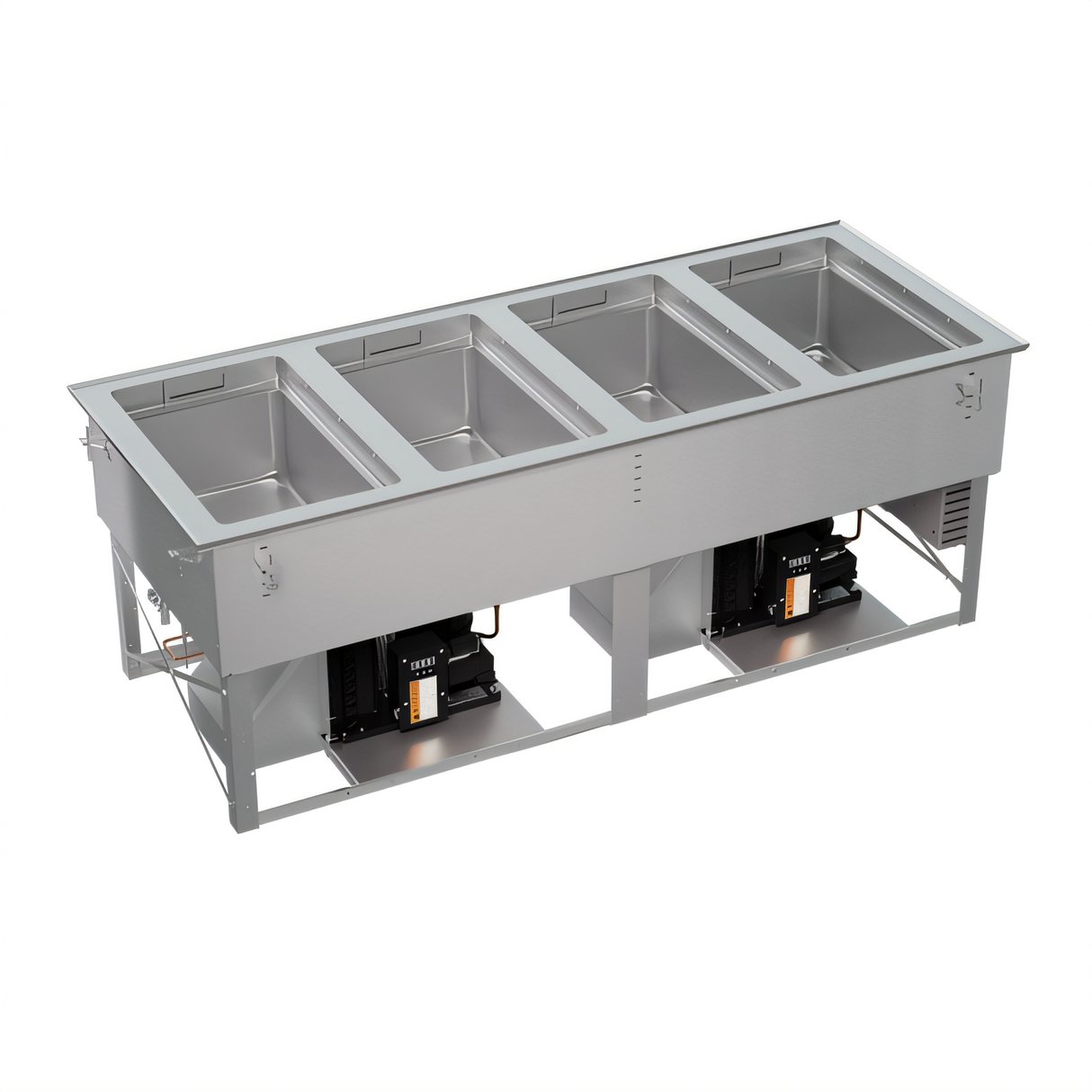

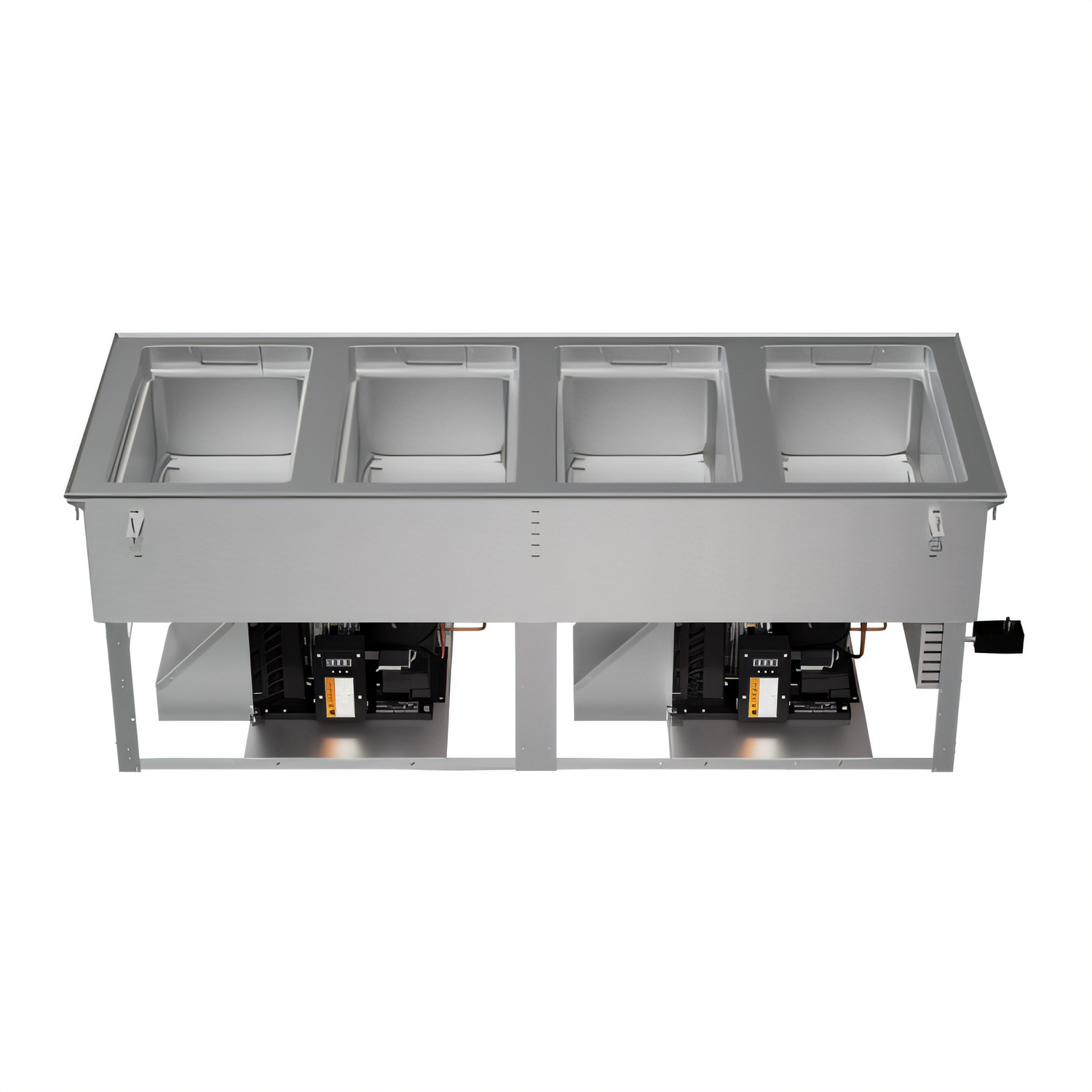

Vollrath FC-HCF-04208-FF Hot/Cold/Frozen 4-Well Drop-In

Give your serving line ultimate menu flexibility with one drop-in that does it all. The Vollrath FC-HCF-04208-FF lets you run each of its four wells in HOT, COLD or FROZEN mode – independently and at the touch of a button – while the flush flat flange provides a seamless, easy-to-clean installation in virtually any counter.

Why you’ll love it

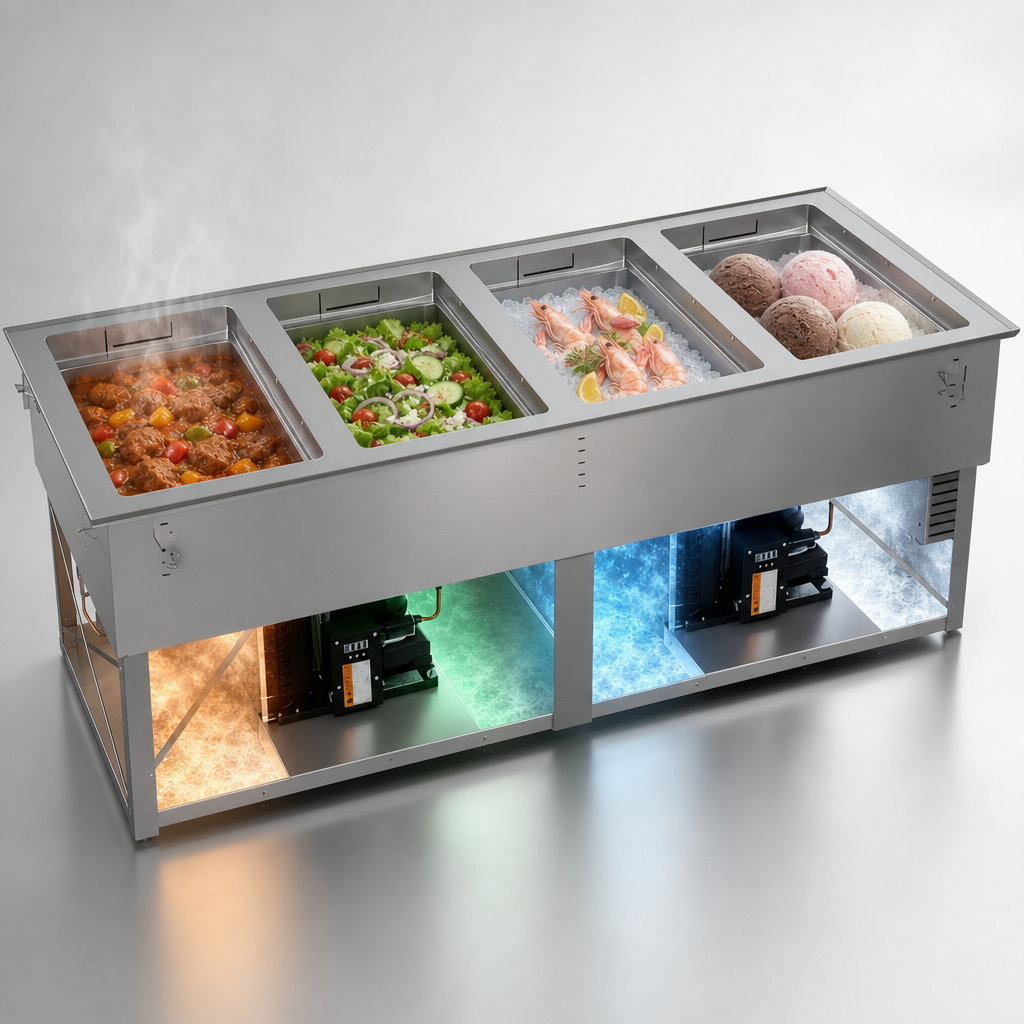

• Three modes in one unit – keep soups steaming, salads chilled, and desserts frozen all at the same time.
• Individual electronic controls with 4 ft (1.2 m) remote-mount cable for ergonomic placement.
• Durable 18-gauge, 300-series stainless steel top, wells & control bezel stand up to daily commercial use.
• Accepts full-size or fractional pans up to 6 in (15.2 cm) deep; 2 in (5.1 cm) stepped cold-wall recess maintains NSF cold-food zone.
• Eco-friendly R290 hydrocarbon refrigerant with low GWP and high efficiency ¼ HP compressors (2×).
• Integral ¾ in (19 mm) drains speed change-overs; water added for hot mode automatically evacuates in cold/frozen modes.
• Ships ready to plug in – 6 ft (1.8 m) cord & 14-20P plug included.
• UL Listed, UL Sanitation (NSF/ANSI 8) certified and backed by a 2-year limited warranty.

Technical specifications

Installation & operating highlights

• Standard mounting clips accommodate counters up to 3 in (7.6 cm) thick.
• Provide 1.5 in (3.8 cm) bottom clearance and 160 in² discharge / 80 in² intake ventilation per spec sheet.
• Indoor use only; ambient must remain below 86 °F (30 °C) for NSF compliance.
• Water must cover the well bottom during HOT mode for even heat transfer.
• Unit is made to order and non-returnable; verify cut-out before cutting countertops.

Includes Vollrath’s 2-year limited parts & labor warranty. See vollrathfoodservice.com for full details.
