Vollrath FC-HCF-04208-AD Steam Tables & Food Wells
Description

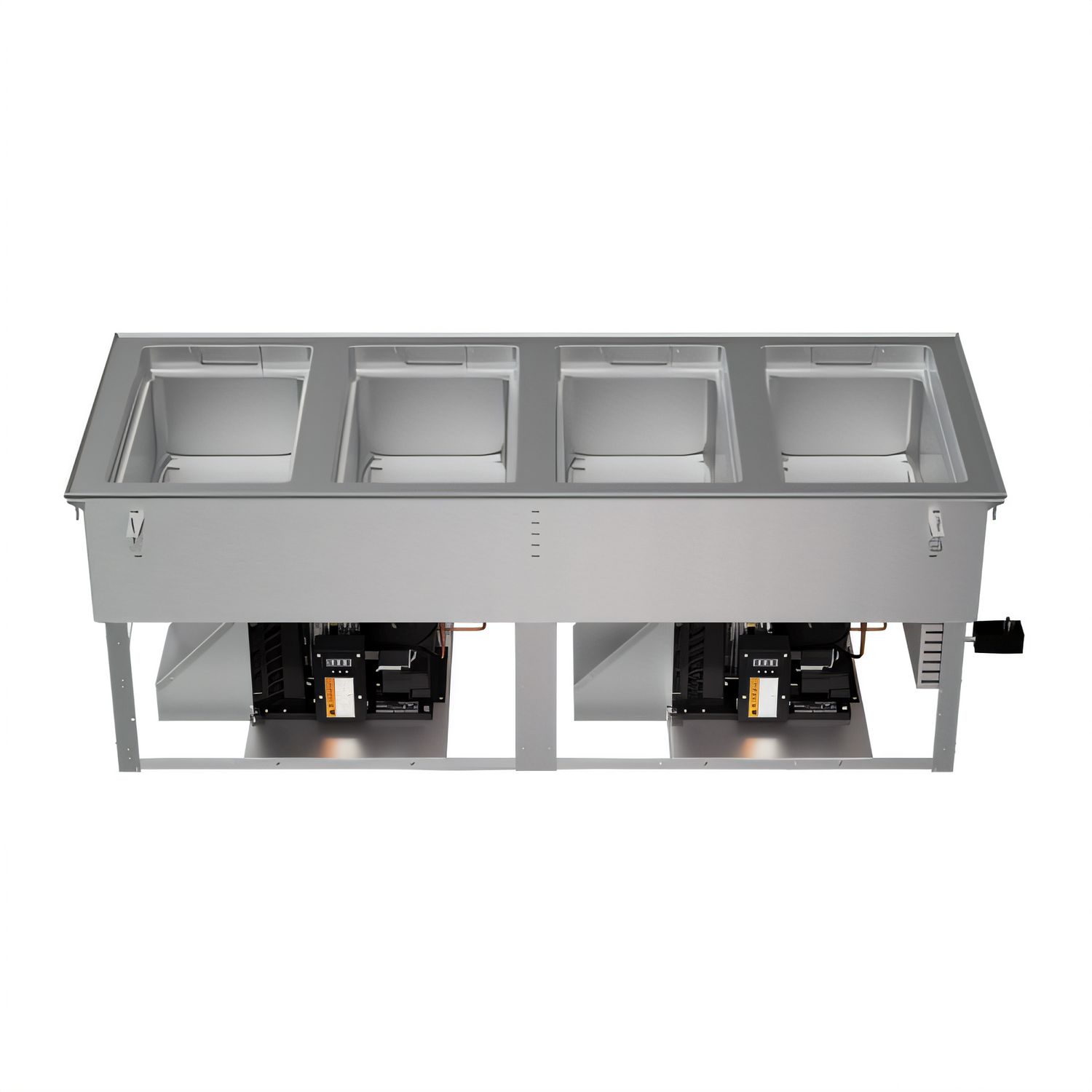

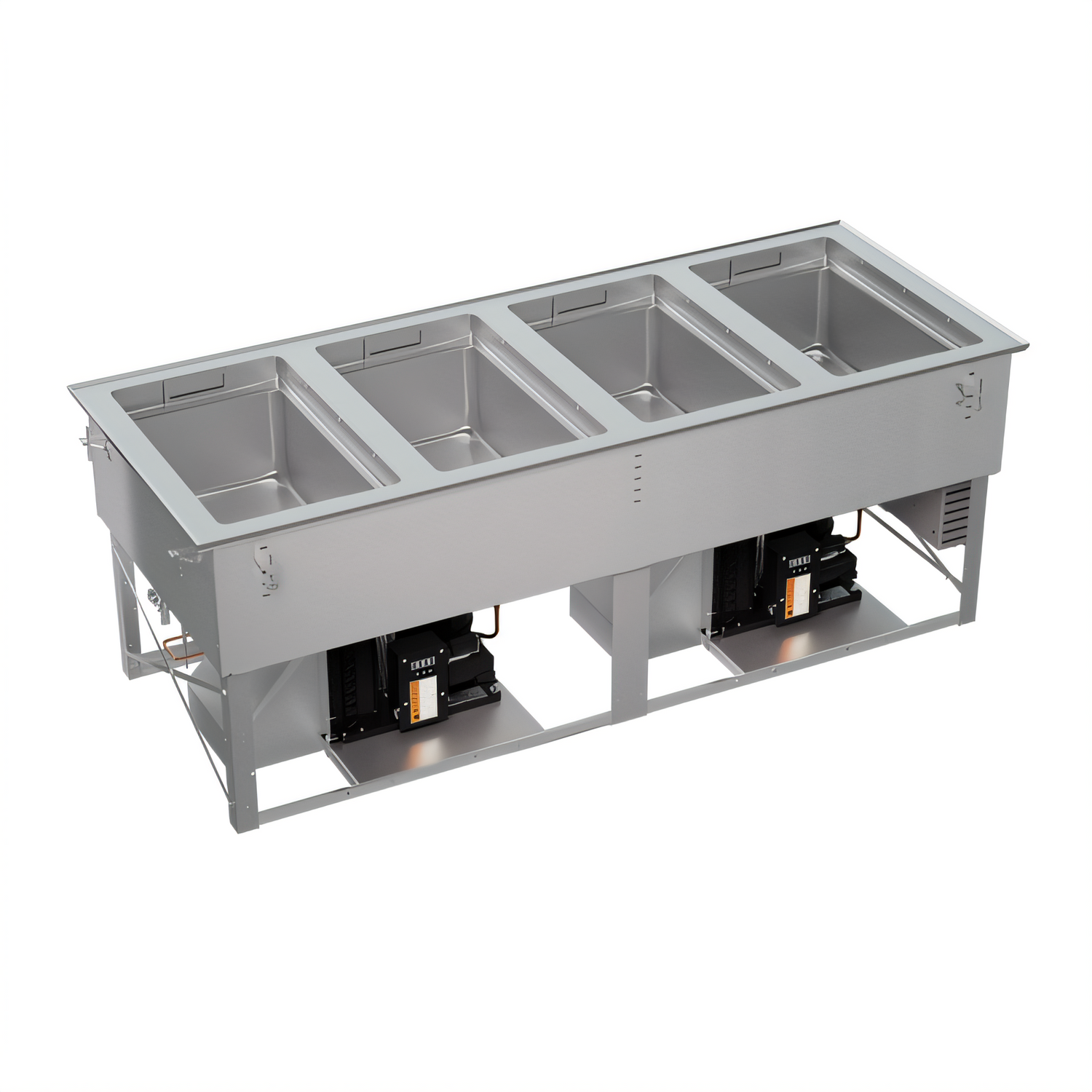

Vollrath Hot | Cold | Frozen 4-Well Modular Drop-In with Auto-Drain
Model FC-HCF-04208-AD • 120/208-240 V • NEMA 14-20PHold entrées at serving temperature, chill salads, or keep sorbet frozen-solid—all in one countertop cut-out. Vollrath’s next-generation drop-in lets each well switch independently between Hot, Cold, and Frozen modes at the touch of a button, giving you unmatched menu flexibility from breakfast through late-night service.
Why this unit stands out

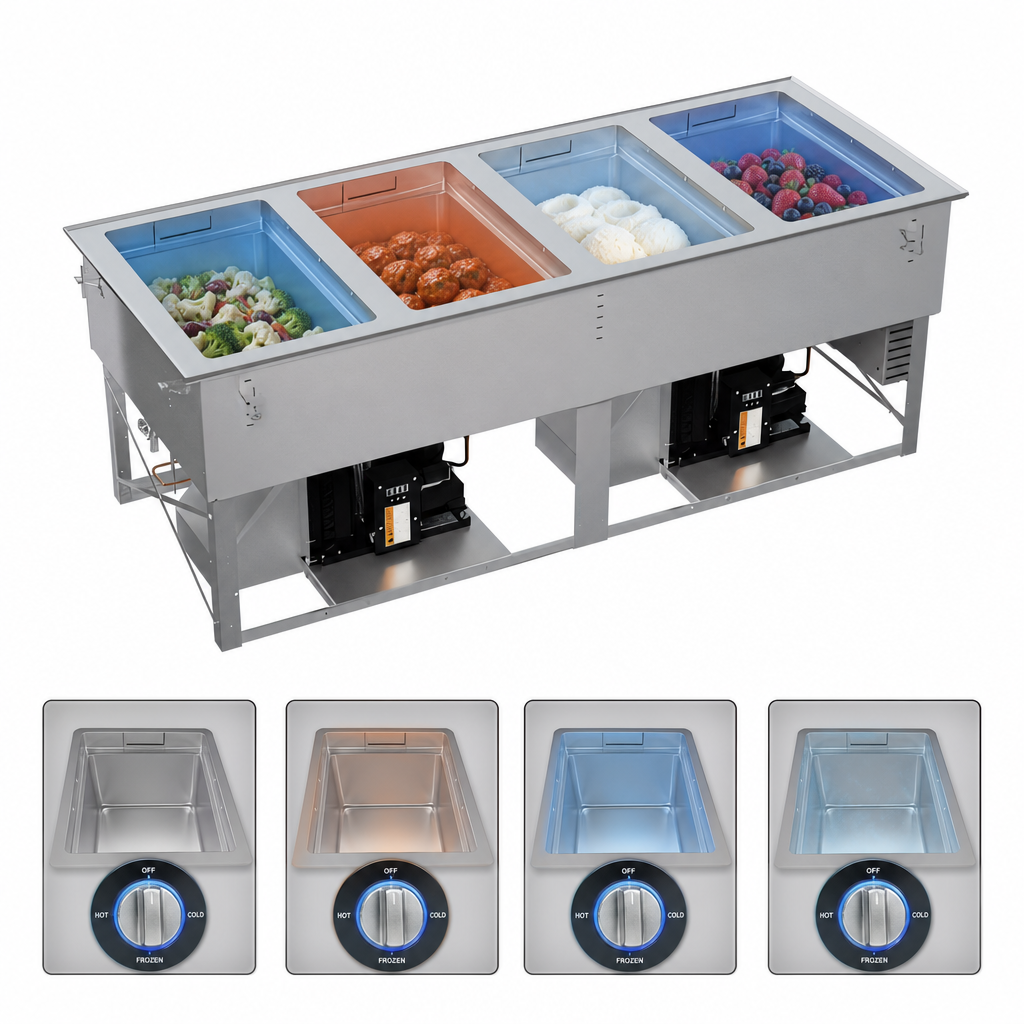

- Three operating modes per well (HOT, COLD, FROZEN) with last-setting memory.
- Auto-Drain technology evacuates water automatically when you leave Hot mode—no manual shut-off valve to forget.
- Rugged 18-gauge, 300-series stainless-steel top, wells, and user interface for a lifetime of commercial use.
- Eco-friendly R290 hydrocarbon refrigeration wrapped around each well for rapid, even chilling.
- Bright electronic control panel on a 4 ft (1.2 m) cord—mount it exactly where your crew needs it.
- Accepts four full-size (12 × 20 in) or fractional pans up to 6 in (15.2 cm) deep; adapter bars included.
- 2 in (5.1 cm) stepped recess creates an NSF-compliant cold-air blanket over the food surface.
- Self-contained refrigeration and supplied mounting clips simplify installation in counters up to 3 in (7.6 cm) thick.
- Made in the USA; UL & NSF/ANSI 8 listed; backed by a 2-year parts & labor warranty.
Technical specifications
| Item number | FC-HCF-04208-AD |
|---|---|
| Number of wells | 4 (independently controlled) |
| Temperature modes | Off / Hot (wet) / Cold / Frozen |
| Pan capacity | (4) full-size 12 × 20 in pans or fractional equivalents, up to 6 in deep |
| Overall dimensions (W × D × H) | 65.7 × 26.0 × 24.4 in (166.9 × 66.0 × 62.0 cm) |
| Countertop cut-out | 64 11⁄16 × 25 1⁄4 in (164.2 × 64.1 cm), 7⁄8 in (2.2 cm) corner radius |
| Compressor | ½ HP, self-contained |
| Refrigerant | R290, 100 g × 2 |
| Electrical | 120/208-240 V, 60 Hz, 1-phase, 2 500 W, 13.2 A |
| Power cord / plug | 6 ft cord, NEMA 14-20P |
| Shipping weight | Approx. 324 lb (147 kg) |
| Certifications | UL Listed, UL Sanitation (NSF/ANSI 8) |
| Warranty | 2 years parts & labor |
Minimum clearances: 1.5 in (3.8 cm) below compressor • 3 in (7.6 cm) at discharge openings. Indoor use only; ambient ≤ 86 °F (30 °C) required for NSF compliance.
