Vollrath FC-HCF-04208-AD-FF Steam Tables & Food Wells

4-Well Hot/Cold/Frozen Modular Drop-In – Auto Drain & Flat Flange

Serve piping-hot entrées, crisp chilled salads, or scoop-ready frozen desserts from a single drop-in unit. Vollrath’s 4-well Hot/Cold/Frozen system gives every well its own electronic control, so you can mix and match temperatures to match any menu or daypart.

Why you’ll love it

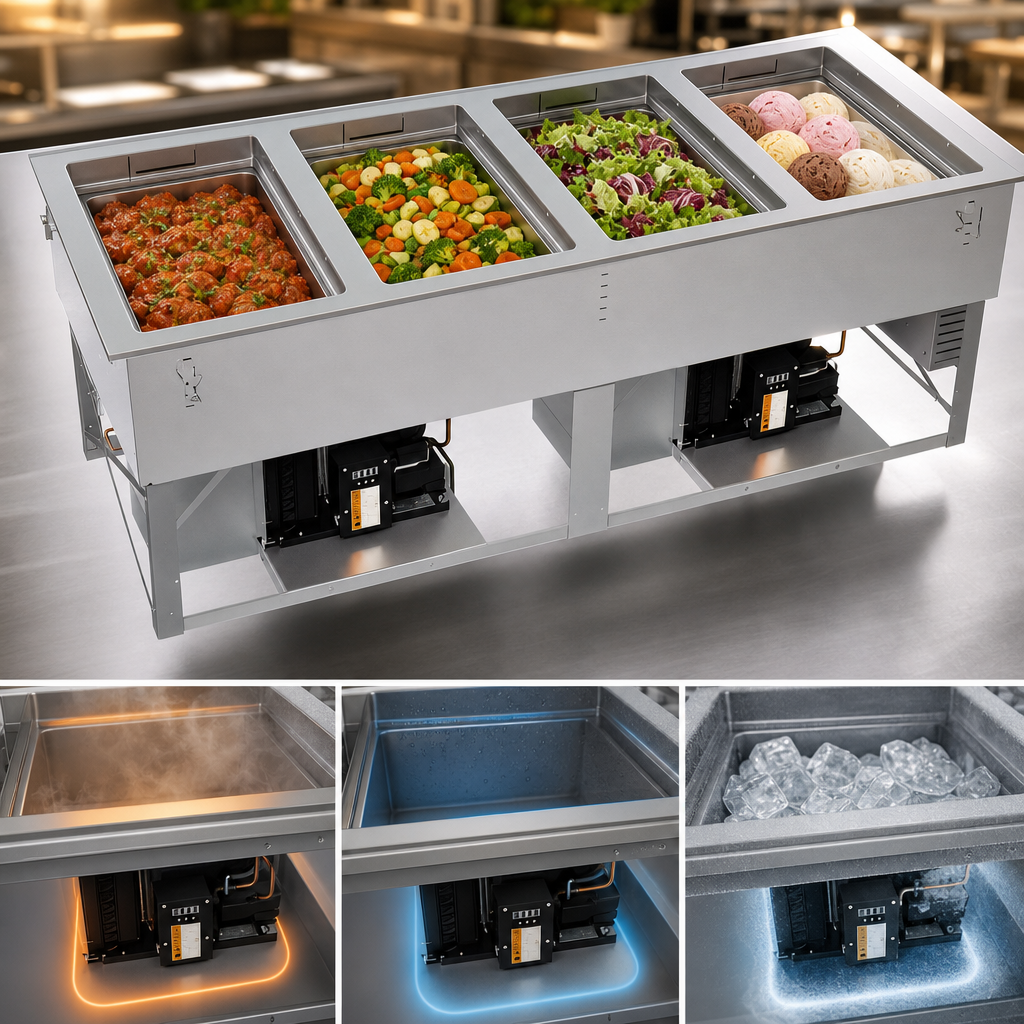

• Triple-mode versatility – each well switches independently between HOT, COLD, or FROZEN.
• Integrated Auto-Drain empties water automatically when you leave hot mode, saving labor and mess.
• Full-size or fractional pans up to 6 in (15.2 cm) deep; use standard adapter bars for pan flexibility.
• Ultra-durable 18-gauge, 300-series stainless steel top, wells, and user interface.
• 4 ft (1.2 m) tether lets you mount the touchscreen wherever it’s most convenient.
• Self-contained refrigeration wrapped around the wells for rapid pull-down and even cooling.
• Eco-friendly R290 hydrocarbon refrigerant delivers high performance with a low Global Warming Potential.
• Standard mounting clips fit counter tops up to 3 in (7.6 cm) thick; ¾ in (19 mm) integral drain included.
• Made in the USA and UL Classified & NSF/ANSI 8 listed for food safety compliance.
• Backed by a Vollrath 2-year parts & labor warranty.

Technical specifications

Operating essentials

• Water is required for hot mode; the Auto-Drain removes it automatically when switching to cold or frozen.
• Designed for indoor environments ≤ 86 °F (30 °C). Higher ambient or altered settings may void NSF compliance.
• Provide at least 1.5 in (3.8 cm) bottom clearance and keep 160 sq in discharge ventilation unobstructed.
• Installation and service must be performed by qualified professionals familiar with R290 systems.

Vollrath drop-ins are built to order and are non-returnable. Verify cut-out dimensions with the unit in hand before cutting countertops.
