Vollrath FC-HCF-03208-FF 3-Well Hot/Cold/Frozen Drop-In Food Well with Flat Flange, 120/208-240V

SKU: FC-HCF-03208-FF
$9,988.90
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Best Sellers Cold Well Food Bars & Buffets Food Holding & Warming Equipment Food Wells & Serving Lines New Arrivals Restaurant Equipment Steam Tables & Food Wells Vollrath

Vollrath FC-HCF-03208-FF 3-Well Hot/Cold/Frozen Drop-In Food Well with Flat Flange, 120/208-240V

Self-Contained R290 Refrigeration, Independent Electronic Controls

Give buffet lines maximum menu flexibility with a 3-well drop-in that can switch each section between hot, cold, or frozen service.

  • Three independently controlled wells can operate in hot, cold, or frozen mode.
  • Flat-flange drop-in design creates a clean built-in countertop installation.
  • Accepts full-size and fractional food pans up to 6 inches deep.
  • Durable 18-gauge, 300-series stainless steel top, wells, and user interface.
  • Self-contained refrigeration uses R290 hydrocarbon refrigerant and foamed-in-place insulation.
  • Includes mounting clips, a 6-foot cord with plug, and a 4-foot user interface connection for flexible mounting.

Overall Dimensions:

49.78"W x 26.0"D x 24.4"H

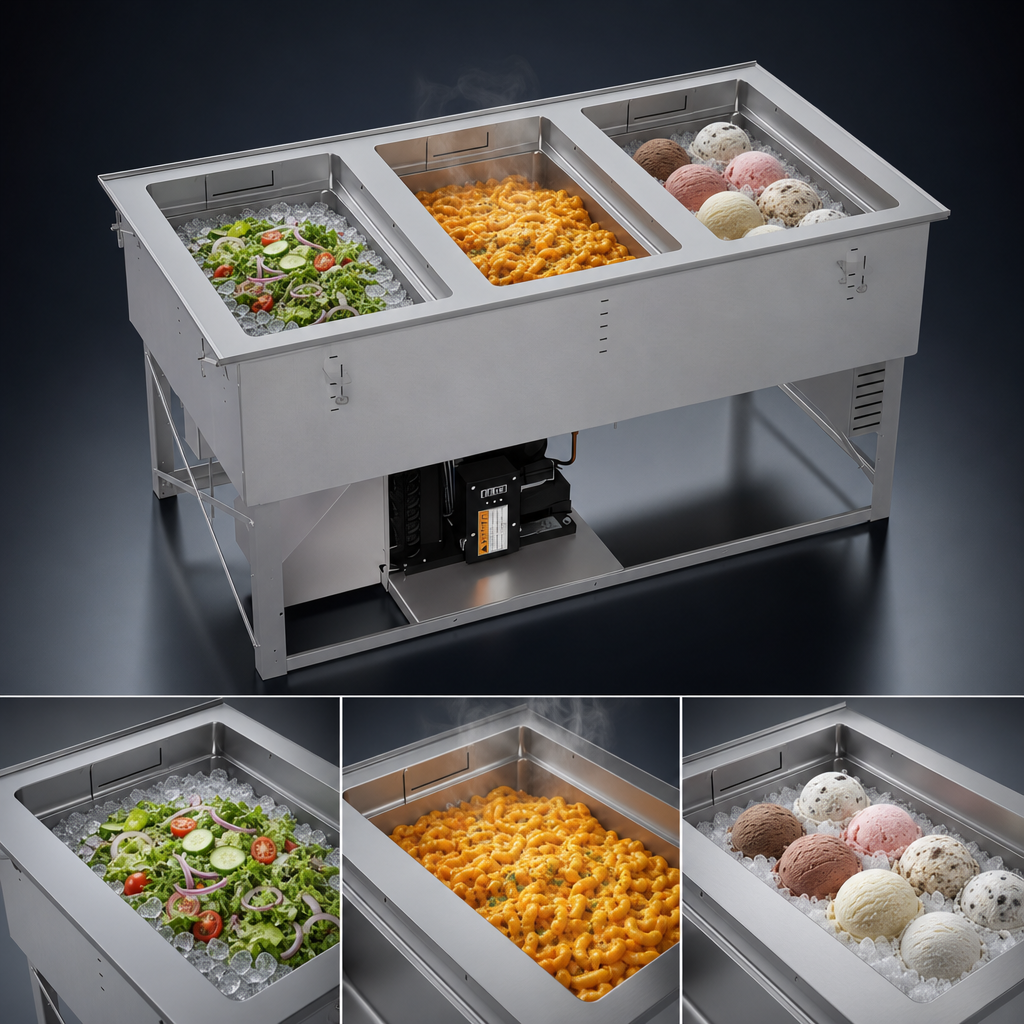

Independent Well Modes

Each well can be set separately to OFF, HOT, COLD, or FROZEN for flexible buffet service.

Flat-Flange Drop-In Design

Flat flange version provides a streamlined built-in look at the countertop.

Stainless Steel Construction

The top, wells, and user interface are made from durable 18-gauge, 300-series stainless steel.

Self-Contained R290 Refrigeration

Built-in refrigeration uses R290 hydrocarbon refrigerant for efficient cold holding with lower GWP than many older refrigerants.

Pan Compatibility

Accommodates full-size and fractional food pans up to 6 inches deep; adapter bars are used with fractional pans.

Flexible Installation

The user interface includes a 4-foot connection for alternate mounting options, and standard mounting clips are included for counters up to 3 inches thick.

Efficient Cooling Design

Wrapped refrigeration coils, foamed-in-place polyurethane insulation, and a stepped cold-wall recess help maintain performance and food temperatures.

Integrated Drain and Cord

Includes a standard 3/4-inch integral drain and a 6-foot cord with plug.

Type Hot/Cold/Frozen Food Well
Style Flat Flange
Installation Type Drop-In
Compartments 3
Pan Capacity 3 Full-Size Pans
Pan Size Full-Size and Fractional Pans Up to 6 Inches Deep
Controls Independent Electronic
Material Stainless Steel
Interior Finish 300 Series Stainless Steel
Finish Stainless Steel
Refrigeration Type Self-Contained
Refrigerant Type R290
Drain Connection Size 3/4 Inch
Voltage 120/208-240 Volts
Amps 9.6 Amps
Watts 1.875 kW
Hertz 60 Hz
Phase 1-Phase
Plug Type NEMA 14-20P
Cord Length 6 Feet
Country of Origin USA
Selling Unit Each
Units Per Case 1
Shipping Width 50 Inches
Shipping Depth 26 Inches
Shipping Height 25 Inches
Shipping Weight 230 lb.

Certifications & Compliance

Certified badge of UL Certified
UL Certified

Warranty & Protection

Vollrath warranty against defects in materials and workmanship, plus 4 additional years on the compressor.

Documents

PDF Cutsheet PDF Download PDF Cutsheet PDF Download PDF Cutsheet PDF Download PDF Quick start guide PDF Download PDF Operator's manual PDF Download PDF Installation instructions PDF Download PDF Warranty sheet PDF Download

Frequently Asked Questions

Yes. Each well can be set independently to OFF, HOT, COLD, or FROZEN.
It accepts full-size and fractional food pans up to 6 inches deep. Adapter bars are used with fractional pans.
The unit requires 120/208-240V, 60 Hz, single-phase power and uses a NEMA 14-20P plug.
Yes. A 3/4-inch integral drain is standard, and a 6-foot cord with plug is included.
Yes. The optional recessed control is part FC-HCF-RC.
The cutsheet states Vollrath’s warranty against defects in materials and workmanship, with an additional four years on the compressor.
