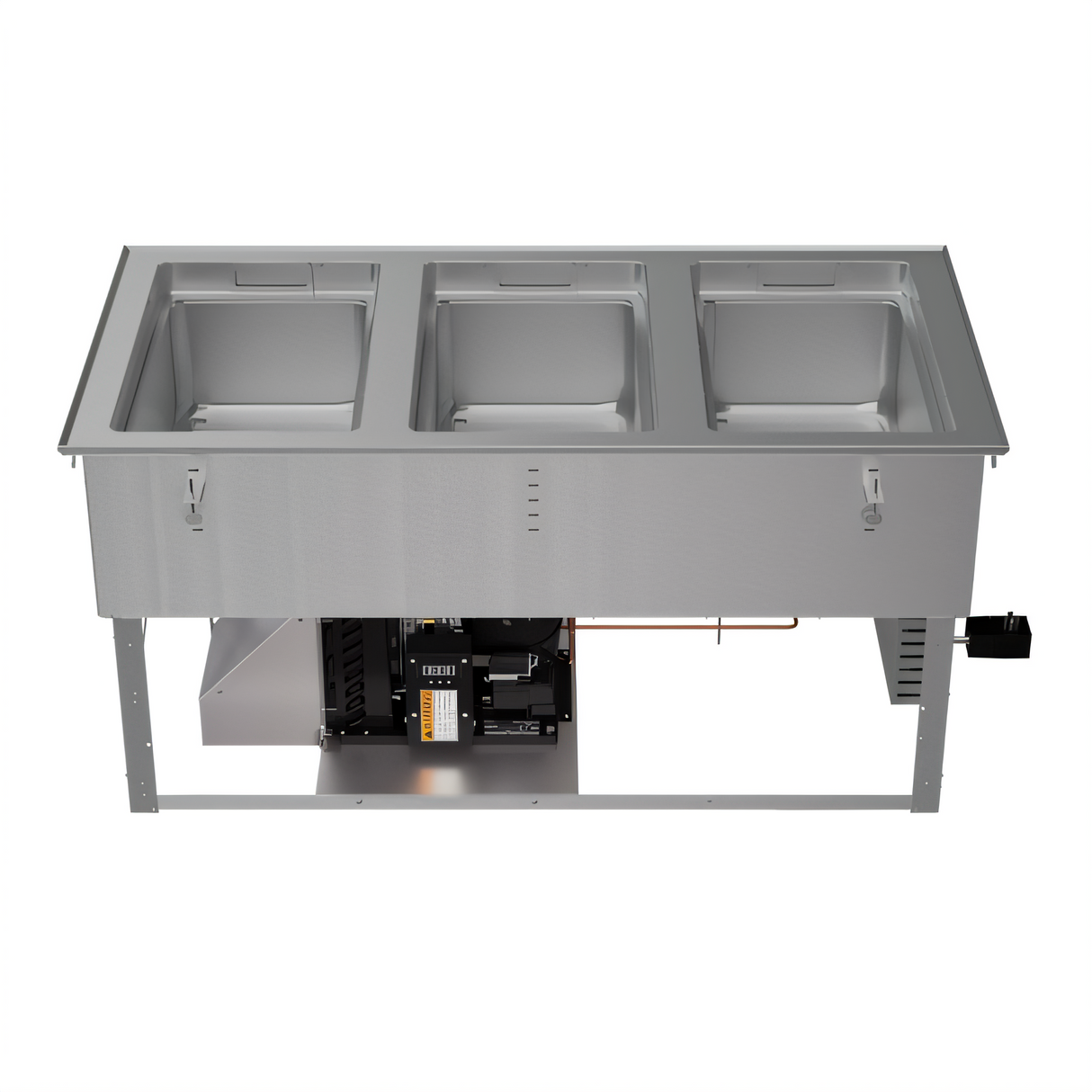

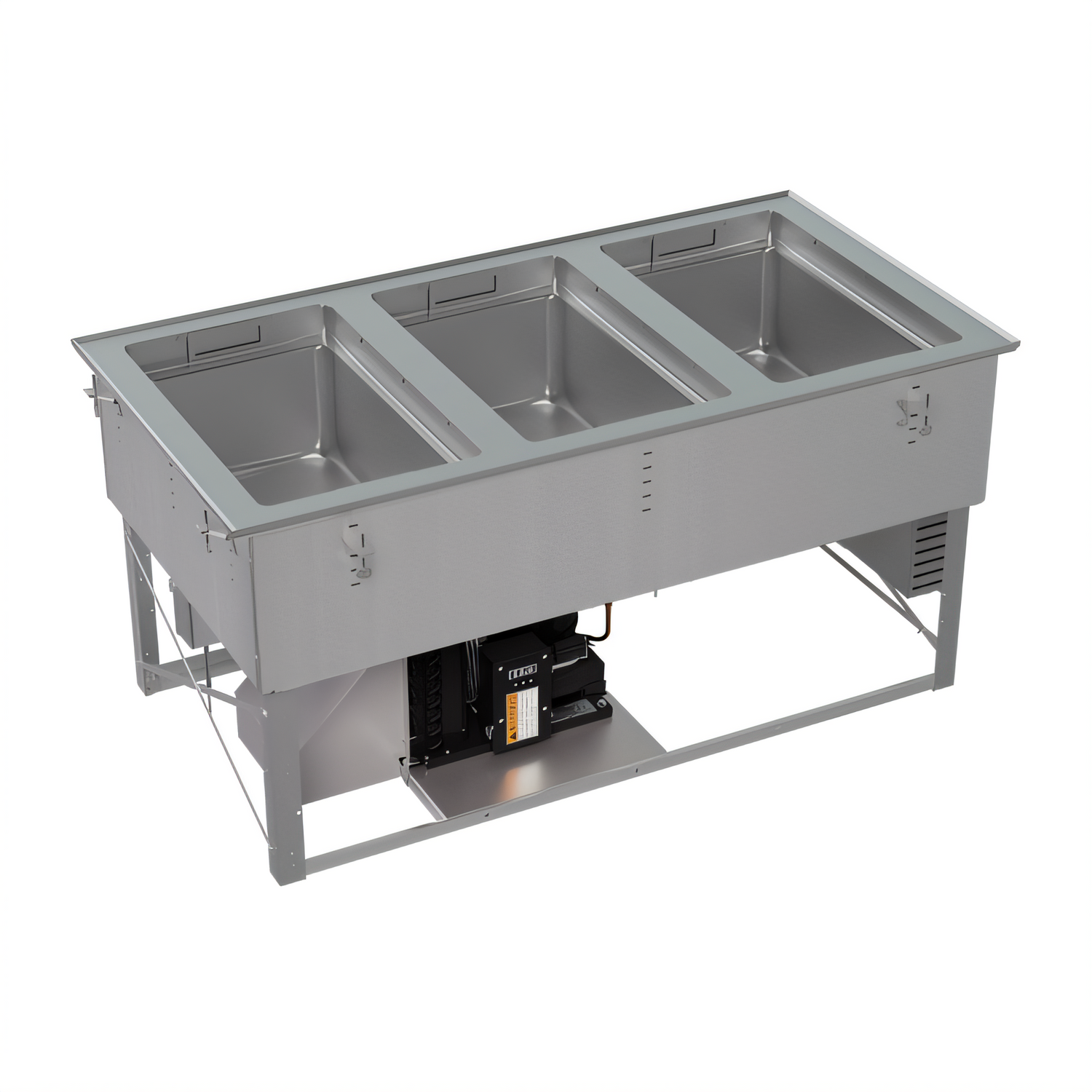

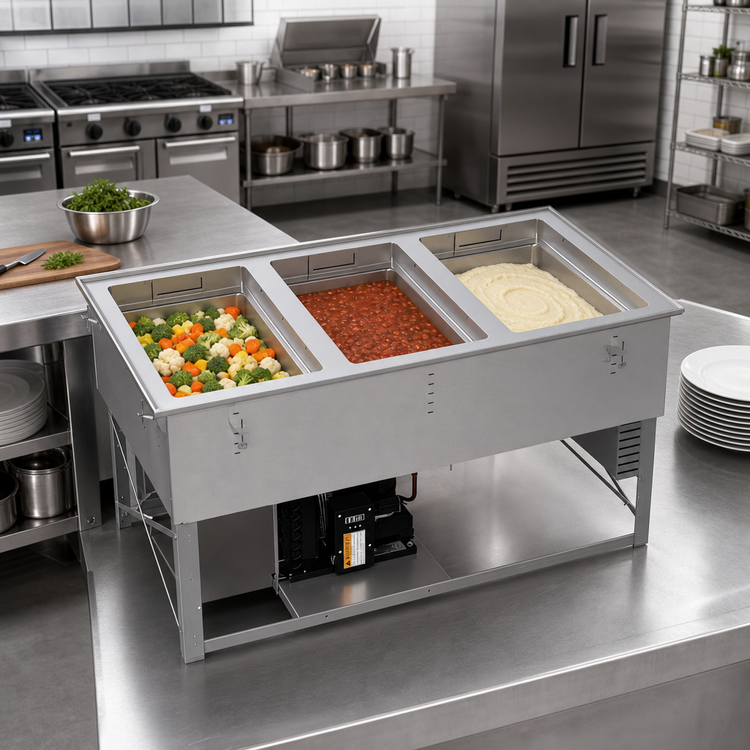

Vollrath FC-HCF-03208-AD Steam Tables & Food Wells

Hot / Cold / Frozen 3-Well Drop-In Unit – Auto-Drain

From breakfast buffets to late-night dessert bars, this all-in-one insert keeps every course at its perfect serving temperature. Three independently-controlled wells switch instantly between hot, cold, and frozen modes—so you can plate steaming entrées, crisp salads, and ice-cold treats side-by-side from a single footprint.

Why You’ll Love It

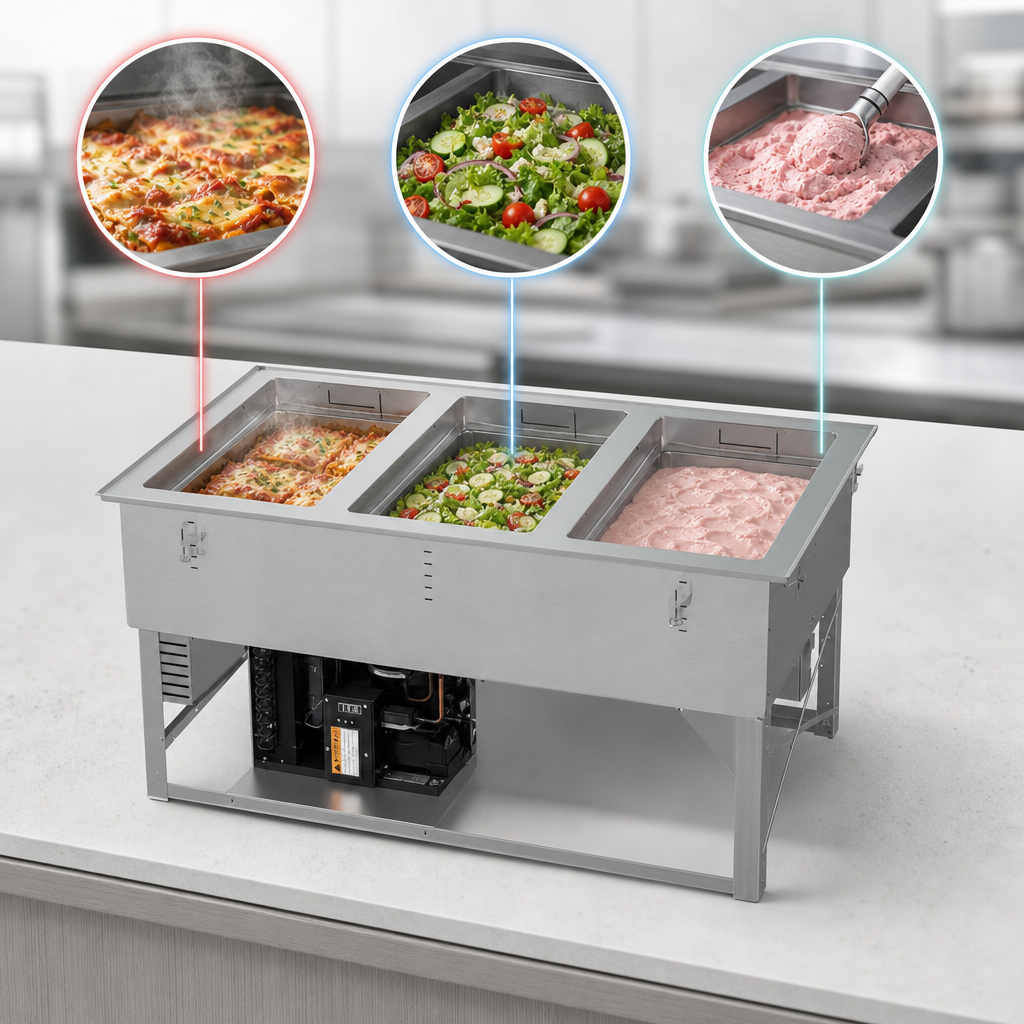

• True three-mode performance – each well operates in HOT, COLD, or FROZEN mode independently.
• Auto-Drain technology empties water automatically when switching from hot to cold/frozen.
• 4 ft (1.2 m) remote-mount electronic user interface with simple push/turn control.
• Accepts full-size or fractional pans up to 6 in (15.2 cm) deep; use adapter bars for fractional configurations.
• 18-gauge, 300-series stainless-steel top, wells, and interface built to withstand daily commercial abuse.
• Energy-smart design with foamed-in-place insulation and eco-friendly R290 refrigerant (low GWP).
• 2 in stepped cold-wall rim creates an NSF-compliant cold-air blanket over product.
• Self-contained ¼ HP refrigeration—no remote condensing unit required.
• Includes mounting clips for counters up to 3 in (7.6 cm) thick; 6 ft power cord with plug.
• Made in the USA and UL Listed / UL EPH Classified for peace of mind.

Technical Specifications

Effortless Operation

• Press the power icon to wake the unit — last-used settings load automatically.
• Select a well number, then tap again to cycle through OFF, HOT, COLD, FROZEN.
• In HOT mode, rotate the knob to fine-tune temperature; numeric readout displays set level.
• Digital screen stays blank in COLD/FROZEN to conserve energy while maintaining setpoints.

Installation & Clearance

• Indoor use only; ambient must remain below 86 °F (30 °C).
• Provide at least 80 in² intake and 80 in² discharge ventilation; maintain 3 in clearance from openings.
• Mechanical components must be service-accessible from both long sides.
• Ships with standard mounting clips — countertop cut-out: 64 ⅞ × 25 ¼ in (164.7 × 64.1 cm).
• Water is required for HOT operation and will auto-drain when switching to COLD/FROZEN.

Vollrath® drop-ins are made to order and cannot be returned. Confirm countertop cut-outs with the physical unit before cutting.
