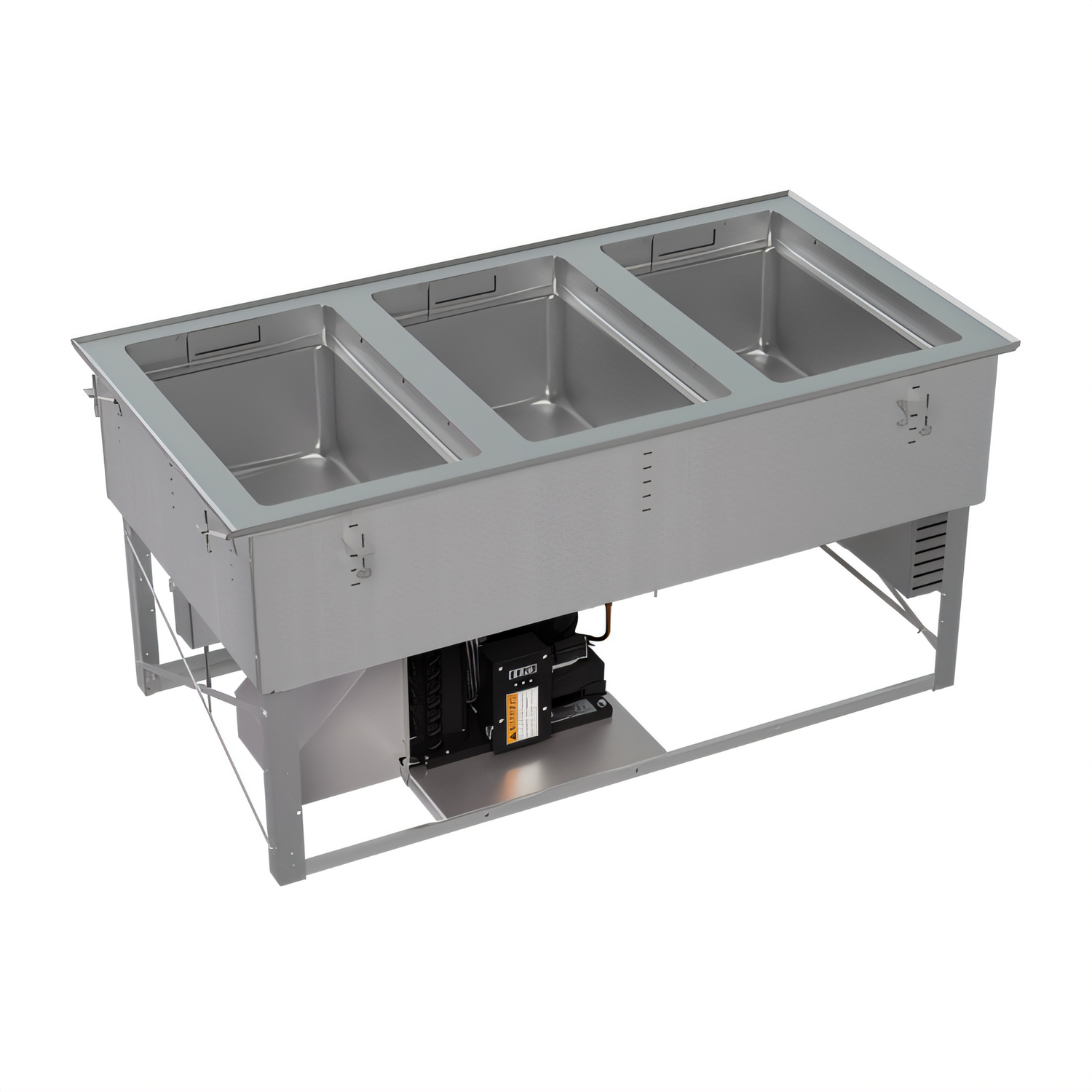

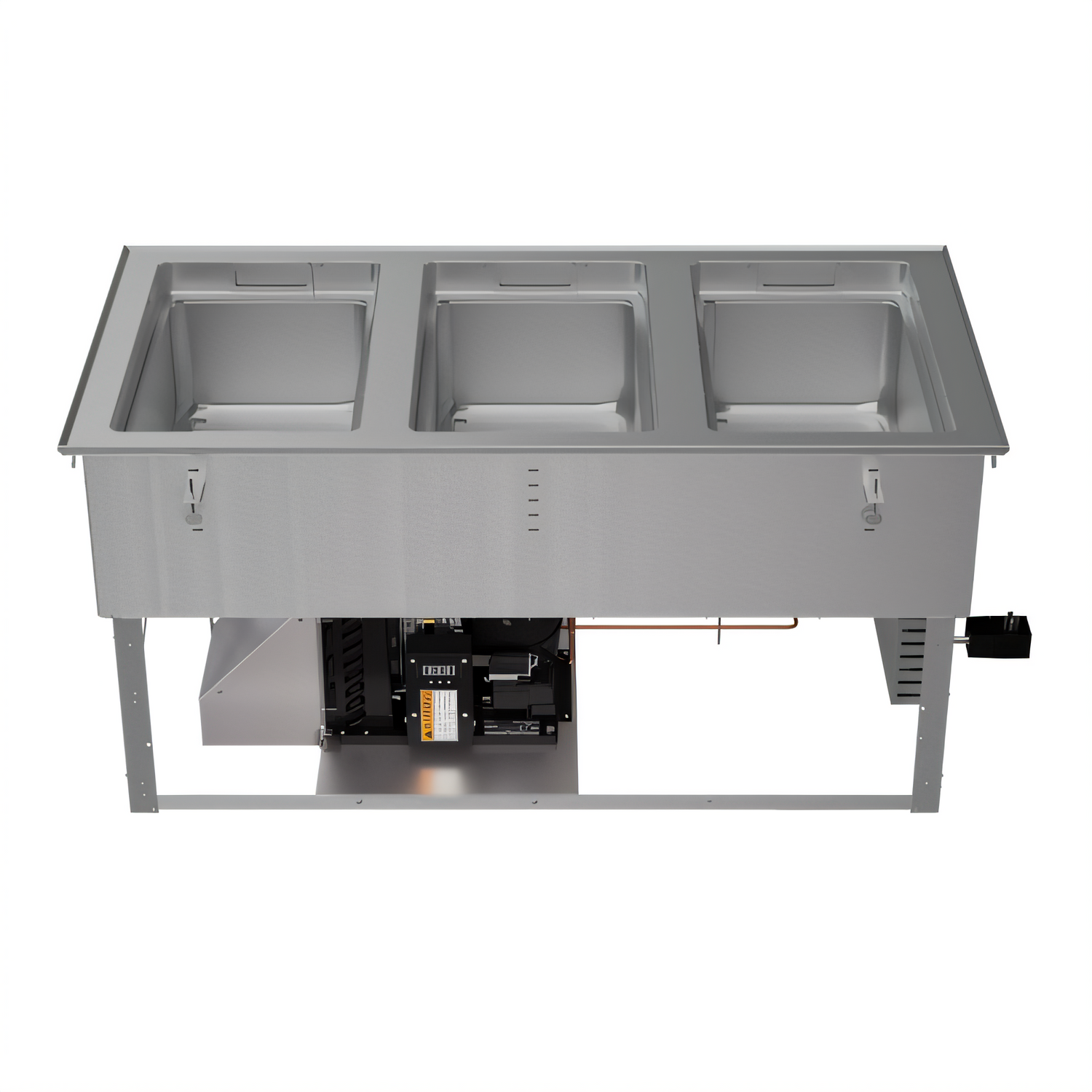

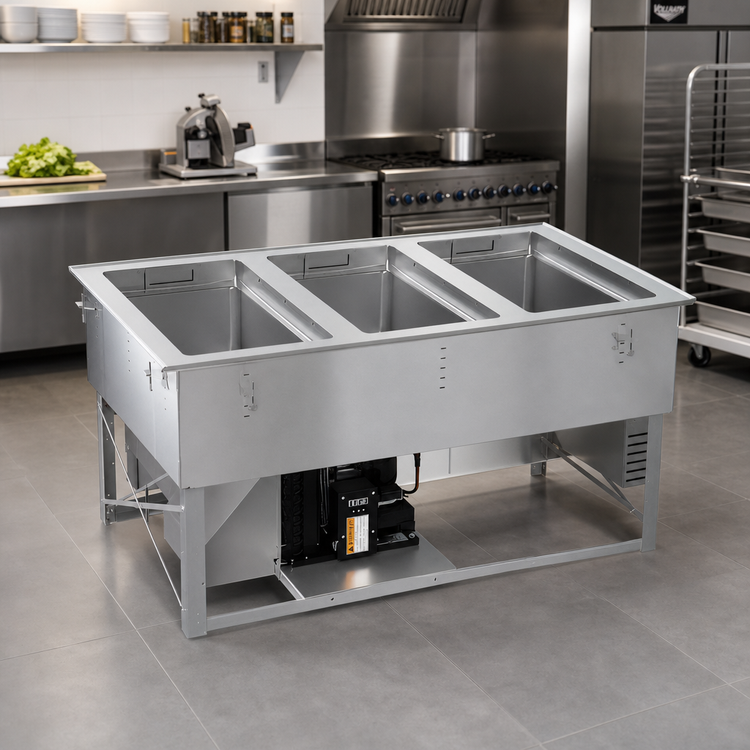

Vollrath 3-Well Hot/Cold/Frozen Self-Contained Drop-In Food Well Unit with Auto Drain and Flat Flange, 120/208-240V
Vollrath 3-Well Hot/Cold/Frozen Self-Contained Drop-In Food Well Unit with Auto Drain and Flat Flange, 120/208-240V
Independent electronic controls, R290 refrigeration, and full-size/fractional pan compatibility
Combine hot, cold, and frozen holding in one compact 3-well drop-in unit with independent controls and self-contained R290 refrigeration.
- Three independently controlled wells switch between hot, cold, and frozen operation.
- Auto-drain and flat-flange design supports clean installation and easy service.
- Durable 18-gauge, 300-series stainless steel construction stands up to busy buffet use.
- Self-contained R290 refrigeration helps reduce GWP versus many older refrigerants.
- Accepts full-size and fractional food pans up to 6 inches deep; adapter bars are used with fractional pans.
- Standard mounting clips are included for counters up to 3 inches thick.
Overall Dimensions:

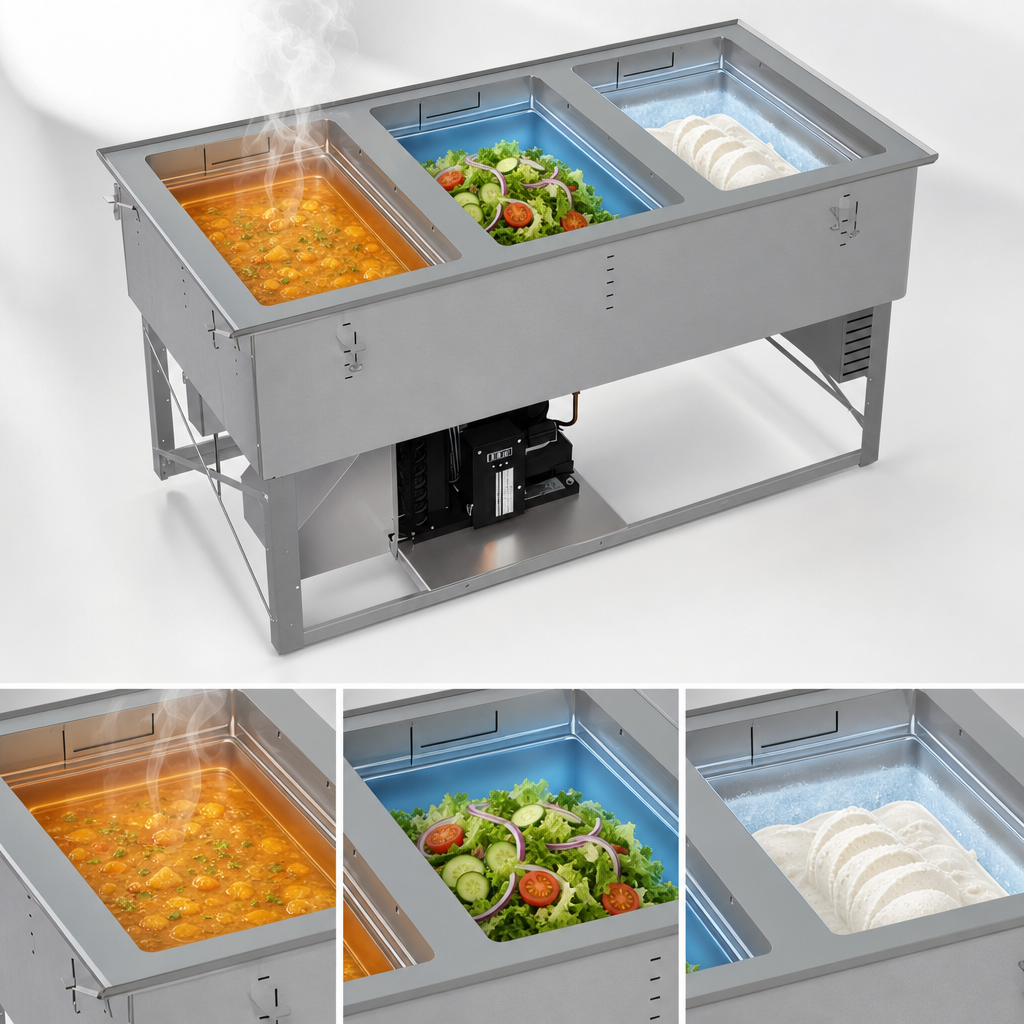

49.78"W x 26.0"D x 24.4"HIndependent Well Modes
Each well operates independently in hot, cold, or frozen mode for menu flexibility.
Auto-Drain and Flat Flange
Model suffix AD-FF indicates auto-drain technology with a flat-flange top for easier installation.
Stainless Steel Construction
Top, well, and user interface are made from durable 18-gauge, 300-series stainless steel.
Self-Contained R290 Refrigeration
Uses self-contained refrigeration with R290 hydrocarbon refrigerant for efficient cooling performance.
Pan Compatibility
Accepts full-size and fractional food pans up to 6 inches deep; adapter bars are used with fractional pans.
Foamed-In-Place Insulation
Inner-well assembly is insulated with foamed-in-place polyurethane for improved efficiency and performance.
Cold-Wall Recess
A 2-inch stepped cold-wall recess creates a cold-air blanket over the food to help maintain compliance.
Flexible Interface Mounting
The user interface includes a 4-foot connection for flexible mounting options.
Included Mounting Clips
Standard mounting clips are included for installation on counters up to 3 inches thick.
Simplified Serviceability
The unit is designed for easier service access and maintenance.
Integral Drain
A 3/4-inch integral drain is standard.
