Vollrath FC-HCF-03120 Steam Tables & Food Wells
Description

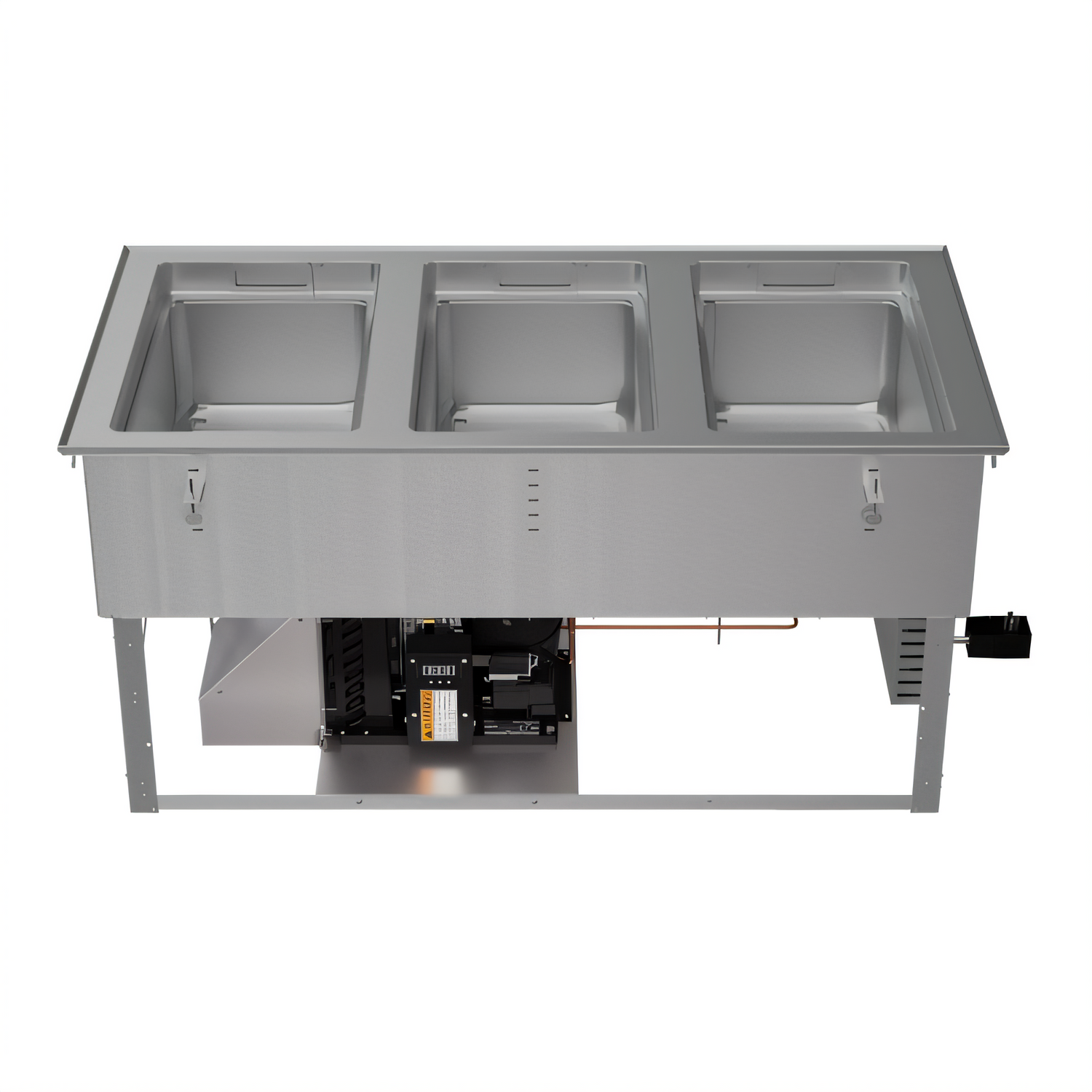

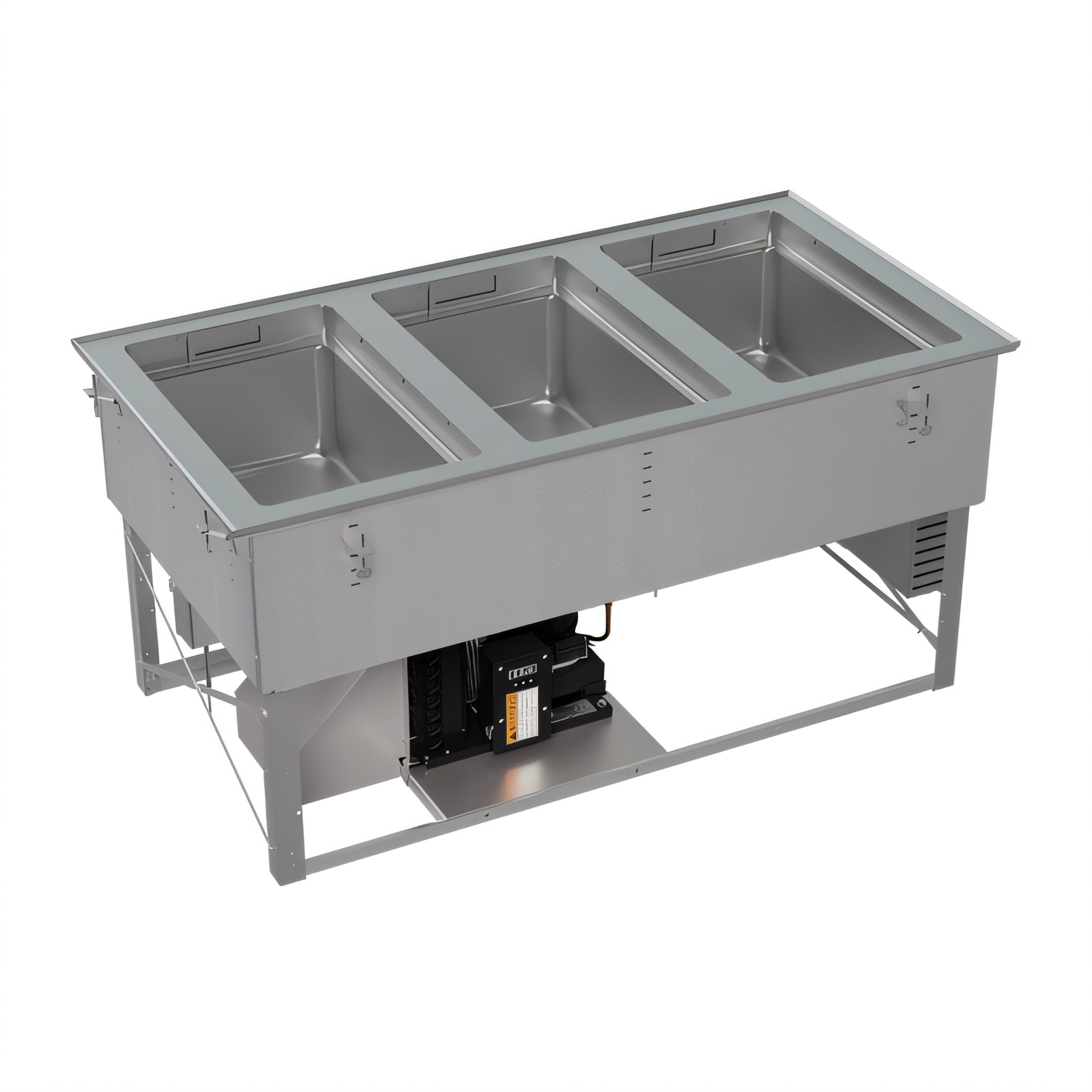

Vollrath 3-Well Hot / Cold / Frozen Drop-In Food Well
Model FC-HCF-03120 | 120 V, 1-Phase | NEMA 5-20PSwitch from steaming-hot entrées to frosty desserts at the touch of a button. The Vollrath FC-HCF-03120 combines three independently-controlled wells, self-contained refrigeration, and rugged 18-gauge stainless-steel construction to give operators maximum versatility in virtually any serving line or buffet counter.
Key advantages

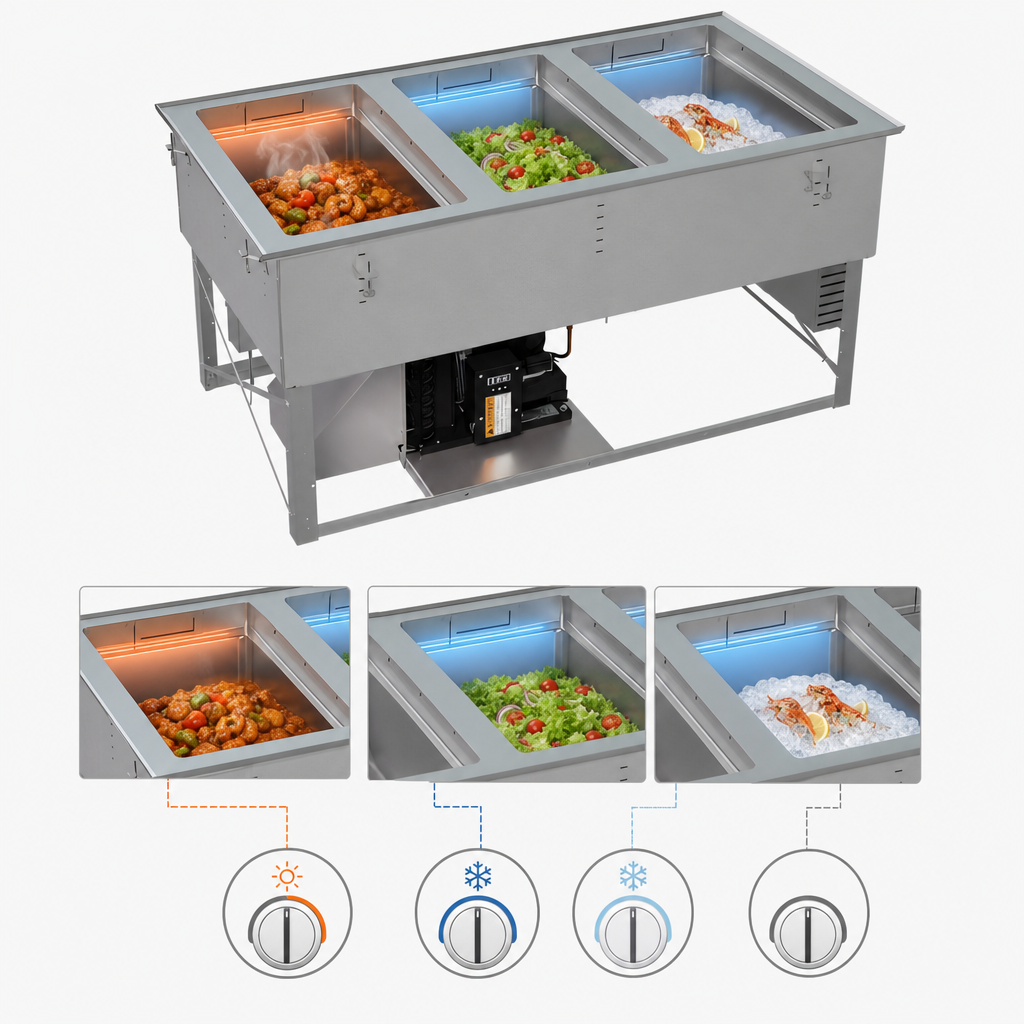

- Three full-size wells (or fractional pans with adapter bars) hold product hot, cold, or frozen — simultaneously.
- Independent electronic controls with bright touchscreen interface remember last-used settings for effortless start-up.
- Top flange, well liners, and user interface are all 18-gauge, 300-series stainless steel for long-term durability.
- 2" stepped cold-wall recess blankets food with cold air for NSF-compliant holding when in cold or frozen mode.
- Foamed-in-place insulation and refrigeration coils wrapped around each well deliver rapid pull-down and energy efficiency.
- Environment-friendly R290 hydrocarbon refrigerant and a ¼ HP compressor keep the unit green and powerful.
- Built-in ¾" integral drain (no master shut-off) automatically removes water after cold operation.
- Standard 6' power cord with NEMA 5-20P plug – just drop in, plug in, and go.
- Made in the USA and UL Listed for electrical & sanitation safety.
Ideal for
- Buffet lines and cafeterias
- Make-to-order stations & food courts
- Supermarket deli or grab-and-go counters
- C-stores needing day-part menu flexibility
Specifications
| Number of wells | 3 (independently controlled) |
|---|---|
| Pan capacity | Full-size or fractional pans up to 6" (15.2 cm) deep |
| Temperature modes | Hot | Cold | Frozen | Off |
| Overall dimensions (W × D × H) | 49.8" × 26.0" × 24.4" (126.5 × 66.0 × 62.0 cm) |
| Cut-out size | 49" × 25¼" (124.5 × 64.1 cm) • ⅞" corner radius |
| Refrigerant / charge | R290 Hydrocarbon • 130 g |
| Compressor | ¼ HP, self-contained |
| Electrical | 120 V / 60 Hz / 1-phase • 1,875 W • 15.5 A |
| Plug type | NEMA 5-20P (6' cord included) |
| Shipping weight | Approx. 212 lb (96 kg) |
| Certifications | UL (US & Canada) • NSF/ANSI 8 |
| Country of origin | United States of America |
Installation & operation notes
- Designed for indoor use in ambient temperatures below 86 °F (30 °C).
- Provide a minimum of 3" clearance at both long sides for service and airflow.
- Water is required during hot mode for even heating; unit drains automatically when switched to cold or frozen.
- Standard mounting clips are included for counters up to 3" thick.
Vollrath drop-ins are built to order and are non-returnable. Verify countertop cut-out dimensions upon receipt before fabrication.
