Vollrath FC-HCF-03120-FF Steam Tables & Food Wells
Description

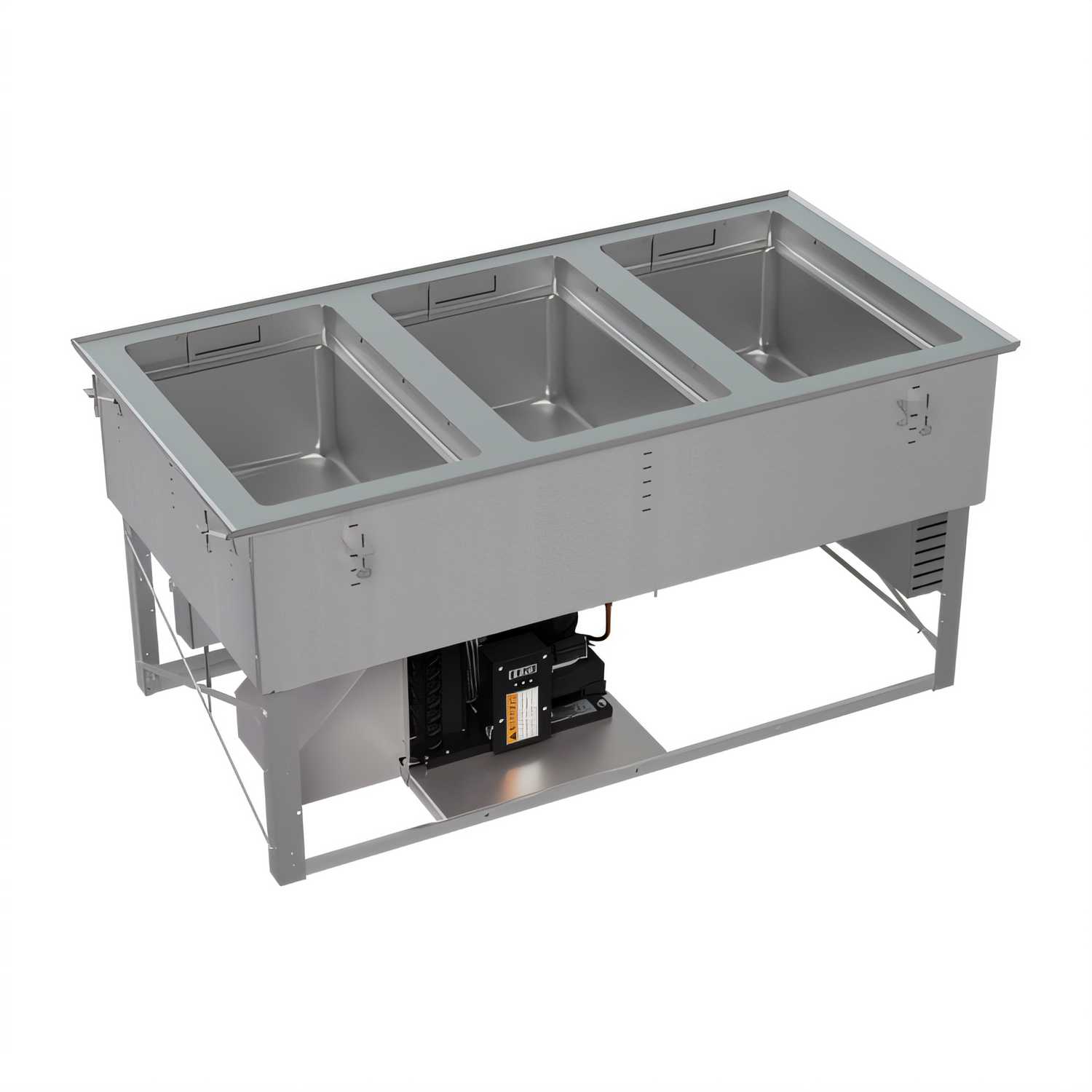

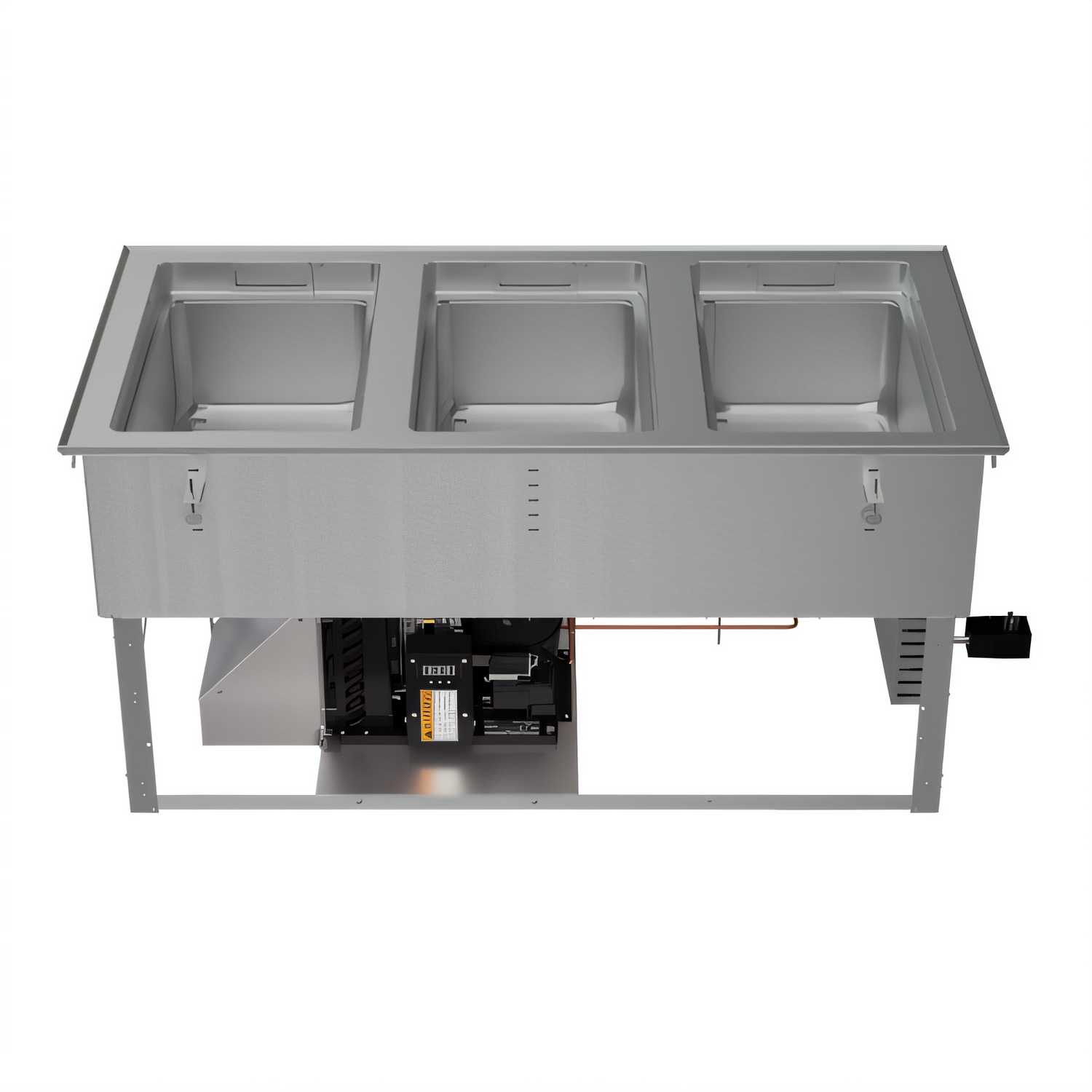

Vollrath 3-Well Hot/Cold/Frozen Modular Drop-In – Flat Flange, 120 V
Model FC-HCF-03120-FF | Made in the USAOne well, three functions. Vollrath’s 3-well Hot/Cold/Frozen drop-in lets you switch each well independently between hot holding, cold holding, or frozen display at the touch of a button. Built for demanding commercial kitchens, the flat-flange design installs flush for a seamless, easy-to-clean presentation while its efficient R290 refrigeration keeps energy costs in check.
Key benefits

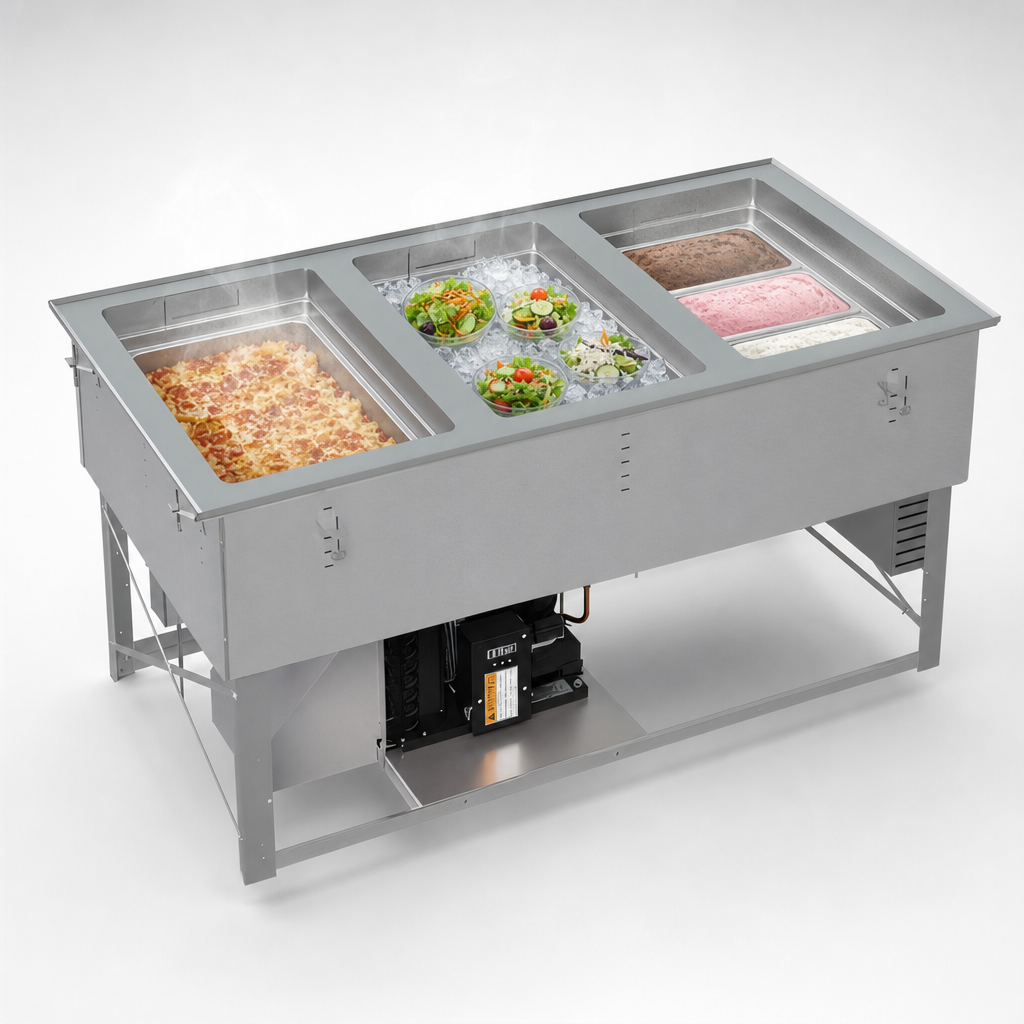

- Triple-mode flexibility – run any well in HOT (wet), COLD, or FROZEN mode independently.
- Flat 18-ga 300-series stainless steel flange sits level with the countertop for a clean buffet line.
- Accepts full-size or fractional pans up to 6 in (15.2 cm) deep; use adapter bars for mixed layouts.
- Durable electronic user interface with 4 ft (1.2 m) mounting cable and simple, icon-driven controls.
- Self-contained refrigeration coil wraps each well for rapid pull-down and even temperature distribution.
- Eco-conscious R290 hydrocarbon refrigerant (low GWP) paired with foamed-in-place insulation for maximum efficiency.
- Standard ¾ in (1.9 cm) integral drain quickly empties water after hot cycles—no master shut-off required.
- Ships with 6 ft (1.8 m) cord and NEMA 5-20P plug; no hard-wiring needed.
- UL Listed, NSF/ANSI 8 compliant, and backed by a Vollrath 2-year parts & labor warranty.
Ideal for
- Hotels & resorts
- Supermarket prepared-food counters
- Catering & banquet facilities
- College & corporate dining halls
Technical specifications
| Capacity | 3 full-size wells (12 × 20 in) / fractional pans up to 6 in deep |
|---|---|
| Overall size (W × D × H) | 49.8 × 26 × 24.4 in (126.5 × 66 × 62 cm) |
| Cut-out | 49 × 25¼ in (124.5 × 64.1 cm) |
| Electrical | 120 V / 60 Hz / 1-ph, 15.5 A, 1 ,875 W, NEMA 5-20P |
| Compressor | ¼ HP, self-contained, R290 (130 g charge) |
| Heat rejection | 2,800 BTU /hr (cold) • 6,400 BTU /hr (hot) |
| Construction | 18-ga 300-series stainless steel (top flange, wells & interface) |
| Drain | Integral ¾ in (1.9 cm) outlet per well |
| Agency listings | UL, UL Sanitation (NSF/ANSI 8) |
| Warranty | 2-year parts & labor, factory-backed |
| Net weight | 212 lb (96 kg) |
Smart control highlights
- Power on/off remembers last-used settings.
- One-touch well selector cycles through OFF, HOT, COLD, and FROZEN.
- Rotary knob provides precise heat-level adjustment in HOT mode.
- Numeric temperature read-out displays only when a well is in HOT mode for quick visual confirmation.
Installation notes
- Indoor use only; ambient must not exceed 86 °F (30 °C).
- Provide 3 in clearance at intake & discharge openings (80 sq in minimum).
- Mounting clips included; fits counter thickness up to 3 in (7.6 cm).
- Unit must be installed & serviced by qualified personnel familiar with R290 systems.
Vollrath® drop-ins are built to order and are non-returnable. Verify countertop cut-out dimensions with the physical unit before cutting.
