Vollrath FC-HCF-03120-AD Steam Tables & Food Wells

3-Well Hot / Cold / Frozen Drop-In with Auto-Drain

One well, three modes—times three. The Vollrath FC-HCF-03120-AD turns any counter into a high-performance serving station that can heat, refrigerate or freeze every well independently. From piping-hot entrées to ice-cold salads and grab-n-go frozen desserts, this self-contained unit does it all while taking up surprisingly little space.

Why You’ll Love It

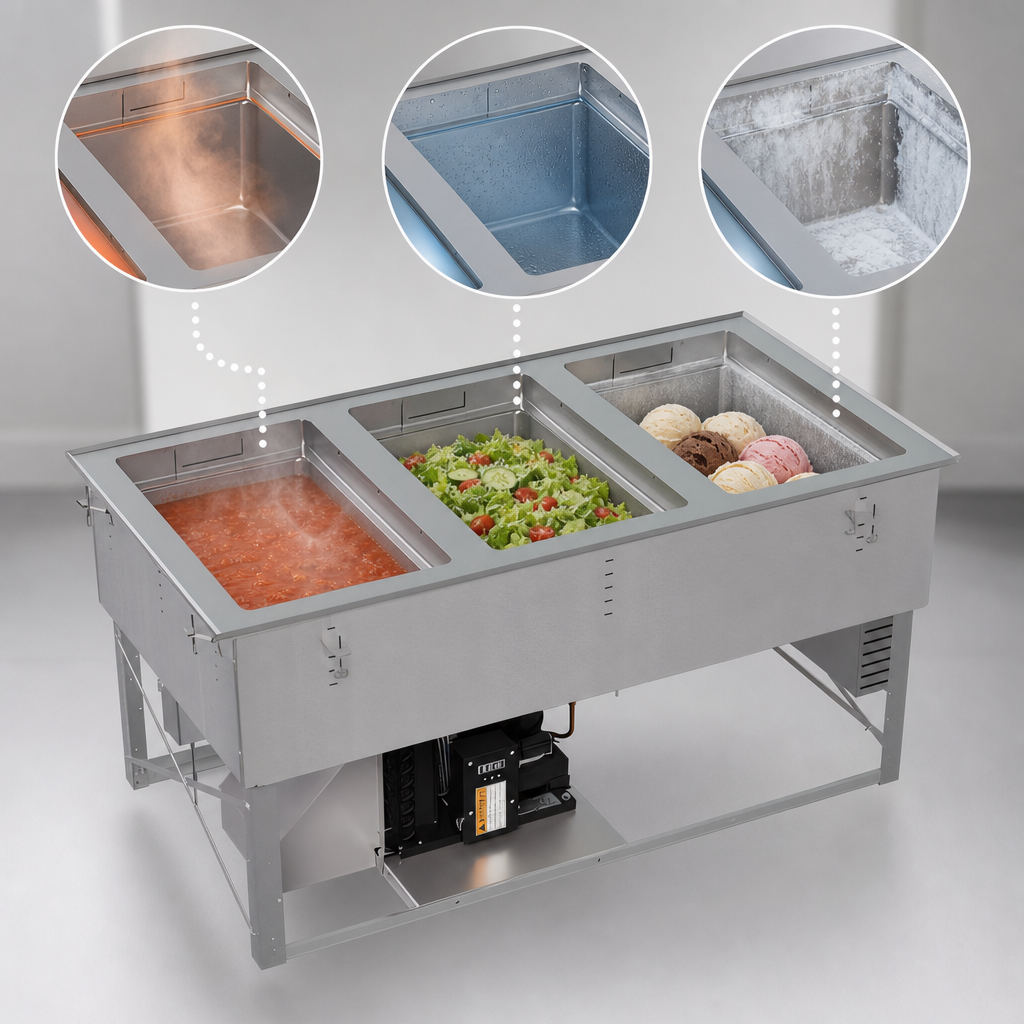

• Triple-Temp Flexibility – Each of the three full-size wells switches between HOT (up to NSF-safe holding temps), COLD (refrigerated), FROZEN (below 0 °F) or OFF at the touch of a button.
• Independent Electronic Controls – Bright touchscreen with 4 ft remote-mount cable lets you locate the user interface where it’s most convenient.
• Auto-Drain Convenience – ¾″ integral drain automatically empties water when you change from HOT to COLD/FROZEN, saving labor and preventing spills.
• Rugged Stainless Construction – 18-gauge, 300-series stainless on the top flange, wells and control panel stands up to the busiest foodservice environments.
• Eco-Friendly R290 Refrigerant – Low-GWP hydrocarbon system with wrap-around coils and foamed-in-place insulation for fast pull-down and energy efficiency.
• Plug-and-Play Installation – Ships complete with mounting clips, 6 ft power cord and NEMA 5-20P plug—no remote compressor or plumbing modifications required.
• Made in the USA – Engineered and manufactured in Sheboygan, Wisconsin and backed by Vollrath’s 2-year warranty.

Technical Specifications

Installation & Operating Notes

• Designed for indoor use in ambient temperatures below 86 °F (30 °C).
• Provide at least 3″ clearance for ventilation on both long sides.
• Water must cover the heating element during HOT mode; unit drains automatically when switched to COLD or FROZEN.
• Cut-out should be verified after receipt of unit; Vollrath drop-ins are built to order and are non-returnable.
• Installation & servicing must be performed by qualified professionals familiar with R290 refrigeration.
