Vollrath 3-Well Hot/Cold/Frozen Modular Drop-In Food Well, Auto Drain, Flat Flange, 120V

SKU: FC-HCF-03120-AD-FF
$10,007.06
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Best Sellers Cold Well Food Bars & Buffets Food Holding & Warming Equipment Food Wells & Serving Lines New Arrivals Restaurant Equipment Steam Tables & Food Wells Vollrath

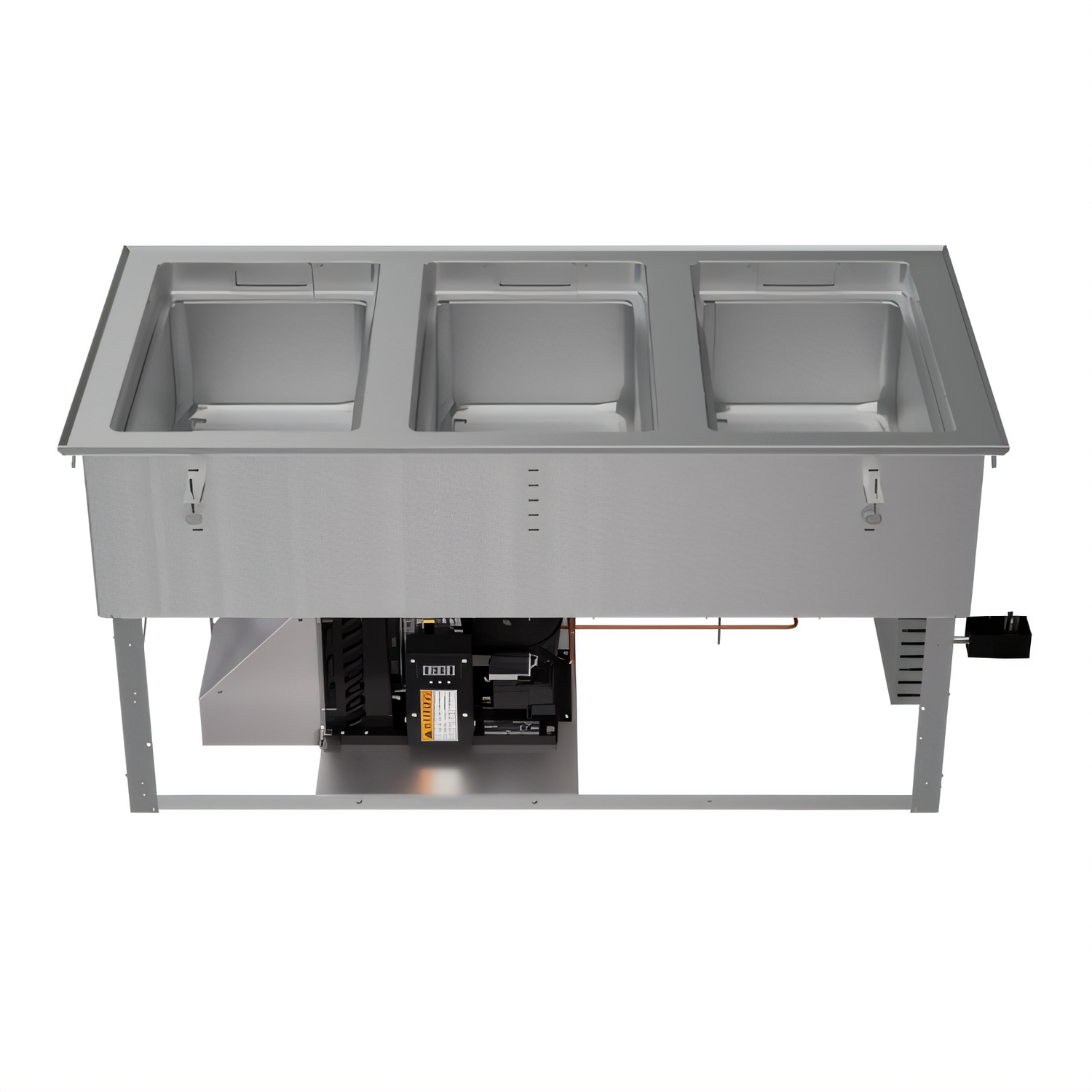

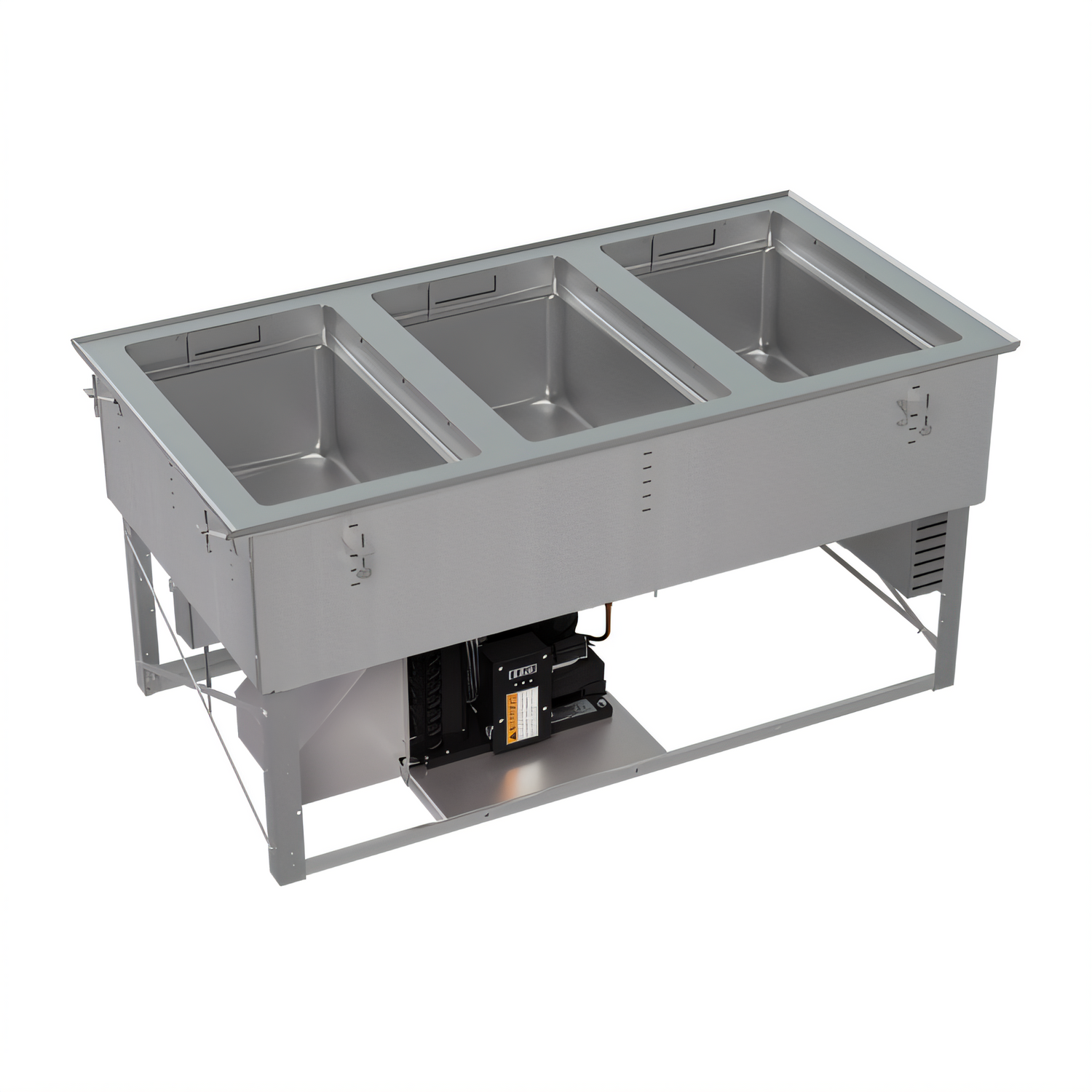

Vollrath 3-Well Hot/Cold/Frozen Modular Drop-In Food Well, Auto Drain, Flat Flange, 120V

Independent electronic controls with self-contained R290 refrigeration

Keep hot, cold, and frozen menu items ready in one compact drop-in unit with independently controlled wells and durable stainless steel construction.

  • Three independently controlled wells operate in hot, cold, or frozen mode.
  • Auto-drain and flat-flange design supports a clean drop-in installation.
  • Durable 18-gauge, 300-series stainless steel top, wells, and user interface.
  • Self-contained, mechanically cooled system uses R290 refrigerant for efficient operation.
  • Accepts full-size and fractional food pans up to 6 inches deep; mounting clips are included.
  • 120V, 60Hz, 1-phase power with a NEMA 5-20P plug.

Overall Dimensions:

49.78"W x 26.0"D x 24.4"H

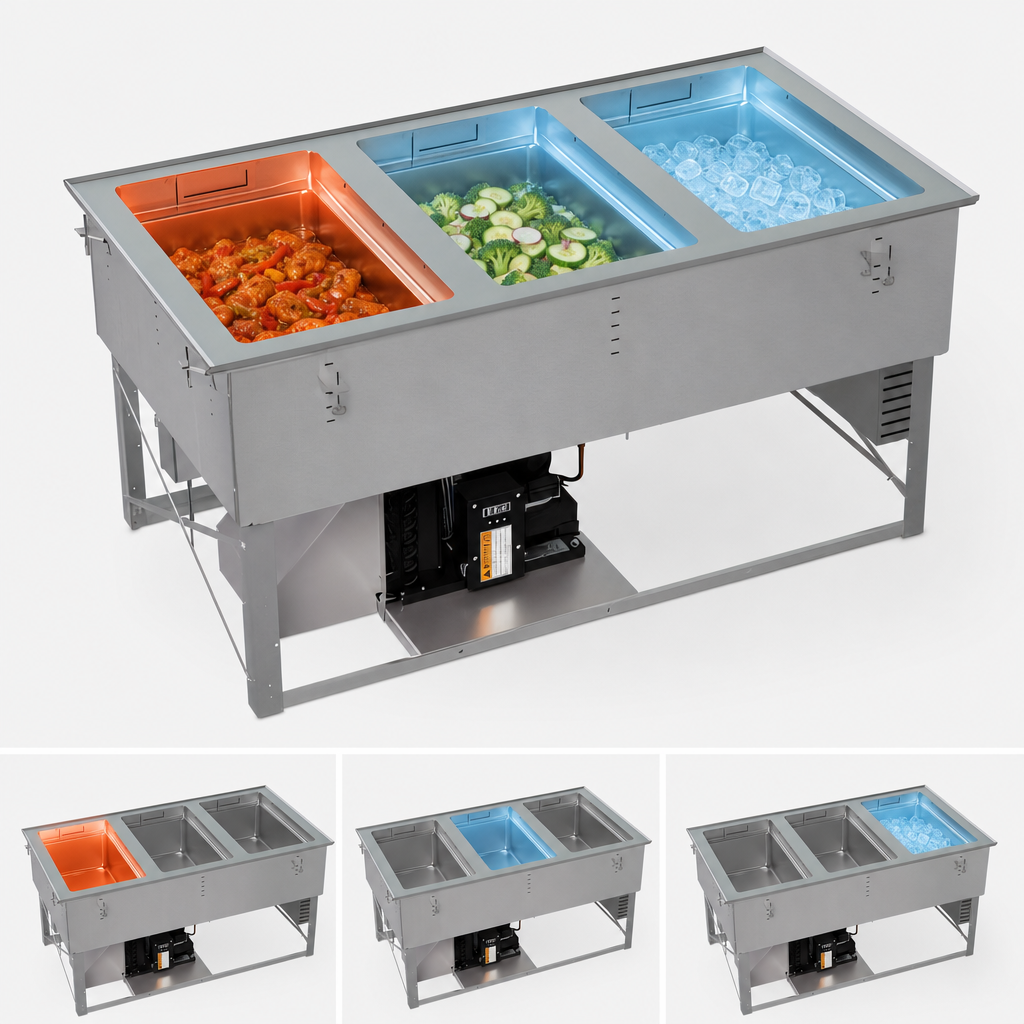

Independent Well Modes

Each well can be set separately to OFF, HOT, COLD, or FROZEN for flexible menu service.

Auto-Drain and Flat Flange Configuration

This AD-FF model includes auto-drain technology and a flat flange for drop-in mounting.

Stainless Steel Construction

Top flange, well, and user interface are made from durable 18-gauge, 300-series stainless steel.

Self-Contained R290 Refrigeration

Mechanically cooled, self-contained refrigeration uses R290 hydrocarbon refrigerant for efficient cooling.

Pan Compatibility

Accepts full-size and fractional food pans up to 6 inches deep; adapter bars are used with fractional pans.

Insulated Inner Well

Foamed-in-place polyurethane insulation and refrigeration coil wrap help maximize cooling performance.

Flexible Installation

Standard mounting clips are included, and the user interface includes a 4-foot connection for flexible mounting options.

Integral Drain System

A 3/4-inch integral drain is standard, and cold operation automatically drains water.

Type Hot/Cold/Frozen Food Well
Style Modular
Installation Type Drop-In
Controls Independent Electronic
Pan Capacity 3 Pans
Pan Size Full-Size and Fractional Pans Up to 6 Inches Deep
Material 300-Series Stainless Steel
Finish Stainless Steel
Refrigeration Type Self-Contained
Refrigerant Type R290
Drain Connection Size 3/4 Inch
Voltage 120 Volts
Amps 15.5 Amps
Watts 1.875 kW
Hertz 60 Hz
Phase 1-Phase
Plug Type NEMA 5-20P
Cord Length 10 Feet
Country of Origin USA
Selling Unit Each
Units Per Case 1
Shipping Width 50 Inches
Shipping Depth 26 Inches
Shipping Height 25 Inches
Shipping Weight 230 lb.

Certifications & Compliance

Certified badge of UL Certified
UL Certified

Warranty & Protection

Standard warranty against defects in materials and workmanship, plus 4 additional years on the compressor.

Documents

PDF Cutsheet PDF Download PDF Cutsheet PDF Download PDF Cutsheet PDF Download PDF Quick start guide PDF Download PDF Installation instructions PDF Download PDF Operator's manual PDF Download PDF Warranty sheet PDF Download

Frequently Asked Questions

Yes. Each well can be set independently to OFF, HOT, COLD, or FROZEN.
It accepts full-size and fractional food pans up to 6 inches deep. Adapter bars are used with fractional pans.
The unit requires 120V, 60Hz, 1-phase power and uses a NEMA 5-20P plug.
Yes. A 3/4-inch integral drain is standard, and the unit automatically drains during cold operation.
Yes. Standard mounting clips are included for easier installation on counters up to 3 inches thick.
