Vollrath FC-HCF-02208 Steam Tables & Food Wells
$7,667.17
Unit price
/
Unavailable
Description

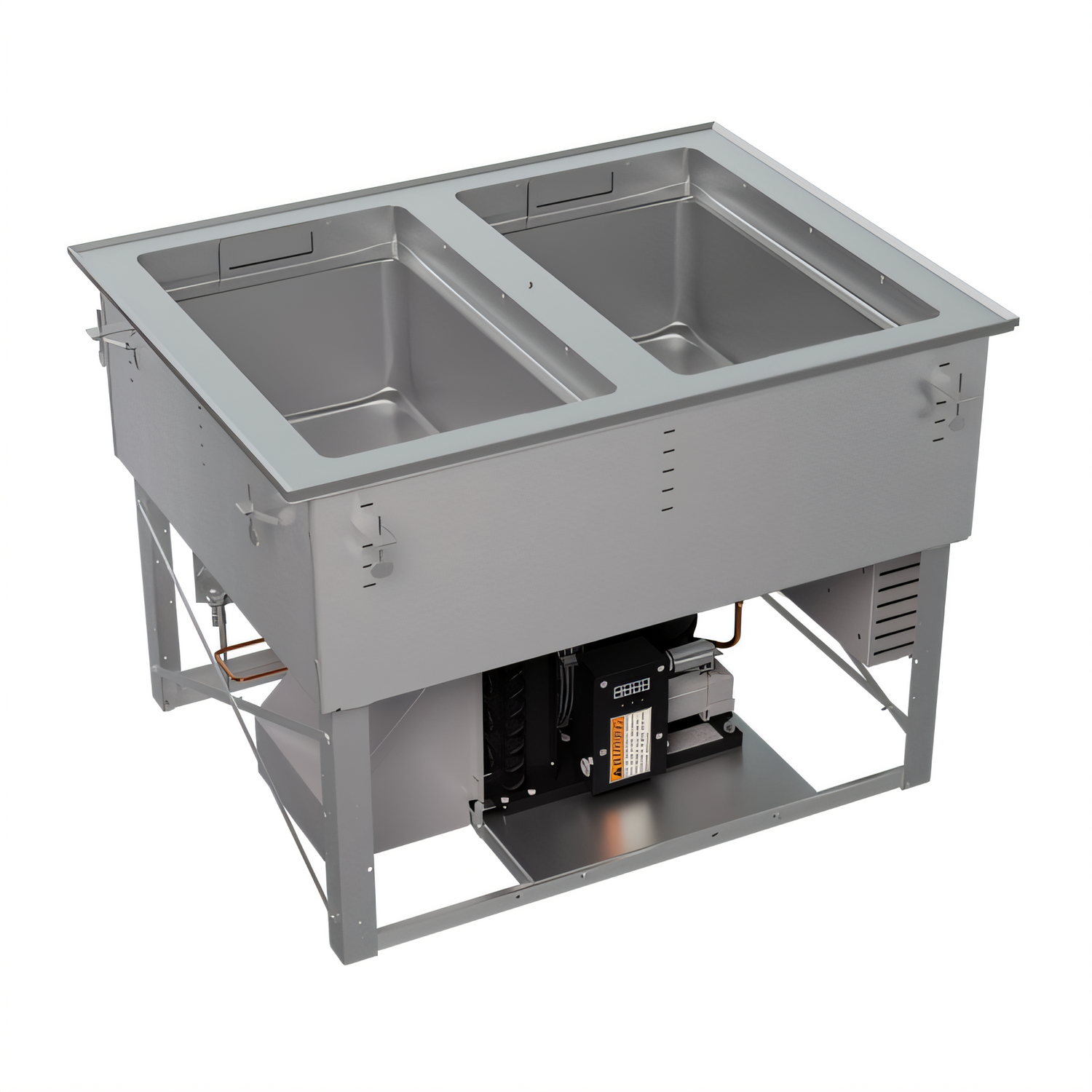

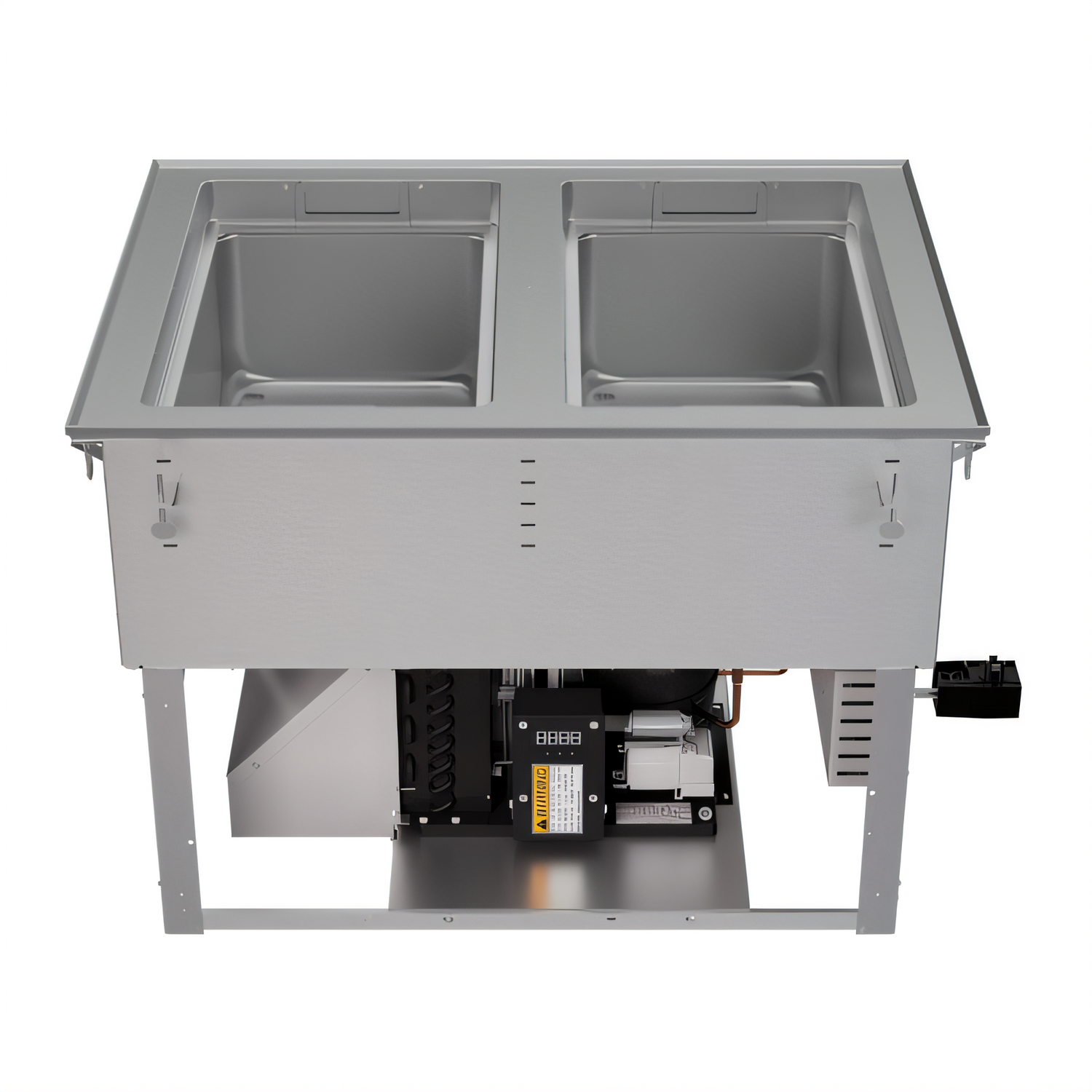

Vollrath 2-Well Hot / Cold / Frozen Modular Drop-In
Model FC-HCF-02208 • UL Listed & NSF/ANSI 8 Certified • Made in USAServe piping-hot entrées, chilled salads, or rock-solid frozen desserts – all from the very same well. Vollrath’s revolutionary Hot/Cold/Frozen drop-in gives you independent electronic control of each well, letting you switch from HOT to COLD to FROZEN in seconds with no change-outs, ice, or glycol required.
Why you’ll love it

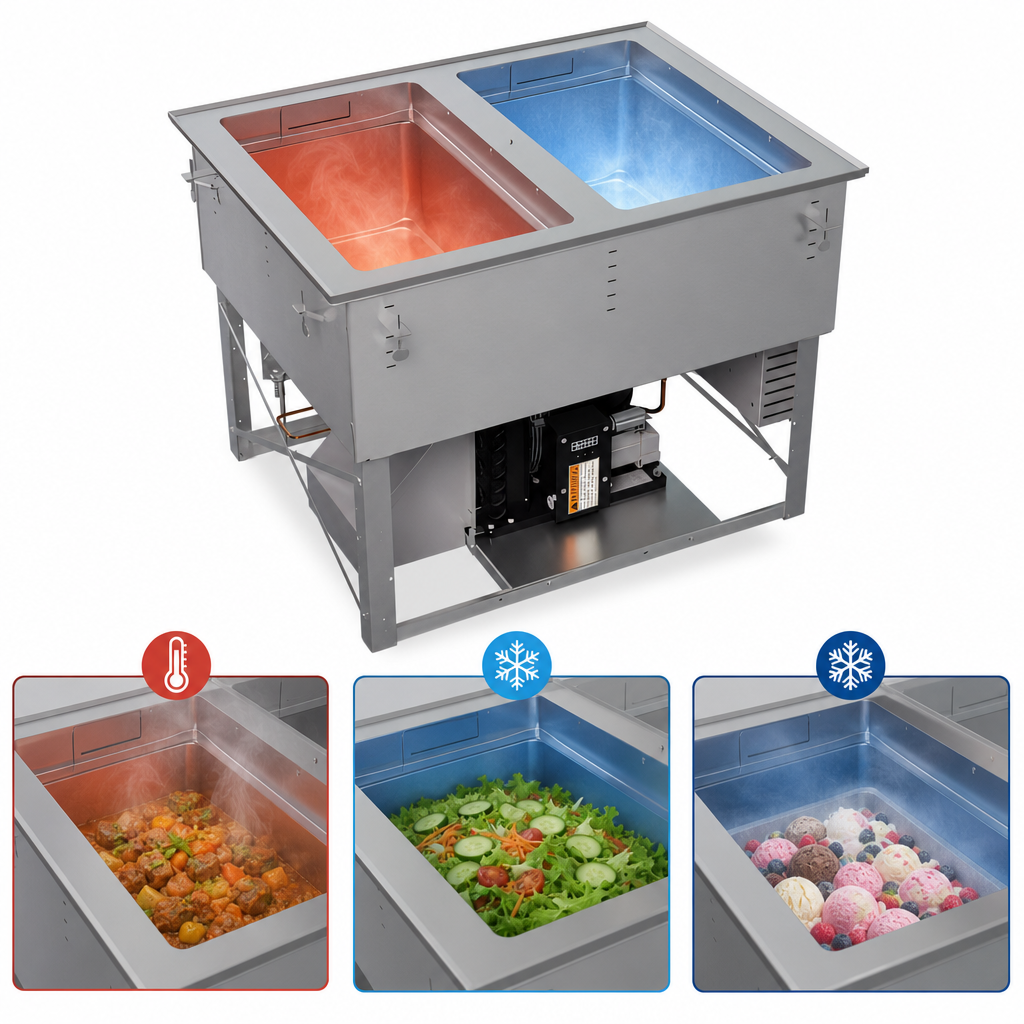

- Triple-mode flexibility – each well operates independently in Hot, Cold, or Frozen mode.
- Full-size capacity – holds two full-size 12" x 20" pans or fractional pans up to 6" deep (use adapter bars for fractional).
- Intuitive user interface – lighted touchscreen with control knob plus a 4 ft (1.2 m) tether for remote mounting.
- R290 hydrocarbon refrigeration – eco-friendly, high-efficiency self-contained system with ¼ HP compressor.
- Even hot holding – 625 W heater per well and water bath design meet NSF hot-food standards.
- 2" stepped cold wall creates an air curtain to maintain cold & frozen foods above the danger zone.
- 18-gauge, 300-series stainless steel top, wells, and bezel – built for daily commercial abuse.
- Integral ¾" drain simplifies cleanup; water automatically empties when you switch to Cold/Frozen.
- Drop-in ready – mounting clips for counters up to 3" thick and a 6 ft cord & plug are included.
Technical specifications
| Wells / Modes | 2 independent wells – Hot, Cold, or Frozen (selectable per well) |
|---|---|
| Pan capacity | (2) full-size 12" x 20" or fractional pans up to 6" deep |
| Overall dimensions | 33.9" W × 26.0" D × 24.4" H (86.1 × 66.0 × 62.0 cm) |
| Counter cut-out | 33 ¹⁄₁₆" W × 25 ¼" D (84 × 64.1 cm) |
| Compressor | ¼ HP, self-contained, side-mounted |
| Refrigerant | R290 (100 g charge) |
| Heating power | 625 W per well – 1,250 W total |
| Electrical | 120/208-240 V, 60 Hz, 1-ph, 6.6 A, NEMA 14-20P |
| Peak heat rejection | 2,800 BTUH (Cold) / 4,300 BTUH (Hot) |
| Shipping weight | 185 lb (83.9 kg) |
| Construction | 18-ga 300-series stainless steel top, wells, & bezel; foamed-in-place insulation |
| Certifications | UL Listed, UL Sanitation (NSF/ANSI 8) |
| Warranty | 2-year parts & labor (see Vollrath warranty for details) |
Smart touch controls
- Power on/off with last-used settings memory.
- Press well number to cycle through OFF, HOT, COLD, FROZEN.
- Numeric temperature read-out in Hot mode; icon indicators in all modes.
- Rotate knob to fine-tune heat level; push knob to jump between active wells.
Installation & safety notes
- Indoor use only; ambient must not exceed 86 °F (30 °C).
- Provide 1.5" bottom and 3" side clearance for ventilation.
- Unit must be installed and serviced by a qualified professional.
- Water is required during Hot operation for even heating.
- Do not modify the cord or plug; doing so voids warranty.
Important: This appliance uses flammable R290 refrigerant.
Keep all ventilation openings clear, do not puncture refrigerant tubing, and keep the unit away from open flames or sources of ignition.
Due to ongoing product improvements, specifications are subject to change without notice.
Features & Specs
Features & Specs
Manufacturer
Vollrath
Certifications
UL Certified, Made in USA
Height
24.4in
Width
33.9in
Depth
26.0in
Pan Qty
2-pan
Cooling Style
mechanically cooled
Controls
single controls
Finish
stainless steel top, well & exterior
Type
hot/cold/frozen
Specifications
Hot/Cold/Frozen Food Well Unit, drop-in, 2-well, accommodates full-size pans & fractional food pans up to 6" deep, independent electronic controls, 18 gauge/300 series stainles steel top, well, & user interface, interface includes 4' connection for mounting option, self-contained refrigeration, R290 Hydrocarbon refrigerant, 1/4 HP, 120/208-240/60/1-ph, 1250 watts, 6.6 amps, NEMA 14-20P, Made in USA, UL Certified
