Vollrath FC-HCF-02208-FF Steam Tables & Food Wells
Description

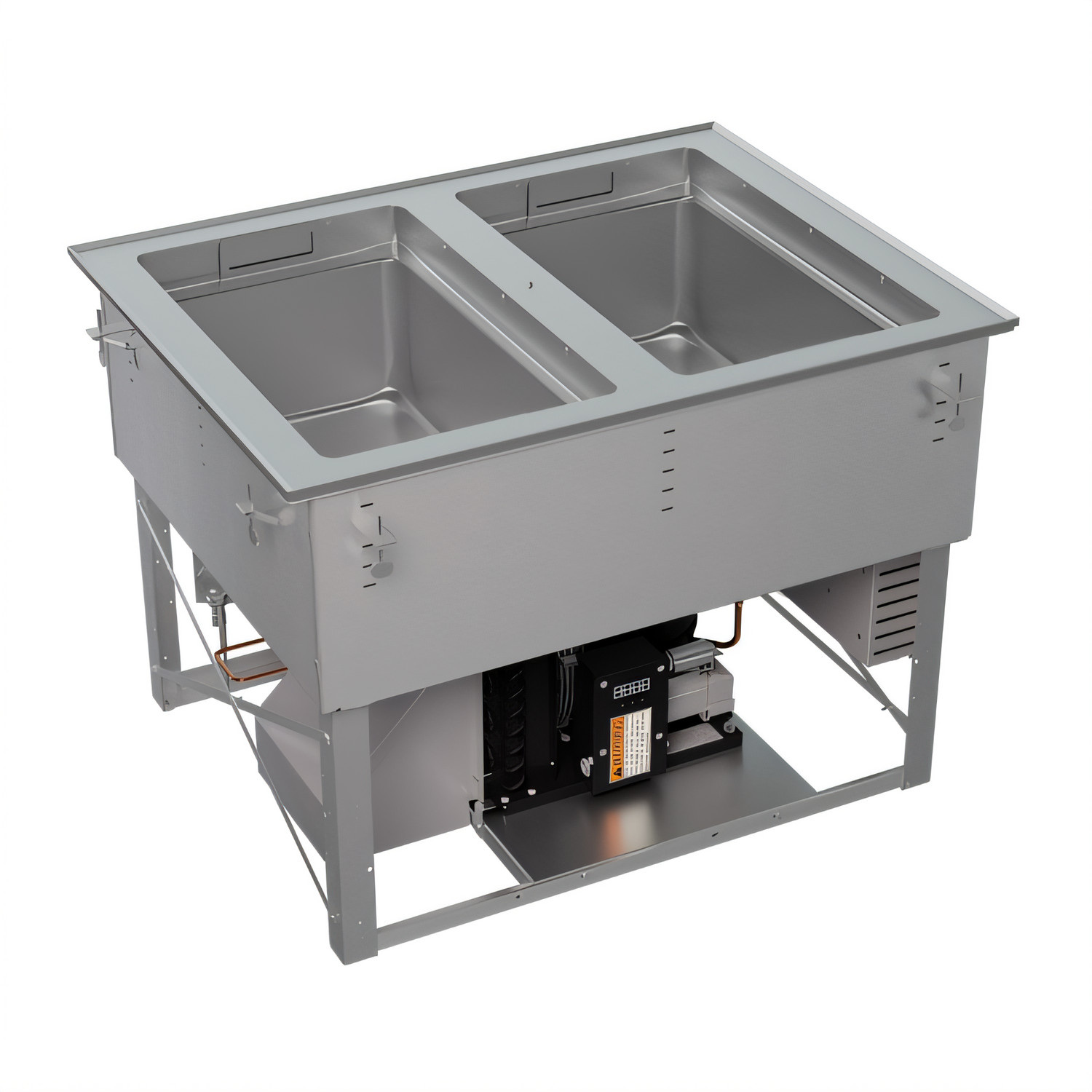

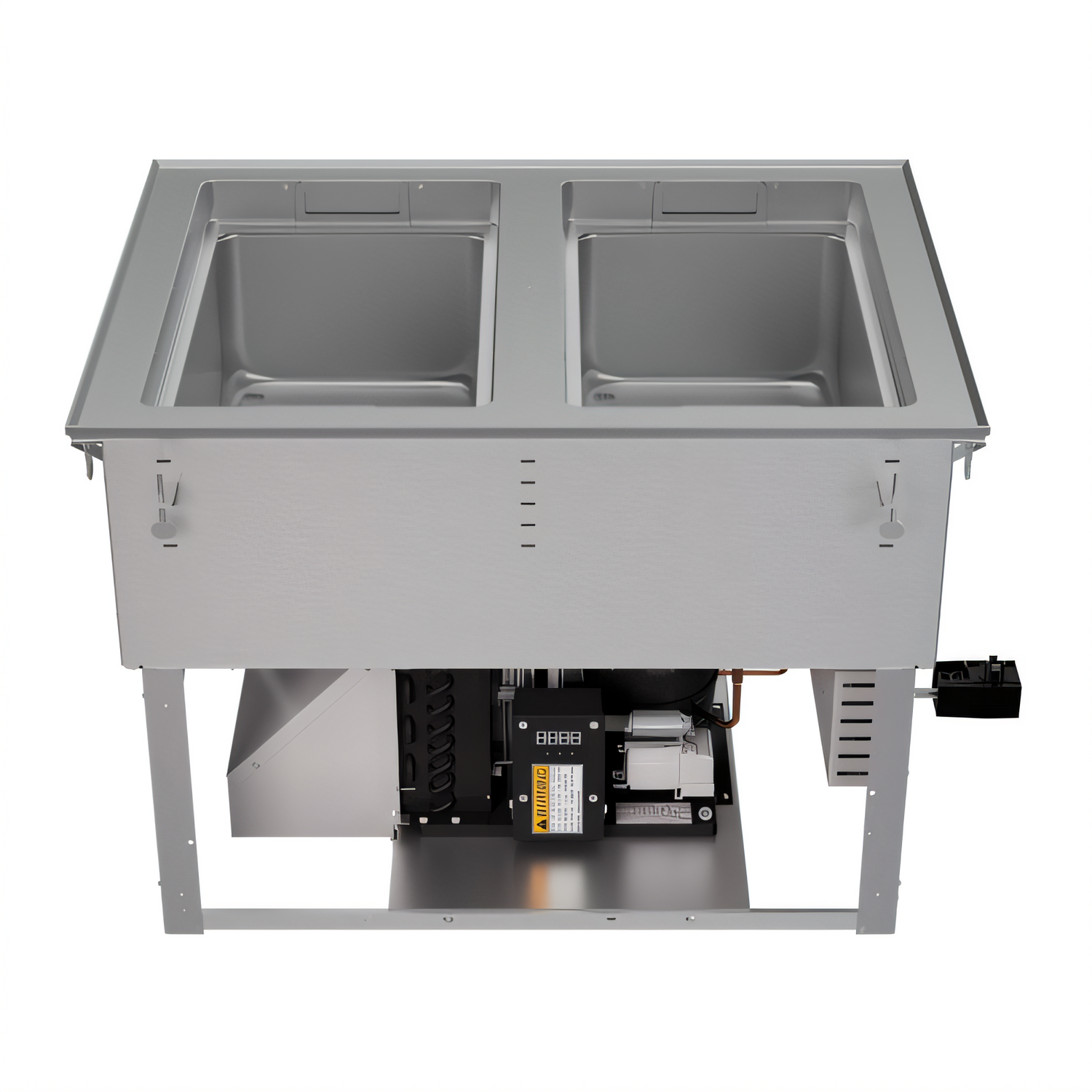

Vollrath FC-HCF-02208-FF 2-Well Hot / Cold / Frozen Drop-In
Flat-flange | 120/208-240 V | Made in USAGive your serving line ultimate flexibility with a single drop-in that can warm, chill, or even freeze – all at the push of a button. Each well on the Vollrath FC-HCF-02208-FF runs independently, so you can hold soup piping hot in one well while keeping salad ingredients icy cold in the other. Built from durable 18-gauge 300-series stainless steel with an easy-clean flat flange, this self-contained unit installs quickly and is ready to perform all day, every day.
Key Features & Benefits

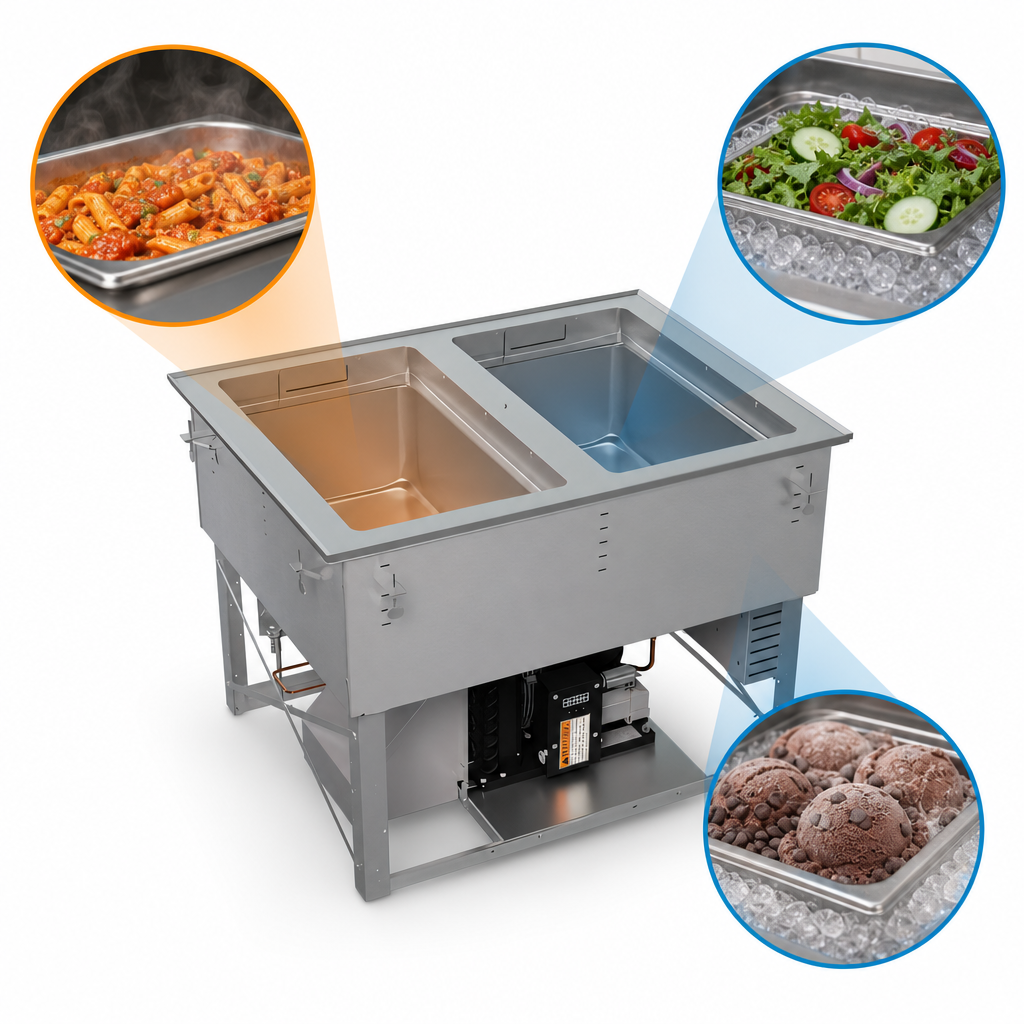

- 3-in-1 performance – switch any well between HOT, COLD, or FROZEN modes.
- Independent electronic controls with intuitive touch panel and 4 ft (1.2 m) remote-mount cable.
- Accepts (2) full-size 12 × 20 in pans or fractional pans up to 6 in (15.2 cm) deep.
- 2 in (5.1 cm) stepped cold-wall recess forms a “cold-air blanket” for NSF-compliant cold holding.
- Self-contained ¼ HP refrigeration system charged with eco-friendly R290 refrigerant.
- Foamed-in-place insulation plus refrigeration coils wrapped around each well for rapid pull-down and efficiency.
- ¾ in (1.9 cm) integral drain – water required for hot operation automatically drains when switching to cold/frozen.
- Ships ready to install: mounting clips for counters up to 3 in (7.6 cm) thick and a 6 ft (1.8 m) cord with plug are included.
- UL Listed, NSF/ANSI 8 compliant, 2-year limited warranty.
Technical Specifications
| Model | FC-HCF-02208-FF |
|---|---|
| Wells / Capacity | 2 wells — each fits one full-size (12 × 20 in) pan or fractional equivalents up to 6 in deep |
| Material / Finish | 18-ga 300-series stainless steel top, wells, and user interface – flat flange |
| Operating Modes | Hot (wet), Cold, Frozen – selectable per well |
| Overall Dimensions | 33.9 W × 26 D × 24.4 H in (86.1 × 66.0 × 62.0 cm) |
| Countertop Cut-out | 33 ¹⁄₁₆ W × 25 ¼ D in (84 × 64.1 cm) · ⅜ in (9.5 mm) corner radius |
| Compressor | ¼ HP, self-contained |
| Refrigerant | R290 Hydrocarbon, 625 g charge |
| Electrical | 120/208-240 V | 60 Hz | 1-phase | 1,250 W | 6.6 A max | NEMA 14-20P |
| Net Weight | 185 lb (83.9 kg) |
| Certifications | UL Listed, NSF/ANSI 8, Made in USA |
| Warranty | 2-year parts & labor (see Vollrath warranty for details) |
Intended for indoor use in ambient temperatures below 86 °F (30 °C). Adapter bars for fractional pans are sold separately.
