Vollrath FC-HCF-02208-AD Steam Tables & Food Wells
$7,744.62
Unit price
/
Unavailable
Description

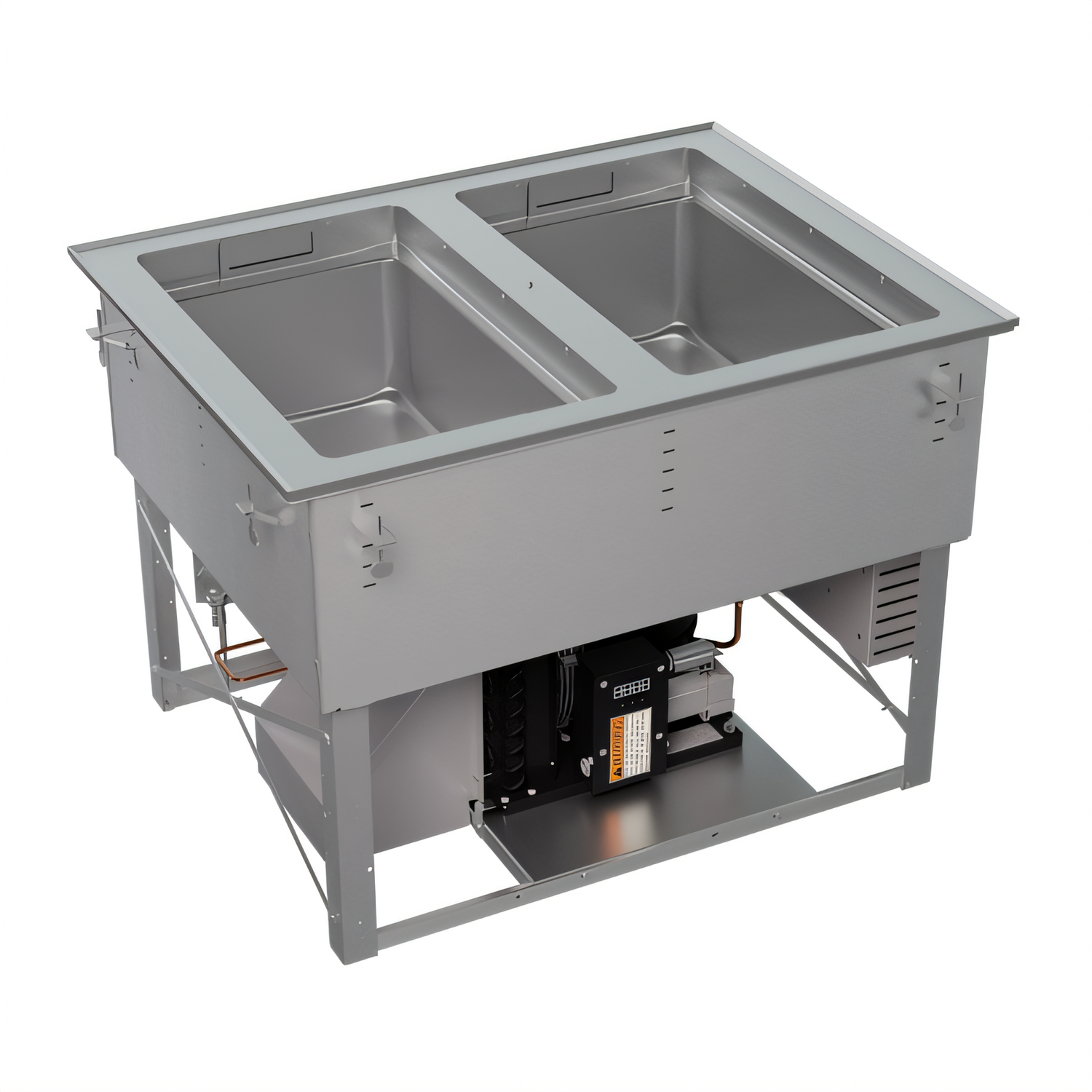

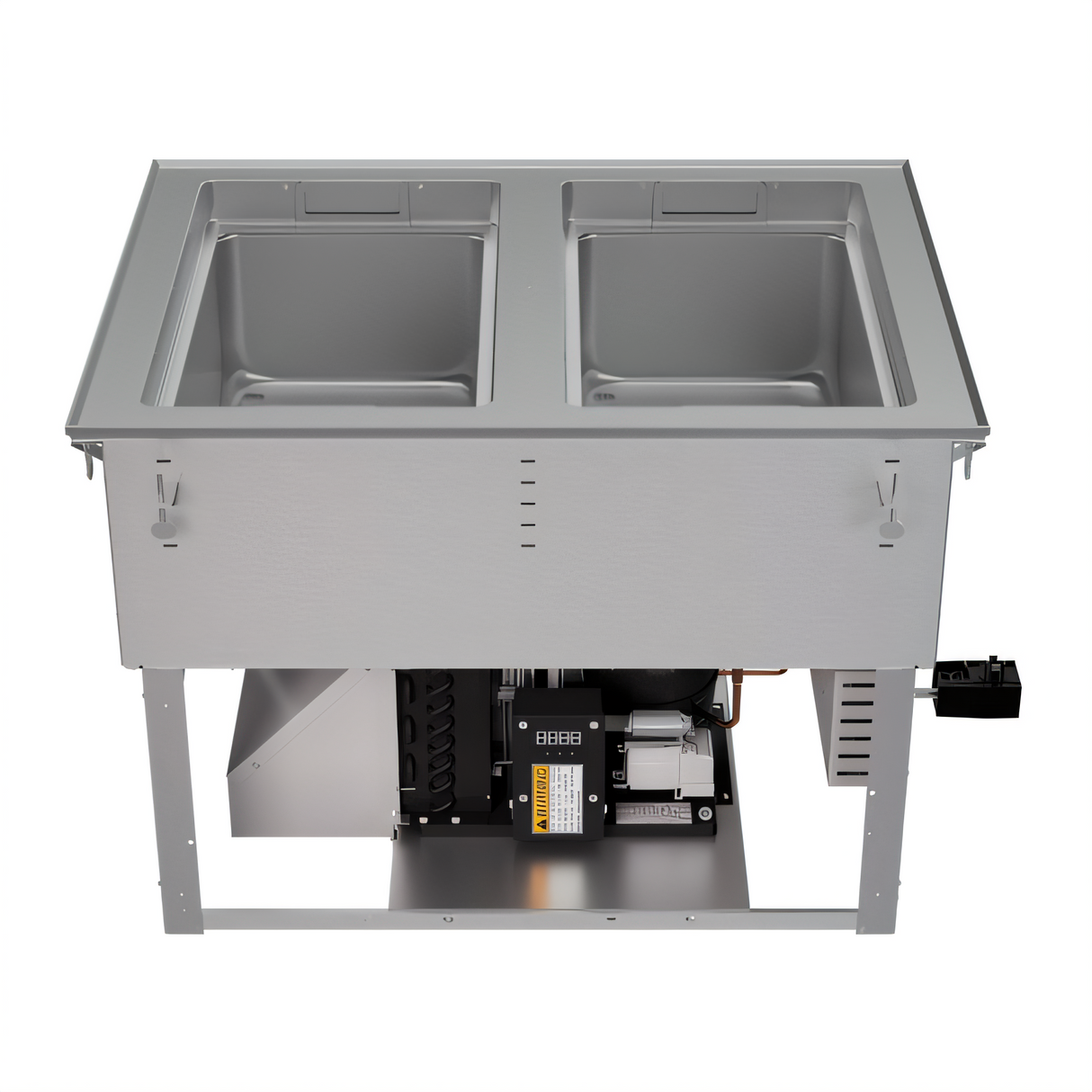

Hot / Cold / Frozen 2-Well Drop-In with Auto-Drain
Vollrath Model FC-HCF-02208-AD | Made in USAOne drop-in, three service temperatures. Vollrath’s Hot/Cold/Frozen 2-well modular unit lets you hold soups at serving temperature, chill salads, or keep desserts frozen – all at the same time – without swapping equipment or wells.
Top features

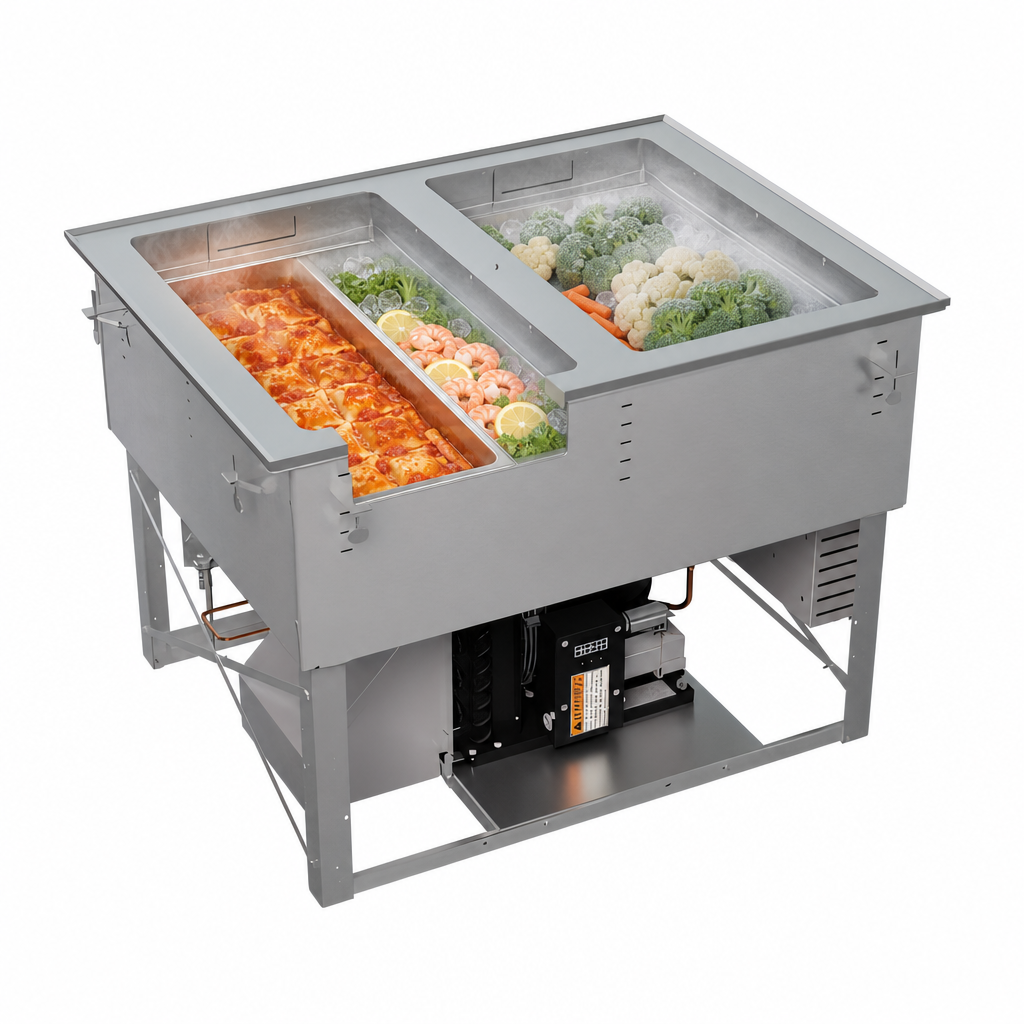

- Independent electronic controls – set each well to HOT, COLD, or FROZEN at the touch of a button.
- Auto-Drain system automatically evacuates water when switching from hot to cold operation.
- Rugged 18-gauge, 300-series stainless steel top, well and user interface stand up to daily commercial use.
- Accepts two full-size or fractional food pans up to 6 in (15.2 cm) deep; adapter bars supported.
- Cold-wall refrigeration wrap plus 2 in stepped recess create an NSF-compliant cold-air blanket.
- Remote-mount electronic interface on a 4 ft (1.2 m) cord keeps controls exactly where you want them.
- Self-contained ¼ HP refrigeration uses eco-friendly R290 hydrocarbon refrigerant (low GWP).
- Ships ready to install with mounting clips, ¾ in integral drain and 6 ft cord with NEMA 14-20P plug.
- UL Listed, NSF/ANSI 8 sanitation compliant and backed by a 2-year Vollrath warranty.
Perfect for
- Buffet lines and salad bars
- C-stores and grab-and-go kiosks
- Ghost kitchens & day-part menu changes
- Retrofits where space or utilities limit separate hot and cold wells
Specifications
| Number of wells | 2 (individually controlled) |
|---|---|
| Operating modes | Hot • Cold • Frozen |
| Pan capacity | 2 × full-size or fractional up to 6 in deep |
| Drain | ¾ in integral, Auto-Drain (no manual shut-off required) |
| Refrigeration | Self-contained, ¼ HP, R290, 625 g charge |
| Electrical | 120/208-240 V | 1-ph | 60 Hz | 1250 W | 6.6 A |
| Plug | NEMA 14-20P (6 ft cord) |
| Construction | 18-ga 300-series stainless steel |
| Overall size | 33.9 in W × 26.0 in D × 24.4 in H |
| Counter cut-out | 33 ^1⁄16 in W × 25 ^1⁄4 in D (⅞ in radius corners) |
| Shipping weight | 185 lb (83.9 kg) |
| Certifications | UL Listed, UL Sanitation (NSF/ANSI 8) |
Installation note: Unit is for indoor use below 86 °F (30 °C) and must be installed/serviced by qualified personnel following all R290 safety guidelines.
Water is required in each well during HOT mode for even heating; water drains automatically when the well is switched to COLD or FROZEN.
Features & Specs
Features & Specs
Manufacturer
Vollrath
Certifications
UL Certified, Made in USA
Height
24.4in
Width
33.9in
Depth
26.0in
Finish
stainless steel top, well & exterior
Pan Qty
2-pan
Cooling Style
mechanically cooled
Controls
single controls
Type
hot/cold/frozen
Specifications
Hot/Cold/Frozen Food Well Unit, drop-in, 2-well, auto-drain, accommodates full-size pans & fractional food pans up to 6" deep, independent electronic controls, 18 gauge/300 series stainles steel top, well, & user interface, interface includes 4' connection for mounting option, self-contained refrigeration, R290 Hydrocarbon refrigerant, 1/4 HP, 120/208-240/60/1-ph, 1250 watts, 6.6 amps, NEMA 14-20P, Made in USA, UL Certified
