Vollrath FC-HCF-02208-AD-FF Steam Tables & Food Wells

$8,731.16
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options

Documents

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

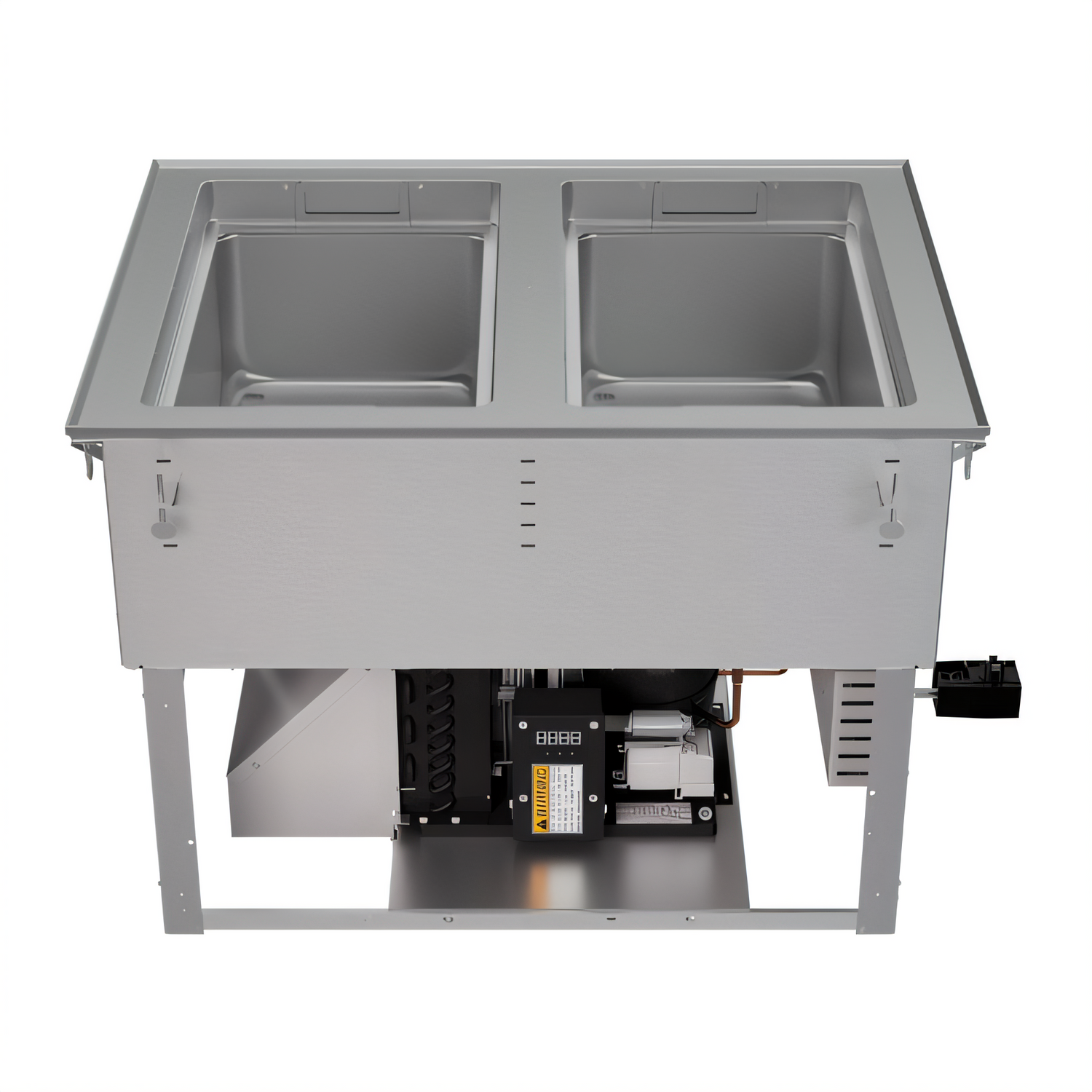

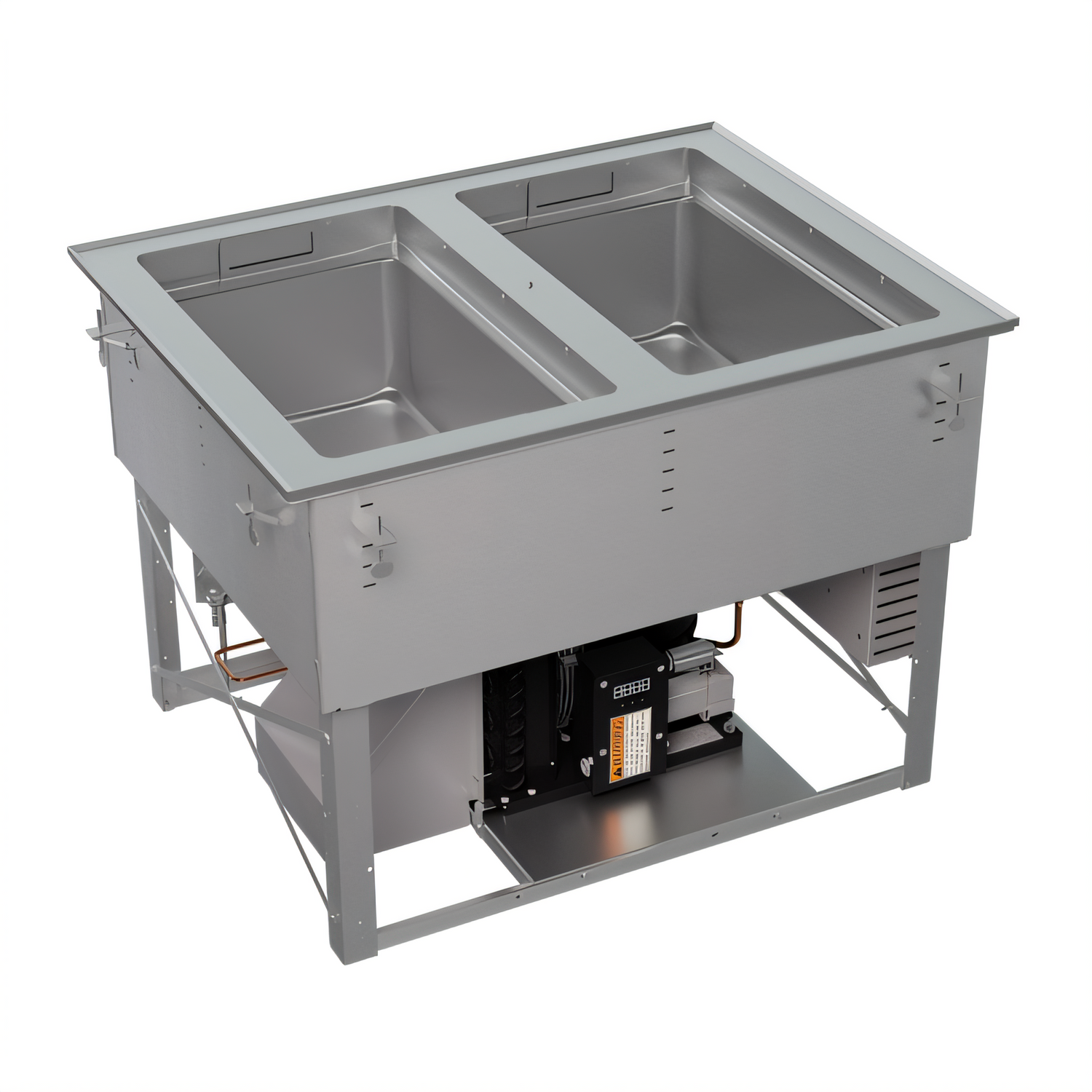

Vollrath FC-HCF-02208-AD-FF Hot/Cold/Frozen 2-Well Drop-In

Auto-Drain • Flat Flange • 120/208-240 V

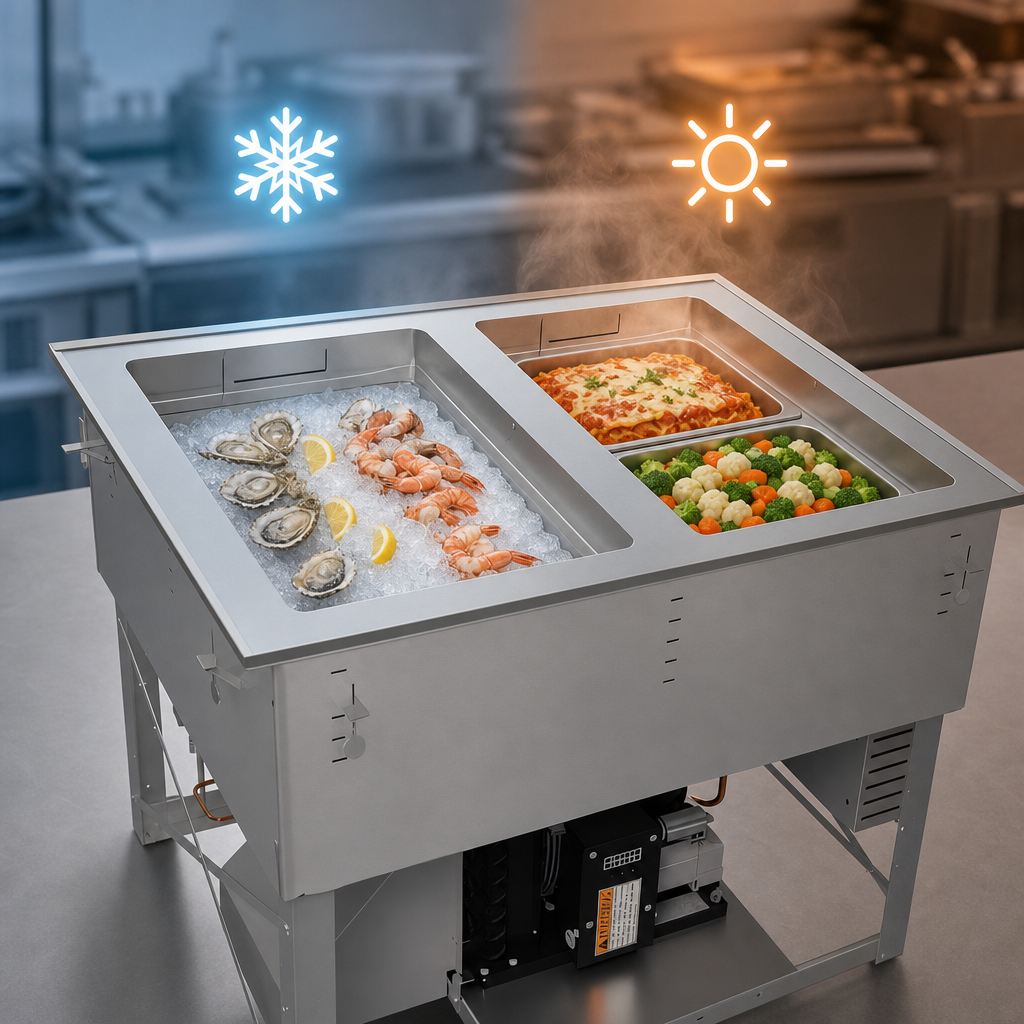

One unit, three holding modes. The Vollrath FC-HCF-02208-AD-FF lets you run each well in HOT, COLD, or FROZEN mode independently—so breakfast can be piping hot, lunch chilled, and dessert served at scoop-ready temperatures, all from the same footprint. Built for demanding commercial kitchens, this drop-in combines rugged 18-gauge stainless steel construction with intuitive electronic controls and eco-friendly R290 refrigeration.

Why It Belongs In Your Line-Up

  • 3-in-1 performance – instantly switch any well between HOT, COLD, or FROZEN.
  • Independent electronic controls with easy-read display and 4 ft (1.2 m) remote-mount harness.
  • Auto-Drain technology automatically empties water when changing from HOT to COLD/FROZEN modes—no manual valve to open.
  • Flat flange sits flush with solid-surface, stainless or stone countertops for a clean, modern presentation.
  • Accepts two full-size 12″ × 20″ pans or fractional pans (up to 6″ deep) with adapter bars.
  • Cold-wall well with 2″ stepped recess blankets product with cold air to maintain NSF compliance.
  • Foamed-in-place polyurethane insulation boosts efficiency and reduces energy costs.
  • Rugged 18-gauge, 300-series stainless steel top, wells and user interface endure daily commercial use.
  • Eco-friendly R290 refrigerant delivers powerful cooling with ultra-low Global Warming Potential (GWP).
  • Made in the USA and backed by a 2-year parts & labor warranty.

Specifications

Model FC-HCF-02208-AD-FF
Wells 2 independent wells – selectable HOT / COLD / FROZEN
Pan Capacity Two full-size (12″ × 20″) or fractional pans up to 6″ deep
Overall Dimensions 33.9″ W × 26.0″ D × 24.4″ H
Countertop Cut-out 33 ¹⁄₁₆″ W × 25 ¼″ D, ⅞″ corner radius (verify in field)
Material 18-ga 300-series stainless steel top, wells & interface
Drain ¾″ integral auto-drain (no master shut-off)
Refrigeration Self-contained cold-wall, ¼ HP compressor, R290 refrigerant
Electrical 120/208-240 V, 60 Hz, 1 ph, 1 250 W, 6.6 A, NEMA 14-20P, 6 ft cord
Certifications UL Listed & Classified, NSF/ANSI 8, Made in USA
Warranty 2-year parts & labor
Important: This unit contains flammable R290 refrigerant. Installation and service must be performed by qualified professionals. Keep ventilation openings clear and follow all Vollrath safety guidelines.

• Add water for HOT operation; water drains automatically in COLD/FROZEN modes.
• Designed for indoor use in ambient temperatures below 86 °F (30 °C).
• Mounting clips for counters up to 3″ thick are included.

Features & Specs

Manufacturer

Vollrath

Certifications

UL Certified, Made in USA

Height

24.4in

Width

33.9in

Depth

26.0in

Finish

stainless steel top, well & exterior

Pan Qty

2-pan

Cooling Style

mechanically cooled

Controls

single controls

Type

hot/cold/frozen

Specifications

Hot/Cold/Frozen Food Well Unit, drop-in, 2-well, auto-drain & flat flange, accommodates full-size pans & fractional food pans up to 6" deep, independent electronic controls, 18 gauge/300 series stainles steel top, well, & user interface, interface includes 4' connection for mounting option, self-contained refrigeration, R290 Hydrocarbon refrigerant, 1/4 HP, 120/208-240/60/1-ph, 1250 watts, 6.6 amps, NEMA 14-20P, Made in USA, UL Certified
