Vollrath

Vollrath 2-Well Hot/Cold/Frozen Modular Drop-In Food Well, 120V

SKU: FC-HCF-02120
$8,299.20
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?

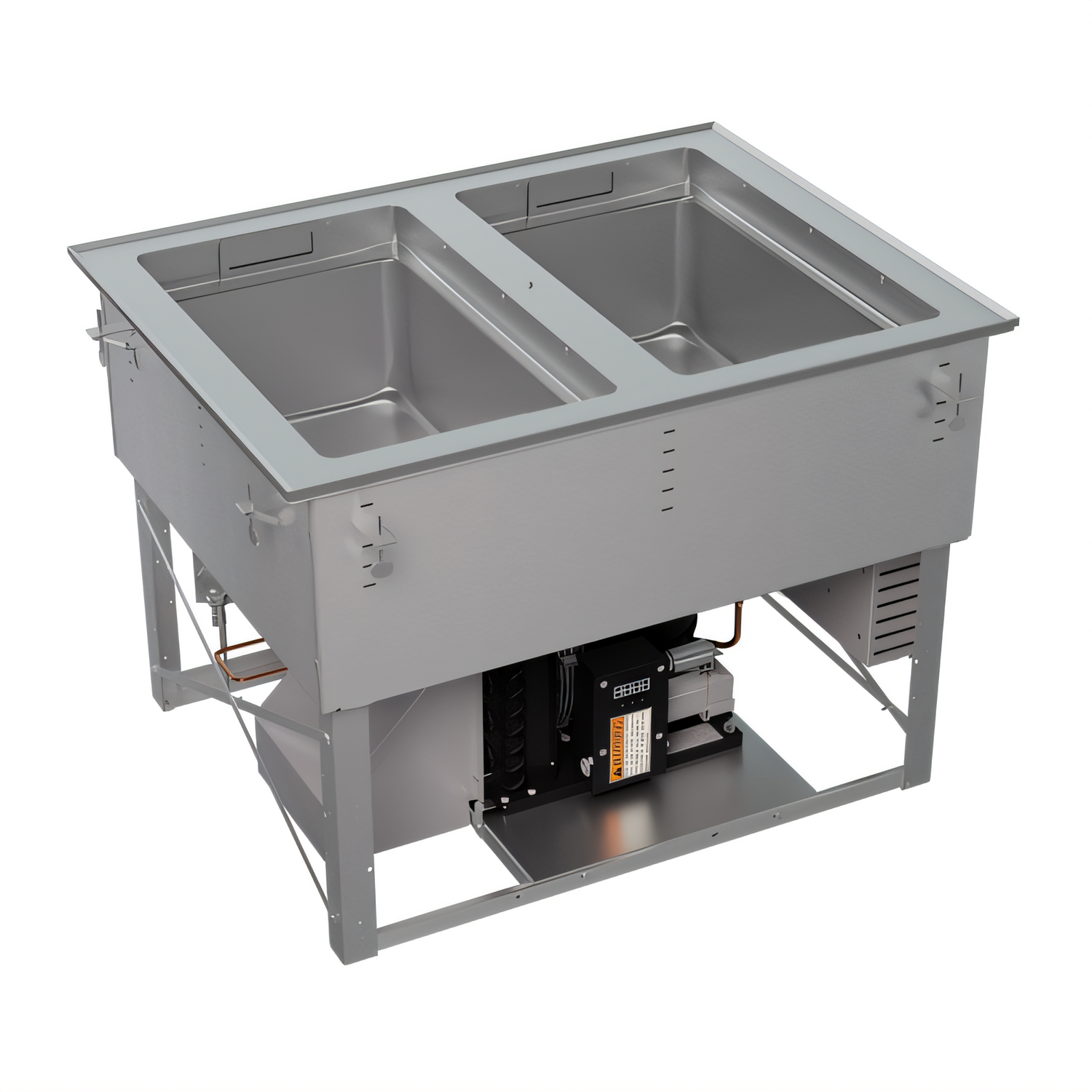

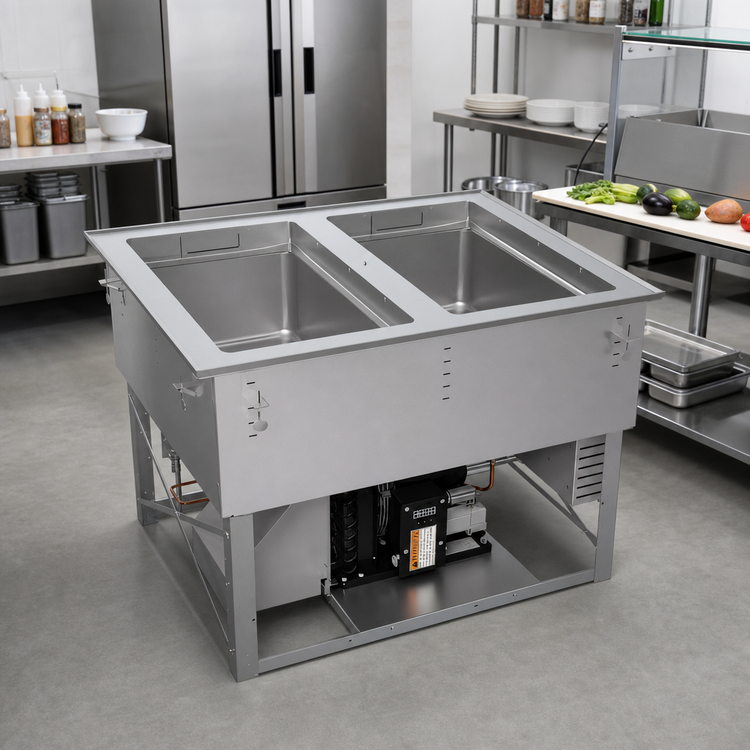

Vollrath 2-Well Hot/Cold/Frozen Modular Drop-In Food Well, 120V

Independent electronic controls with self-contained R290 refrigeration.

Give buffet lines one drop-in unit that can hold food hot, chilled, or frozen with independent control over each well.

  • Two independently controlled wells run in hot, cold, frozen, or off mode.
  • Self-contained refrigeration uses R290 hydrocarbon refrigerant for efficient cooling.
  • 18-gauge 300-series stainless steel top, wells, and user interface add durability.
  • Accepts full-size and fractional food pans up to 6 inches deep.
  • Includes mounting clips, an integral drain, and a flexible 4-foot control connection.
  • Foamed-in-place insulation and a stepped cold-wall recess help maintain performance.

Overall Dimensions:

33.9"W x 26.0"D x 24.4"H

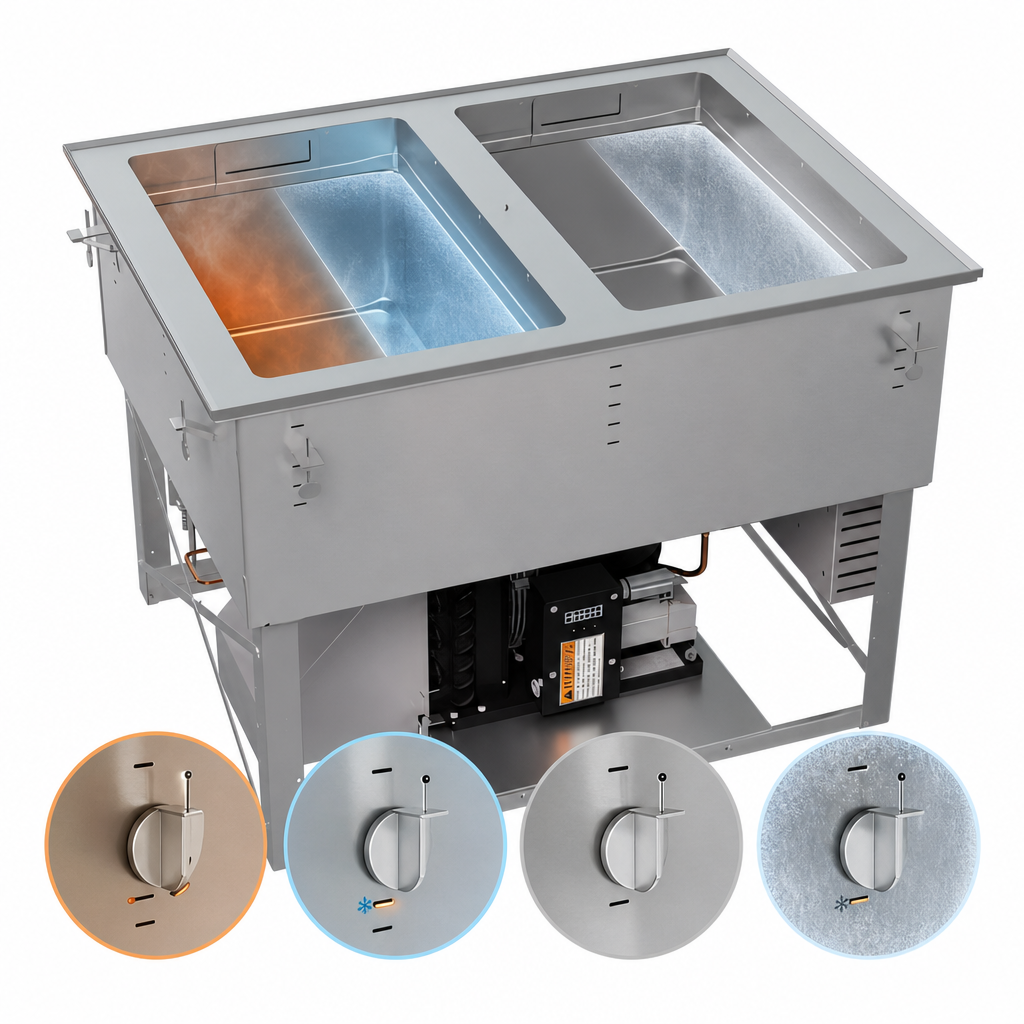

Independent Well Operation

Each well can be set separately to off, hot, cold, or frozen mode.

Durable Stainless Steel Construction

The top flange, well, and user interface are made from 18-gauge, 300-series stainless steel.

Self-Contained R290 Refrigeration

Built-in refrigeration with R290 refrigerant and wrapped coils provides maximum cooling performance.

Flexible Control Mounting

The user interface includes a 4-foot connection for flexible mounting options.

Pan Compatibility

Accepts full-size and fractional food pans up to 6 inches deep; adapter bars are used with fractional pans.

Easy Installation

Standard mounting clips are included for counters up to 3 inches thick, and a 3/4-inch integral drain is standard.

Insulated Inner Well

Foamed-in-place polyurethane insulation helps improve efficiency and performance.

Cold-Air Blanket Recess

A 2-inch stepped cold-wall recess creates a cold-air blanket over the food to help maintain holding conditions.

Type Hot/Cold/Frozen Food Well
Style Modular Drop-In
Installation Type Drop-In
Compartments 2
Controls Independent Electronic
Material 300-Series Stainless Steel
Finish Stainless Steel
Refrigeration Type Self-Contained
Refrigerant Type R290
Voltage 120 Volts
Amps 10.3 Amps
Watts 1.25 kW
Hertz 60 Hz
Phase 1-Phase
Plug Type NEMA 5-15P
Compressor Horsepower 1/4 HP
Drain Connection Size 3/4 Inch
Country of Origin USA
Selling Unit Each
Units Per Case 1
Shipping Width 34 Inches
Shipping Depth 26 Inches
Shipping Height 25 Inches
Shipping Weight 230 lb.

Certifications & Compliance

Certified badge of UL Certified
UL Certified

Warranty & Protection

Standard warranty against defects in materials and workmanship, plus 4 additional years on the compressor.

Frequently Asked Questions

This model has 2 independently controlled wells.
It accepts full-size and fractional food pans up to 6 inches deep.
Each well can be set to off, hot, cold, or frozen mode.
The unit operates on 120 Volts, 60 Hz, 1-Phase and draws 10.3 Amps with a NEMA 5-15P plug.
It uses self-contained refrigeration with R290 hydrocarbon refrigerant and wrapped refrigeration coils for maximum cooling.
Yes, a 3/4-inch integral drain is standard. Water is required during hot operation for even heating, and the unit automatically drains during cold operation.
