Vollrath

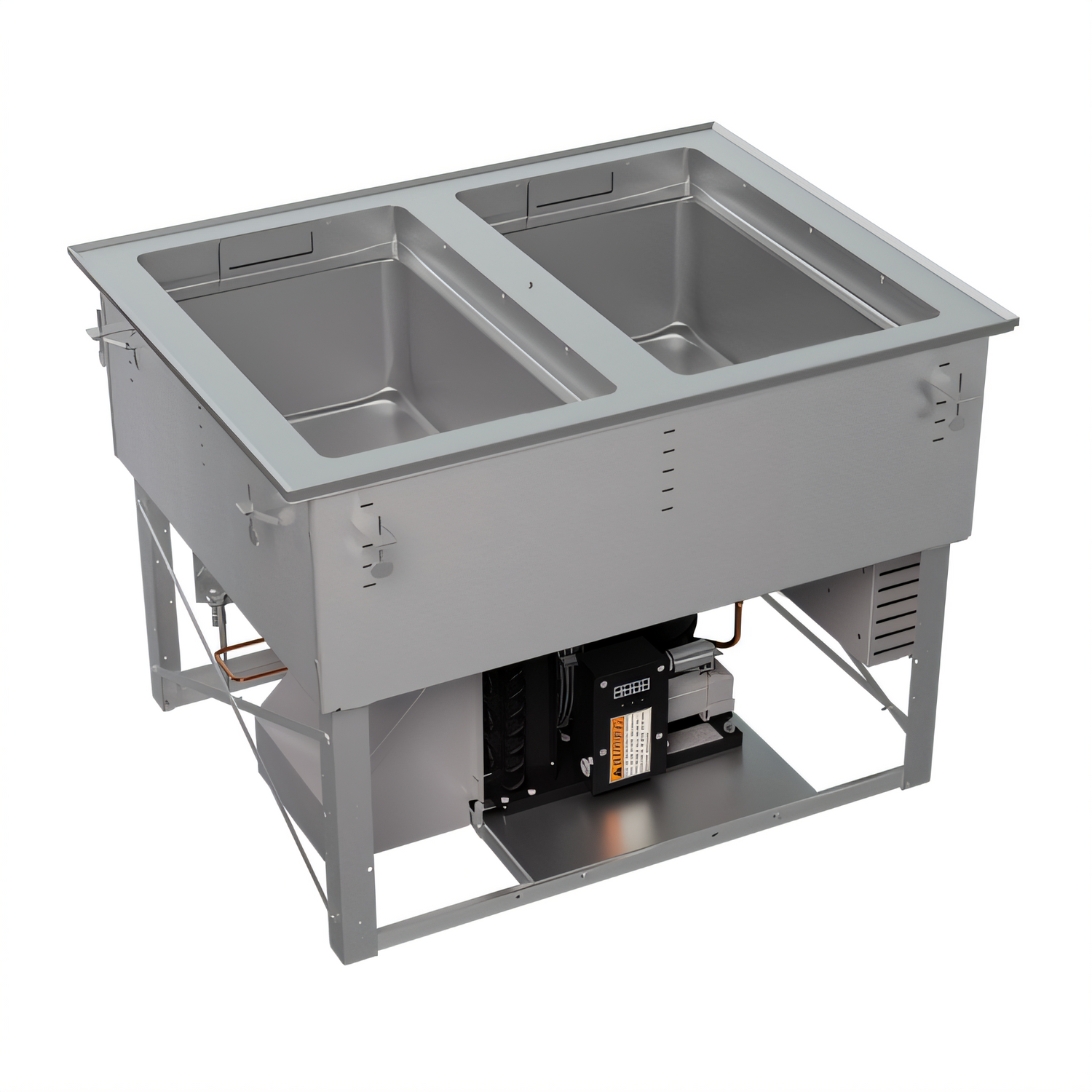

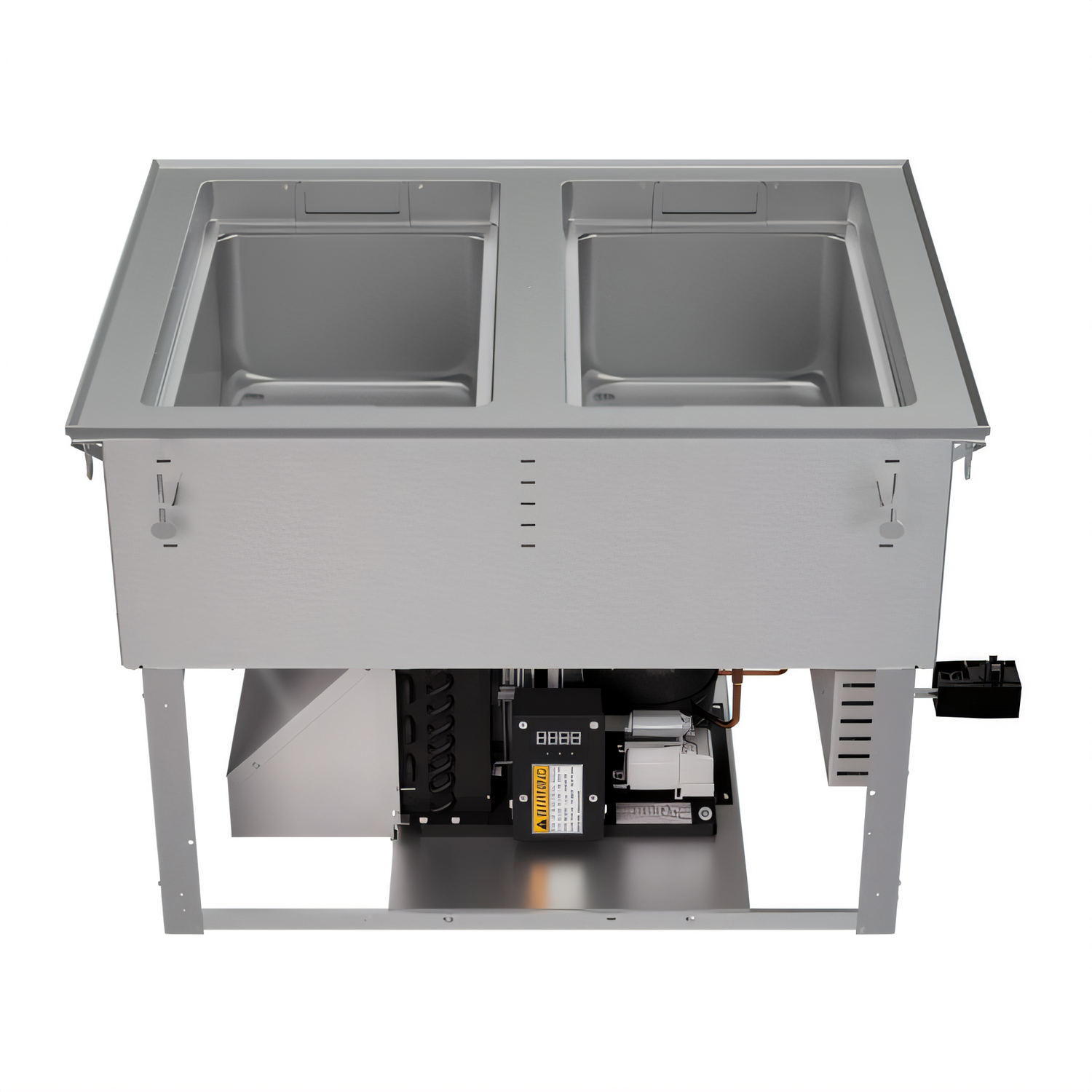

Vollrath 2-Well Hot/Cold/Frozen Drop-In Food Well, Flat Flange, 120V

SKU: FC-HCF-02120-FF
$8,415.85
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Best Sellers Cold Well Food Bars & Buffets Food Holding & Warming Equipment Food Wells & Serving Lines New Arrivals Restaurant Equipment Steam Tables & Food Wells Vollrath

Vollrath 2-Well Hot/Cold/Frozen Drop-In Food Well, Flat Flange, 120V

Independent Electronic Controls, Self-Contained R290 Refrigeration

Keep hot, cold, and frozen menu items ready to serve in one compact 2-well drop-in with independent controls and self-contained R290 refrigeration.

  • Two independently controlled wells can operate in hot, cold, or frozen mode.
  • Flat flange drop-in design supports a clean, built-in counter presentation.
  • Self-contained refrigeration uses R290 refrigerant and a 1/4 HP compressor.
  • Accepts full-size and fractional food pans up to 6 inches deep.
  • Built with durable 18-gauge, 300-series stainless steel for the top, wells, and user interface.
  • Includes standard mounting clips and a cord with plug for installation convenience.
  • Made for commercial buffet and food bar applications.

Overall Dimensions:

33.9"W x 26.0"D x 24.4"H

Independent Well Operation

Each well operates independently in hot, cold, or frozen mode for flexible service.

Flat Flange Drop-In Design

The flat flange top creates a clean, built-in look for countertop installation.

Self-Contained Refrigeration

Uses self-contained refrigeration with a 1/4 HP compressor for cold and frozen operation.

R290 Refrigerant

Utilizes R290 hydrocarbon refrigerant for modern refrigeration performance.

Stainless Steel Construction

Top, well, and user interface are made from 18-gauge, 300-series stainless steel for durability.

Pan Compatibility

Accepts full-size and fractional food pans up to 6 inches deep; adapter bars are used with fractional pans.

Service-Friendly Interface

The user interface includes a 4-foot connection for flexible mounting options.

Installation Support

Standard mounting clips are included for counters up to 3 inches thick.

Insulated Well Assembly

Foamed-in-place polyurethane insulation helps improve efficiency and performance.

Integral Drain and Cord

Includes a 3/4-inch integral drain and a cord with plug.

Type Hot/Cold/Frozen Food Well
Style Modular Drop-In
Installation Type Drop-In
Flange Type Flat Flange
Controls Independent Electronic
Pan Capacity 2 Full-Size Pans
Material Stainless Steel
Finish Stainless Steel
Refrigeration Type Self-Contained
Refrigerant Type R290
Voltage 120 Volts
Hertz 60 Hz
Phase 1-Phase
Amps 10.3 Amps
Watts 1.25 kW
Plug Type NEMA 5-15P
Shipping Width 34 Inches
Shipping Depth 26 Inches
Shipping Height 25 Inches
Shipping Weight 230 lb.
Country of Origin USA
Selling Unit Each
Units Per Case 1

Certifications & Compliance

Certified badge of UL Certified
UL Certified

Warranty & Protection

Standard warranty against defects in materials and workmanship, with an additional four years on the compressor.

Documents

PDF Cutsheet PDF Download PDF Cutsheet PDF Download PDF Cutsheet PDF Download PDF Operator's manual PDF Download PDF Quick start guide PDF Download PDF Installation instructions PDF Download PDF Warranty sheet PDF Download

Frequently Asked Questions

Yes. Each well operates independently and can be set to hot, cold, or frozen mode.
It accepts full-size and fractional food pans up to 6 inches deep; adapter bars are used with fractional pans.
It is rated for 120V, 60 Hz, single-phase operation with a 10.3 amp draw and a NEMA 5-15P plug.
Yes. The unit uses self-contained refrigeration with R290 refrigerant and a 1/4 HP compressor.
Yes. Standard mounting clips are included, and the user interface includes a 4-foot connection for flexible mounting options.
