Vollrath FC-HCF-02120-AD Steam Tables & Food Wells
$8,508.89
Unit price
/
Unavailable
Description

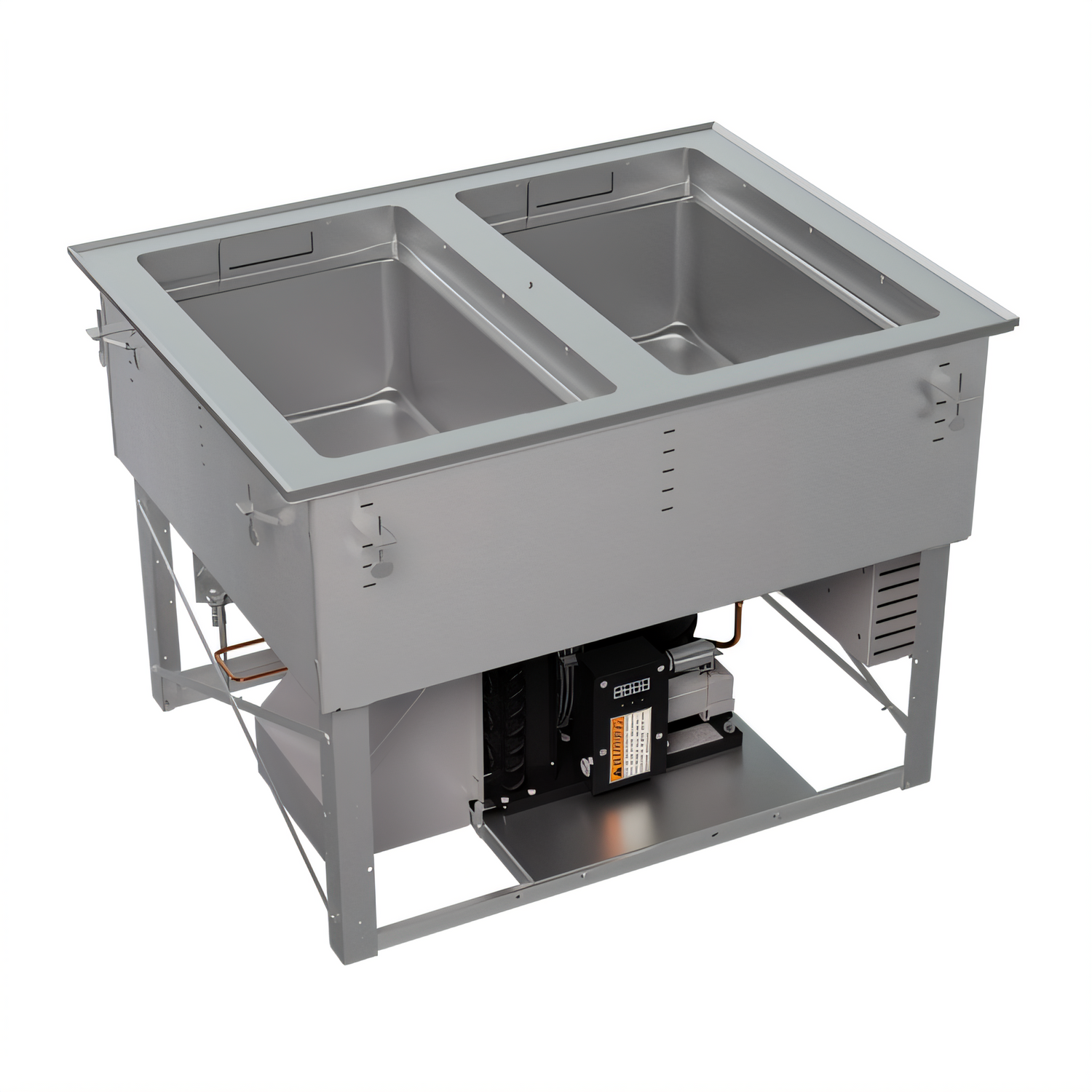

Vollrath FC-HCF-02120-AD Hot/Cold/Frozen 2-Well Drop-In
Self-contained | Auto-Drain | 120 V NEMA 5-15POne drop-in, three holding modes. The Vollrath FC-HCF-02120-AD gives you independent Hot, Cold and Frozen control in each of its two full-size wells, so you can run soup service on the left and an ice-cold salad bar on the right—all from the same compact footprint.
Why you’ll love it

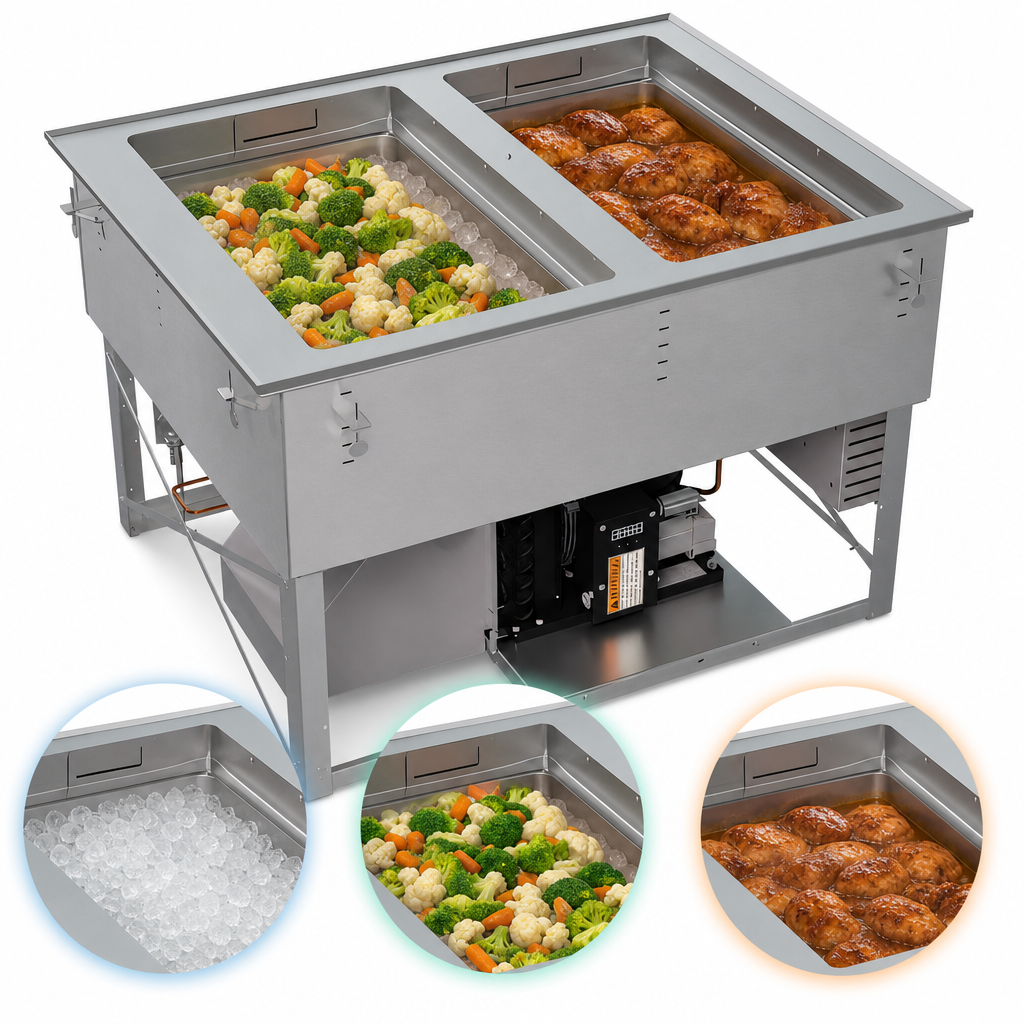

- 3-in-1 performance – each well switches between Hot, Cold or Frozen at the touch of a button.
- Auto-Drain technology empties water automatically when you transition out of Hot mode—no buckets, no downtime.
- 18-gauge, 300-series stainless steel top, well and user interface stand up to daily commercial abuse.
- Accepts (2) full-size 12" × 20" pans or fractional pans up to 6" deep; adapter bars keep fractional pans NSF compliant.
- Eco-friendly R290 refrigerant with a ¼ HP self-contained compressor for fast pull-down and reliable frozen hold.
- Simple electronic controller with 4 ft (1.2 m) tether lets you flush-mount, face-mount or remotely mount the interface—your counter, your way.
- 2" stepped cold-wall recess forms a curtain of cold air over pans for superior product safety.
- Foamed-in-place polyurethane insulation maximizes efficiency and minimizes condensation.
- Ships ready to install with mounting clips, ¾" integral drain and a 6 ft cord & NEMA 5-15P plug.
- Made in the USA and UL Listed; backed by a 2-year Vollrath warranty.
Technical specifications
| Model | FC-HCF-02120-AD |
|---|---|
| Wells / Modes | 2 independent wells – Hot, Cold or Frozen per well |
| Pan capacity | (2) full-size 12 × 20 in or fractional up to 6 in deep |
| Overall dimensions | 33.9 W × 26.0 D × 24.4 H in (86.1 × 66.0 × 62.0 cm) |
| Countertop cut-out | 33 ¹⁄₁₆ W × 25 ¼ D in • ⅞ in corner radius |
| Compressor | ¼ HP, self-contained, wrapped-wall cold design |
| Refrigerant | R290 Hydrocarbon (low GWP) |
| Electrical | 120 V / 60 Hz / 1-ph • 1,250 W • 10.3 A • NEMA 5-15P |
| Drain | ¾ in (1.9 cm) integral Auto-Drain |
| Weight | 185 lb (84 kg) shipping weight |
| Construction | 18-ga 300-series stainless steel top, wells & interface |
| Certifications | UL Listed, UL Sanitation (NSF/ANSI 8) |
| Warranty | 2 years parts & labor (USA) |
| Country of origin | Made in Sheboygan, Wisconsin, USA |
What’s in the box
- Vollrath FC-HCF-02120-AD 2-Well Drop-In
- Electronic user interface with 4 ft tether
- Mounting clips & hardware (fits counters up to 3 in thick)
- 6 ft power cord with NEMA 5-15P plug
- Quick-start guide & installation instructions
- Factory-installed Auto-Drain system
Important:
- The unit is intended for indoor use in ambient temperatures ≤ 86 °F (30 °C).
- Water must be added during Hot mode for even heat distribution; water is automatically drained when switching to Cold/Frozen modes.
- R290 refrigerant is flammable—installation and service must be performed by a qualified professional.
- Cut-out dimensions should be verified after receiving the unit; drop-ins are built to order and are non-returnable.
Need a different size or voltage? Contact our team for the full Vollrath Hot/Cold/Frozen line-up.
Features & Specs
Features & Specs
Manufacturer
Vollrath
Certifications
UL Certified, Made in USA
Height
24.4in
Width
33.9in
Depth
26.0in
Cooling Style
mechanically cooled
Pan Qty
2-pan
Finish
stainless steel top, well & exterior
Controls
single controls
Type
hot/cold/frozen
Specifications
Hot/Cold/Frozen Food Well Unit, drop-in, 2-well, auto-drain, accommodates full-size pans & fractional food pans up to 6" deep, independent electronic controls, 18 gauge/300 series stainles steel top, well, & user interface, interface includes 4' connection for mounting option, self-contained refrigeration, R290 Hydrocarbon refrigerant, 1/4 HP, 120/60/1-ph, 1250 watts, 10.3 amps, NEMA 5-15P, Made in USA, UL Certified
