Vollrath  |  SKU: FC-HCF-02120-AD-FF

Vollrath FC-HCF-02120-AD-FF Steam Tables & Food Wells

$8,423.80
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Operator's manual Installation instructions Quick start guide Warranty sheet
Related Searches
Food Holding & Warming Equipment Steam Tables & Food Wells

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

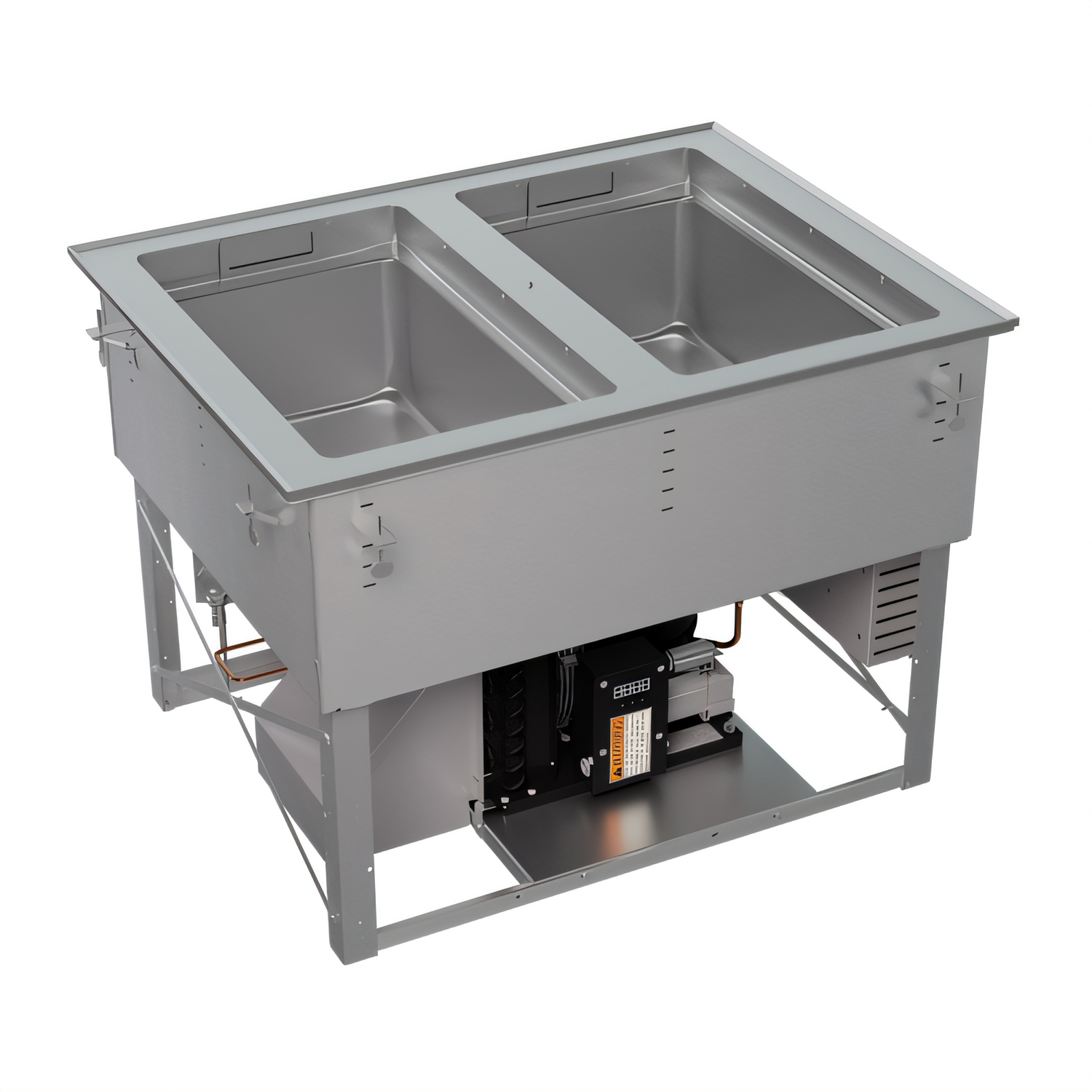

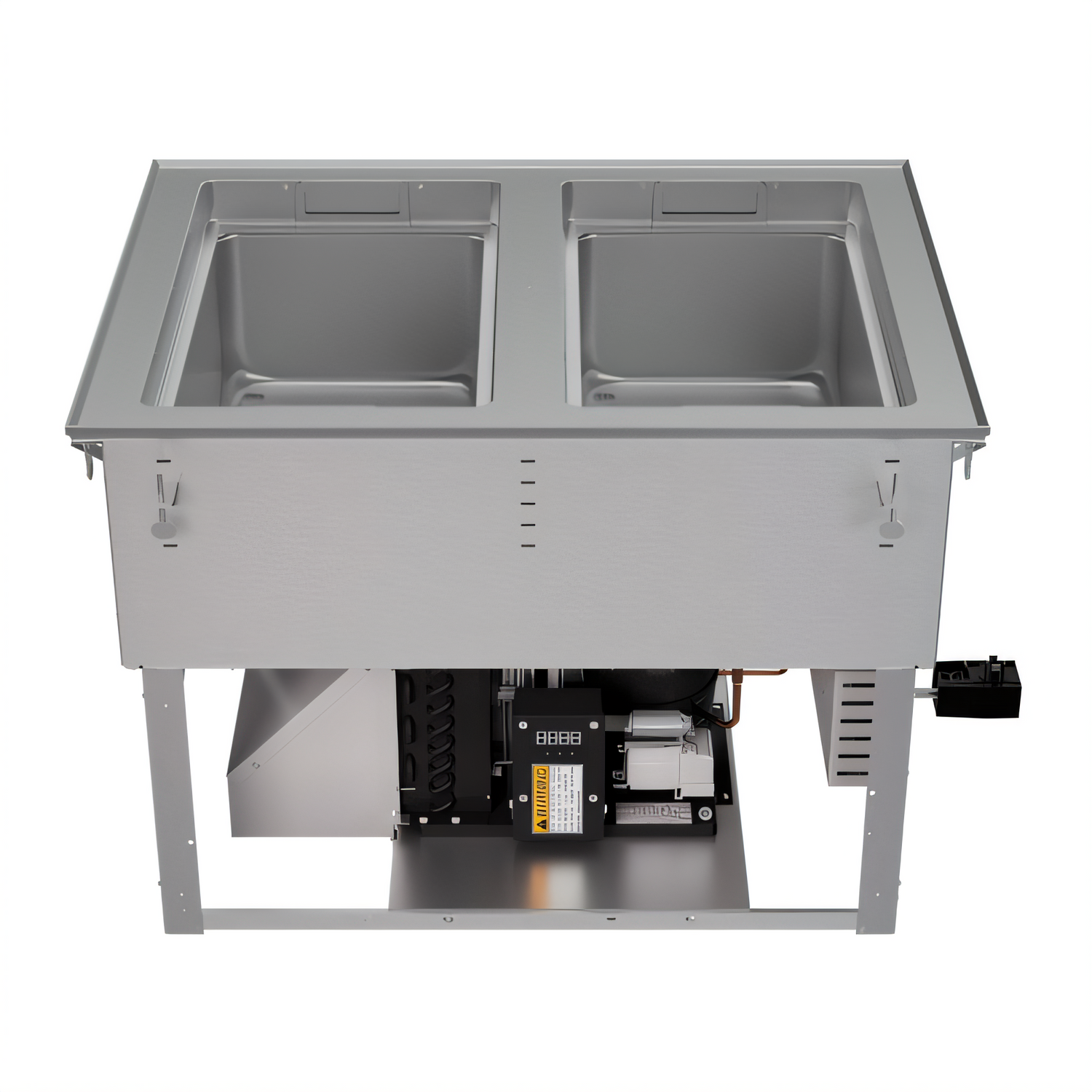

Vollrath FC-HCF-02120-AD-FF Hot/Cold/Frozen 2-Well Drop-In

Auto-Drain • Flat Flange • 120 V Plug-and-Play

One drop-in that does it all—switch each well from hot to cold to frozen at the touch of a button and keep your menu flexible without changing equipment.

Why you’ll love it

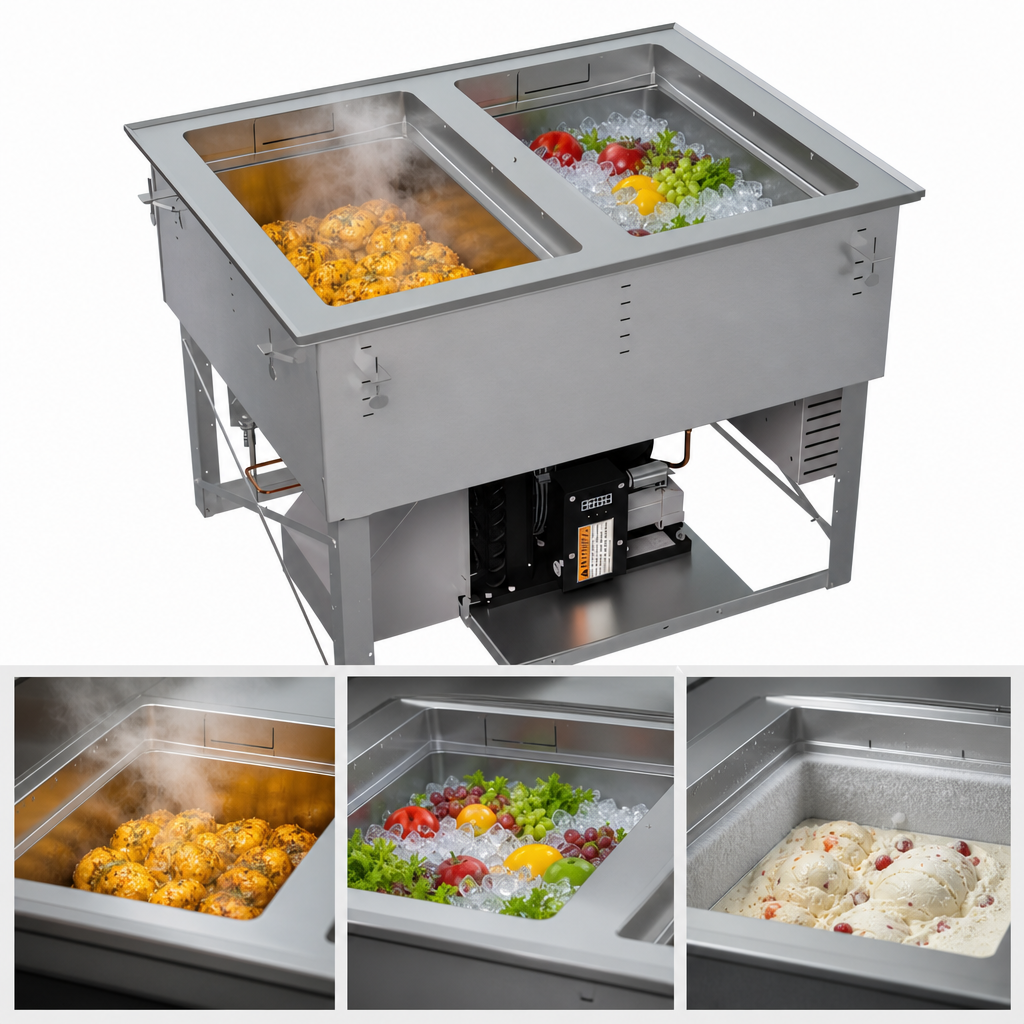

  • True tri-mode performance – each well independently holds food Hot, Cold or Frozen.
  • Auto-Drain technology removes water automatically when you move from hot to cold, saving labor and time.
  • Sleek flat flange sits flush with the counter for a clean, modern installation.
  • 18-gauge, 300-series stainless steel top, wells and user interface stand up to commercial abuse.
  • 4 ft (1.2 m) tethered control panel mounts where it’s easiest for your staff.
  • Self-contained 1/4 HP refrigeration uses eco-friendly R290 hydrocarbon refrigerant.
  • Foamed-in-place insulation plus a 2″ stepped cold-wall recess maintain NSF temperatures while saving energy.
  • Ships ready to install – mounting clips, ¾″ integral drain and 6 ft cord with NEMA 5-15P plug included.
  • Made in the USA and UL certified for safety and sanitation.

Capacity & versatility

Holds (2) full-size 12 × 20″ pans or any combination of fractional pans up to 6″ (15.2 cm) deep using standard adapter bars.

Intuitive controls

  • Tap a well number to cycle through OFF → HOT → COLD → FROZEN.
  • Rotary knob provides precise temperature adjustment in HOT mode.
  • Back-lit display remembers last-used settings after power-down.

Specifications

Model FC-HCF-02120-AD-FF
Configuration 2-well, auto-drain, flat flange
Operating modes Hot / Cold / Frozen (independent per well)
Pan depth Up to 6″ (15.2 cm)
Overall dimensions (W × D × H) 33.9″ × 26.0″ × 24.4″ (86.1 × 66.0 × 62.0 cm)
Counter cut-out 33 1/16″ × 25 1/4″ (84 × 64.1 cm)
Compressor 1/4 HP, self-contained
Refrigerant R290 (100 g charge)
Electrical 120 V / 60 Hz / 1-ph, 10.3 A, 1250 W, NEMA 5-15P
Heater watts (per well) 625 W
Peak heat rejection 2800 BTUH (Cold) / 4300 BTUH (Hot)
Drain ¾″ integral auto-drain (no shut-off required)
Shipping weight 185 lb (83.9 kg)
Certifications UL, UL Sanitation (NSF/ANSI 8), Made in USA

Perfect for

  • Convenience store & QSR build-your-own stations
  • Buffets that shift from breakfast to lunch to dessert
  • Mobile or cater-line installations where every inch counts
Important: Unit is designed for indoor use in ambient temperatures below 86 °F (30 °C). Water is required during HOT operation and drains automatically when switching to COLD or FROZEN. Installation and service must be performed by qualified professionals familiar with R290 refrigerant.

Need a different size? Vollrath offers matching 1-, 3- and 4-well Hot/Cold/Frozen drop-ins.

Features & Specs

Manufacturer

Vollrath

Certifications

UL Certified, Made in USA

Height

24.4in

Width

33.9in

Depth

26.0in

Finish

stainless steel top, well & exterior

Pan Qty

2-pan

Cooling Style

mechanically cooled

Controls

single controls

Type

hot/cold/frozen

Specifications

Hot/Cold/Frozen Food Well Unit, drop-in, 2-well, auto-drain & flat flange, accommodates full-size pans & fractional food pans up to 6" deep, independent electronic controls, 18 gauge/300 series stainles steel top, well, & user interface, interface includes 4' connection for mounting option, self-contained refrigeration, R290 Hydrocarbon refrigerant, 1/4 HP, 120/60/1-ph, 1250 watts, 10.3 amps, NEMA 5-15P, Made in USA, UL Certified
