Vollrath Hot/Cold/Frozen 1-Well Auto-Drain Drop-In Food Well, 120/208-240V

Self-Contained R290 Refrigeration, Independent Electronic Controls

A compact stainless-steel drop-in that can hold food in hot, cold, or frozen mode with independent control and auto-drain convenience.

  • One well operates in hot, cold, or frozen mode to match changing service needs.
  • Self-contained R290 refrigeration supports efficient cold holding in a compact footprint.
  • Durable 18-gauge 300-series stainless steel top, well, and user interface.
  • Accepts full-size and fractional food pans up to 6 inches deep.
  • Auto-drain design and integral drain simplify cold operation and cleanup.
  • Includes mounting clips and a cord with plug for easier installation.
  • 4-foot user interface connection allows flexible mounting options.

Overall Dimensions:

18.0"W x 26.0"D x 24.27"H

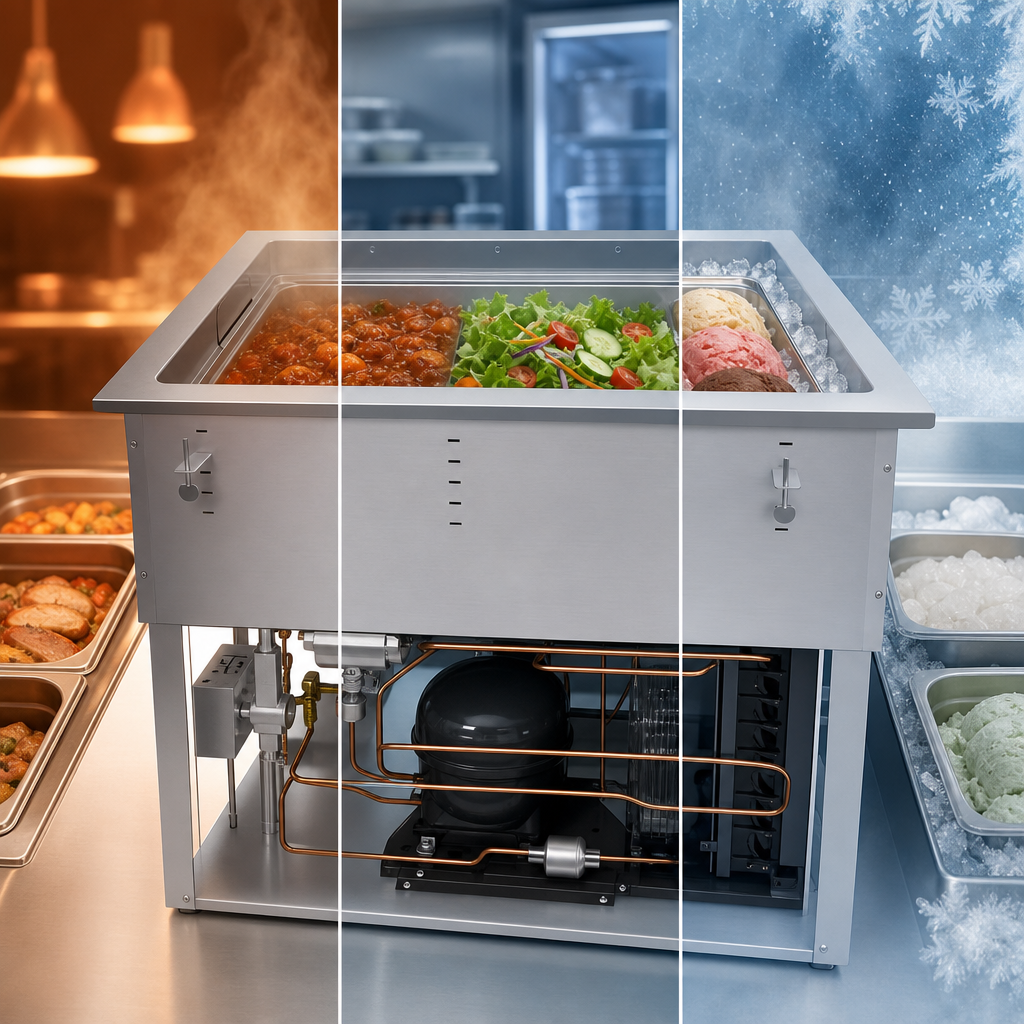

Independent Hot/Cold/Frozen Operation

The well can be set to hot, cold, or frozen mode for flexible menu service.

Stainless Steel Construction

Top, well, and user interface are built from durable 18-gauge, 300-series stainless steel.

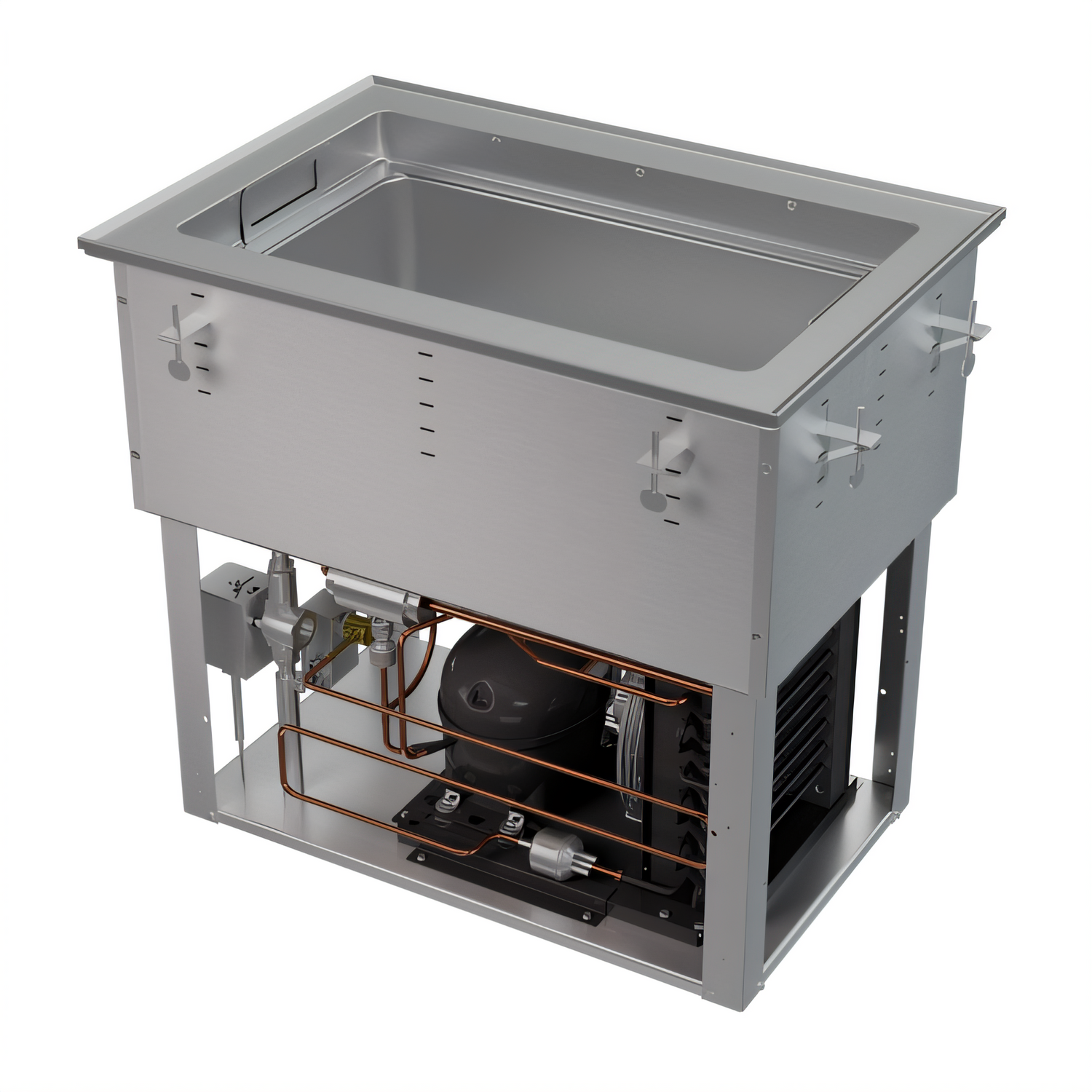

Self-Contained R290 Refrigeration

Uses a self-contained refrigeration system with R290 hydrocarbon refrigerant.

Auto-Drain Design

A 3/4-inch integral drain is standard, and auto-drain technology supports cold operation.

Full-Size Pan Compatibility

Accepts full-size and fractional food pans up to 6 inches deep; adapter bars are used with fractional pans.

Foamed-In-Place Insulation

The inner-well assembly is insulated with foamed-in-place polyurethane for efficiency and performance.

Flexible Mounting Support

The user interface includes a 4-foot connection and standard mounting clips are included for installation.

Cold-Air Blanket Design

A stepped cold-wall recess helps create a cold-air blanket over the food to support holding performance.

Type Hot/Cold/Frozen Food Well
Style Modular Drop-In
Installation Type Drop-In
Capacity 1 Well
Pan Size Full-Size And Fractional Pans Up To 6 Inches Deep
Controls Independent Electronic
Material Stainless Steel
Interior Finish Stainless Steel
Finish Stainless Steel
Refrigeration Type Self-Contained
Refrigerant Type R290 Hydrocarbon
Compressor Horsepower 1/4 HP
Voltage 120/208-240 Volts
Amps 3.6 Amps
Watts 625 Watts
Hertz 60 Hz
Phase 1-Phase
Plug Type NEMA 14-20P
Shipping Width 18 Inches
Shipping Depth 26 Inches
Shipping Height 25 Inches
Shipping Weight 230 Pounds
Country of Origin USA
Selling Unit Each
Units Per Case 1

Certifications & Compliance

Certified badge of UL Certified
UL Certified

Warranty & Protection

Standard warranty against defects in materials and workmanship, plus 4 additional years on the compressor.

Documents

PDF Cutsheet PDF Download PDF Cutsheet PDF Download PDF Cutsheet PDF Download PDF Installation instructions PDF Download PDF Quick start guide PDF Download PDF Operator's manual PDF Download PDF Warranty sheet PDF Download

Frequently Asked Questions

It accepts full-size and fractional food pans up to 6 inches deep. Adapter bars are used with fractional pans.
Yes. Each well can be set to hot, cold, or frozen mode.
Yes. 1-well drop-ins include auto-drain technology, and a 3/4-inch integral drain is standard.
It uses 120/208-240V power, 60 Hz, single-phase, with a NEMA 14-20P plug.
Standard mounting clips are included, and a cord with plug is supplied.
