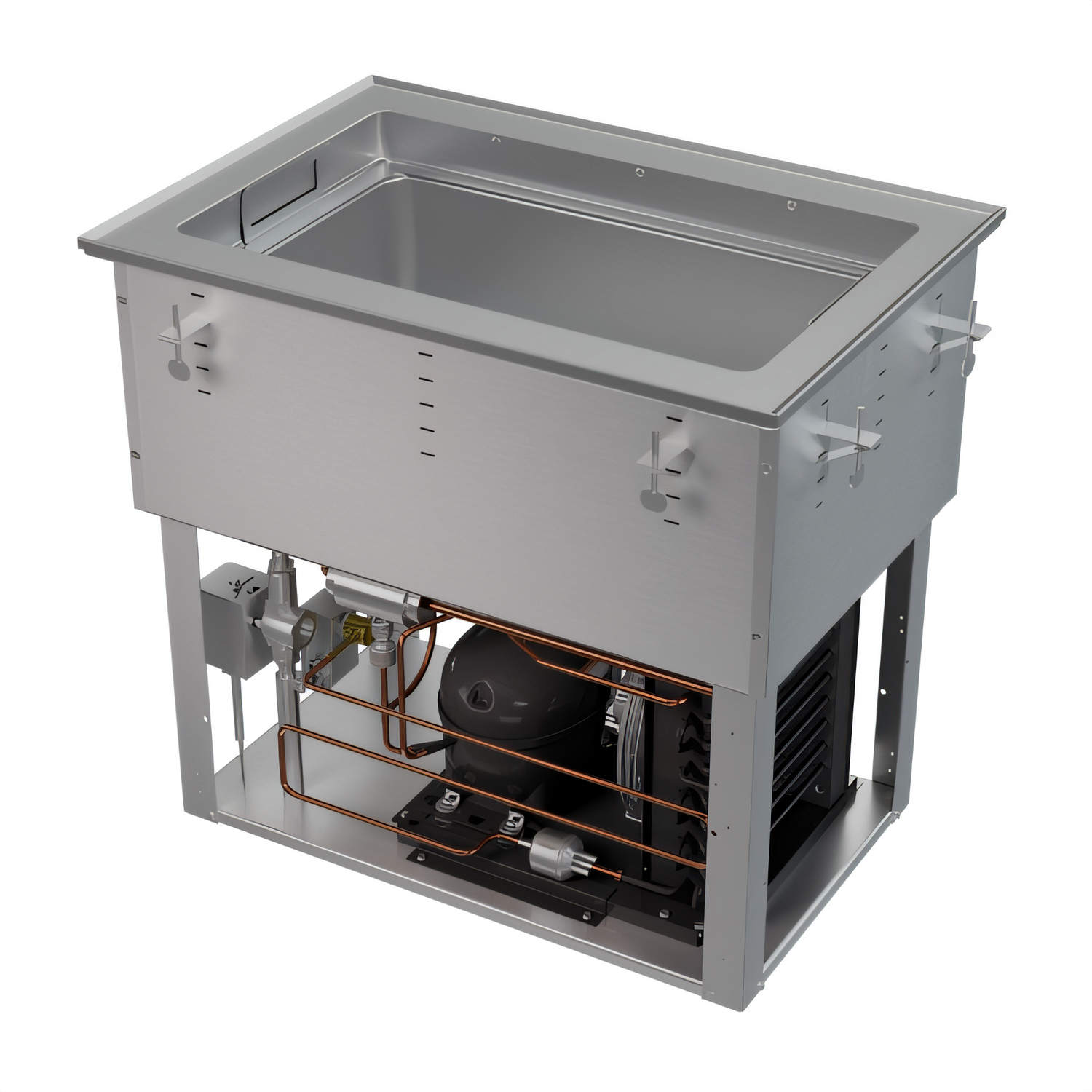

Vollrath Hot/Cold/Frozen 1-Well Drop-In Food Well with Auto Drain and Flat Flange, 18 x 26 Inch, 120/208-240V

Mechanically Cooled, Self-Contained R290 Refrigeration

Keep foods at hot, cold, or frozen serving temperatures with a compact 1-well drop-in that combines independent controls, auto-drain convenience, and durable stainless steel construction.

  • 1-well modular drop-in food well for hot, cold, or frozen holding.
  • Auto-drain and flat flange design support a clean countertop installation.
  • Independent electronic controls let the well run separately by mode.
  • Durable 18-gauge stainless steel top, well, and user interface.
  • Accepts full-size and fractional pans up to 6 inches deep.
  • Self-contained R290 refrigeration and included cord/plug simplify setup.

Overall Dimensions:

18.0"W x 26.0"D x 24.27"H

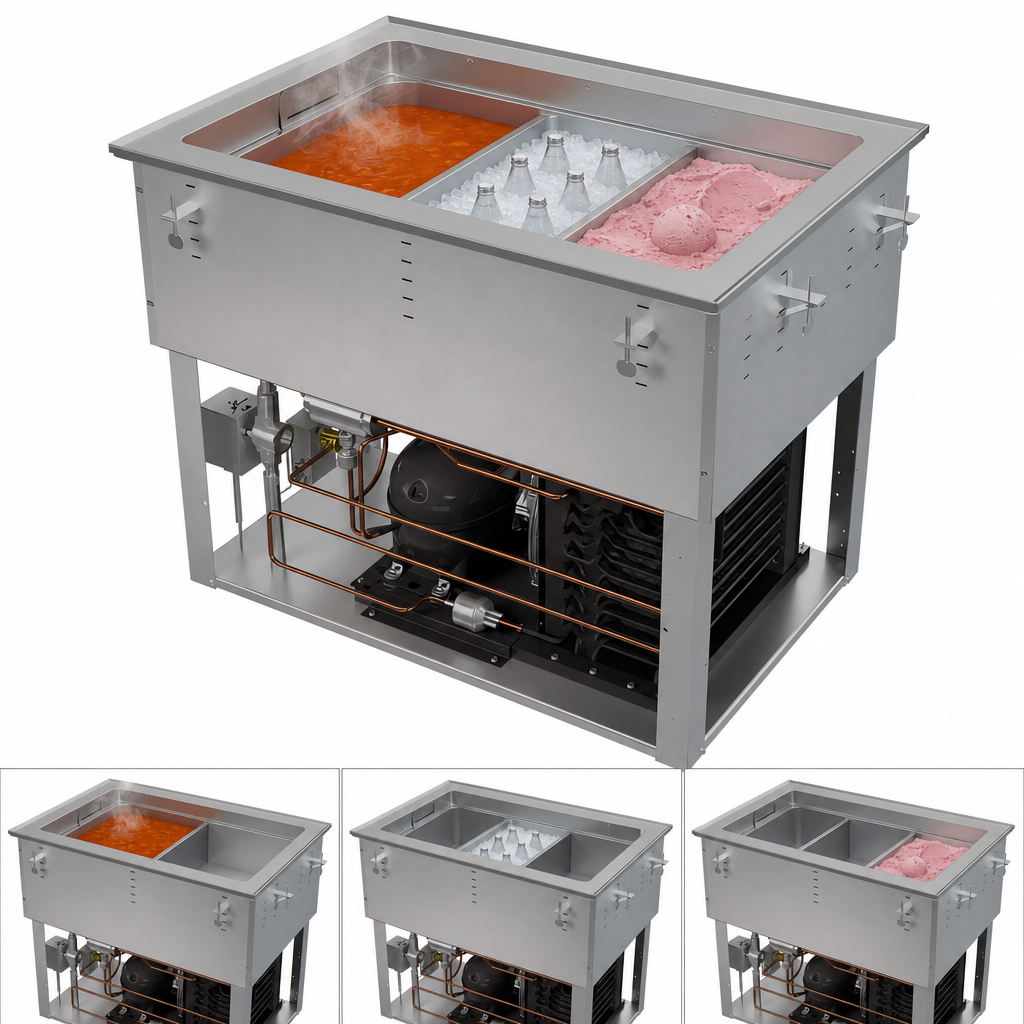

Independent Well Modes

Each well can operate independently in hot, cold, or frozen mode.

Auto-Drain Technology

1-well models include auto-drain technology, and cold operation automatically drains water.

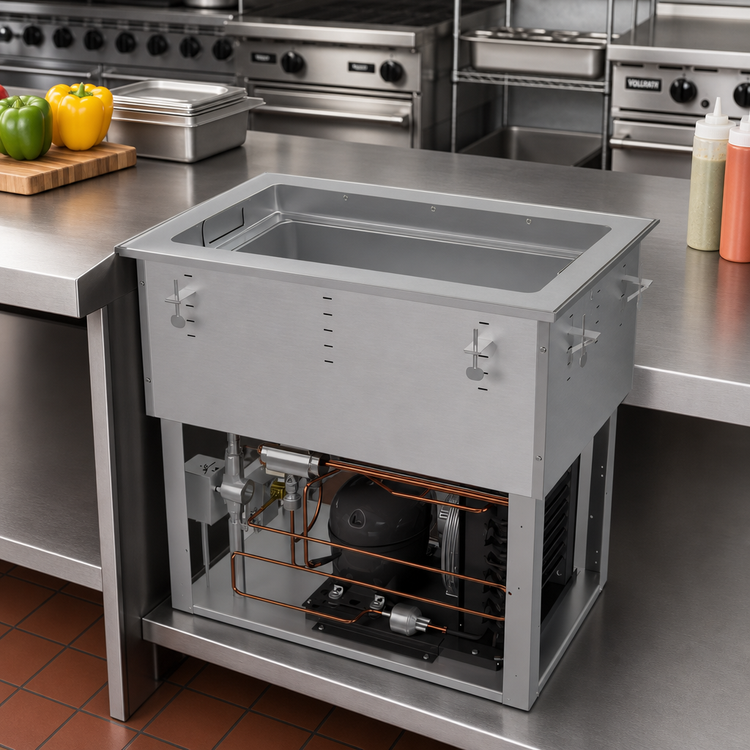

Flat Flange Drop-In Top

Flat flange design provides a clean, built-in countertop installation.

Stainless Steel Construction

18-gauge, 300-series stainless steel top, well, and user interface are built for durability.

R290 Self-Contained Refrigeration

Uses self-contained refrigeration with R290 hydrocarbon refrigerant and wrapped refrigeration coils for efficient cooling.

Pan Compatibility

Accepts full-size and fractional food pans up to 6 inches deep; adapter bars are used with fractional pans.

Installation Support

Standard mounting clips are included for counters up to 3 inches thick, and the user interface includes a 4-foot connection for flexible mounting options.

Insulated Inner Well

Foamed-in-place polyurethane insulation helps improve efficiency and performance.

Cold-Air Blanket Design

A 2-inch stepped cold-wall recess helps maintain a cold-air blanket over the food.

Type Hot/Cold/Frozen Food Well
Style Modular Drop-In
Installation Type Drop-In
Pan Capacity 1 Full-Size Pan
Pan Size Full-Size and Fractional Pans Up to 6 Inches Deep
Controls Independent Electronic
Material Stainless Steel
Finish Stainless Steel
Refrigeration Type Self-Contained
Refrigerant Type R290 Hydrocarbon
Voltage 120/208-240 Volts
Amps 3.6 Amps
Watts 625 Watts
Hertz 60 Hz
Phase 1-Phase
Plug Type NEMA 14-20P
Shipping Width 18 Inches
Shipping Depth 26 Inches
Shipping Height 25 Inches
Shipping Weight 230 lb.
Country of Origin USA
Selling Unit Each
Units Per Case 1

Certifications & Compliance

Certified badge of UL Certified
UL Certified

Warranty & Protection

Vollrath warranty

Documents

PDF Cutsheet PDF Download PDF Cutsheet PDF Download PDF Cutsheet PDF Download PDF Installation instructions PDF Download PDF Quick start guide PDF Download PDF Operator's manual PDF Download PDF Warranty sheet PDF Download

Frequently Asked Questions

Yes. Each well can operate independently in hot, cold, or frozen mode.
It accepts full-size and fractional food pans up to 6 inches deep; adapter bars are used with fractional pans.
Yes. The unit uses self-contained refrigeration with R290 hydrocarbon refrigerant.
Yes. A cord with plug is included, and this model uses a NEMA 14-20P plug.
Water is required during hot operation for even heating, and it automatically drains during cold operation.
Standard mounting clips are included for easy installation on counters up to 3 inches thick.
