Vollrath FC-HCF-01120-AD Steam Tables & Food Wells
Description

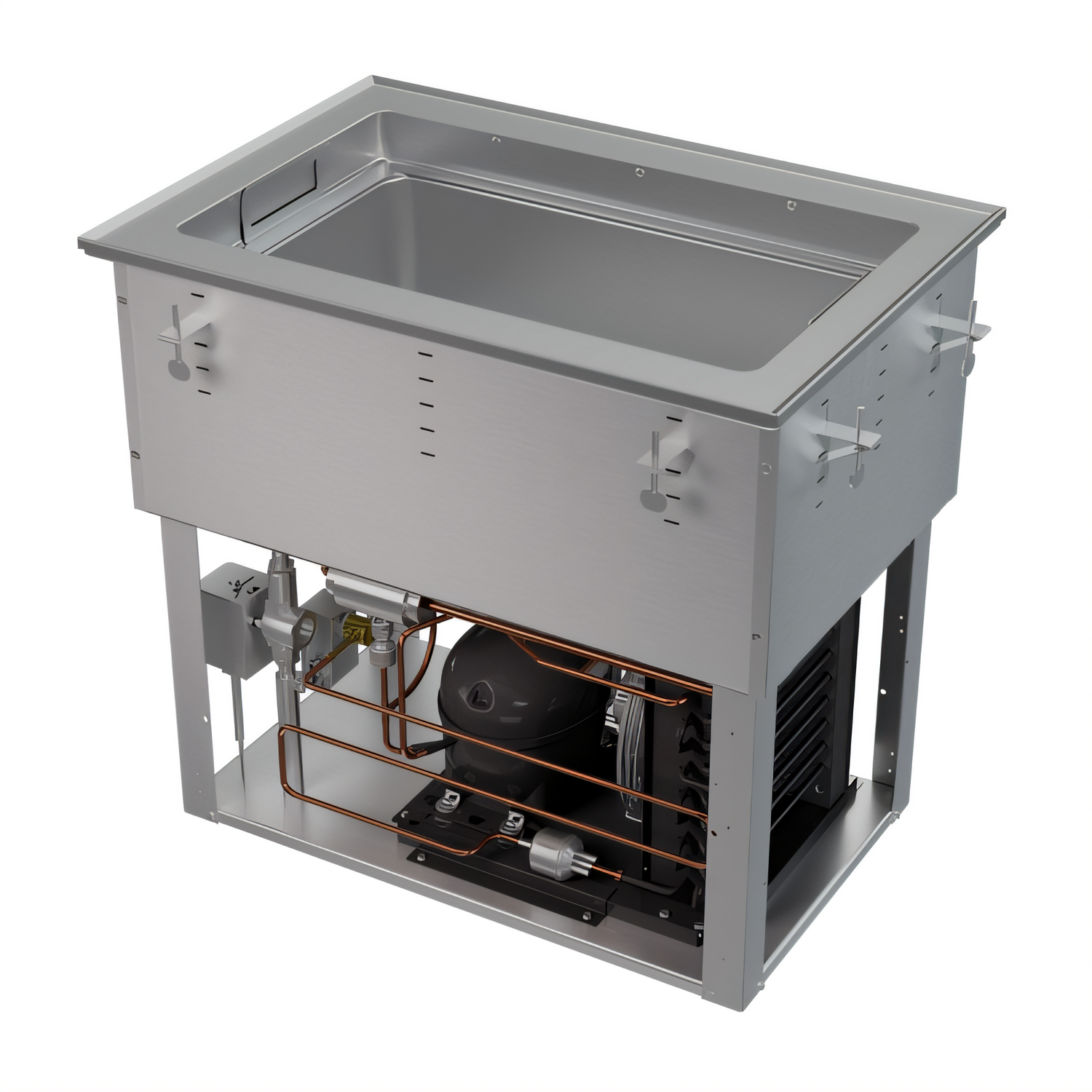

Vollrath FC-HCF-01120-AD Hot/Cold/Frozen Drop-In Well – 1 Well, Auto-Drain, 120 V
Serve piping-hot entrées, crisp salads, or frozen desserts from one space-saving module.Engineered for maximum menu flexibility, this 1-well Vollrath Hot/Cold/Frozen drop-in instantly switches between three holding modes at the touch of its independent electronic control. Built from 18-gauge, 300-series stainless steel and powered by an energy-efficient R290 refrigeration system, it delivers rock-solid performance in kitchens, serving lines, kiosks, and c-stores that need to do more with less counter space.
Why you’ll love it

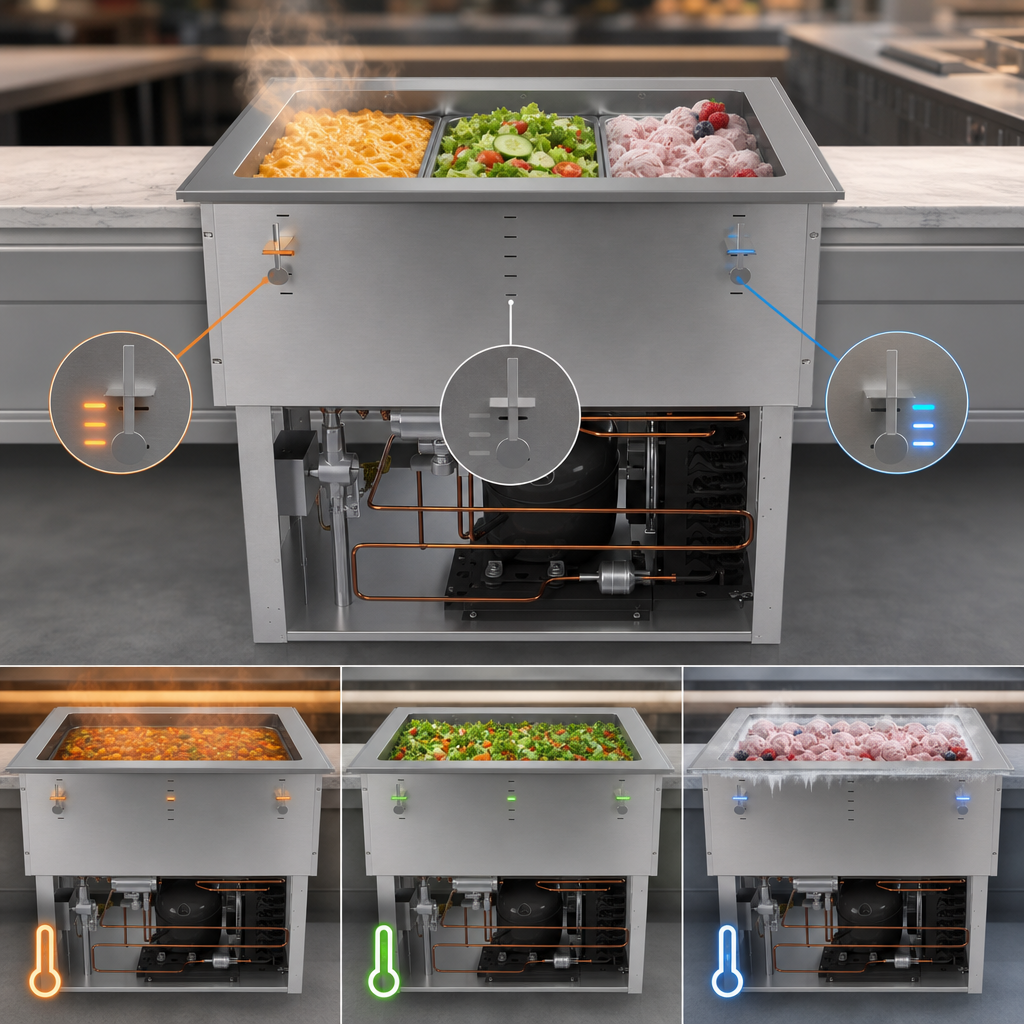

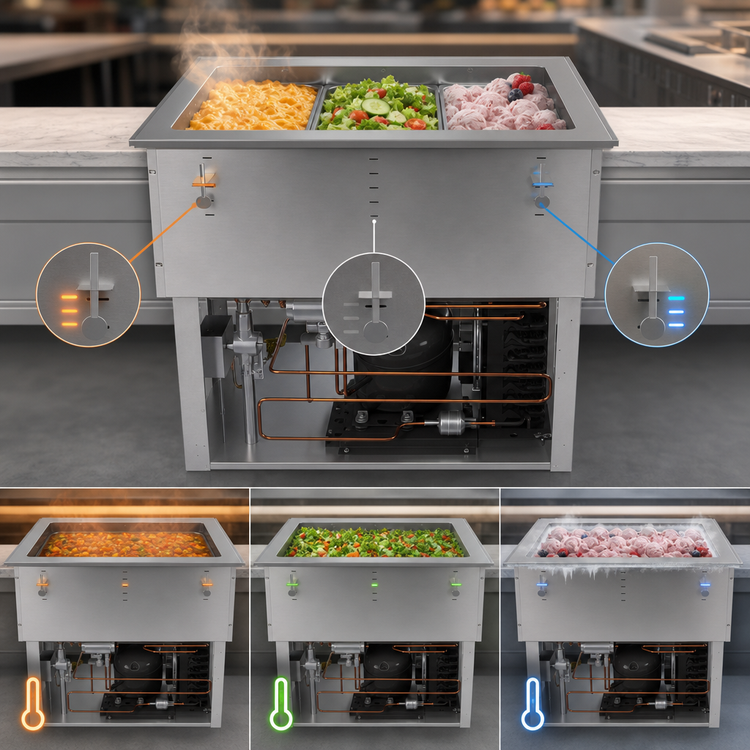

- Triple-mode versatility – HOT, COLD, or FROZEN operation in the same well keeps service flexible and profitable.
- True plug-and-play – 6 ft (1.8 m) cord with NEMA 5-15P plug; only 5.1 A at 120 V.
- Automatic water management – Auto-Drain technology fills for hot holding and empties before chilling, no manual shut-off needed.
- Full-size or fractional pans – Accepts 12 " × 20 " pans—or combinations up to 6 " deep—using adapter bars.
- Independent electronic control – 4 ft harness lets you mount the user interface wherever it’s most convenient.
- Self-contained ¼ HP refrigeration – Cold-wall coils and a 2 " stepped recess create an NSF-compliant cold-air blanket.
- Built to last – 18-gauge stainless top, well, and control panel withstand constant commercial use.
- Made in the USA & UL Certified – Meets UL, UL Sanitation (NSF/ANSI 8) and is backed by a 2-year Vollrath warranty.
Specifications
| Model | FC-HCF-01120-AD (1-Well, Auto-Drain) |
|---|---|
| Capacity | (1) full-size 12 " × 20 " pan or fractional equivalents, up to 6 " (15.2 cm) deep |
| Overall Dimensions (W × D × H) | 18.0 " × 26.0 " × 24.4 " (45.7 × 66.0 × 62.0 cm) |
| Countertop Cut-out | 17 ⁵⁄₁₆ " × 25 ¼ " with ⅞ " (2.2 cm) corner radius |
| Compressor | ¼ HP, self-contained |
| Refrigerant / Charge | R290 hydrocarbon / 70 g |
| Heat Rejection (Cold) | 2,800 BTUH |
| Electrical | 120 V / 60 Hz / 1-ph, 625 W, 5.1 A, NEMA 5-15P |
| Drain | ¾ " (1.9 cm) integral Auto-Drain |
| Construction | 18-ga 300-series stainless steel top, well & control panel |
| Shipping Weight | 107 lb (48.5 kg) |
| Certifications | UL Listed, UL Sanitation, Made in USA |
| Warranty | 2 years parts & labor |
Installation & operation highlights
- Standard mounting clips included for counters up to 3 " (7.6 cm) thick.
- Unit is for indoor use in ambient temperatures below 86 °F (30 °C).
- Water must cover the well bottom during HOT mode; it drains automatically before cooling.
- Maintain 3 " clearance at air intake/discharge for optimal performance.
Vollrath® drop-ins are made to order and cannot be returned. Please verify cut-out dimensions with the actual unit before cutting countertops.
