Vollrath FC-HCF-01120-AD-FF Steam Tables & Food Wells
Description
Vollrath FC-HCF-01120-AD-FF 1-Well Hot/Cold/Frozen Drop-In
Auto-Drain • Flat Flange • 120 V • Made in USAGo seamlessly from sizzling service to chilled salads to frozen desserts with a single piece of equipment. The Vollrath Hot/Cold/Frozen drop-in delivers true tri-temperature performance, saving countertop space, labor and energy while keeping food safe and appetizing all day long.
Key Advantages

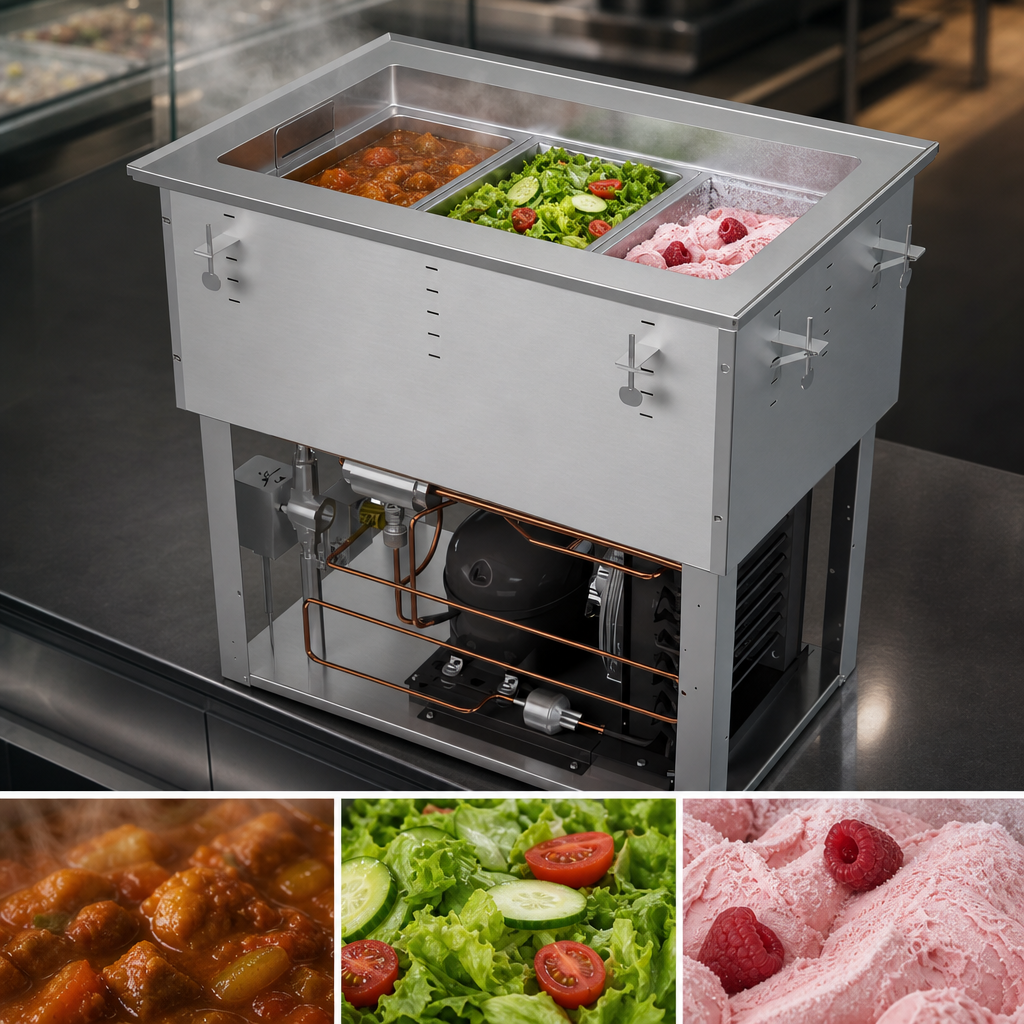

- 3-in-1 versatility — choose HOT, COLD or FROZEN at the touch of a button.
- Holds one 12" × 20" full-size pan or fractional pans up to 6" deep (adapter bars optional).
- Auto-Drain feature empties water automatically when switching to cold/frozen modes.
- Flat stainless-steel flange installs flush for a clean, wipe-down surface.
- Tethered electronic control panel (4 ft / 1.2 m) allows flexible mounting where you need it.

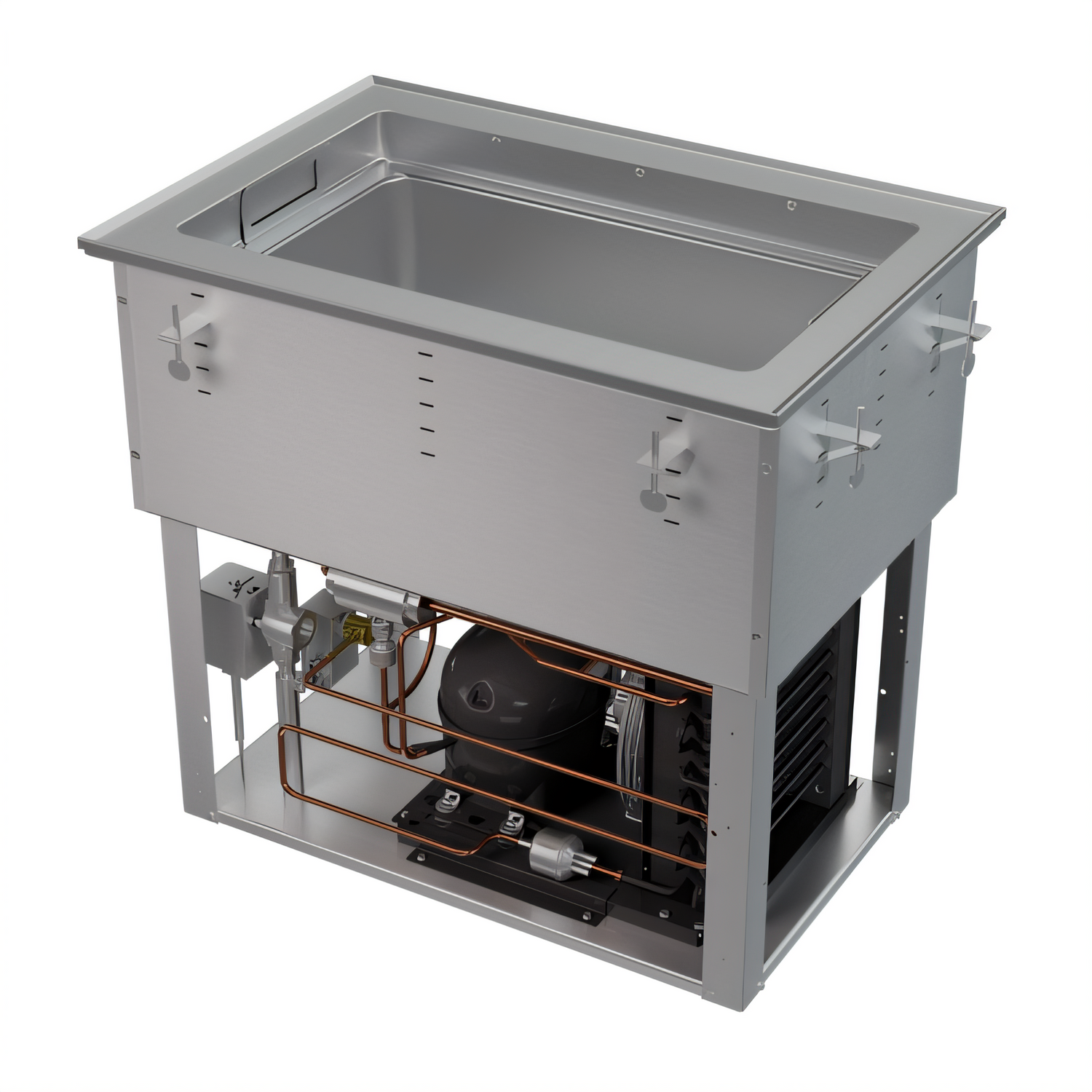

- Cold-wall refrigeration coils wrap the well for rapid pull-down and even chilling.
- Durable 18-ga, 300-series stainless steel top, well and interface stand up to heavy use.
- Eco-friendly R290 refrigerant with low Global Warming Potential.
- Plug-and-play setup — self-contained ¼ HP system with 6 ft cord & NEMA 5-15P plug.
- UL Listed, NSF/ANSI 8 sanitation compliant and backed by a 2-year Vollrath warranty.
Technical Specifications
| Model | FC-HCF-01120-AD-FF |
|---|---|
| Pan Capacity | 1 full-size (12" × 20") or fractional pans, up to 6" (15.2 cm) deep |
| Operating Modes | Hot • Cold • Frozen (independent electronic control) |
| Construction | 18-ga 300-series stainless steel top, well & user interface |
| Drain | Integrated ¾" auto-drain (no master shut-off) |
| Refrigeration | Self-contained cold-wall, ¼ HP compressor, R290 refrigerant |
| Electrical | 120 V / 60 Hz / 1-ph • 625 W • 5.1 A • NEMA 5-15P |
| Cord Length | 6 ft (1.8 m) factory-installed power cord |
| Overall Dimensions | 18" W × 26" D × 24.4" H (45.7 × 66.0 × 62.0 cm) |
| Countertop Cut-out | 17 5⁄16" W × 25 ¼" D with 7⁄8" corner radius |
| Certifications | UL • UL Sanitation (NSF/ANSI 8) • Made in USA |
| Warranty | 2-year limited parts & labor |
Adapter bars for fractional pans are sold separately. Unit is intended for indoor use in ambient temperatures ≤ 86 °F (30 °C).
