Vollrath  |  SKU: FC-6IH-05208

Vollrath FC-6IH-05208 Induction-Based Warming Equipment

$9,303.85
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Warranty sheet
Related Searches
Induction-Based Warming Equipment Reheating & Warming Equipment

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

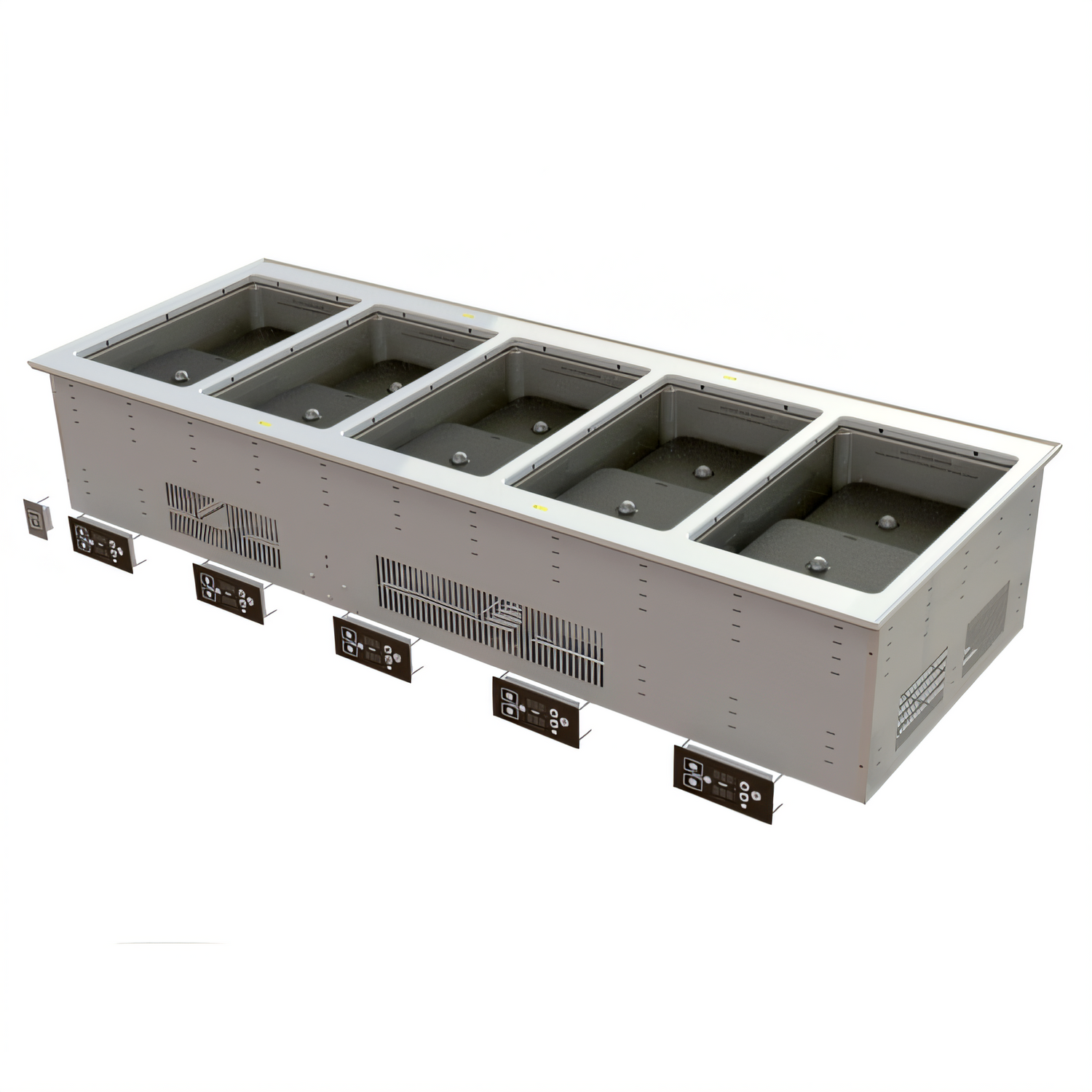

Vollrath FC-6IH-05208 Modular Induction Dry Well Drop-In – 5 Wells

Waterless | Dual-Zone Induction Holding | 208-240 V, 1-Phase

Bring precise, water-free hot food holding to your serving line with Vollrath’s made-to-order FC-6IH-05208 five-well drop-in. Ten independent induction capsules (two per well) deliver even heat without the hassles of water or drains—keeping food safe, appetizing and ready to serve.

Why You’ll Love It

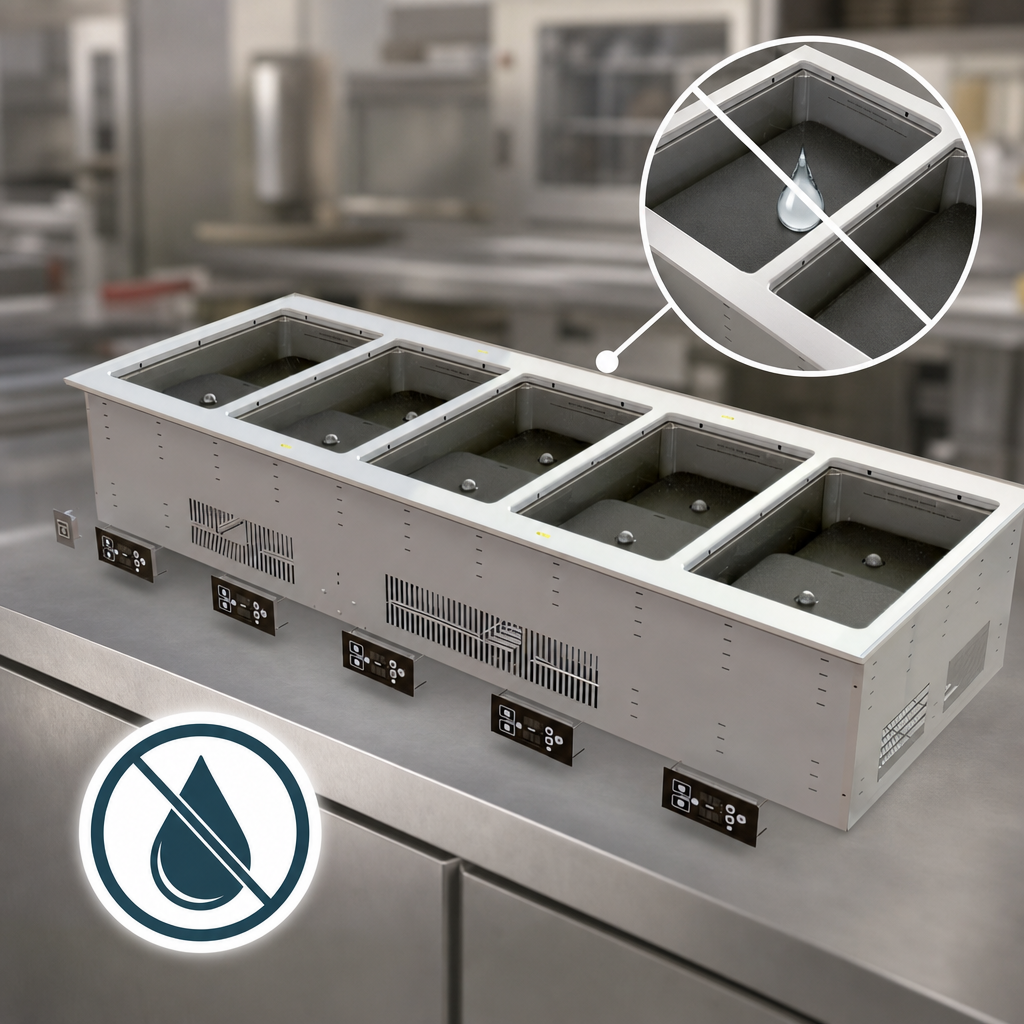

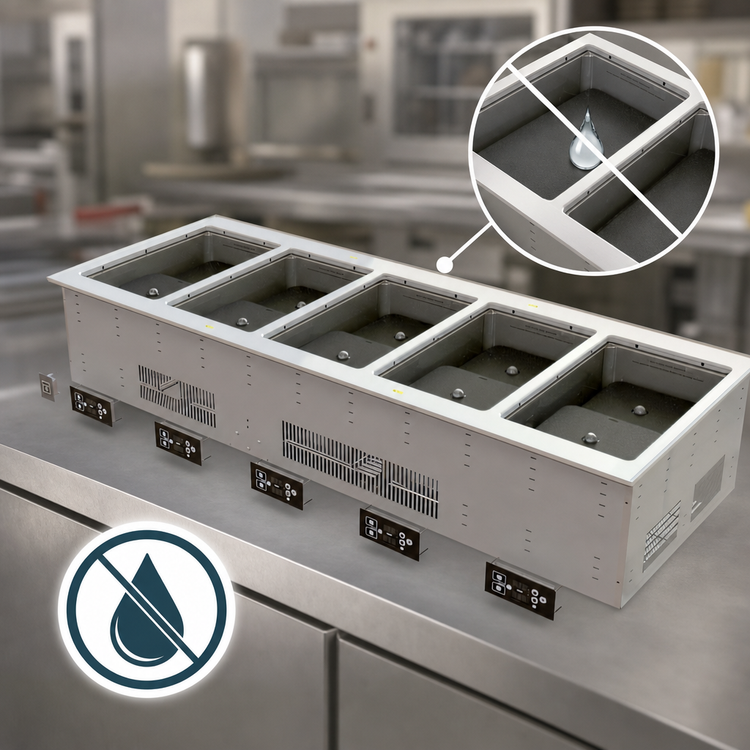

  • True waterless design – no plumbing, no drain lines and dramatically less cleanup.
  • Induction accuracy – 3 selectable power levels (low / medium / high) or thermostatic control from 140 °F – 190 °F (60 °C – 88 °C).
  • Dual heat zones per well – run each zone independently or sync them for full-pan coverage.
  • Individual controls for every well plus a convenient master power switch.
  • Flexible pan capacity – per well holds:
    • (1) full-size induction-ready steam table pan, 2-½" or 4" deep, or
    • (2) half-size induction-ready pans, 2-½" or 4" deep.
  • Sealed 300-series stainless well & top flange blend with other Vollrath modular drop-ins.
  • 6 ft (1.8 m) cord with NEMA 6-30P; no hard-wiring required.
  • NSF, cULus & FCC listed; proudly Made in the USA.

At-a-Glance Specs

Model / Item # FC-6IH-05208
Number of Wells 5 (10 independent heat zones)
Temperature Range 140 °F – 190 °F  (60 °C – 88 °C)
Power Levels Low / Medium / High (per well)
Electrical 208-240 V  •  1-Phase  •  16.5 A  •  3,980 W
Plug NEMA 6-30P (dedicated circuit required)
Overall Dimensions 68" W × 26" D
Cut-out Dimensions 67 ¼" W × 25 ¼" D
Cord Length 6' (1.8 m)
Control Panel Cable 55" (1.4 m)
Construction 300-series stainless steel well & flange
Agency Listings NSF • cULus • FCC
Country of Origin USA (made to order)

Installation & Clearance

  • Provide 2" (5.1 cm) clearance on long and short sides and 6" (15.2 cm) below the unit.
  • Maximum ambient intake temperature: 110 °F (43 °C).
  • Indoor use only; adequate intake & exhaust ventilation required.
  • Includes gasket and mounting clips for counters up to 3" (7.6 cm) thick.

Compatible Induction-Ready Pans (sold separately)

  • 5IPF25 – Full-size, 2-½" deep
  • 5IPF40 – Full-size, 4" deep
  • 5IPH25 – Half-size, 2-½" deep
  • 5IPH40 – Half-size, 4" deep
Important: This drop-in is manufactured to order and cannot be cancelled or returned once placed. Use on a dedicated electrical circuit and do not modify the factory cord or plug.

For complete warranty details, visit VollrathFoodservice.com.

Features & Specs

Manufacturer

Vollrath

Certifications

NSF, cULus, FCC, Made in USA

Height

15.0in

Width

68.0in

Depth

26.0in

Shipping Weight

240.0lbs

Insulated or Non-Insulated

non-insulated

Construction

stainless steel

Pan Capacity

(5) full size (12" x 20")

Controls

digital controls

Style

individual pans

Specifications

Induction Hot Food Well Drop-In, electric, dry operation, (5) well, 68"W x 26"D, individual heat & power controls per well, (3) power levels per well (low/medium/high), temperature range 140°-190°F, (2) induction capsules per well creates (2) heat zones in each well, (heat zones can operate independently or be synced), accommodates Vollrath induction-ready steam table pans (1) full-size (2-1/2" or 4" deep) or (2) half-size (2-1/2" or 4" deep) per well, includes master power switch, 208-240v/60/1-ph, 3980 watts, 16.5 amps, cord with NEMA 6-30P, NSF, cULus, FCC, Made in USA (made to order) (Refer to vollrathfoodservice.com for full warranty policy)
