Vollrath FC-4HS-72120-BKR Heated Cabinets & Holding Shelves
Description

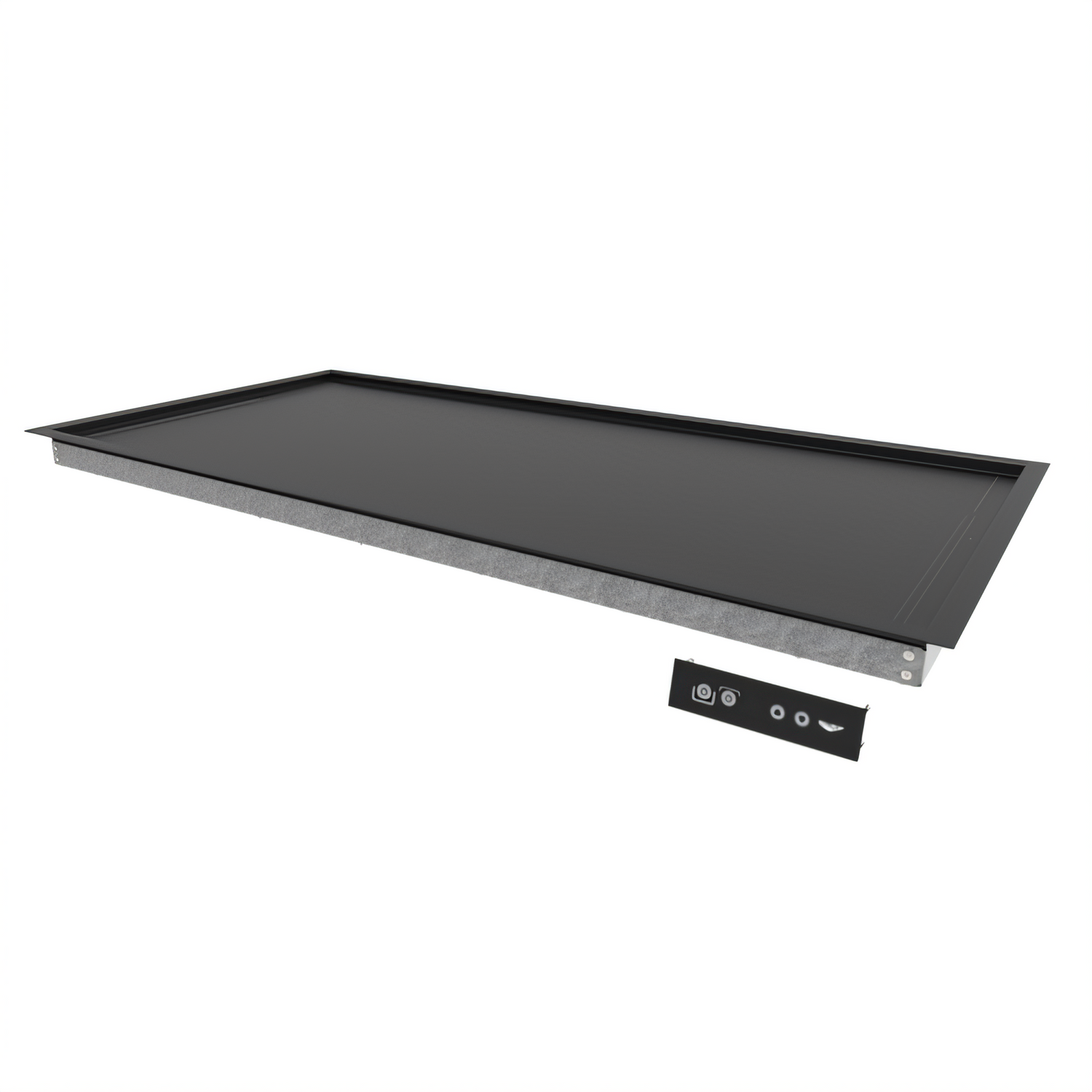

Vollrath 74" Recessed Heated Shelf Drop-In – Black Aluminum Hardcoat Model FC-4HS-72120-BKR | Dual-Zone • 957 W • 120 V
Give your grab-and-go or self-serve station a seamless, professional look while keeping plated or wrapped foods hot and appetizing. This 74-inch Vollrath recessed heated shelf installs flush in countertops up to 2" (5.1 cm) thick, offering two independently controlled warming zones, nine precise heat levels and a durable black aluminum hardcoat surface that resists scratches and stains.
Key Features
- Dual warming zones can be run together or separately for energy savings during slow periods.

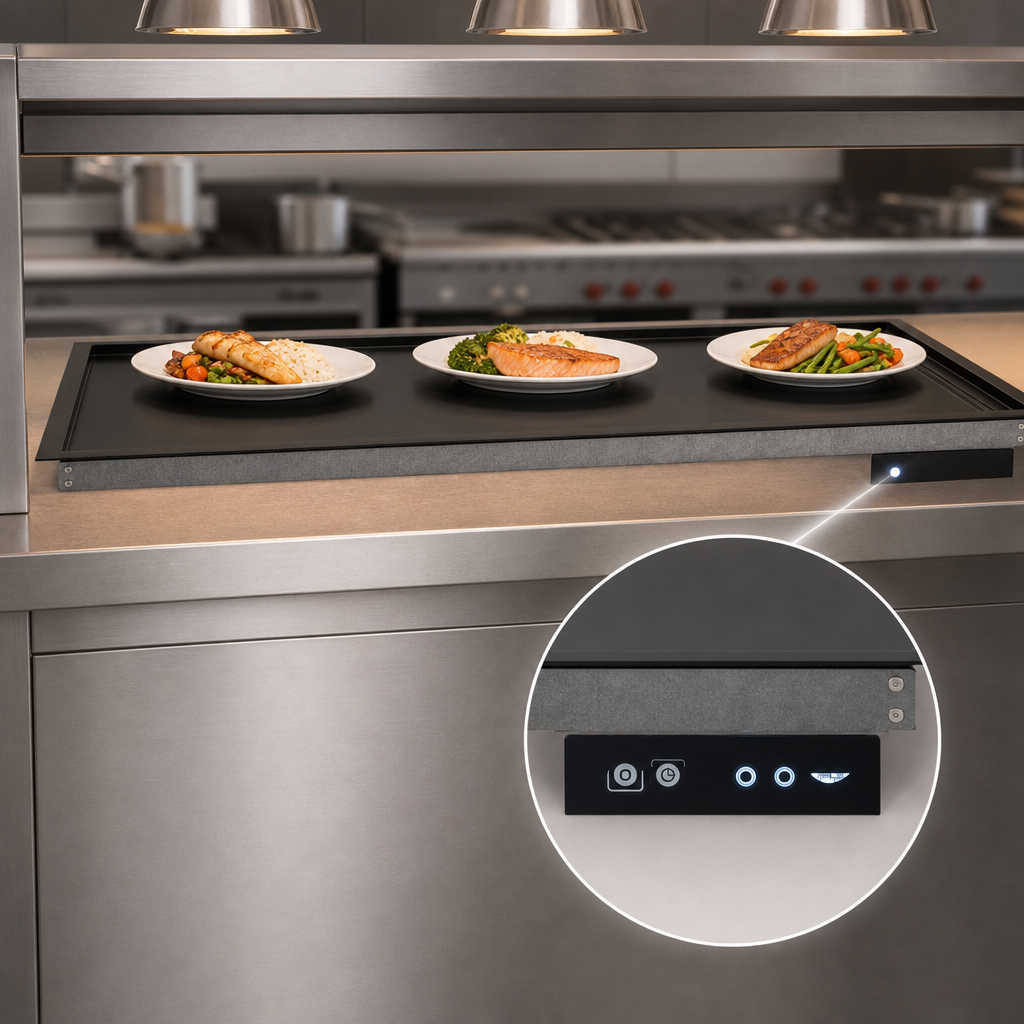

- Digital thermostatic control with 9 heat settings maintains food-safe temperatures without degrading product quality.
- 11⁄16" (1.8 cm) recessed surface keeps dishes stable and guides heat upward toward food.
- Zero-clearance design fits most countertop materials for a clean, flush presentation.
- Heavy-duty black aluminum hardcoat finish stands up to daily commercial use.
- Factory-installed 6 ft (1.8 m) power cord with NEMA 5-15P plug and 5 ft (1.5 m) control cord.
- Certified to cULus & NSF standards; safe for indoor commercial operations.
At-a-Glance Specs
| Overall length | 74 in (188 cm) |
|---|---|
| Recess depth | 11⁄16 in (1.8 cm) |
| Countertop compatibility | Up to 2 in (5.1 cm) thick |
| Warming zones | 2 (independent) |
| Heat settings | 9 selectable levels |
| Output | 957 watts |
| Electrical | 120 V / 60 Hz / 1-ph • 8.0 A • NEMA 5-15P |
| Approx. weight | 52.8 lb (24 kg) |
| Certifications | cULus, NSF |
Ideal Applications
- Convenience stores & grab-and-go kiosks
- Hotel breakfast buffets
- Corporate & school cafeterias
- Retail delis and bakery pass-throughs
Installation & Operation Notes
- Indoor use only; surface temperature may reach up to 220 °F (104 °C).
- Verify countertop material is rated for sustained heat at these temperatures.
- Allow cabinetry access to the electrical box located beneath the shelf for future service.
- For the best presentation when pairing with a Vollrath heat strip, select a strip one size longer than the shelf.
- Heated shelves are designed to hold hot food—not to cook or reheat.
Warranty coverage is provided under Vollrath’s standard policy. Visit vollrathfoodservice.com for complete details.
