Vollrath FC-4HS-66120-BKR Heated Cabinets & Holding Shelves
Description

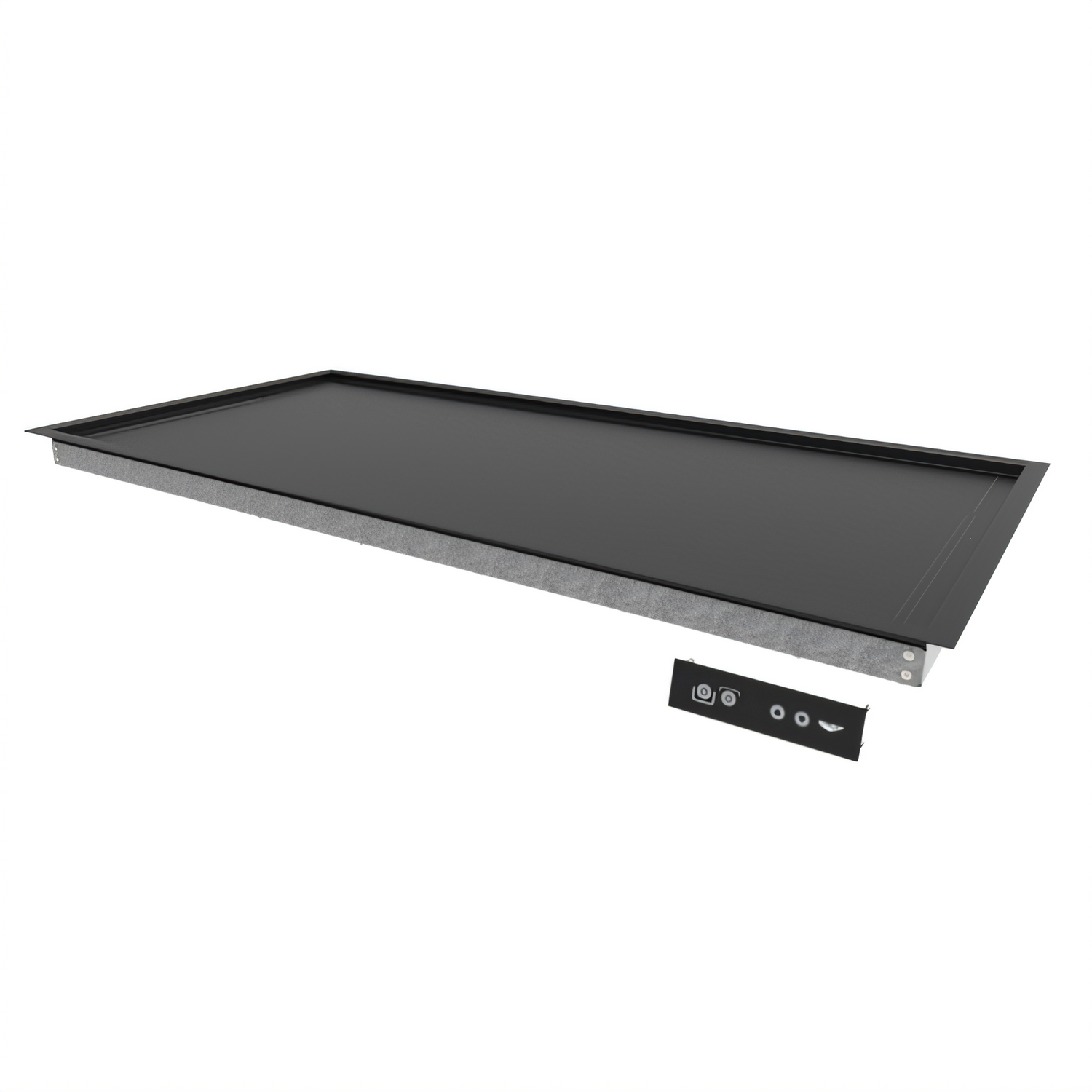

Vollrath FC-4HS-66120-BKR 68" Recessed Heated Shelf Drop-In
Black aluminum hardcoat finish | Dual warming zones | 120 V plug-and-playDesigned for high-volume self-serve, grab-and-go or buffet lines, this Vollrath recessed heated shelf drops flush into your countertop to keep plated or packaged foods hot, fresh and ready. Two independently controlled warming zones, nine precise heat settings and a durable 11⁄16 in. (1.8 cm) recess give you the flexibility to hold entrées, sides or pizza boxes without sacrificing presentation space.
Why you’ll love it
- Dual zones, one footprint – run either or both zones to match traffic, save energy and cut waste.
- Nine heat levels dialed-in by a digital thermostatic controller for consistent 140 – 220 °F holding.
- Zero-clearance installation – safe for counters up to 2 in. thick; no extra ventilation space required.
- Rugged black aluminum hardcoat surface resists scratches and wipes clean between rushes.
- Stamped zone markers make pan placement intuitive for staff.
- 6 ft (1.8 m) power cord with NEMA 5-15P and 5 ft (1.5 m) control-panel lead included – just drop in, plug in and start serving.
- cULus & NSF listed for safe, sanitary food holding.
At-a-glance specs
| Model | FC-4HS-66120-BKR |
|---|---|
| Shelf material / finish | Black aluminum hardcoat |
| Overall size (L × W) | 68 in. × 27 in. (172.7 cm × 68.6 cm) |
| Recommended cut-out | 66.5 in. × 25.25 in. (168.9 cm × 64.1 cm) |
| Recess depth | 11⁄16 in. (1.8 cm) |
| Heating zones | 2 independent zones |
| Heat settings | 9 (digital thermostatic) |
| Electrical | 120 V / 60 Hz / 1-phase |
| Wattage | 876 W |
| Amperage | 7.3 A |
| Plug | NEMA 5-15P (6 ft cord) |
| Unit weight | 49.1 lb (22.3 kg) |
| Max load capacity | 247 lb (112 kg) |
| Certifications | cULus, NSF |
Installation & operating notes
- Indoor use only; countertop surface temperature may reach 220 °F (104 °C).
- Verify your counter material is rated for the above temperature.
- Allow access to the underside junction box for any future service.
- For optimum performance, pair with a Vollrath® heated strip one size longer than the shelf.
- Intended for short-term hot holding of wrapped or plated food products.
Warranty
Backed by Vollrath’s standard commercial warranty against defects in materials and workmanship. Refer to vollrathfoodservice.com for complete policy details.
