Vollrath FC-4HS-60120-BKR Heated Cabinets & Holding Shelves
Description

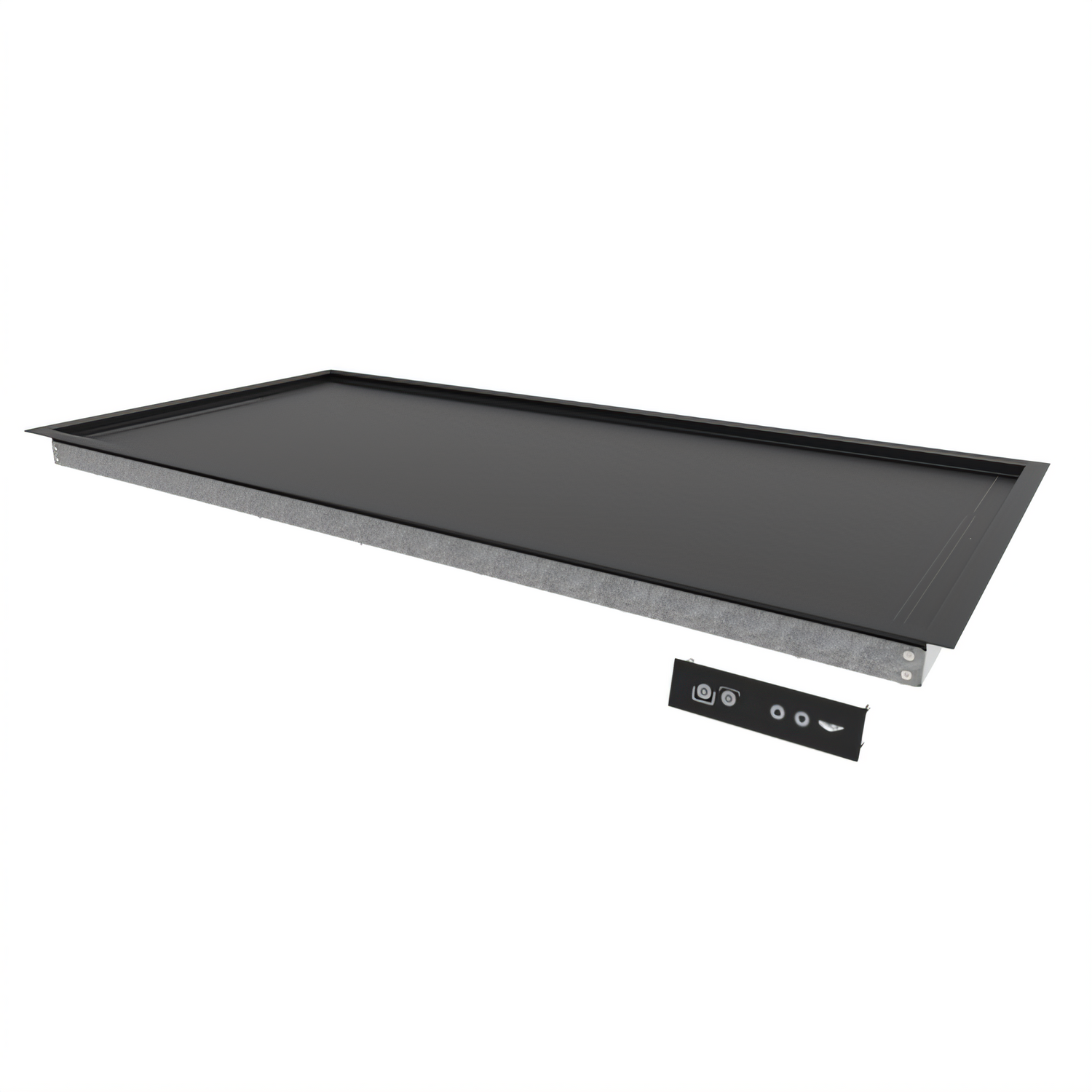

62" Recessed Heated Shelf Drop-In – Black Aluminum Hardcoat
Vollrath model FC-4HS-60120-BKR | 120 V • 794 W • NEMA 5-15PBuild a sleek, energy-efficient serving line that keeps food presentation spotless and temperatures on point. Designed for zero-clearance installation in counters up to 2 inches thick, this 62-inch Vollrath recessed heated shelf delivers dual-zone precision with the rugged durability of a black aluminum hardcoat surface.
Why you’ll love it

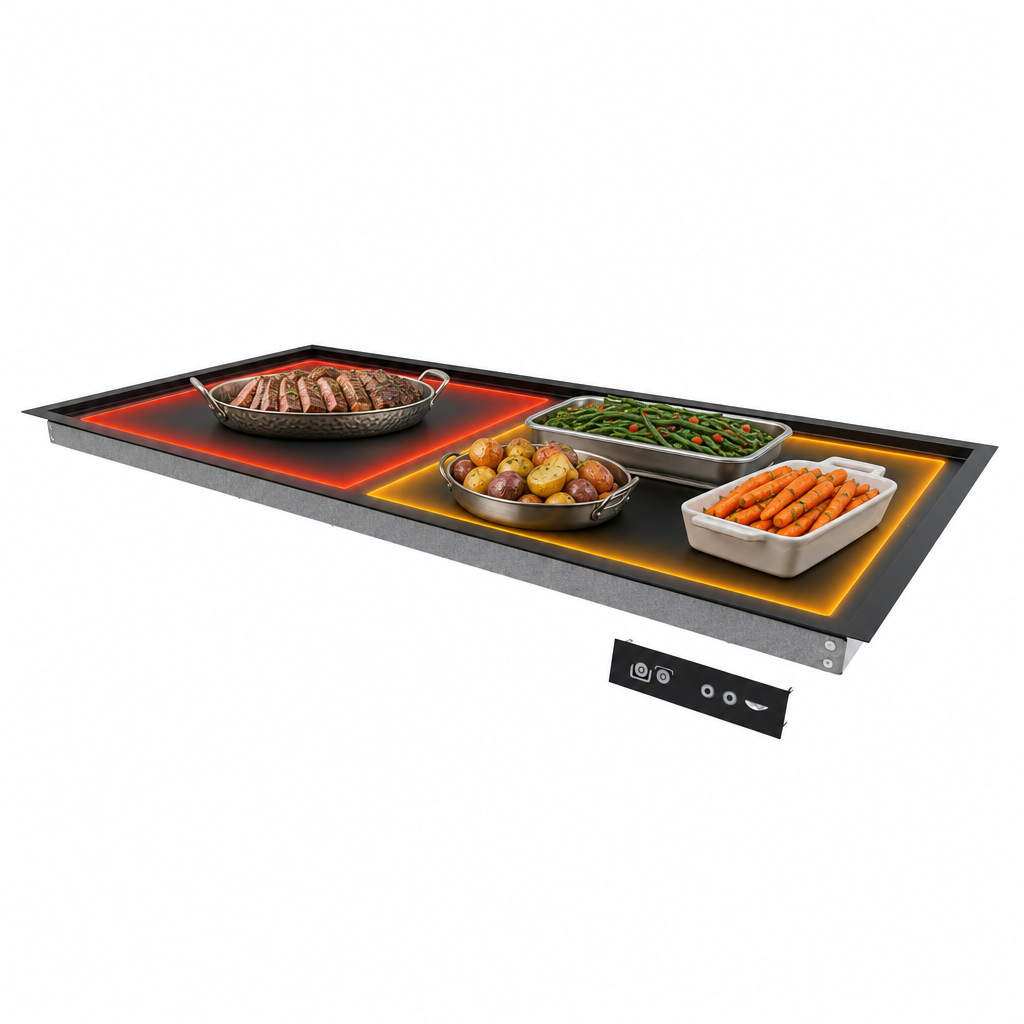

- Dual warming zones can be run individually or together for energy savings during slow and peak periods.
- Nine heat settings with digital thermostatic control hold product at safe serving temps without drying it out.
- 11⁄16" (1.8 cm) recessed surface keeps pans in place and shields food from drafts.
- Stamped zone markings show staff exactly where to stage hot items.

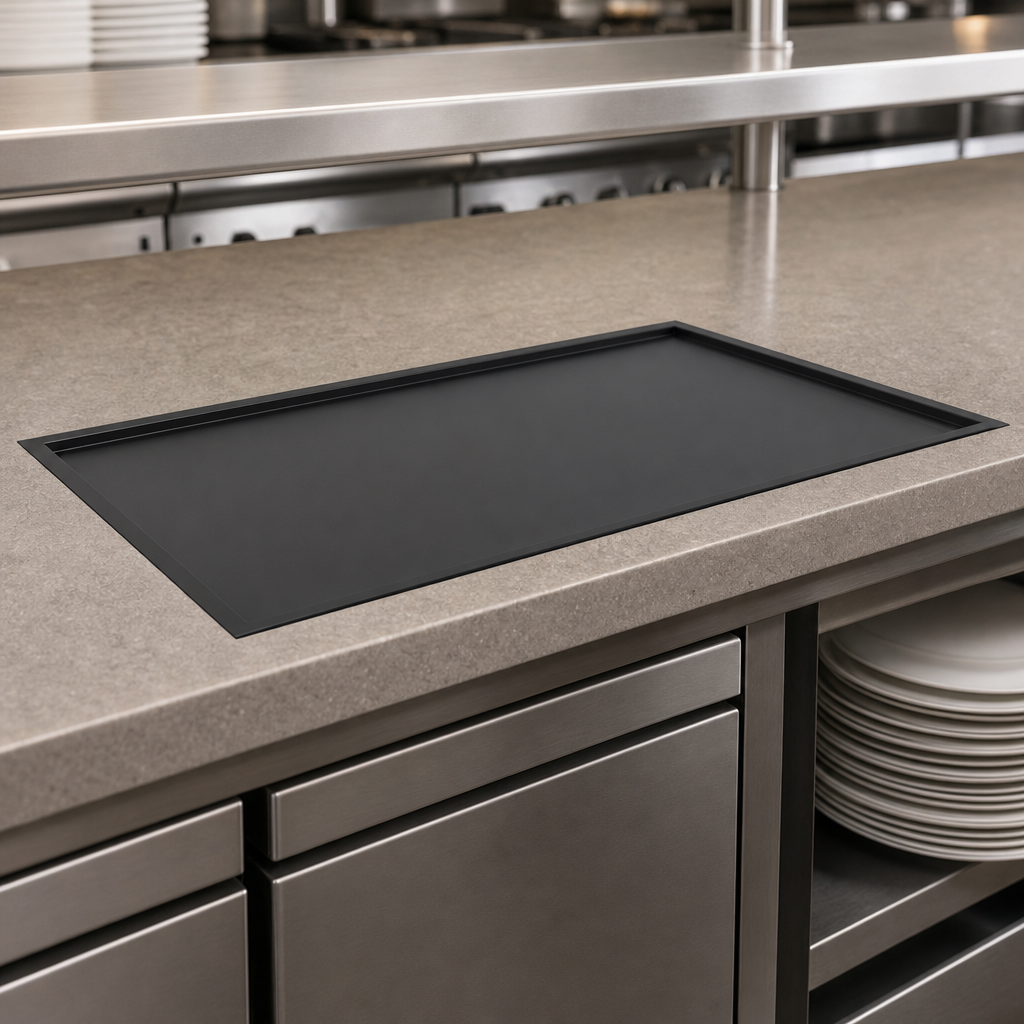

- Zero-clearance drop-in aligns flush with other Vollrath modules for a clean, continuous countertop look.
- Black aluminum hardcoat resists scratches, cleans easily and complements modern décor.
- 6 ft (1.8 m) factory-wired power cord + 5 ft (1.5 m) control cord included – no hard-wiring required.
- Certified cULus & NSF for commercial kitchens and convenience retail.
Technical specifications
| Item number | FC-4HS-60120-BKR |
|---|---|
| Overall dimensions | 60 ½" L × 27" W × 2 ¼" H (153.7 × 68.6 × 5.7 cm) |
| Cut-out size | 60 ½" L × 25 ¼" W (153.7 × 64.1 cm) |
| Shelf weight capacity | 219 lb (99.3 kg) |
| Recess depth | 11⁄16" (1.8 cm) |
| Electrical | 120 V / 60 Hz / 1-phase |
| Power | 794 W • 6.6 A |
| Plug type | NEMA 5-15P, 6 ft (1.8 m) cord |
| Material / finish | Black aluminum hardcoat |
| Approvals | cULus, NSF |
| Countertop compatibility | Up to 2" (5.1 cm) thick, indoor use only |
| Shipping weight | 61 lb (27.7 kg) |
Quick installation notes
- Unit is “drop-in ready” – simply cut the opening, remove packing and lower into place.
- Allow cabinet access to the underside for future service; electrical box is mounted beneath the shelf.
- Surface temperature may reach up to 220 °F (104 °C); verify countertop material is rated accordingly.
- For paired overhead heat, choose a Vollrath heat strip one size longer than the shelf.
For complete warranty details, visit vollrathfoodservice.com.
