Description

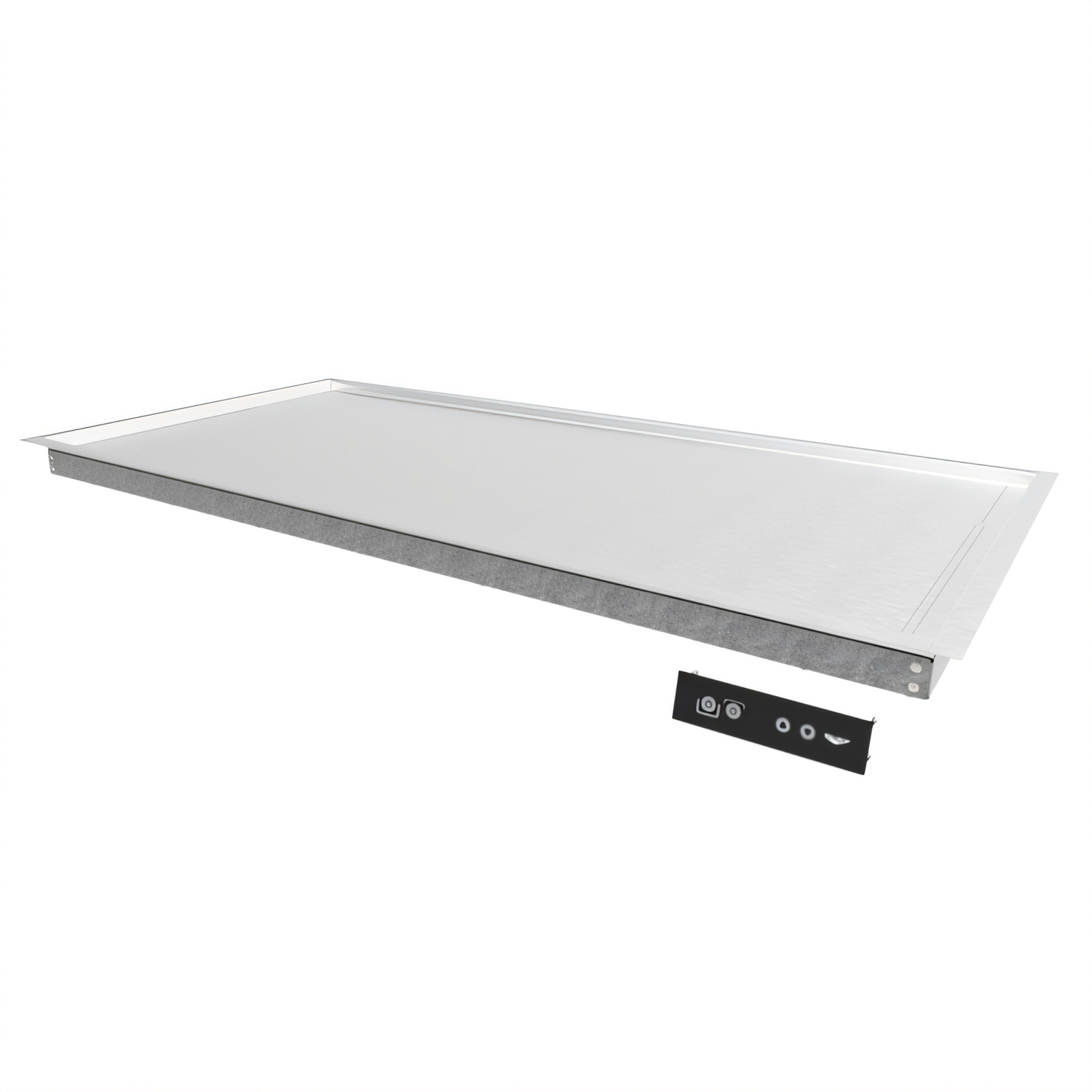

Vollrath Recessed Heated Shelf Drop-In – 56" Wide

Model FC-4HS-54120-SSR | Stainless Steel | 120 V

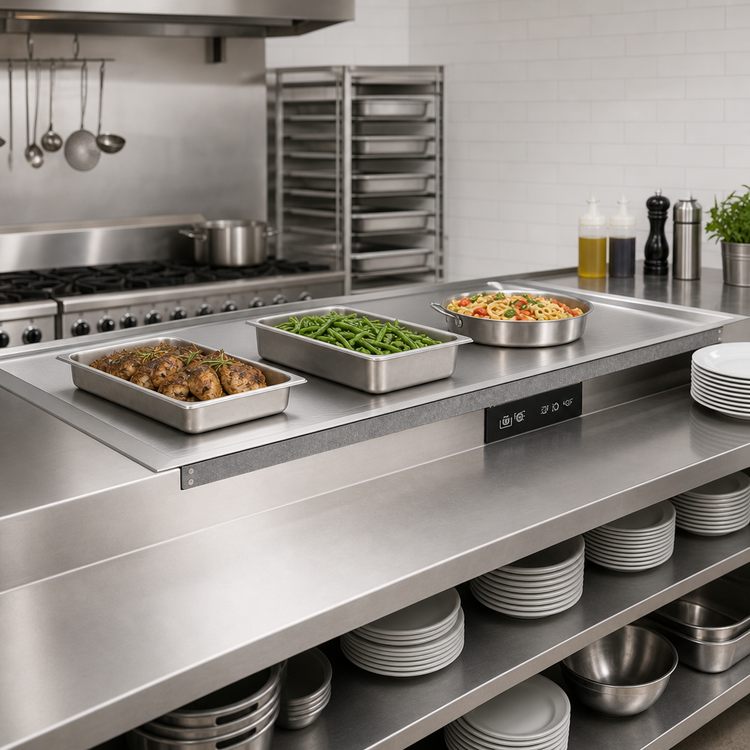

Keep plated entrées, grab-and-go meals, and wrapped items at appetizing temperatures without sacrificing food quality. Designed for flush, zero-clearance installation, this dual-zone heated shelf drops directly into countertops up to 2 in. thick, creating a seamless, professional look that lines up perfectly with other Vollrath drop-ins.

Key Features
  • 11/16 in. (1.8 cm) recessed deck helps secure pans and hides heat from the customer’s view.

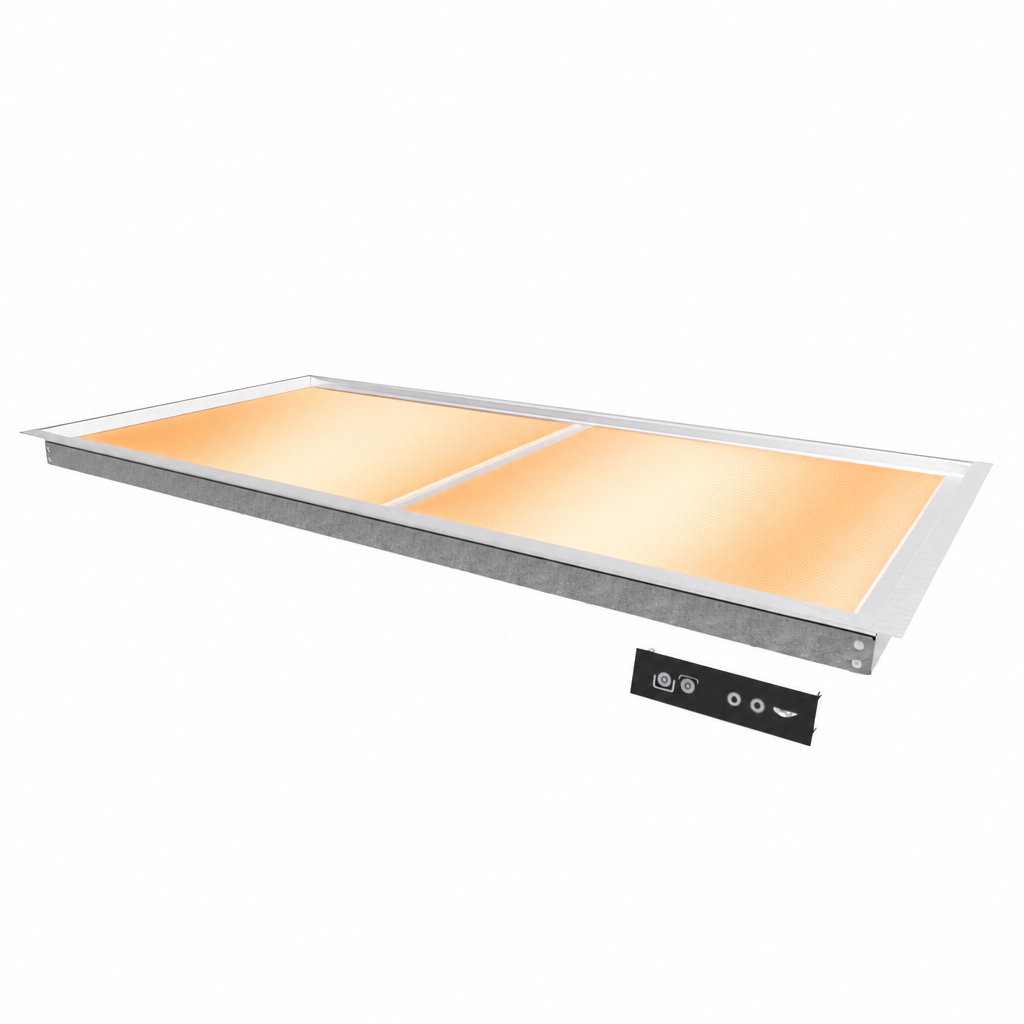

  • Two independent warming zones let you run one side during off-peak hours to save energy.
  • Nine selectable heat settings with digital thermostatic control for accurate, repeatable holding.
  • Stamped zone markers make pan placement fast and intuitive for staff.
  • Rugged 304 stainless-steel top resists corrosion and wipes clean with ease.

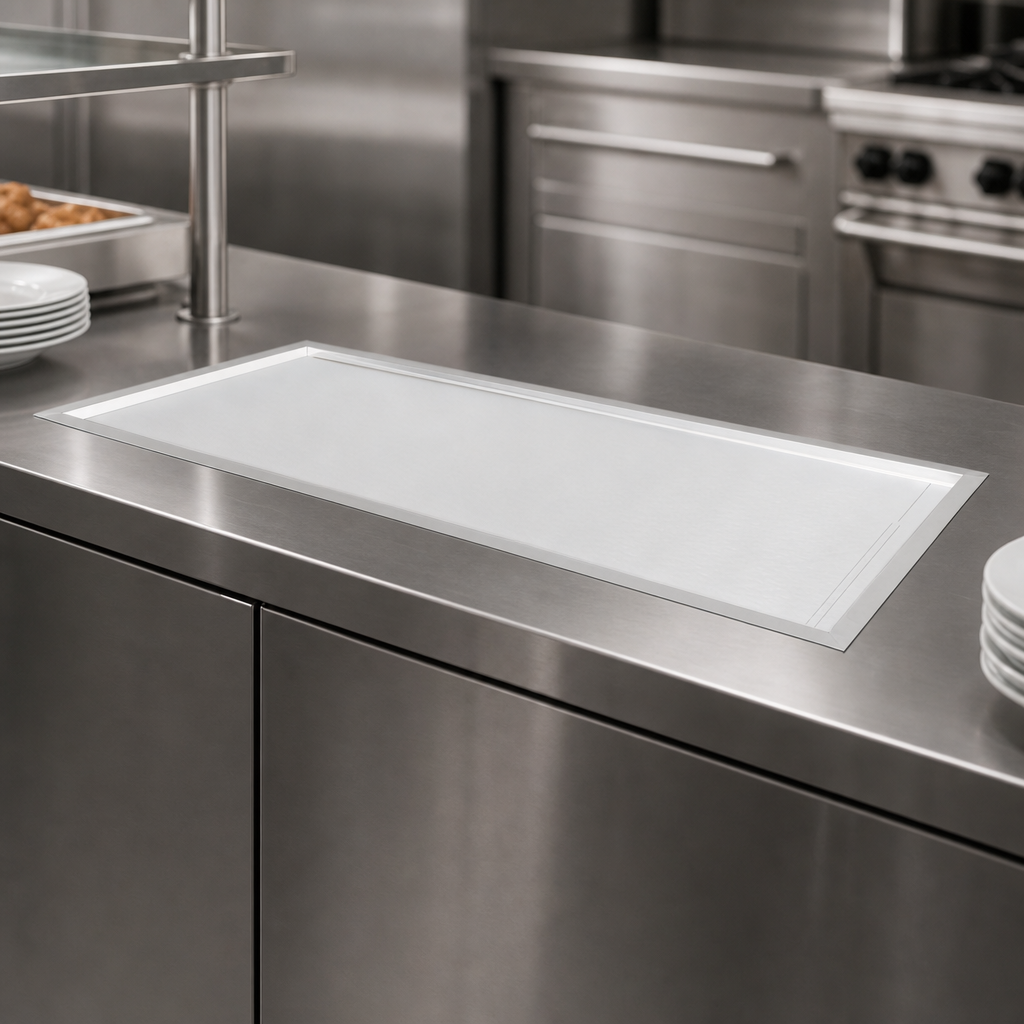

  • Zero-clearance design installs into most solid-surface, stone, laminate, or stainless countertops.
  • 6 ft (1.8 m) pre-wired power cord with NEMA 5-15P plug and 5 ft (1.5 m) remote control cord simplify setup.
  • Certified to cULus and NSF standards for safe commercial operation.
Technical Specifications
Model FC-4HS-54120-SSR
Overall dimensions (W × D) 56 in. × 27 in. (142.2 cm × 68.6 cm)
Countertop cut-out 54 ½ in. × 25 ¼ in. (138.4 cm × 64.1 cm)
Recess depth 11/16 in. (1.8 cm)
Warming zones 2 (independent)
Heat settings 9
Electrical 120 V / 60 Hz / 1-ph, 712 W, 5.9 A, NEMA 5-15P
Max weight capacity 191 lb (86.6 kg)
Material & finish 304 stainless steel
Certifications cULus, NSF
Warranty Standard Vollrath warranty (see vollrathfoodservice.com for details)

Indoor use only. Surface temperatures can reach up to 220 °F (104.4 °C); confirm countertop materials are rated accordingly.

Installation note: Provide access to the electrical junction box mounted beneath the shelf for any future service needs. Do not modify the cord or plug; doing so will void the warranty and may cause injury.

Features & Specs

Manufacturer

Vollrath

Certifications

NSF, cULus

Height

5.0in

Width

56.0in

Depth

27.0in

Shipping Weight

68.0lbs

Type

drop-in

Heated Shelf Construction

stainless steel

Controls

thermostatic controls

Shelf Width (side - side) OA

43" - 60"

Specifications

Recessed Heated Shelf, drop-in, 56"W, for use with countertops up to 2" thick, 11/16" deep recessed surface area, dual warming zones, (9) heat settings, digital thermostatic control, stainless steel finish, 712 watts, 120v/60/1-ph, 5.9 amps, power & control cord, NEMA 5-15P, cULus, NSF (Refer to vollrathfoodservice.com for full warranty policy)
