Vollrath FC-4HS-54120-BKR Heated Cabinets & Holding Shelves
Description

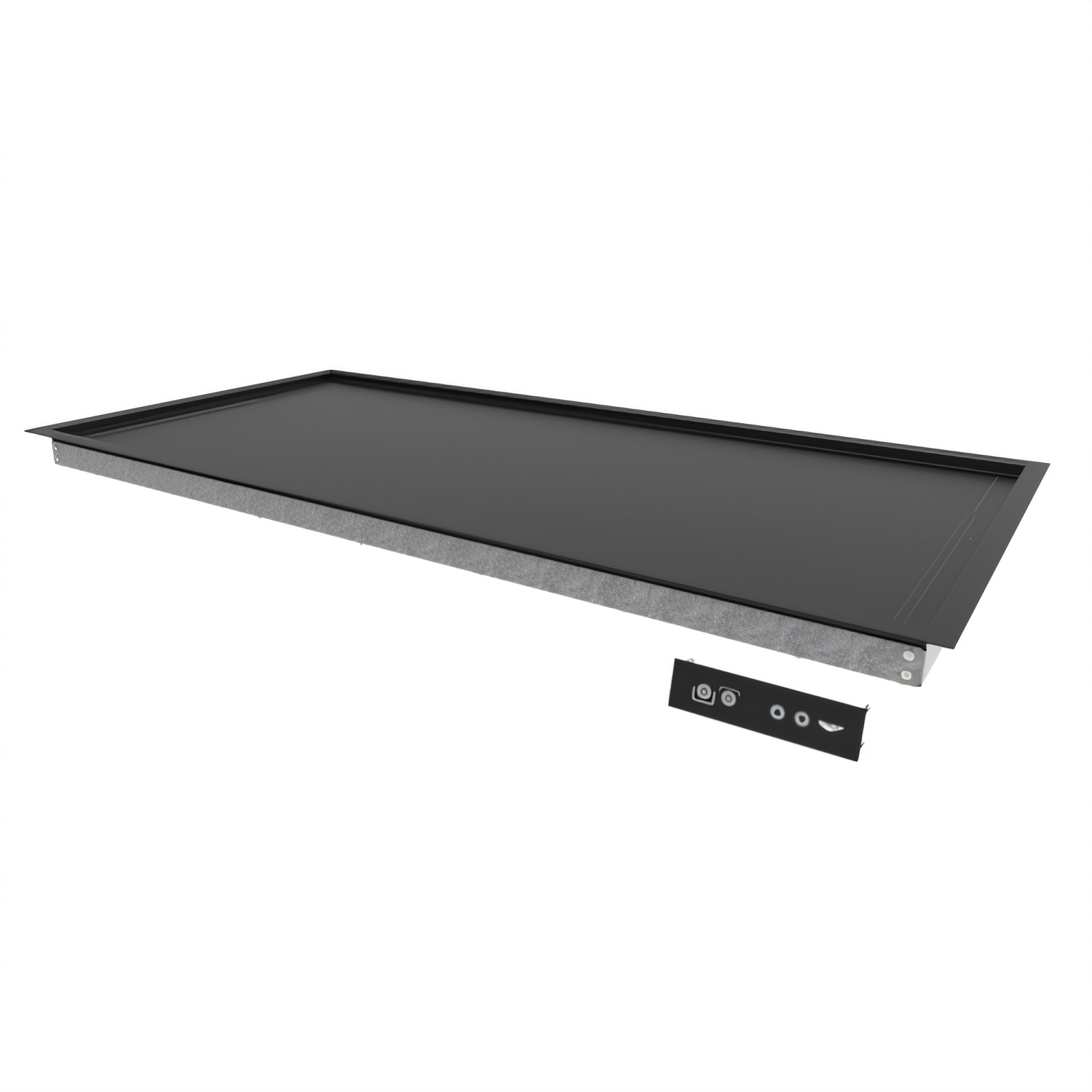

Vollrath 54" Recessed Heated Shelf Drop-In – Black Aluminum
Model FC-4HS-54120-BKR • 712 W • 120 VCreate a clean, cohesive serving line and keep menu items at safe, appetizing temperatures with Vollrath’s dual-zone recessed heated shelf. Designed for flush, zero-clearance installation, this durable hard-coat aluminum shelf delivers precise digital heat control in a compact, 11/16" recess—perfect for grab-and-go counters, buffets, and self-serve stations.
Key Features
- Dual warming zones can be activated together or individually for maximum energy efficiency.
- Nine heat settings governed by a digital thermostatic controller ensure consistent holding temperatures.

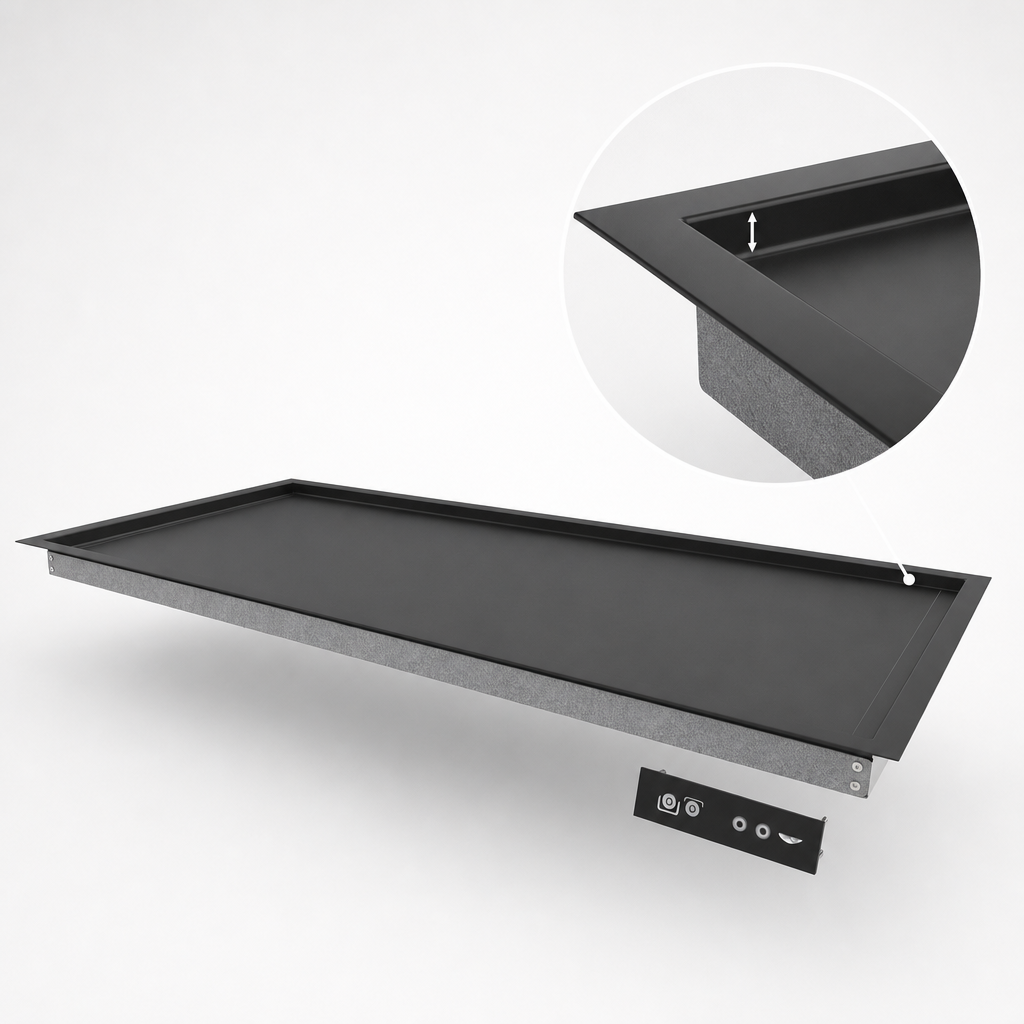

- 11/16" (1.8 cm) recessed surface helps retain heat and keeps pans or plates in place.

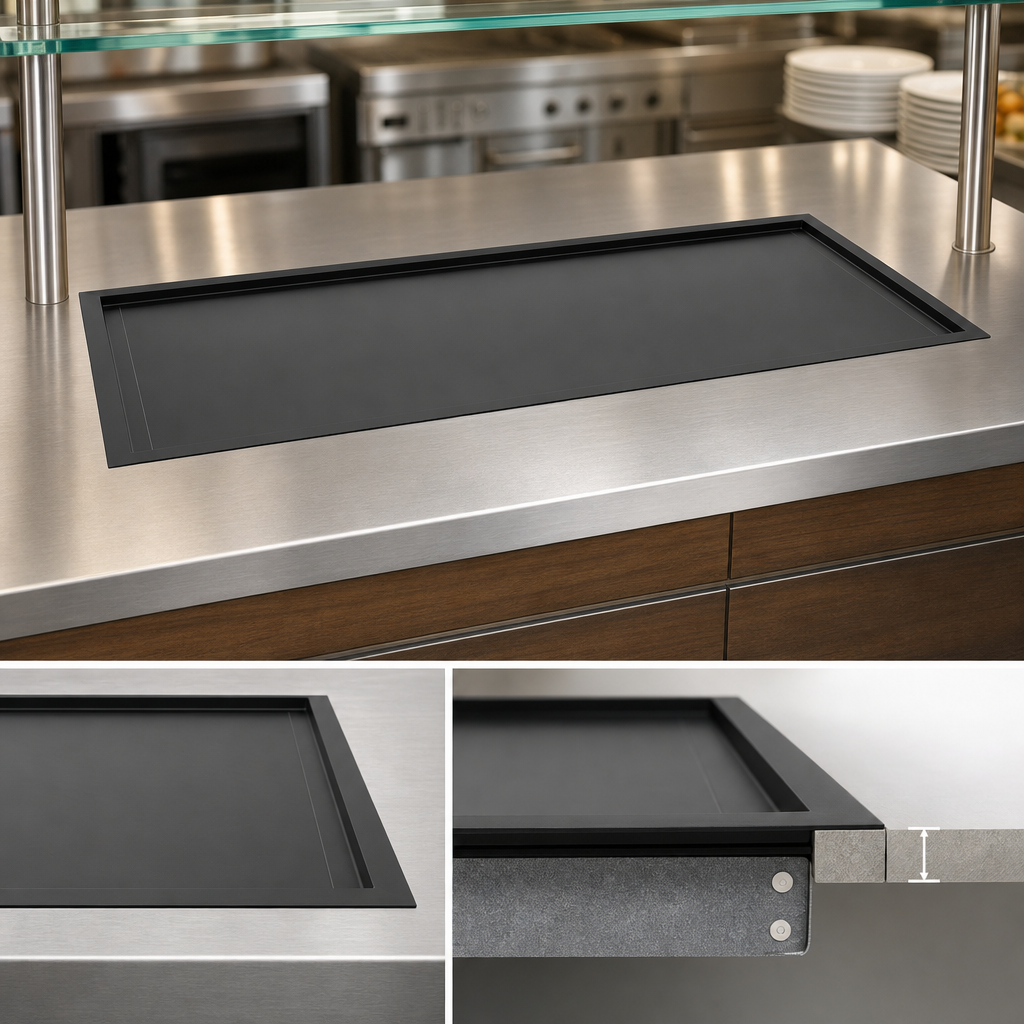

- Zero-clearance, drop-in design installs flush into countertops up to 2" (5.1 cm) thick.
- Black aluminum hard-coat finish offers superior heat transfer and scratch resistance.
- Stamped zone markers speed up daily set-up and staff training.
- Includes 6 ft (1.8 m) power cord with NEMA 5-15P plug and 5 ft (1.5 m) control cord.
- cULus and NSF listed for safe, sanitary operation in commercial foodservice environments.
Technical Specifications
| Model | FC-4HS-54120-BKR |
|---|---|
| Warming Zones | 2 (independent) |
| Heat Settings | 9 |
| Material / Finish | Black aluminum hard-coat |
| Recess Depth | 11/16" (1.8 cm) |
| Usable Shelf Area | 54 ½" W × 25 ¼" D (138.4 × 64.1 cm) |
| Overall Width | 56" (142.2 cm) |
| Max Load Capacity | 191 lb (86.6 kg) |
| Voltage | 120 V / 60 Hz / 1-phase |
| Power | 712 W • 5.9 A |
| Power Connection | 6 ft cord, NEMA 5-15P |
| Certifications | cULus, NSF |
| Net Weight | 41.6 lb (18.9 kg) |
| Environment | Indoor use only; surface temperature may reach 220 °F (104 °C) |
| Countertop Compatibility | Suitable for materials rated ≥220 °F; up to 2" (5.1 cm) thick |
| Warranty | Standard Vollrath warranty – see VollrathFoodservice.com for details |
Pairing with a Vollrath heat strip? Choose a strip one size longer than this 54" shelf to ensure optimal heat coverage.
