Description

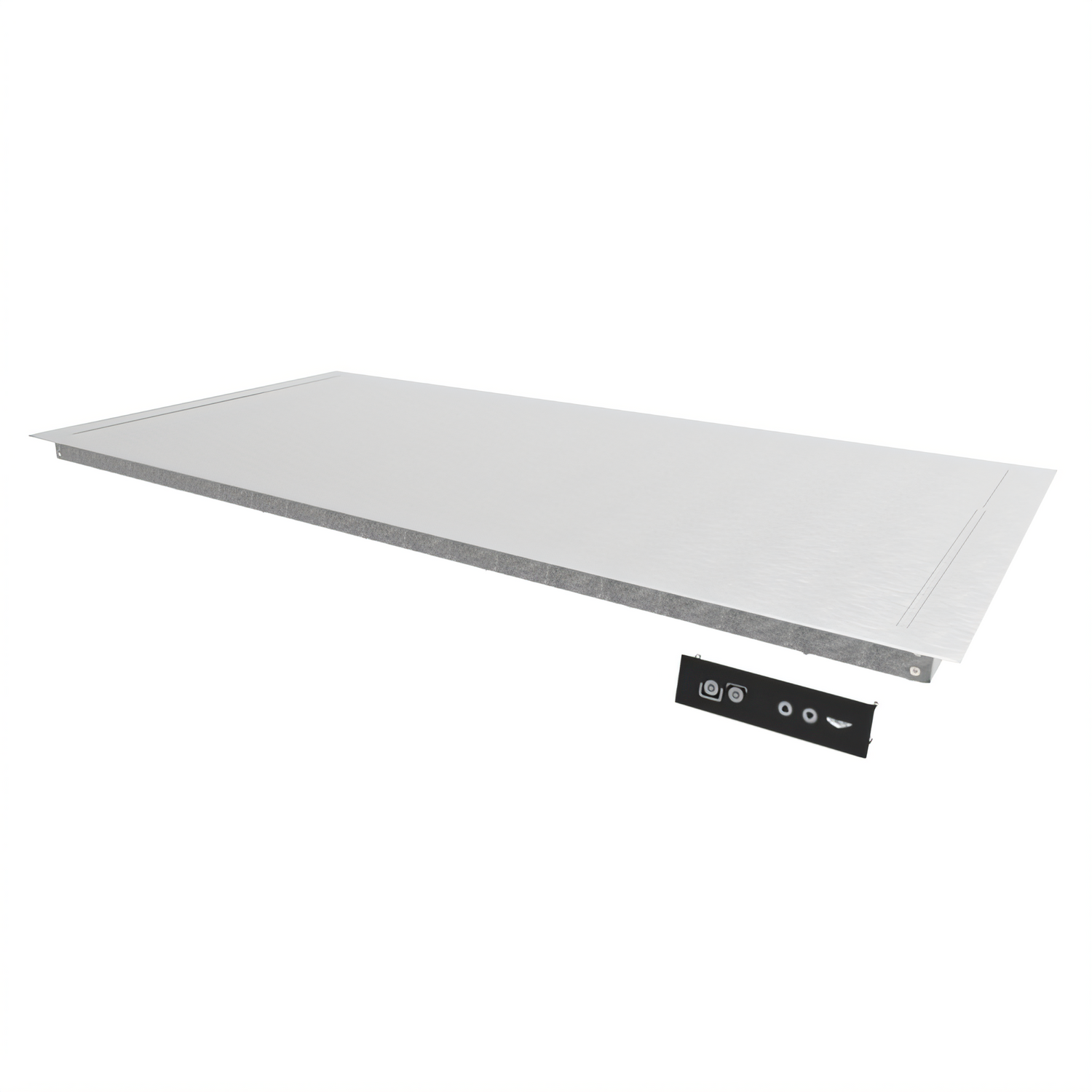

Flush Mount Heated Shelf Drop-In – 50" Stainless Steel
Vollrath Model FC-4HS-48120-SSF | Dual Zone | 120 V, 5.3 A, 631 WCreate a seamless, grab-and-go hot holding station in virtually any serving counter. This 50-inch Vollrath flush-mount shelf drops into countertops up to 2" thick, delivers thermostatically-controlled heat through two independent zones, and maintains safe food-service temperatures without sacrificing food quality or presentation.
Why You’ll Love It

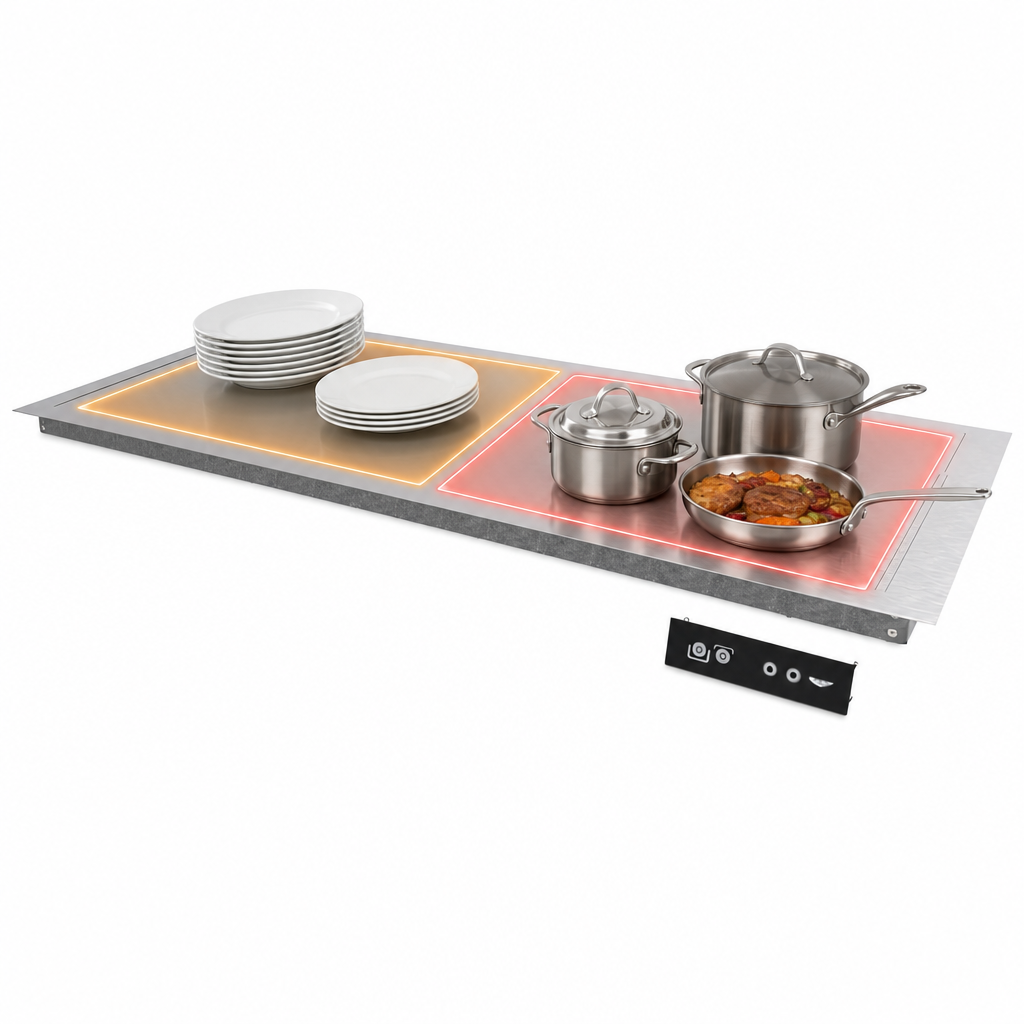

- Dual warming zones – operate one or both sections to match traffic flow and save energy.
- 9 heat settings per zone with digital, thermostatic control for precise temperature management.

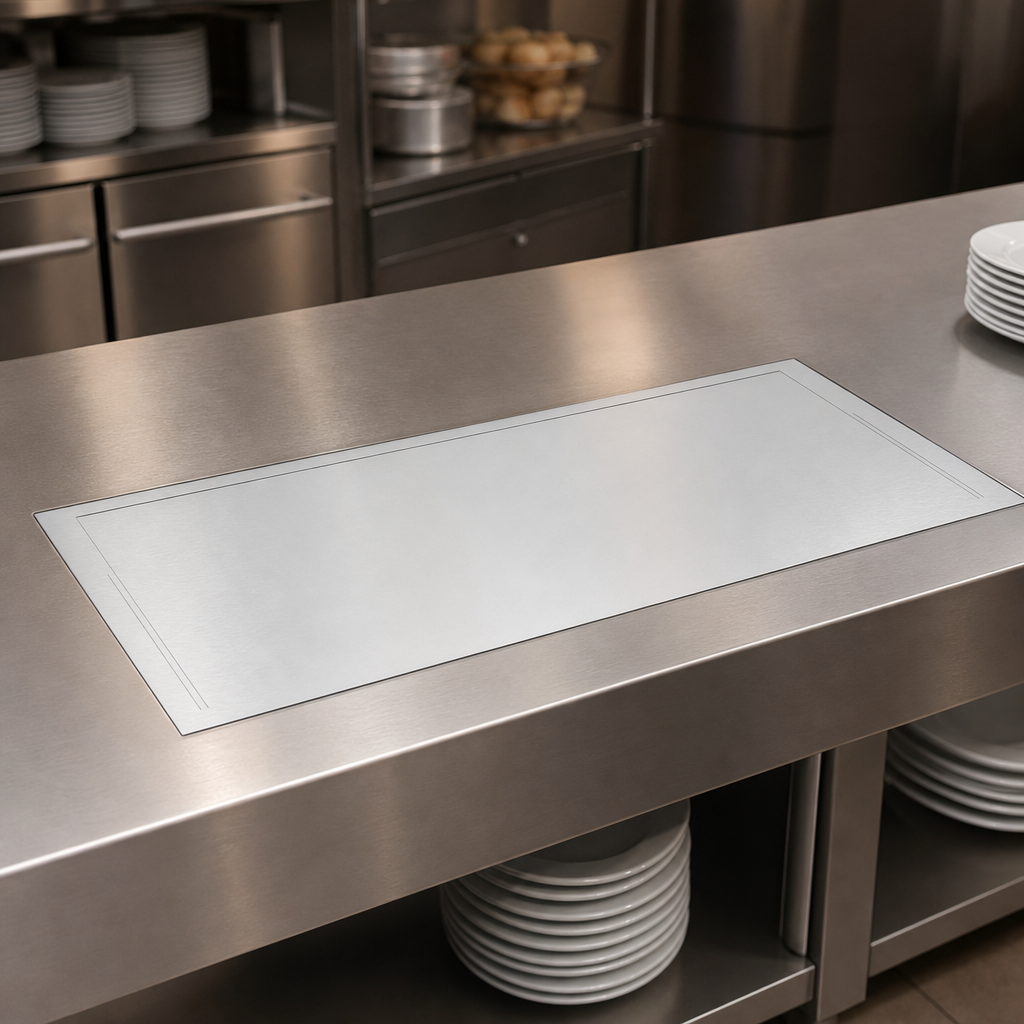

- Zero-clearance, flush install – sits perfectly level with adjoining Vollrath drop-ins for a clean, modern line.
- Stainless steel top resists corrosion, cleans easily, and complements any décor.
- 6 ft (1.8 m) power cord + 5 ft (1.5 m) control cord for flexible routing below the counter.
- NEMA 5-15P plug, cULus listed and NSF certified for peace of mind and code compliance.
- Designed for counters up to 2" (5.1 cm) thick; stone, solid surface, metal, or composite.
Perfect For
- C-stores, cafés & grab-and-go markets
- Buffet and self-serve lines
- Made-to-order stations needing a hot landing zone
- Catering and banquets requiring an elegant flush presentation
Technical Specs
Item number | FC-4HS-48120-SSF |
---|---|
Overall width (flange-to-flange) | 50" / 127 cm |
Heated surface | 48 ½" W × 25 ¼" D (123.2 × 64.1 cm) |
Counter cut-out (W × D) | 48 ½" × 25 ¼" (consult drawing for exact tolerances) |
Maximum load capacity | 163 lb / 74 kg (evenly distributed) |
Power | 631 W, 5.3 A, 120 V / 60 Hz, single phase |
Heat settings | 9 per zone (digital) |
Temperature range | Up to 220 °F / 104 °C surface temperature |
Electrical connection | 6 ft cord – NEMA 5-15P |
Certifications | cULus, NSF |
Warranty | Standard Vollrath limited warranty – see vollrathfoodservice.com |
For overhead heating, pair with a Vollrath heat strip one size longer than this shelf and follow the mounting requirements provided on the heat-strip specification sheet.
