Vollrath  |  SKU: FC-4HS-48120-BKR

Vollrath FC-4HS-48120-BKR Heated Cabinets & Holding Shelves

$1,551.40
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Warranty sheet
Related Searches
Heated Cabinets & Holding Shelves Holding Cabinets

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

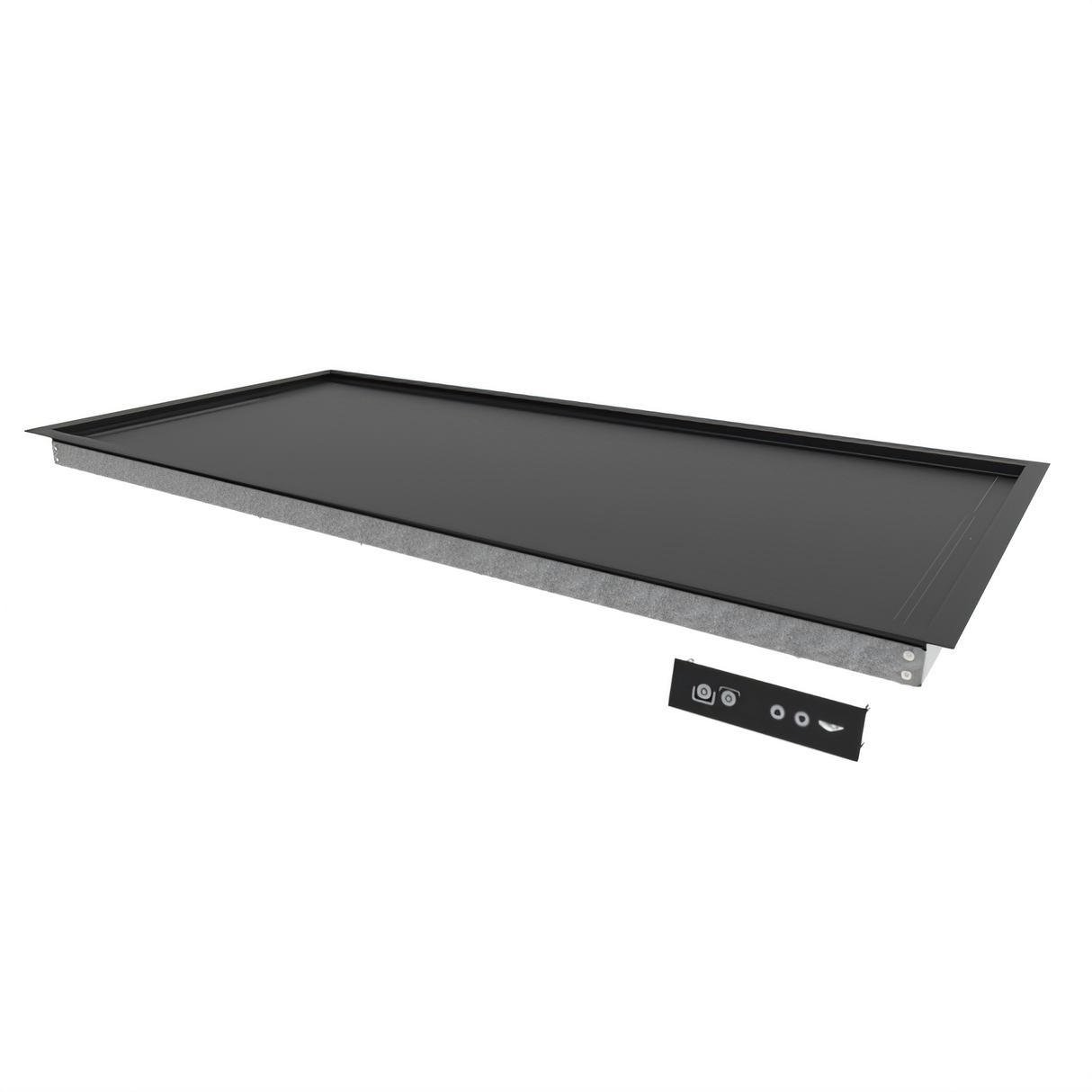

Vollrath 50" Recessed Heated Shelf Drop-In – Dual Zone, Black Hardcoat

Model FC-4HS-48120-BKR | Digital Thermostatic Control

Keep plated entrées, to-go boxes and sheet pans hot, fresh and ready for service with this low-profile recessed heated shelf from Vollrath. Designed to sit flush in counter surfaces up to 2 inches thick, it delivers precise, even heat while maintaining a clean, professional presentation on your line or grab-and-go station.

Key Features

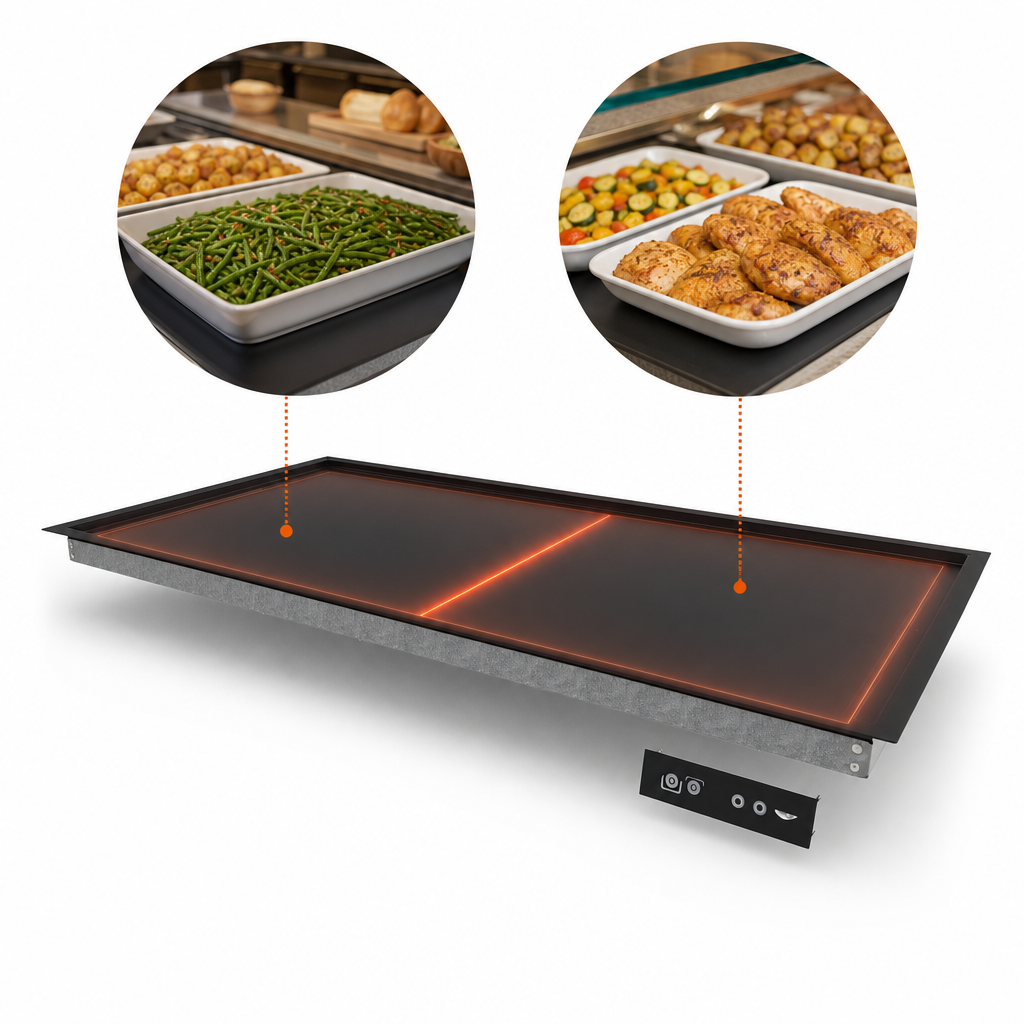

  • Two independent warming zones for energy-saving operation during slow or peak periods
  • Nine heat settings per zone controlled by an easy-to-read digital thermostat
  • 11/16" (1.8 cm) recessed surface helps shield food from drafts and improves temperature retention

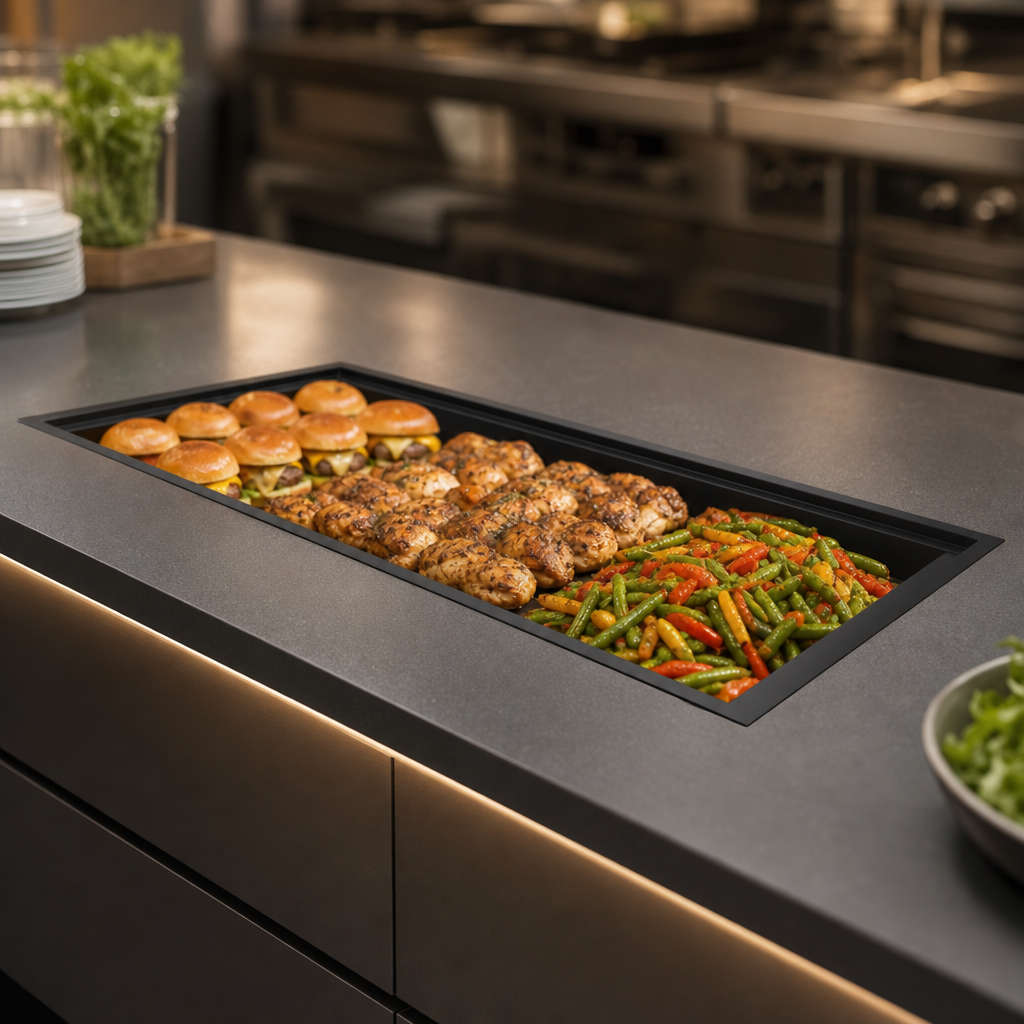

  • Zero-clearance design installs flush in stone, composite or wood countertops up to 2" (5.1 cm) thick
  • Durable black aluminum hardcoat finish resists scratches and wipes clean quickly
  • Stamped zone markers take the guesswork out of product placement
  • Ships ready to use with 6 ft (1.8 m) NEMA 5-15P power cord and 5 ft (1.5 m) control cord
  • cULus and NSF listed for safe, sanitary indoor operation
Technical Specifications
Item number FC-4HS-48120-BKR
Material / finish Black aluminum hardcoat
Overall dimensions 50" W × 27" D × 5" H (127 × 68.6 × 12.7 cm)
Counter cut-out 48 ½" W × 25 ¼" D (123.2 × 64.1 cm)
Recess depth 11/16" (1.8 cm)
Heating zones 2 zones, 9 settings each
Maximum load 163 lb (73.9 kg)
Electrical 120 V / 60 Hz / 1-ph, 631 W, 5.3 A, NEMA 5-15P
Cord lengths Power: 6 ft (1.8 m) • Control: 5 ft (1.5 m)
Certifications cULus, NSF
Warranty Standard Vollrath limited warranty (refer to vollrathfoodservice.com)
Important: This heated shelf is intended to hold pre-cooked, wrapped or plated foods at serving temperature for short periods. It is not designed for cooking or reheating raw product. Surface temperature may reach up to 220 °F (104 °C); confirm that your countertop material is compatible before installation.

Pairing with a heat lamp? Choose a Vollrath heat strip one size longer than this 50" shelf for optimal coverage.

Features & Specs

Manufacturer

Vollrath

Certifications

NSF, cULus

Height

5.0in

Width

50.0in

Depth

27.0in

Shipping Weight

37.8lbs

Heated Shelf Construction

aluminum

Controls

thermostatic controls

Type

drop-in

Shelf Width (side - side) OA

43" - 60"

Specifications

Recessed Heated Shelf, drop-in, 50"W, for use with countertops up to 2" thick, 11/16" deep recessed surface area, dual warming zones, (9) heat settings, digital thermostatic control, black aluminum hardcoat finish, 631 watts, 120v/60/1-ph, 5.3 amps, power & control cord, NEMA 5-15P, cULus, NSF (Refer to vollrathfoodservice.com for full warranty policy)
