Vollrath FC-4HS-36120-BKR Heated Cabinets & Holding Shelves
Description

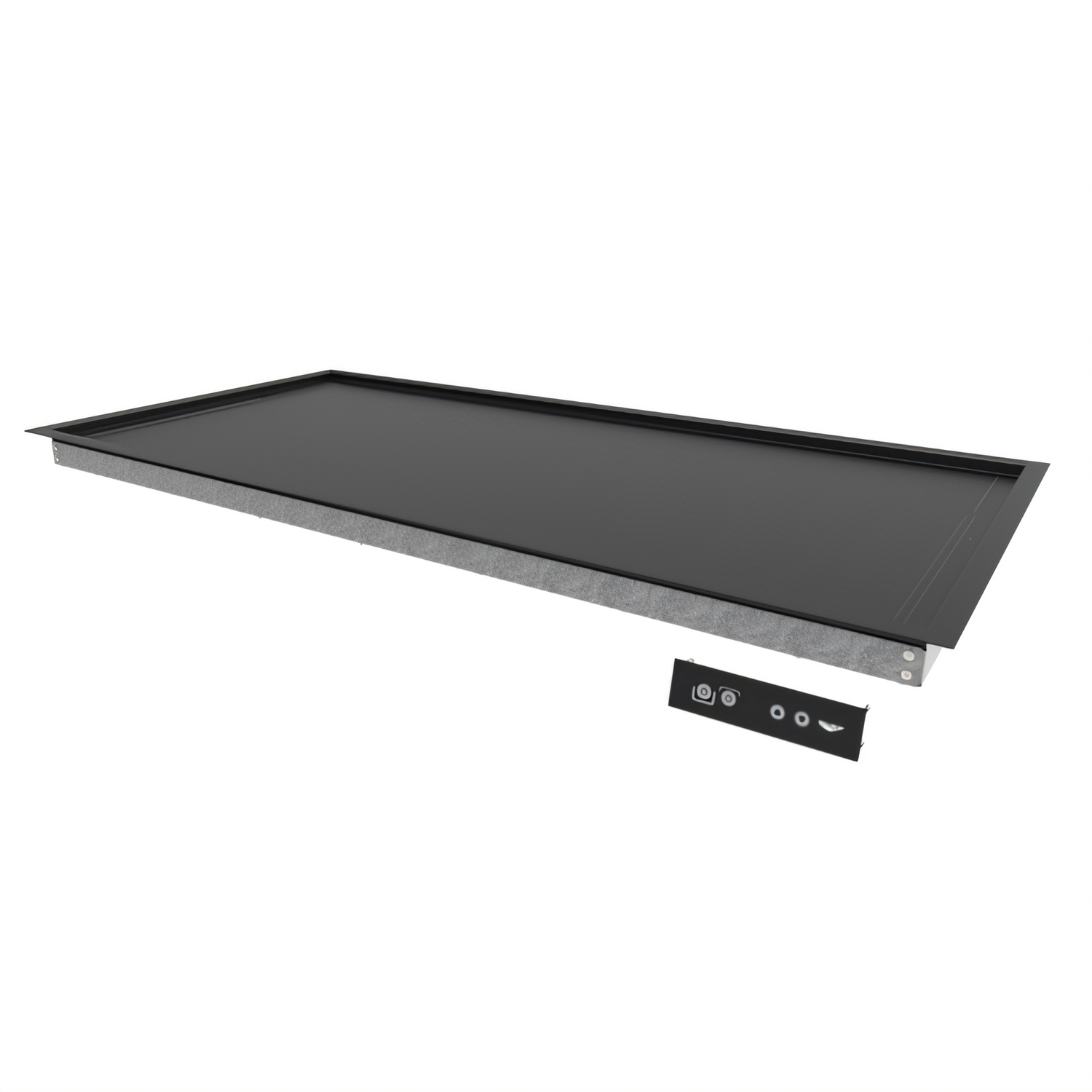

Vollrath 38" Recessed Heated Shelf Drop-In – Black Aluminum Hardcoat
Model FC-4HS-36120-BKR | Dual-Zone Digital Control | 120 VCreate a seamless, professional hot holding station without sacrificing counter space. This Vollrath recessed heated shelf sits flush in the countertop, delivering precise, even heat that keeps plated or packaged foods at the perfect serving temperature—ideal for buffets, grab-and-go displays and self-service lines.
Key Features

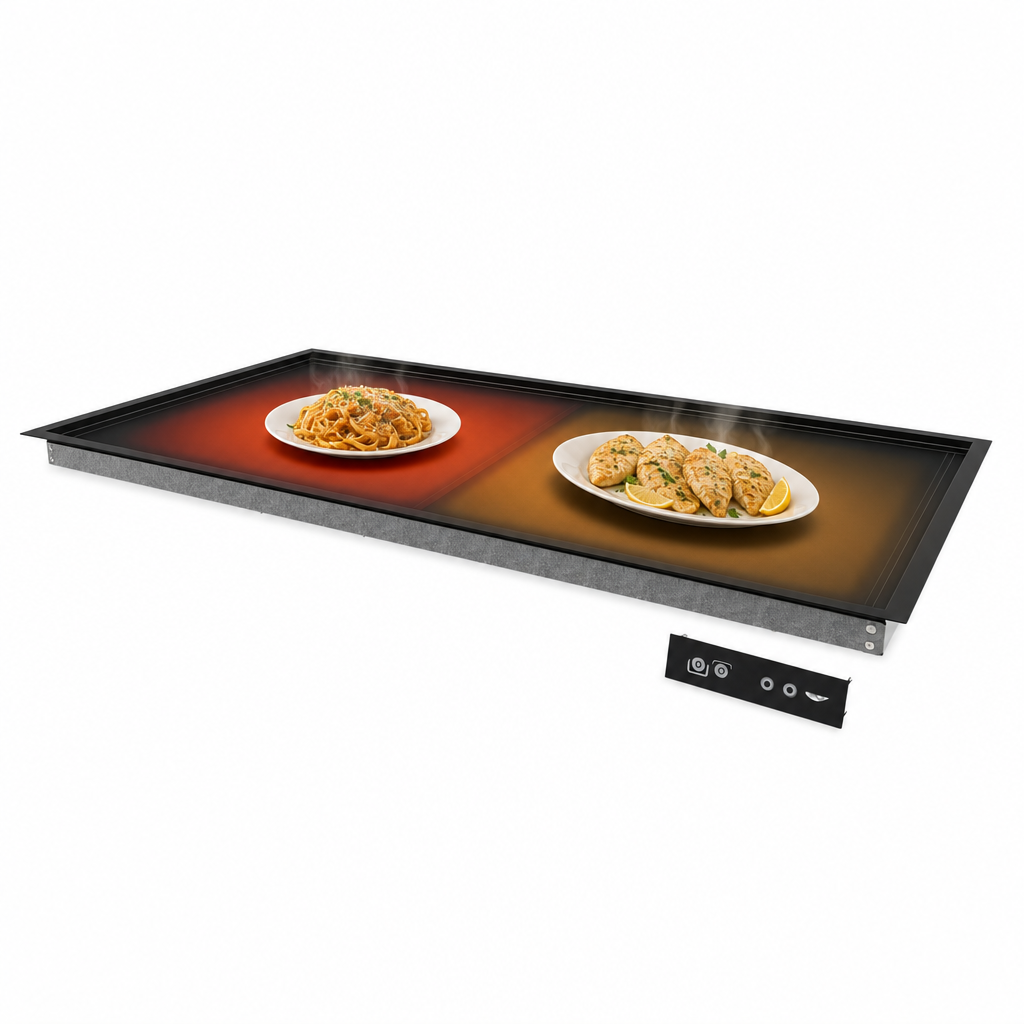

- Dual independent warming zones let you run one side or both to match customer traffic and save energy.
- Nine heat settings and a digital thermostatic controller maintain food safely up to 220 °F (104 °C).

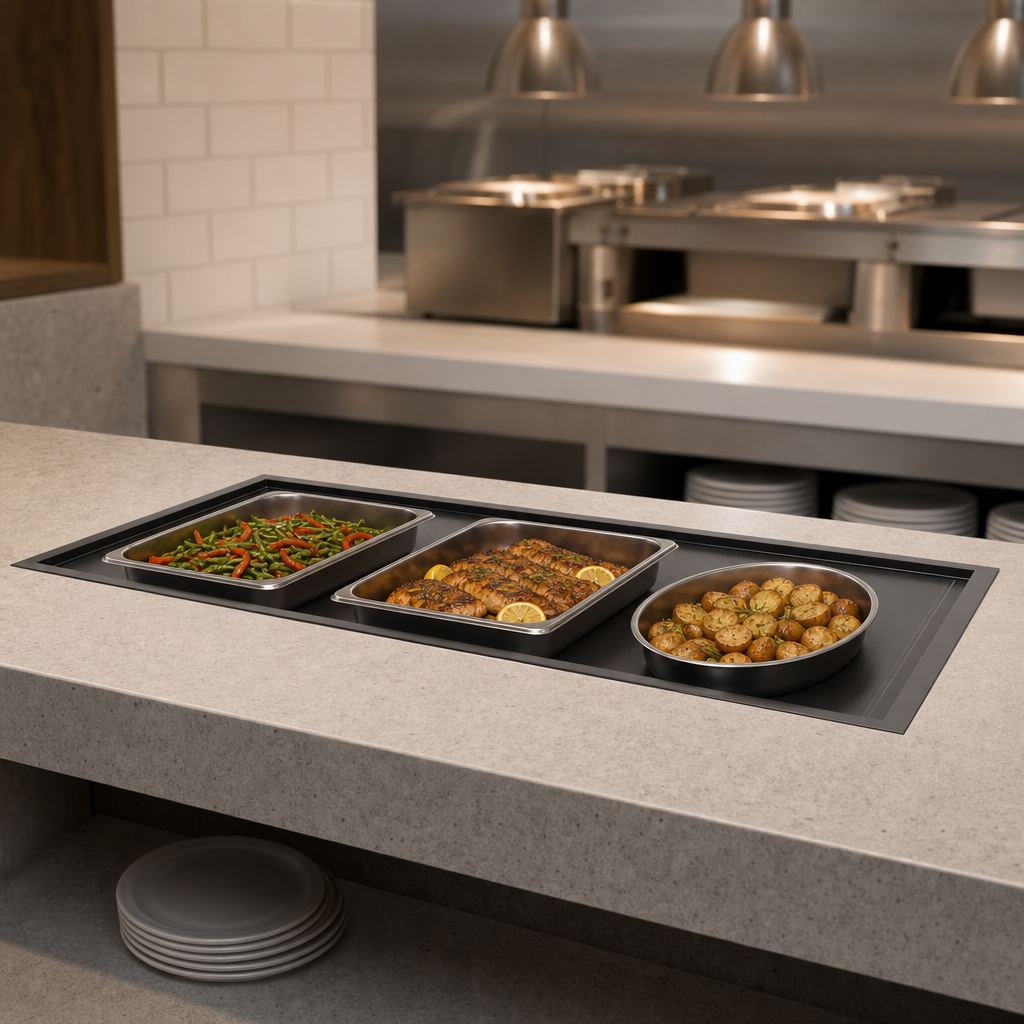

- 11/16" (1.8 cm) recessed surface helps contain spills while keeping pans level with the counter.
- Zero-clearance drop-in design fits countertops up to 2" (5.1 cm) thick.
- Durable black aluminum hardcoat finish resists scratches and daily wear.
- 5 ft (1.5 m) control-panel cord and 6 ft (1.8 m) power cord for flexible installation.
- Plug-and-play NEMA 5-15P connection—no hard-wiring required.
- cULus and NSF listed for safe, sanitary commercial use.
Technical Specifications
| Item number | FC-4HS-36120-BKR |
|---|---|
| Shelf material / finish | Black aluminum hardcoat |
| Overall dimensions (L × W) | 38" × 27" (96.5 × 68.6 cm) |
| Recess depth | 11/16" (1.8 cm) |
| Countertop cut-out | 36 1/2" × 25 1/4" (92.7 × 64.1 cm) |
| Countertop thickness | Up to 2" (5.1 cm) |
| Heating zones | 2, individually controlled |
| Heat settings | 9 |
| Voltage / phase | 120 V / 1-ph / 60 Hz |
| Power | 468 W |
| Current draw | 3.9 A |
| Plug type | NEMA 5-15P |
| Maximum load | Approx. 106 lb (48 kg), evenly distributed |
| Product weight | 28.1 lb (12.7 kg) |
| Certifications | cULus, NSF |
Cut-Out & Installation
- Indoor use only.
- Surface temperature can reach 220 °F (104 °C); verify countertop material suitability.
- Provide service access to the underside electrical box after installation.
- When pairing with a Vollrath heat strip, select a strip one size longer than the shelf.
Perfect For
- Grab-and-go islands & cafeterias
- Convenience stores & coffee bars
- Hotel breakfast buffets
- Catered events & banquets
Vollrath standard warranty applies. View full details at vollrathfoodservice.com.
