Vollrath  |  SKU: FC-4HS-30120-SSR

Vollrath FC-4HS-30120-SSR Heated Cabinets & Holding Shelves

$1,301.30
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options

Documents

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

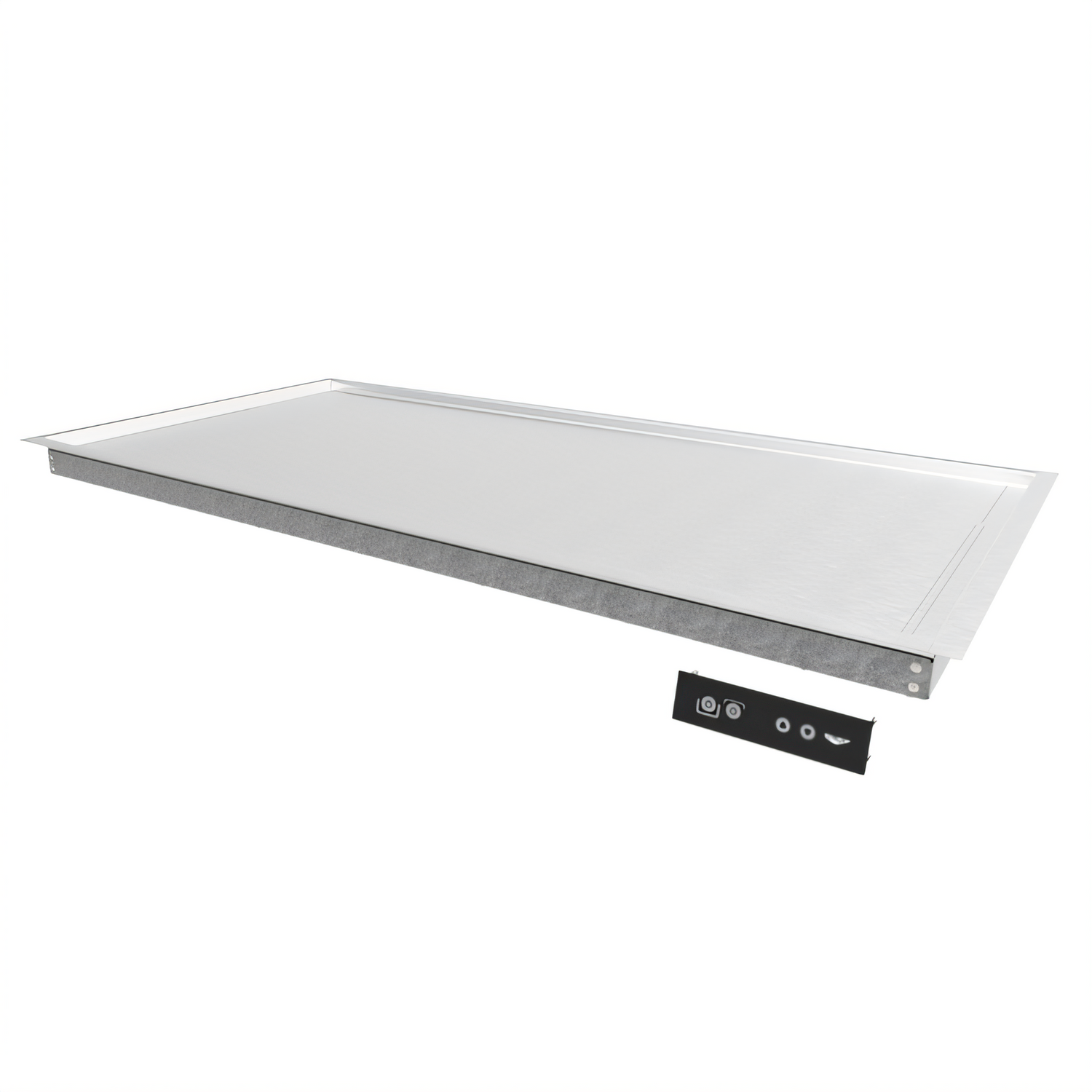

Vollrath 32" Recessed Heated Shelf Drop-In – Stainless Steel

Model FC-4HS-30120-SSR  |  386 W  |  120 V

Keep plated or packaged entrées hot, appetizing, and ready for grab-and-go service. Designed to sit flush with your counter line, this 32-inch Vollrath recessed heated shelf delivers even, energy-efficient warming through two independently controlled zones—perfect for cafés, c-stores, buffets, and any high-traffic self-serve station.

Why you’ll love it

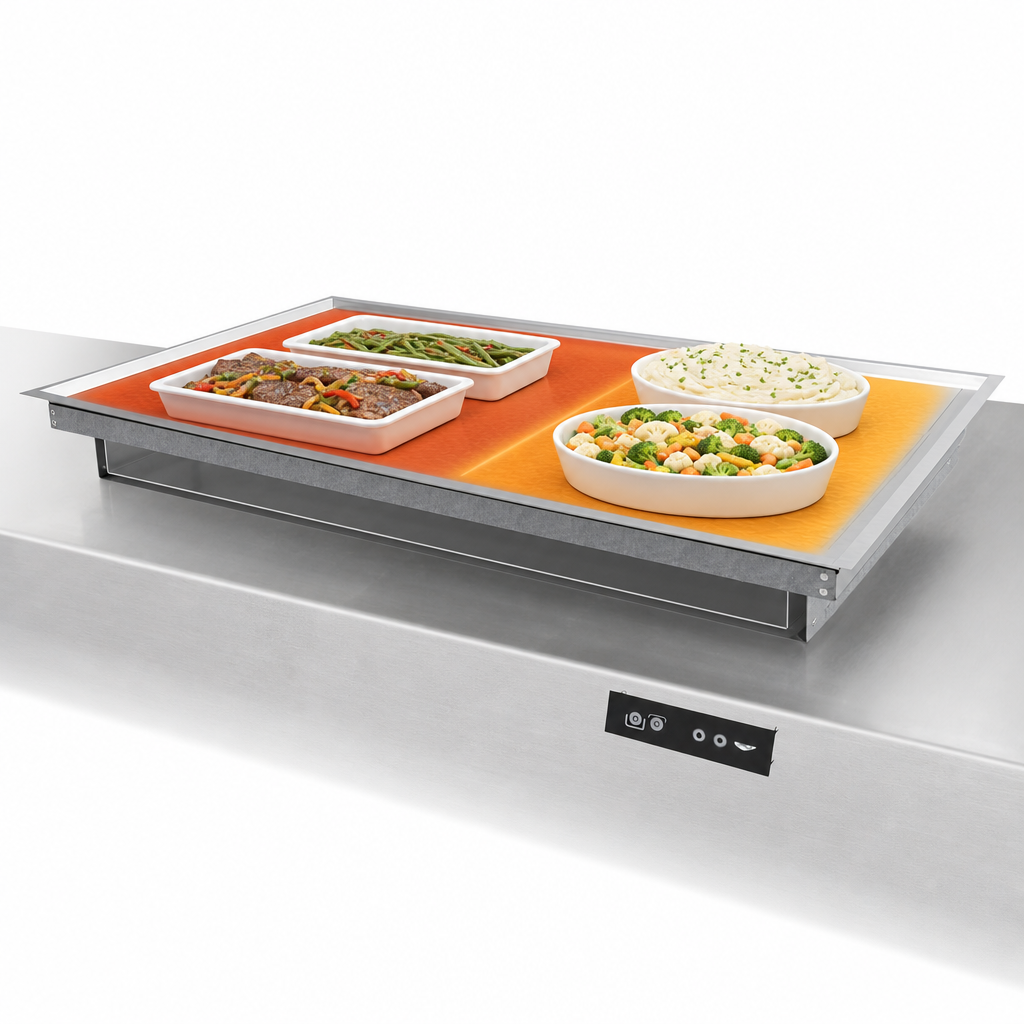

  • Dual warming zones run together or individually to match demand and save power.
  • Nine heat settings with digital thermostatic control guard food quality and safety.
  • 11/16 in. (1.8 cm) recess prevents plate slippage and shields food from drafts.

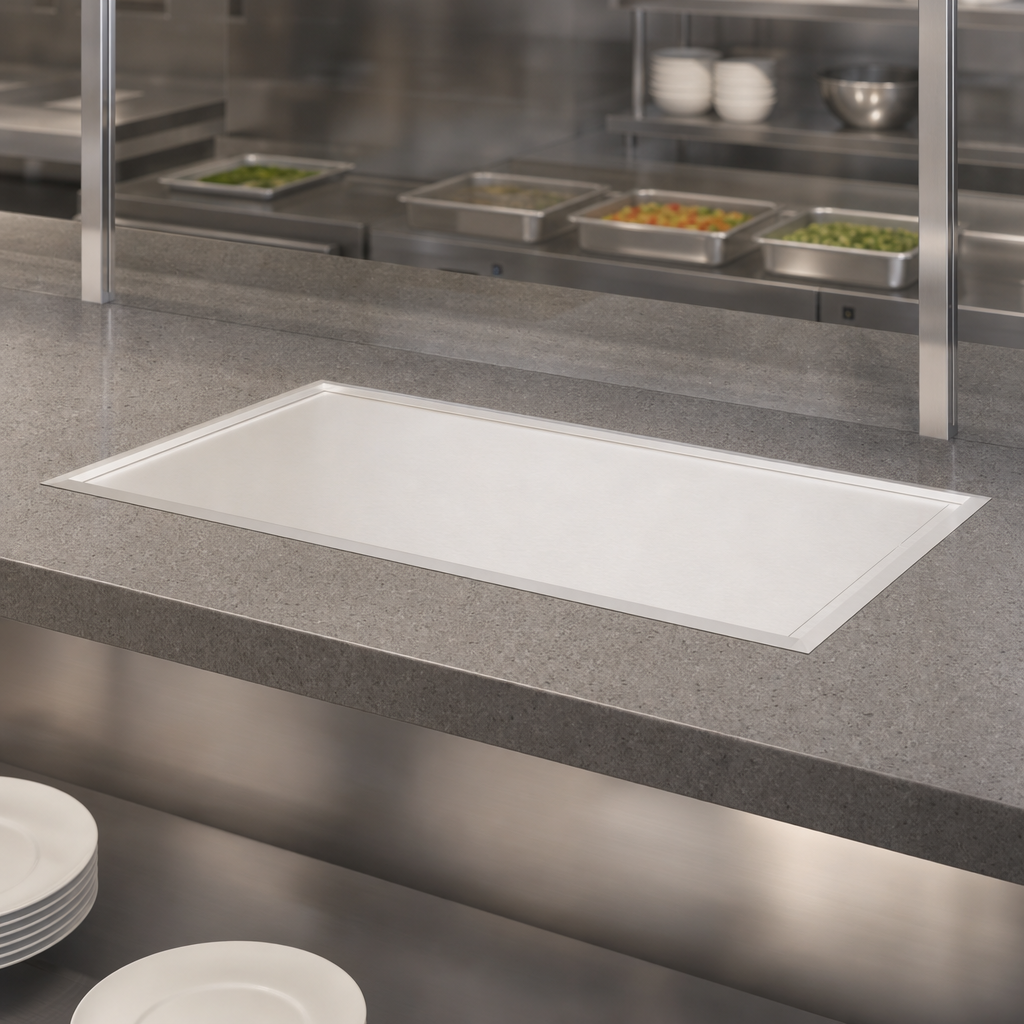

  • Zero-clearance design installs into countertops up to 2 in. (5.1 cm) thick—stone, composite, or solid-surface.
  • Durable 304 stainless steel top aligns with other Vollrath drop-ins for a seamless serving line.
  • Ships ready to use with a 6 ft (1.8 m) power cord & NEMA 5-15P plug plus 5 ft (1.5 m) control cord.
  • cULus & NSF listed for commercial kitchens.

Perfect for

  • Self-serve cafés and coffee bars
  • Convenience-store grab-and-go islands
  • Buffet and cafeteria lines
  • Concession and stadium kiosks

Technical specifications

Model FC-4HS-30120-SSR
Warming zones 2 (independent)
Heat settings 9
Recess depth 11/16 in. (1.8 cm)
Countertop thickness Up to 2 in. (5.1 cm)
Overall dimensions (L × W) 32 × 27 in. (81.3 × 68.6 cm)
Required cut-out (L × W) 30 ½ × 25 ¼ in. (77.5 × 64.1 cm)
Maximum load capacity 78 lb (35.4 kg)
Electrical 120 V / 60 Hz / 1-ph, 386 W, 3.2 A
Plug NEMA 5-15P (pre-wired 6 ft cord)
Construction 304 stainless steel surface & rim
Agency approvals cULus, NSF
Important: This unit is intended to maintain pre-heated food at serving temperature for a short time. Indoor use only. Shelf surface can reach up to 220 °F (104 °C); verify your countertop material is rated for this temperature.

For best coverage, install a Vollrath infrared heat strip one size longer than the shelf and follow the clearance guidelines on the heat-strip spec sheet.

Full installation, operation, and warranty details are available at vollrathfoodservice.com.

Features & Specs

Manufacturer

Vollrath

Certifications

NSF, cULus

Height

5.0in

Width

32.0in

Depth

27.0in

Shipping Weight

43.0lbs

Type

drop-in

Heated Shelf Construction

stainless steel

Controls

thermostatic controls

Shelf Width (side - side) OA

26" - 42"

Specifications

Recessed Heated Shelf, drop-in, 32"W, for use with countertops up to 2" thick, 11/16" deep recessed surface area, dual warming zones, (9) heat settings, digital thermostatic control, stainless steel finish, 386 watts, 120v/60/1-ph, 3.2 amps, power & control cord, NEMA 5-15P, cULus, NSF (Refer to vollrathfoodservice.com for full warranty policy)
