Vollrath FC-4HS-24120-BKF Heated Cabinets & Holding Shelves
Description

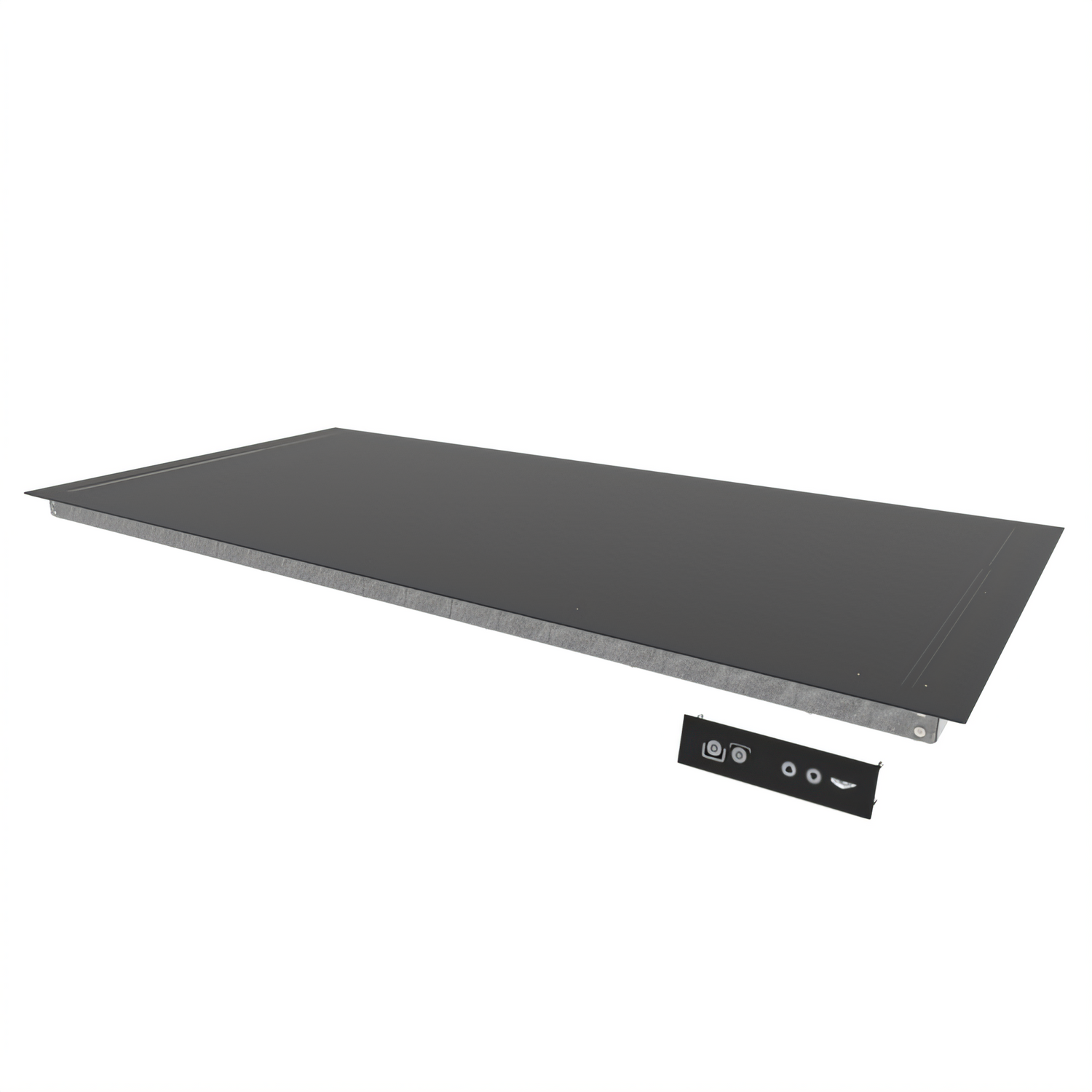

Vollrath Flush Mount Heated Shelf – 26″ Black Hardcoat

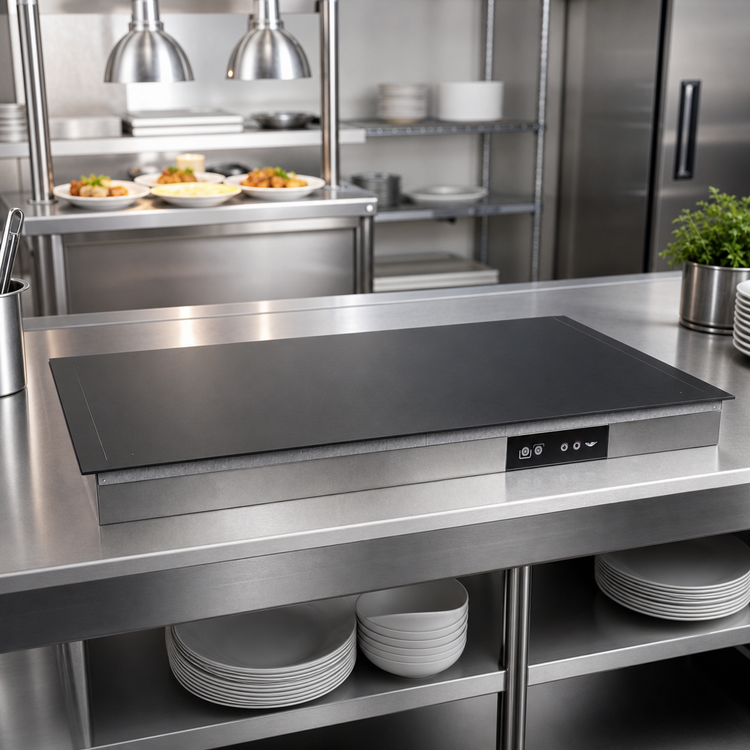

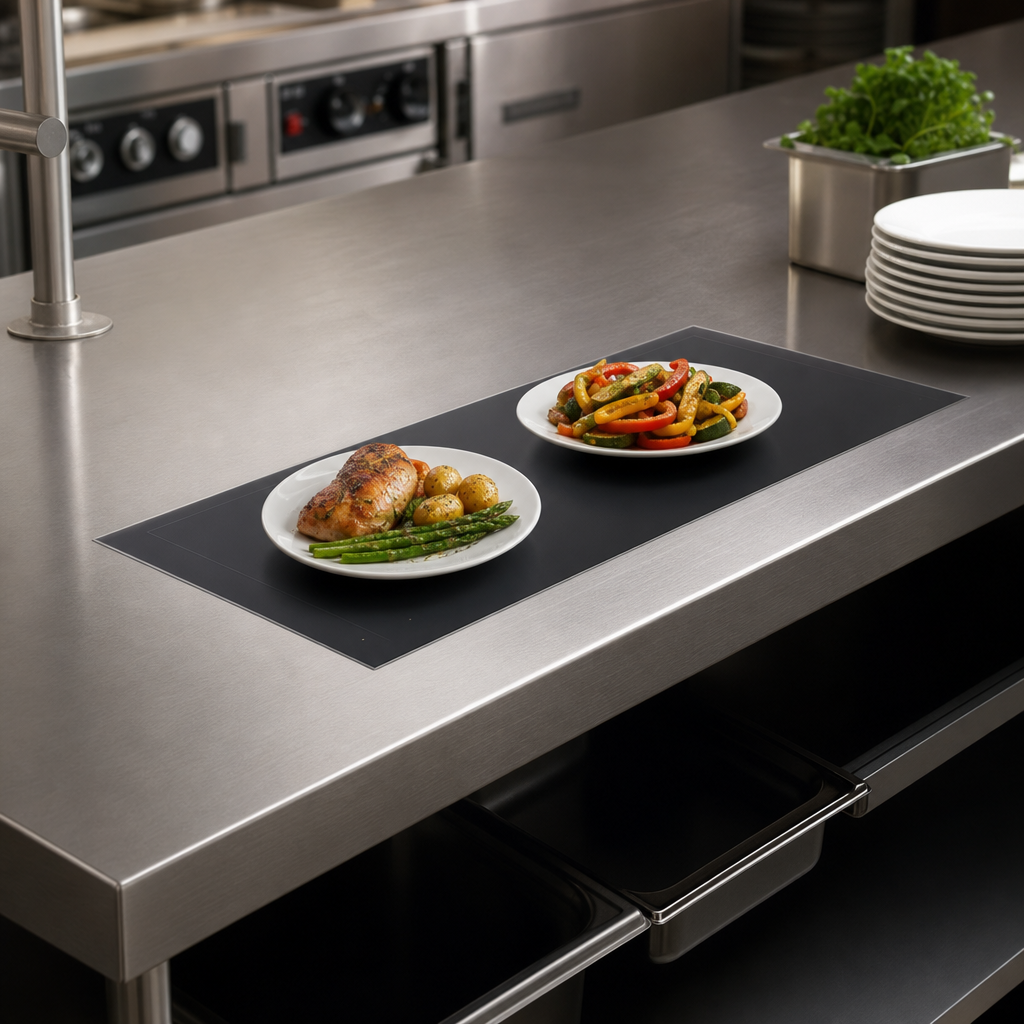

Model FC-4HS-24120-BKFKeep plated or packaged foods at the perfect serving temperature without sacrificing counter space or presentation. This Vollrath flush-mount drop-in shelf installs level with your countertop, offering two independently controlled warming zones and the durability of a scratch-resistant black aluminum hardcoat surface.
Key Features
- Dual warming zones can be run together or separately for energy savings during slow periods.
- Nine precise heat settings governed by a digital thermostatic controller.
- Zero-clearance design fits countertops up to 2 in (5.1 cm) thick—no spacer required.
- Stamped zone markers make it easy for staff to center pans and trays.
- Heavy-duty black aluminum hardcoat cleans quickly and stands up to daily commercial use.
- 6 ft (1.8 m) power cord with NEMA 5-15P plug + 5 ft (1.5 m) control cord for flexible routing.
- cULus & NSF listed for safe operation in commercial kitchens and self-serve areas.
At-a-Glance Specifications
| Item number | FC-4HS-24120-BKF |
|---|---|
| Shelf material / finish | Black aluminum hardcoat |
| Overall length | 26 in (660 mm) |
| Countertop cut-out | 24 ½ in × 25 ¼ in (622 mm × 641 mm) |
| Maximum load | 50 lb (22.7 kg) |
| Heat zones | 2 independent zones | 9 settings each |
| Electrical | 120 V / 60 Hz / 1-ph, 304 W, 2.5 A |
| Plug | NEMA 5-15P |
| Agency listings | cULus, NSF |
| Warranty | Standard Vollrath limited warranty (see vollrathfoodservice.com) |
Installation & Safety
- Indoor use only. Countertop material must tolerate surface temperatures up to 220 °F (104 °C).
- Provide access to the underside junction box for future service.
- Do not modify the factory-installed power cord or plug—doing so voids the warranty.
Pairing with a Vollrath heat strip? Select a strip one size longer than this 26″ shelf to ensure even coverage.
