Vollrath  |  SKU: FC-4DH-05208-T

Vollrath FC-4DH-05208-T Steam Tables & Food Wells

$3,819.15
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Catalog page Warranty sheet
Related Searches
Food Holding & Warming Equipment Steam Tables & Food Wells

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

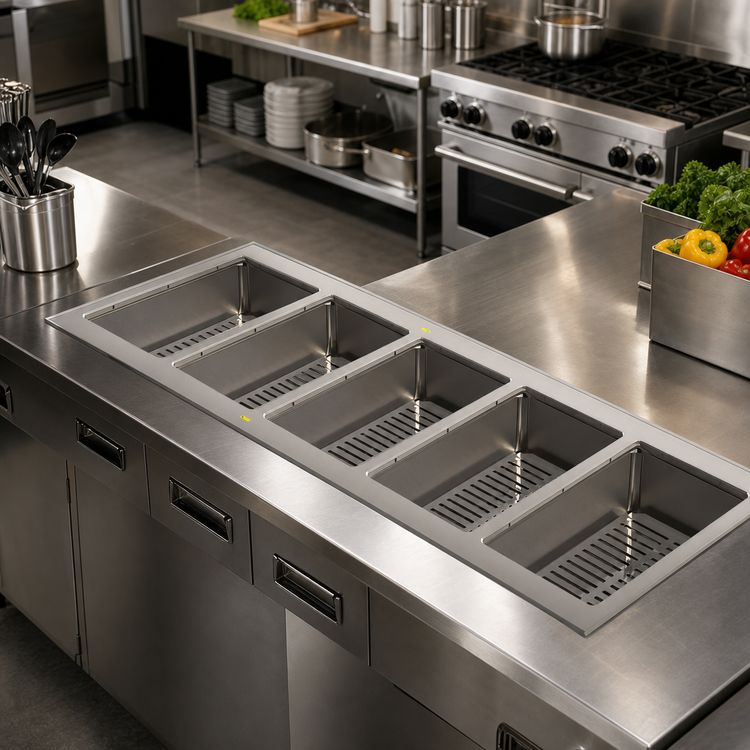

Vollrath FC-4DH-05208-T 5-Well Dry Hot Food Drop-In

208-240 V • Thermostatic Controls • Made in USA

Give your serving line the speed and consistency it deserves with Vollrath’s waterless, 5-well drop-in. Independent thermostatic controls let you hold entrées, sides and sauces at precise serving temperatures—no water, drains or hard-wiring required.

Key Features

  • Waterless operation meets NSF 4 standards—eliminates filling, draining and lime-scale issues.
  • Five full-size wells accept fractional pans up to 6 in (15.2 cm) deep.
  • Independent thermostatic controls with power indicator lights for each well.
  • 300-series stainless-steel top flange and wells with insulation on all sides, including between wells.
  • Moisture-resistant, open-element design reaches serving temperature fast.
  • Remote stainless-steel control panel on a 4 ft (121.9 cm) tether for flexible mounting.
  • 6 ft (1.8 m) factory-installed cord with NEMA 6-30 plug—no electrician needed.
  • Zero-clearance installation; standard mounting clips handle counters up to 3 in (7.6 cm) thick.
  • NSF & cULus listed; built and assembled in the USA.

Specifications

Model / Item # FC-4DH-05208-T
Number of wells 5 (dry, waterless)
Control type Independent thermostatic
Voltage / Phase 208-240 V / 60 Hz / 1-ph
Wattage per well 750 – 1 000 W
Total wattage 3 750 – 5 000 W
Amperage 18.0 – 20.8 A
Plug type NEMA 6-30P
Overall dimensions 68 in W × 26 in D × 15 in H
(172.7 cm × 66 cm × 38.1 cm)
Countertop cut-out 67 ¼ in W × 25 ¼ in D
(170.8 cm × 64.1 cm)
Cord length 6 ft (1.8 m)
Certifications NSF 4, cULus
Origin Made in USA

What’s in the Box?

  • 5-well dry hot drop-in unit
  • Stainless-steel remote control panel (tethered)
  • Factory-installed gasket & insulation
  • Standard mounting clips
  • 6 ft cord with NEMA 6-30 plug
  • Owner’s manual & warranty information

Perfect For

  • Cafeterias & K-12 serving lines
  • Self-service buffets & salad bars
  • Hotels, casinos & convention centers
  • QSR & fast-casual restaurants needing modular steam-table replacements
Made-to-order: this drop-in is built to your specifications and cannot be canceled or returned once ordered.

Not for use with water or plastic pans. Standard one-year limited warranty—see vollrathfoodservice.com for full details.

Features & Specs

Manufacturer

Vollrath

Certifications

NSF, cULus, Made in USA

Height

15.0in

Width

68.0in

Depth

26.0in

Shipping Weight

192.0lbs

Style

individual pans

Controls

thermostatic controls

Drain

without drain

Insulated or Non-Insulated

insulated

Pan Capacity

(5) full size (12" x 20")

Wet or Dry operation

dry

Construction

stainless steel construction

Specifications

Hot Food Well Drop-In Unit, electric, dry operation only, (5) well, thermostatic control, 68"W x 26"D x 15"H, stainless steel remote control panel, includes mounting clips, 208-240/60/1-ph, 750-1000 watts per well, 18.0-20.8 amps, cord with NEMA 6-30 plug, NSF, cULus, Made in USA, (made to order) (Refer to vollrathfoodservice.com for full warranty policy)
