Vollrath  |  SKU: FC-4DH-05208-I

Vollrath FC-4DH-05208-I Steam Tables & Food Wells

$3,514.90
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Catalog page Warranty sheet
Related Searches
Food Holding & Warming Equipment Steam Tables & Food Wells

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

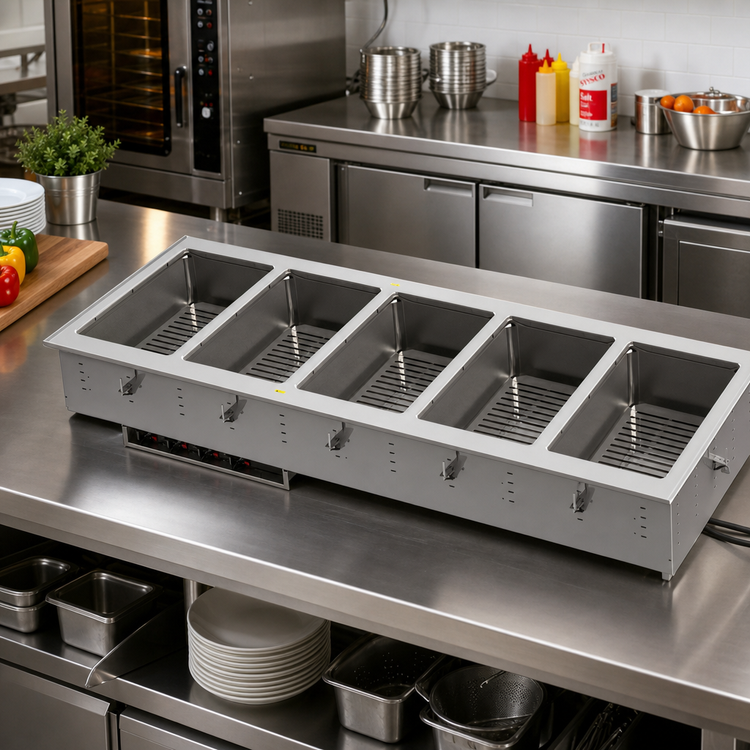

Vollrath FC-4DH-05208-I Five-Well Dry Hot Food Drop-In

Electric • Infinite Control • 208-240 V / 1-Phase

Bring consistent, water-free heat to every serving line with Vollrath’s FC-4DH-05208-I. This made-to-order, five-well drop-in delivers precise holding temperatures without the maintenance and mess of traditional wet wells—ideal for buffets, cafeterias and commissaries that demand reliability, speed and easy installation.

Why You’ll Love It

  • Waterless design – no refilling, draining or limescale to manage.
  • Five full-size 300-series stainless-steel wells, each independently controlled with an infinite knob and power-indicator light.
  • 6″ (15.2 cm) pan depth capacity; accepts full-size or fractional pans (adapter bars recommended).
  • Zero-clearance, top-mount installation—no trim rings required for non-metallic countertops.
  • Factory-wired 6′ (1.8 m) cord with NEMA 6-30P; no hard-wiring needed.
  • Stainless-steel remote control panel (4′ tether) and standard mounting clips for counters up to 3″ (7.6 cm) thick included.
  • Insulated on all non-exposed sides—including between wells—for maximum energy efficiency.
  • NSF 4 & cULus listed; proudly Made in the USA.

Technical Specs

Model FC-4DH-05208-I (made to order)
Number of Wells 5 (dry operation only)
Control Type Infinite, individual for each well
Wattage per Well 750 – 1000 W
Total Wattage 3.75 – 5.0 kW
Voltage / Phase 208-240 V / 60 Hz / 1-Ph
Amperage 18.0 – 20.8 A
Plug NEMA 6-30P (factory installed)
Overall Dimensions 68″ W × 26″ D × 15″ H
(172.7 × 66 × 38.1 cm)
Cut-Out Required 67¼″ W × 25¼″ D
(170.8 × 64.1 cm)
Control-Panel Cut-Out 22½″ W × 35⁄16″ H
(57.2 × 8.4 cm)
Agency Listings NSF 4, cULus
Country of Origin USA

Optional Accessories

  • Sheet-pan adapter – Item #19186
  • Adapter bars for fractional pans
Made-to-Order: Drop-ins are built to your specification and cannot be canceled or returned. Verify cut-out dimensions and electrical requirements before ordering.

Not for use with plastic pans. Room temperature and HVAC can affect holding performance.

One-year limited warranty. For full policy details, please see  vollrathfoodservice.com.

Features & Specs

Manufacturer

Vollrath

Certifications

NSF, cULus, Made in USA

Height

15.0in

Width

68.0in

Depth

26.0in

Shipping Weight

214.0lbs

Controls

infinite controls

Insulated or Non-Insulated

insulated

Style

individual pans

Wet or Dry operation

dry

Drain

without drain

Construction

stainless steel construction

Pan Capacity

(5) full size (12" x 20")

Specifications

Hot Food Well Drop-In Unit, electric, dry operation only, (5) well, infinite control, 68"W x 26"D x 15"H, stainless steel remote control panel, includes mounting clips, 208-240/60/1-ph, 750-1000 watts per well, 18.0-20.8 amps, cord with NEMA 6-30 plug, NSF, cULus, Made in USA, (made to order) (Refer to vollrathfoodservice.com for full warranty policy)
