Vollrath  |  SKU: FC-4DH-04208-T

Vollrath FC-4DH-04208-T Steam Tables & Food Wells

$3,163.10
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Catalog page Warranty sheet
Related Searches
Food Holding & Warming Equipment Steam Tables & Food Wells

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

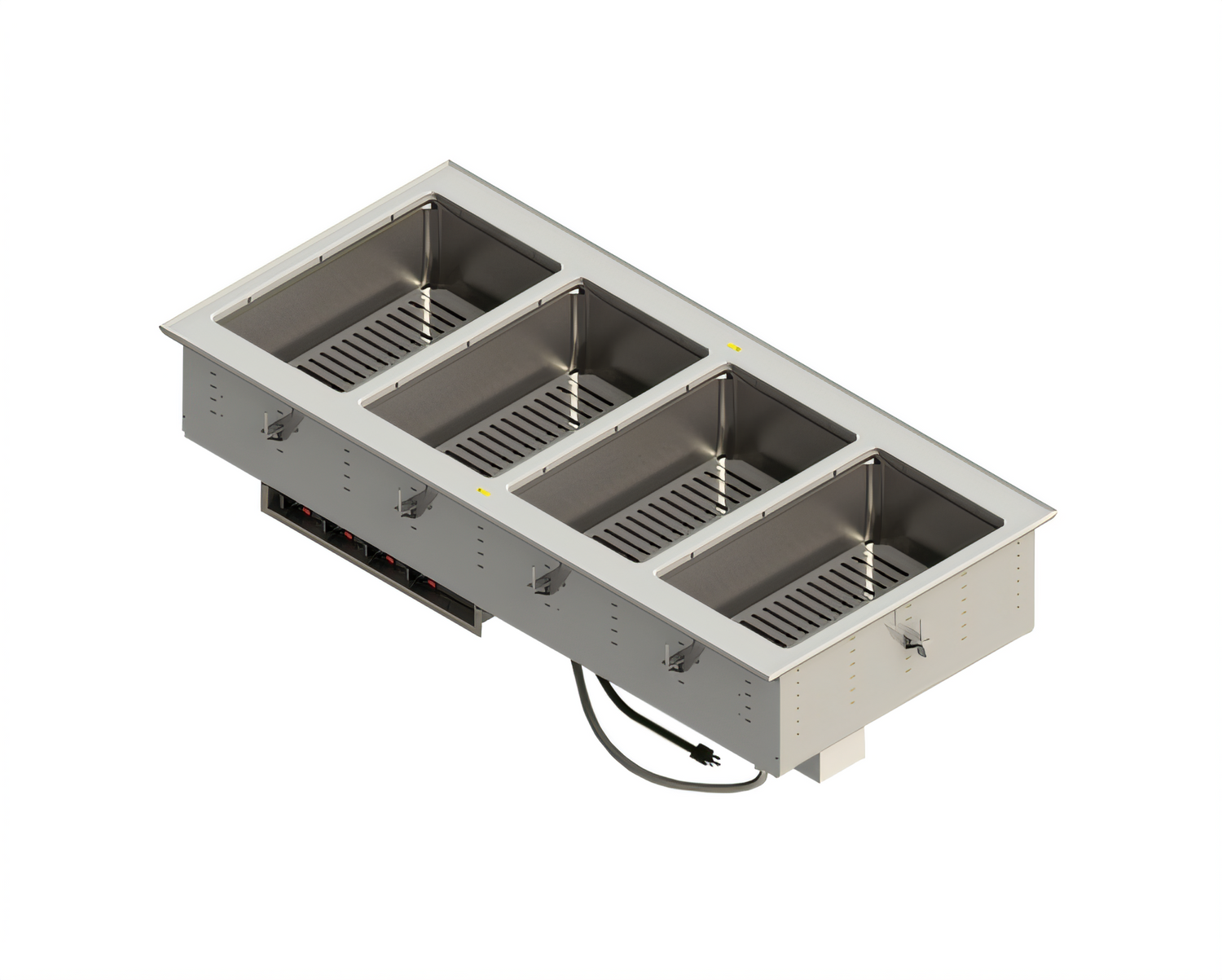

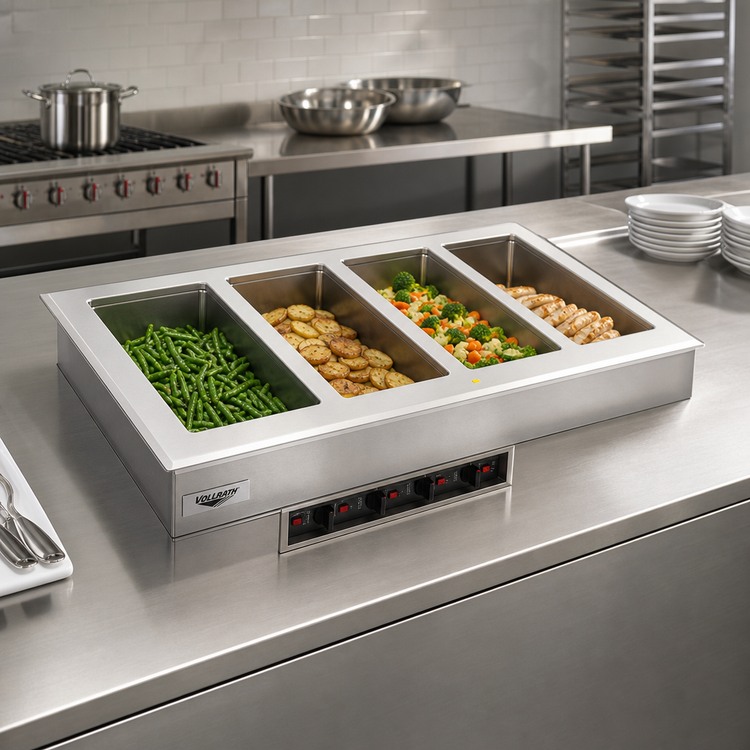

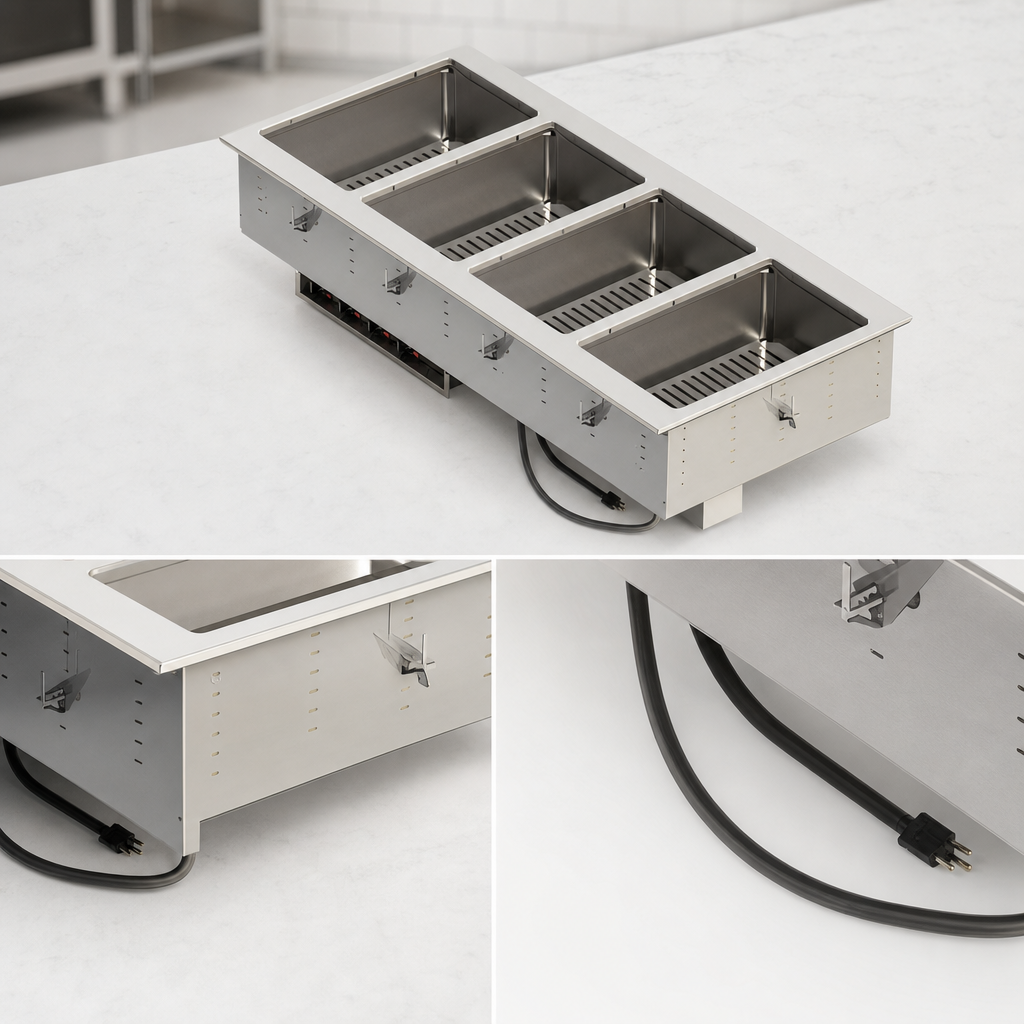

Vollrath FC-4DH-04208-T 4-Well Modular Dry Hot Drop-In

208-240 V • Thermostatic Control • Made in USA

Deliver consistent, water-free hot holding with Vollrath’s four-well dry drop-in. Built for demanding food-service lines, each stainless-steel well is independently thermostatically controlled, allowing you to keep entrées, sides and sauces at safe serving temperatures without the hassle of plumbing.

Key Features & Benefits

  • Waterless design eliminates filling, draining and lime-scale issues.
  • Four full-size 12" × 20" wells accept pans up to 6" deep; adapter bars recommended for fractional pans.
  • Individual thermostatic knobs with power lights for precise temperature control.
  • 300-series stainless-steel top flange and drawn wells resist corrosion and clean easily.
  • Open-element heating delivers fast pre-heat with 750-1000 W of holding power per well.
  • Fully insulated on all sides—including between wells—to improve efficiency and protect surrounding surfaces.
  • Remote stainless-steel control panel on a 4' (121.9 cm) tether for flexible mounting.
  • 6' (1.8 m) cord with NEMA 6-30P plug; no hard-wiring required.
  • Zero-clearance installation with factory-installed gasket and mounting clips for counters up to 3" (7.6 cm) thick.
  • NSF 4 and cULus listed for safe, dependable operation in commercial kitchens.

Specifications

Model FC-4DH-04208-T
Operation Electric, dry (waterless)
Number of wells 4 (independent)
Control type Thermostatic
Power 750-1000 W per well (3.0-4.0 kW total)
Voltage / Phase 208-240 V, 60 Hz, 1-ph
Amps 14.4-16.7 A
Plug NEMA 6-30P (factory installed)
Overall dimensions (W × D × H) 54 3/4" × 26" × 15" (139.1 × 66 × 38.1 cm)
Countertop cutout 54" × 25 1/4" (137.2 × 64.1 cm)
Control panel cutout 18 3/4" × 3 5/16" (47.6 × 8.4 cm)
Certifications NSF, cULus
Country of origin USA

Perfect For

  • Buffet lines, cafeterias & self-serve stations
  • Hotels, resorts and convention centers
  • Corporate, school or healthcare dining
  • Catered venues requiring quick, plumbing-free installation
Made-to-order product. Orders cannot be canceled or returned. Use only with metal pans—plastic pans may melt and will void the warranty.

Standard one-year limited warranty. For complete details, visit vollrathfoodservice.com. Optional sheet-pan adapter (item 19186) sold separately.

Features & Specs

Manufacturer

Vollrath

Certifications

NSF, cULus, Made in USA

Height

15.0in

Width

54.75in

Depth

26.0in

Shipping Weight

126.0lbs

Style

individual pans

Controls

thermostatic controls

Drain

without drain

Insulated or Non-Insulated

insulated

Wet or Dry operation

dry

Pan Capacity

(4) full size (12" x 20")

Construction

stainless steel construction

Specifications

Hot Food Well Drop-In Unit, electric, dry operation only, (4) well, thermostatic control, 54-3/4"W x 26"D x 15"H, stainless steel remote control panel, includes mounting clips, 208-240/60/1-ph, 750-1000 watts per well, 14.4-16.7 amps, cord with NEMA 6-30 plug, NSF, cULus, Made in USA, (made to order) (Refer to vollrathfoodservice.com for full warranty policy)
