Vollrath FC-4DH-04208-I Steam Tables & Food Wells
Description

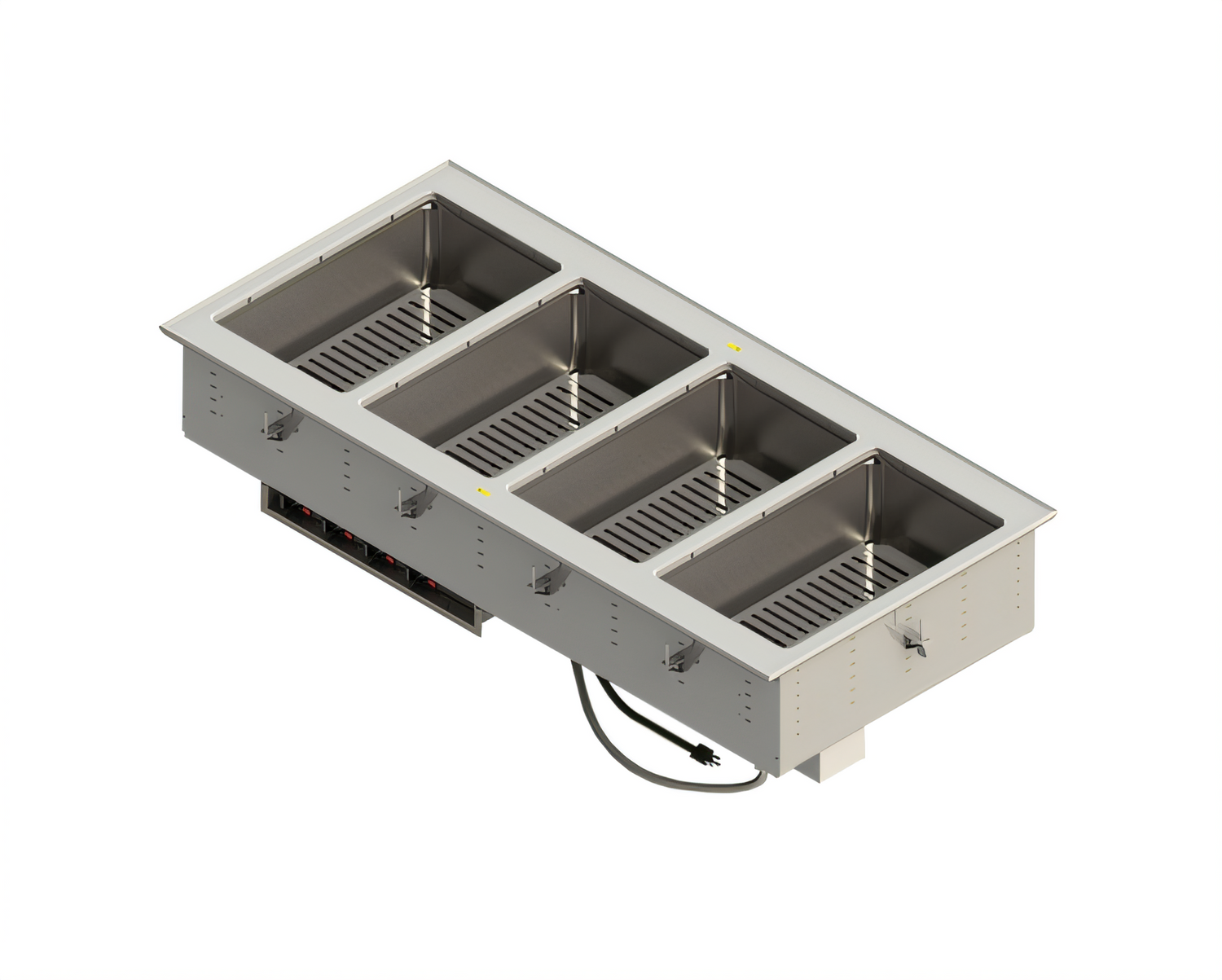

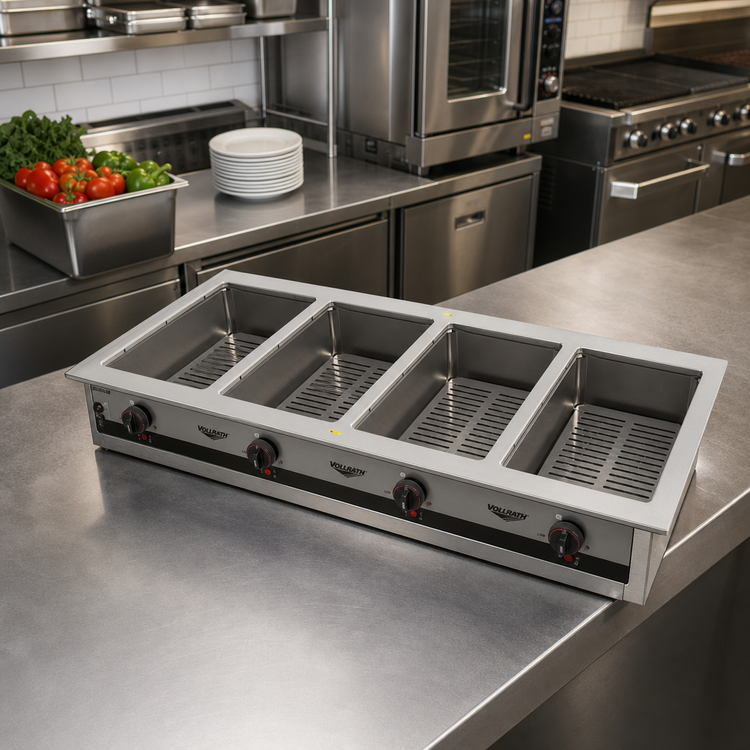

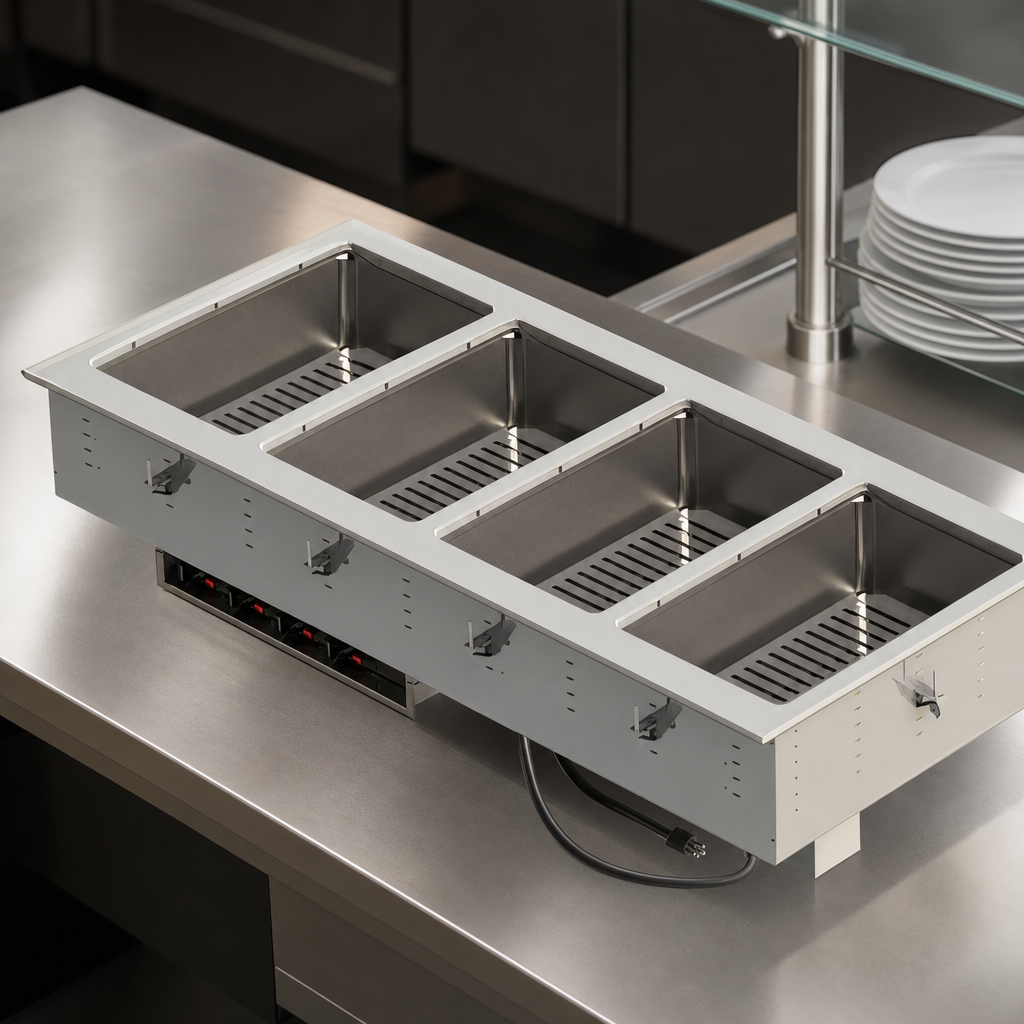

Vollrath FC-4DH-04208-I 4-Well Waterless Drop-In Hot Food Well
208-240 V • Infinite Controls • Made in USAGive your serving line the flexibility of true dry (waterless) holding with this four-well drop-in from Vollrath. Engineered for simple, zero-clearance installation, the FC-4DH-04208-I keeps foods at safe, appetizing temperatures without the headaches of plumbing, draining or hard-wiring.
Why You’ll Love It
- Waterless design – meets NSF 4 without water; no refills, no lime scale, no drains.
- Independent infinite controls with power indicator lights for each well.
- Remote stainless-steel control panel on a 4 ft (121.9 cm) tether for flexible mounting.
- Top-mount, zero-clearance installation – standard gasket & mounting clips included for counters up to 3 in (7.6 cm) thick.
- Rugged 300-series stainless steel flange and drawn wells, fully insulated on all non-exposed sides.
- Open-element heating with moisture-resistant shroud for quick heat-up and easy service access.
- Accepts full-size or fractional pans up to 6 in (15.2 cm) deep (adapter bars recommended for fractional pans; not for use with plastic pans).
- 6 ft (1.8 m) cord and NEMA 6-30P plug – no electrician required.
- NSF Listed, cULus Listed, and proudly Made in the USA.
Technical Specifications
| Manufacturer / Model | Vollrath FC-4DH-04208-I |
|---|---|
| Wells / Capacity | 4 full-size wells • pans up to 6 in (15.2 cm) deep |
| Control Type | Individual infinite (dial) controls |
| Overall Dimensions | 54 3/4 in W × 26 in D × 15 in H (139 × 66 × 38.1 cm) |
| Cut-Out (Drop-In) Size | 54 in W × 25 1/4 in D (137.2 × 64.1 cm) |
| Electrical | 208-240 V / 60 Hz / 1-phase • 750-1000 W per well (3.0-4.0 kW total) |
| Amperage | 14.4 – 16.7 A |
| Cord & Plug | 6 ft (1.8 m) cord with NEMA 6-30P |
| Construction | 300-series stainless steel wells & flange; insulated; open element with stainless shroud |
| Certifications | NSF 4, cULus |
| Country of Origin | USA |
| Warranty | Standard 1-year parts & labor (see Vollrath for full policy) |
| Optional Accessory | Sheet-pan adapter bar, item #19186 (sold separately) |
Indoor use only. Ambient room temperature and HVAC conditions can affect holding performance.
