Vollrath FC-4DH-03120-I Steam Tables & Food Wells
Description
Vollrath FC-4DH-03120-I | 3-Well Modular Dry Hot Drop-In
120 V • Infinite individual controls • Made in USAGive your serving line the flexibility of water-free holding with Vollrath’s FC-4DH-03120-I dry hot drop-in. Three independently-controlled 12" x 20" wells deliver rapid, even heat without the hassles of water or drains, while an easy-to-mount remote control panel keeps settings right at your fingertips.
Why You’ll Love It

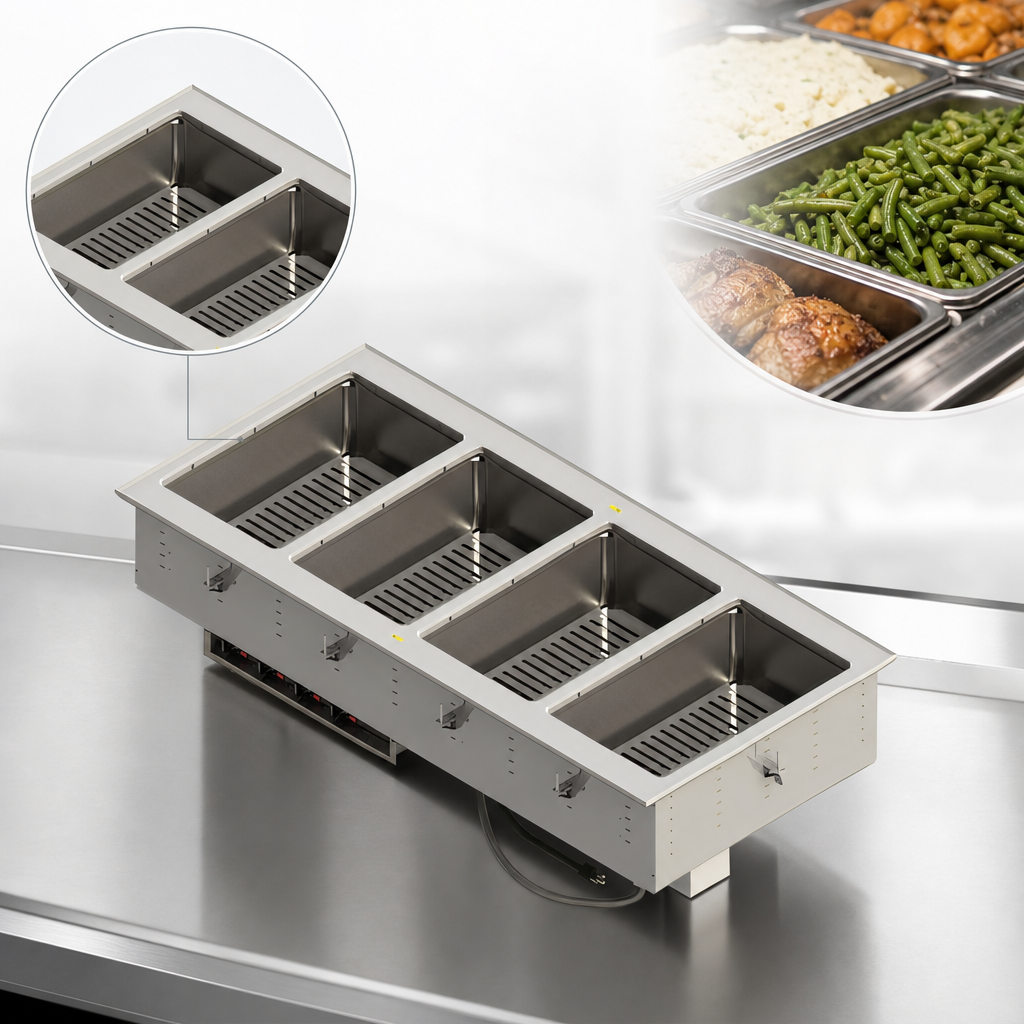

- Waterless design meets NSF 4—no plumbing, no lime scale, no daily draining.
- 1000 W open element in each well for fast recovery and consistent holding temperatures.
- Individual infinite controls with power indicator lights housed in a stainless-steel control panel (4 ft tether for flexible placement).
- 300-series stainless-steel top flange and drawn wells resist corrosion and clean up easily.
- Fully insulated on all sides—including between wells—for energy efficiency and cooler counter surfaces.
- Zero-clearance installation; no trim rings required for non-metallic countertops.
- Ships with gasket & mounting clips for counters up to 3" (7.6 cm) thick—no hard-wiring needed thanks to the factory-installed cord & plug.
- Accepts full-size or fractional pans up to 6" (15.2 cm) deep (use adapter bars when mixing fractional pans).
- cULus & NSF listed for foodservice, built and assembled in the USA.
At-a-Glance Specs
| Model | FC-4DH-03120-I |
|---|---|
| Number of wells | 3 (12" × 20" each) |
| Control type | Infinite, one per well |
| Power per well | 1000 W (3000 W total) |
| Electrical | 120 V / 60 Hz / 1-ph • 25.0 A |
| Plug / cord | 6 ft cord with NEMA 5-50P |
| Overall dimensions | 41.5" W × 26" D × 15" H (105.4 × 66 × 38.1 cm) |
| Countertop cutout | 40.75" W × 25.25" D (103.5 × 64.1 cm) |
| Control panel cutout | 15" W × 3 5⁄16" H (38.1 × 8.4 cm) |
| Agency listings | NSF, cULus |
| Warranty | Standard 1-year parts & labor (see VollrathFoodservice.com for full policy) |
Operating Tips
- Pre-heat wells before loading food pans for fastest recovery.
- Stir product and monitor food temperatures regularly to ensure safe holding.
- Not intended for use with plastic pans.
Vollrath® is a registered trademark of The Vollrath Co., L.L.C. For complete warranty details, visit VollrathFoodservice.com.
