Vollrath  |  SKU: FC-4DH-02120-T

Vollrath FC-4DH-02120-T Steam Tables & Food Wells

$1,875.10
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options

Documents

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

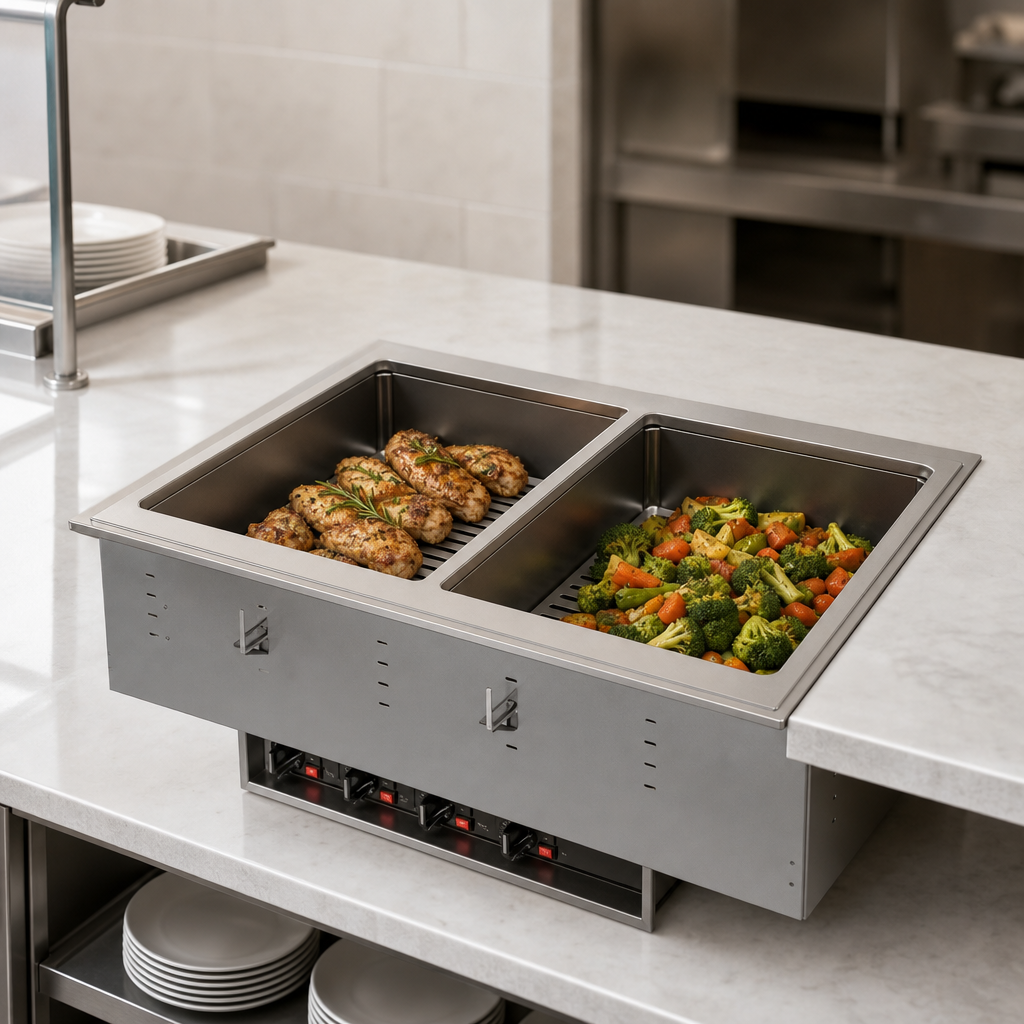

Dry Hot Drop-In Food Well – 2 Wells, 120 V Thermostatic

Vollrath Model FC-4DH-02120-T • Made in USA

Serve with confidence—no water, no drains, no mess. Vollrath’s double-well dry drop-in keeps food hot and safe while giving you total installation freedom and true plug-and-play convenience.

Why You’ll Love It
  • Waterless operation eliminates refilling, scaling and drain maintenance.
  • Two independently controlled 1000 W wells heat full-size or fractional pans up to 6 in (15.2 cm) deep.
  • Precise thermostatic controls with indicator lights on a stainless-steel remote panel (4 ft / 121.9 cm tether for flexible mounting).
  • Zero-clearance, top-mount design—gasket and mounting clips (for counters ≤ 3 in) included.
  • 300-series stainless-steel flange & wells, fully insulated on all non-exposed sides.
  • Open, moisture-resistant elements for rapid heat-up and easy service access.
  • 6 ft cord with NEMA 5-30P plug—no hard-wiring required.
  • NSF 4 & cULus listed to meet demanding food-service standards.
  • Optional sheet-pan adapter (Item 19186) lets one well hold a full 18 × 26 in pan.
  • Not for use with plastic pans.
Perfect For

Cafeterias, buffets, concessions, kiosks, schools, hospitals, corporate dining—anywhere you need reliable hot holding without water management.

Technical Specifications
Item number FC-4DH-02120-T
Number of wells 2 (dry)
Control type Independent thermostatic
Exterior dimensions (W × D × H) 28 1⁄4 in × 26 in × 15 in (71.8 × 66 × 38.1 cm)
Pan capacity (2) full-size or fractional pans, up to 6 in deep
Wattage 1000 W per well (2000 W total)
Voltage / phase 120 V, 60 Hz, 1-ph
Amperage 16.7 A
Plug NEMA 5-30P (factory-installed cord)
Construction 300-series stainless-steel wells, flange & shrouds; stainless-steel remote control panel
Agency listings NSF 4, cULus
Country of origin USA
Made-to-order: Drop-ins are built specifically for your project and cannot be cancelled or returned once ordered.

Refer to Vollrath’s full warranty policy at vollrathfoodservice.com.

Features & Specs

Manufacturer

Vollrath

Certifications

NSF, cULus, Made in USA

Height

15.0in

Width

28.25in

Depth

26.0in

Shipping Weight

100.0lbs

Insulated or Non-Insulated

insulated

Style

individual pans

Controls

thermostatic controls

Drain

without drain

Pan Capacity

(2) full size (12" x 20")

Wet or Dry operation

dry

Construction

stainless steel construction

Specifications

Hot Food Well Drop-In Unit, electric, dry operation only, (2) well, thermostatic control, 28-1/4"W x 26"D x 15"H, stainless steel remote control panel, includes mounting clips, 120/60/1-ph, 1000 watts per well, 16.7 amps, cord with NEMA 5-30 plug, NSF, cULus, Made in USA, (made to order) (Refer to vollrathfoodservice.com for full warranty policy)
