Description

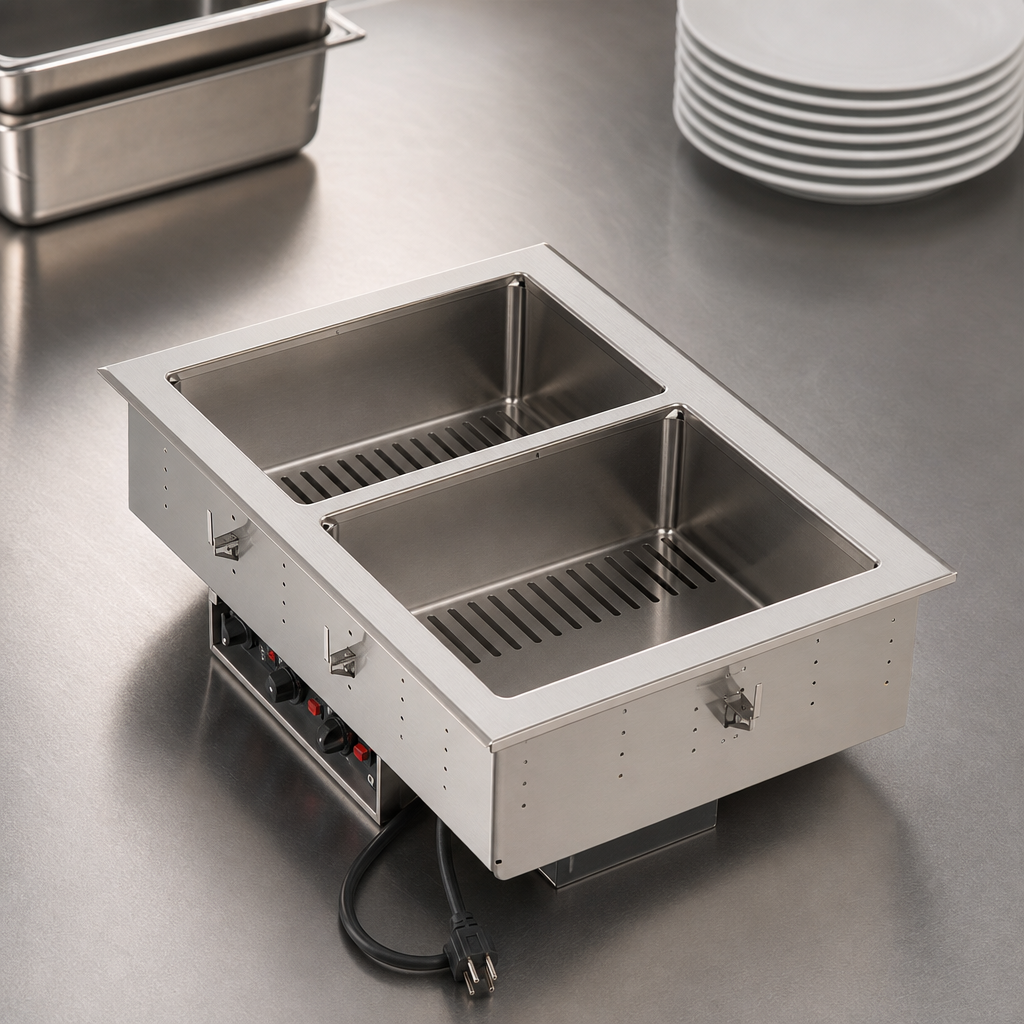

Vollrath FC-4DH-02120-I Waterless 2-Well Drop-In Hot Food Unit – 120V

Infinite controls • 1000 W per well • Made in USA

Hold entrées, sides and sauces at safe serving temperatures without ever adding water. The Vollrath FC-4DH-02120-I is a compact, two-well module that installs flush in virtually any countertop, delivers fast, even heat, and cleans up in seconds—perfect for buffets, cafeterias, concessions and more.

Key advantages

  • Waterless design eliminates refilling, draining and limescale buildup.
  • 300-series stainless steel top flange & drawn wells resist corrosion and wipe clean quickly.
  • Independent infinite controls with power lights let staff dial-in holding temps for each well.
  • Remote stainless-steel control panel (4 ft tether) mounts where it’s most convenient.
  • Open-element heating plus full-perimeter insulation ensure rapid recovery & energy efficiency.
  • Ships ready to plug in—6 ft (1.8 m) cord with NEMA 5-30P; no hard-wiring required.
  • Zero-clearance installation; gasket & mounting clips for counters up to 3" thick included.
  • Accepts two full-size or fractional pans up to 6" deep (adapter bars recommended).
  • NSF 4 & cULus listed for safe commercial operation.
  • Not for use with plastic pans.

Specifications

Model FC-4DH-02120-I
Wells / Capacity 2 full-size pans (or fractional equivalents)
Operation Electric, dry (waterless)
Control type Infinite, independent for each well
Overall dimensions (W × D × H) 28 1⁄4" × 26" × 15"  (71.8 × 66 × 38.1 cm)
Countertop cut-out 27 1⁄2" × 25 1⁄4"  (69.9 × 64.1 cm)
Control panel cut-out 11 3⁄4" × 3 5⁄16"  (29.8 × 8.4 cm)
Voltage / Phase 120 V / 60 Hz / 1-ph
Wattage 1000 W per well (2000 W total)
Amperage 16.7 A
Plug NEMA 5-30P, straight blade
Cord length 6 ft (1.8 m) factory-installed
Construction 300-series stainless steel wells & flange; moisture-resistant element shroud
Certifications NSF 4, cULus
Origin Made in the USA

Perfect for

  • Cafeteria & buffet service lines
  • Convenience stores & kiosks
  • Healthcare & institutional feeding
  • Food trucks and concession stands
Made-to-Order: This drop-in unit is produced to your specifications and cannot be cancelled or returned once manufacturing has begun.

Standard one-year limited warranty. See full policy at vollrathfoodservice.com.

Features & Specs

Manufacturer

Vollrath

Certifications

NSF, cULus, Made in USA

Height

15.0in

Width

28.25in

Depth

26.0in

Shipping Weight

101.0lbs

Controls

infinite controls

Drain

without drain

Wet or Dry operation

dry

Style

individual pans

Insulated or Non-Insulated

insulated

Construction

stainless steel construction

Pan Capacity

(2) full size (12" x 20")

Specifications

Hot Food Well Drop-In Unit, electric, dry operation only, (2) well, infinite control, 28-1/4"W x 26"D x 15"H, stainless steel remote control panel, includes mounting clips, 120/60/1-ph, 1000 watts per well, 16.7 amps, cord with NEMA 5-30 plug, NSF, cULus, Made in USA, (made to order) (Refer to vollrathfoodservice.com for full warranty policy)
