Vollrath FC-4DH-01120-T Steam Tables & Food Wells
Description
Vollrath FC-4DH-01120-T Dry Hot Food Well Drop-In – 1 Well, 120 V
Waterless • Thermostatic Control • Made in USAKeep menu items hot and appetizing without the headaches of plumbing, drains or hard-wiring. Vollrath’s FC-4DH-01120-T single-well dry drop-in installs flush in your counter, connects to a standard 120 V outlet and delivers precise thermostatic temperature control—all inside a durable 300-series stainless steel package.
Why You’ll Love It

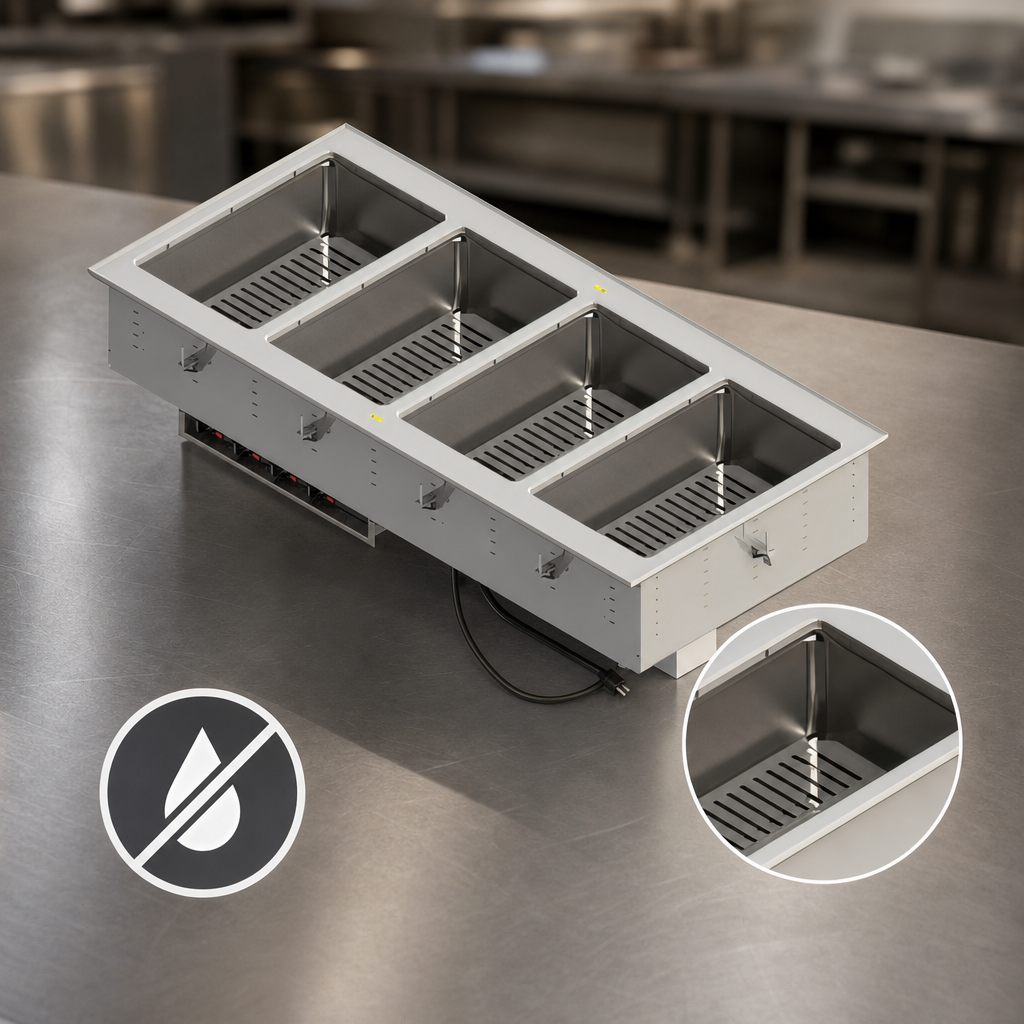

- Waterless design simplifies operation—no filling, flushing or lime scale to worry about.
- 300-series stainless steel top flange & drawn well resist corrosion and clean up fast.
- Thermostatic remote control panel (4 ft tether) lets you mount controls where they’re easiest to reach.
- Six-foot cord with NEMA 5-15P plug; no electrician or hard-wiring required.
- Insulated on all sides for energy efficiency and cooler countertops.
- Accepts one full-size (12 × 20 in) or fractional pans up to 6 in deep (adapter bars recommended for fractional pans).
- Zero-clearance installation—no trim ring needed for non-metal counters.
- NSF & cULus listed for safe, code-compliant operation.
At-A-Glance Specs
| Model | FC-4DH-01120-T |
|---|---|
| Number of Wells | 1 full-size, dry |
| Control Type | Thermostatic, remote stainless-steel panel with pilot light |
| Overall Dimensions | 15 in W × 26 in D × 15 in H (38.1 × 66 × 38.1 cm) |
| Counter Cut-Out | 14 ¼ in W × 25 ¼ in D (36.2 × 64.1 cm) |
| Control-Panel Cut-Out | 7 ½ in W × 3 5⁄16 in H (19.1 × 8.4 cm) |
| Power / Current | 1,000 W • 8.3 A |
| Electrical | 120 V / 60 Hz / 1-phase, 6 ft cord with NEMA 5-15P |
| Construction | Stainless steel well, flange, control panel & moisture-resistant element shroud |
| Certifications | NSF, cULus |
| Origin | Made in USA |
Installation & Operating Notes
- Includes mounting gasket and clips for counters up to 3 in (7.6 cm) thick.
- Indoor use only—ambient room temperature & HVAC can affect holding performance.
- Not for use with plastic pans.
Warranty & Ordering
Standard Vollrath one-year warranty against defects in materials and workmanship. Refer to the full policy at vollrathfoodservice.com.
