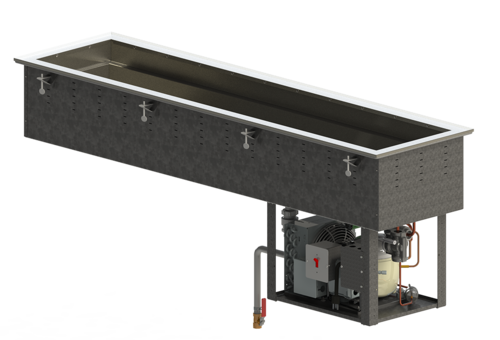

Vollrath 4-Well Refrigerated Short-Side Drop-In Cold Pan, Self-Contained, 120V

Top-Mount Installation, Full-Size Pan Compatible, R290 Refrigerant

Hold cold foods at serving temperature in a durable top-mount drop-in pan built for standard full-size inserts and efficient self-contained refrigeration.

  • 4-well short-side refrigerated cold pan for buffet, salad, and prep lines
  • Top-mount drop-in installation with included mounting clips and under-drip-edge gasket
  • Fits standard 12" x 20" pans up to 6" deep with adapter bars
  • Self-contained R290 refrigeration with insulated well and exterior sidewall coils
  • 20-gauge galvanized steel exterior housing with 300-series stainless steel well components
  • Includes remote on/off switch, 1" integral drain, and 6 ft. power cord with NEMA 5-15P plug

Top-Mount Installation

Designed for top-mount drop-in installation; standard mounting clips are included for counters up to 3 inches thick.

Four-Well Capacity

Provides four chilled wells for self-service buffets, salad bars, and prep lines.

Full-Size Pan Compatibility

Accommodates standard 12" x 20" pans up to 6" deep when used with adapter bars.

Stainless Steel Fabricated Well

300-series stainless steel flange, fabricated well, and optional false bottoms support durability and easy cleaning.

Insulated Refrigeration System

Foamed-in-place polyurethane insulation helps improve cooling efficiency and performance.

R290 Refrigerant

Uses lower-GWP R290 refrigerant and a suspended condensing unit below the well.

Galvanized Steel Exterior

20-gauge galvanized steel exterior housing adds strength for busy service environments.

Drain and Drip Management

Includes a 1" integral drain, under-drip-edge gasket, and full-perimeter drip edge to help control spills and condensation.

Remote On/Off Switch

Remote switch with a 4 ft. cord can be mounted to any cabinet side; 6 ft. power cord with plug included.

Type Short-Side Refrigerated Cold Pan
Style Self-Contained Refrigeration
Installation Type Drop-In
Controls Remote On/Off Switch
Pan Capacity 4 Full-Size Pans
Pan Size Full-Size (12" x 20")
Material Stainless Steel
Finish Galvanized Steel Outer Liner
Interior Finish 300-Series Stainless Steel
Refrigeration Type Self-Contained
Refrigerant Type R290
Horsepower 1/3 HP
Voltage 120 Volts
Hertz 60 Hz
Amps 5.2 Amps
Plug Type NEMA 5-15P
Cord Length 6 ft.
Shipping Weight 225 lb.
Country of Origin USA
Selling Unit Each
Units Per Case 1

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified

Warranty & Protection

Standard warranty against defects in materials and workmanship, plus 4 additional years on the compressor.

Documents

PDF Cutsheet PDF Download PDF Owner's manual PDF Download PDF Warranty sheet PDF Download

Frequently Asked Questions

It accommodates standard 12" x 20" pans up to 6" deep when used with adapter bars.
It is designed for top-mount drop-in installation.
It uses 120V, 60Hz power, draws 5.2 amps, and includes a NEMA 5-15P plug.
Yes. Two customer-supplied louvers, one intake and one discharge, must be installed in the cabinet for adequate ventilation.
It comes with the standard warranty against defects in materials and workmanship, plus four additional years on the compressor.
